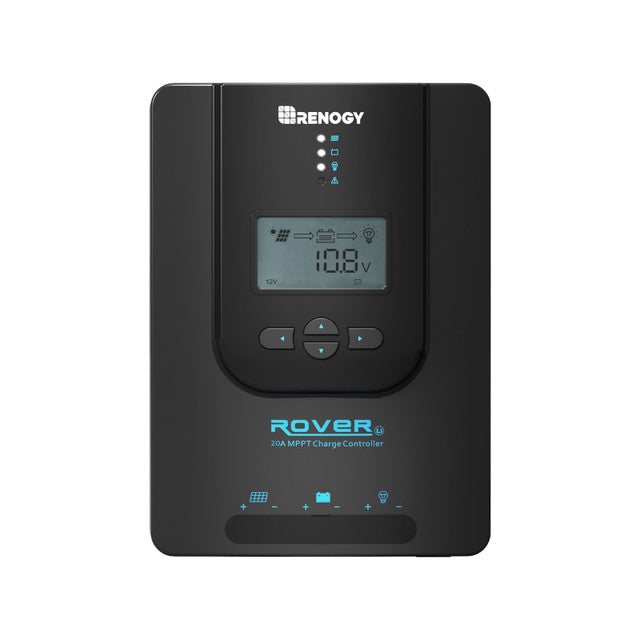

Renogy Rover Li 20 Amp MPPT Solar Charge Controller - Your Solar Energy Powerhouse
Discover the ultimate solution for maximizing your solar energy efficiency with the Renogy Rover Li 20 Amp MPPT Solar Charge Controller. This advanced device is designed to be your go-to power hub for all your solar system needs.
• Maximize Energy Efficiency: With MPPT technology, this charge controller optimizes the conversion of solar energy into usable power, ensuring you get the most out of your solar panels.
• Sleek and Compact Design: Easy to install and operate, the Rover Li 20 is perfect for both residential and commercial applications. It's compatible with all 12V and 24V solar panels, making it a versatile choice for any setup.
• Fast and Efficient Charging: Charge your batteries quickly and efficiently with the Rover Li 20. It can fully charge a 12V 100Ah battery in just 4.9 hours, making it the ideal companion for off-grid adventures.
Take control of your energy consumption and embrace the power of the sun with the Renogy Rover Li 20 Amp MPPT Solar Charge Controller! This device also offers:
- LiPO4 Battery compatibility
- Custom charging parameters
- Real-time monitoring
- Remote energy control
- Unmatched efficiency in tracking, conversion, and heat dissipation

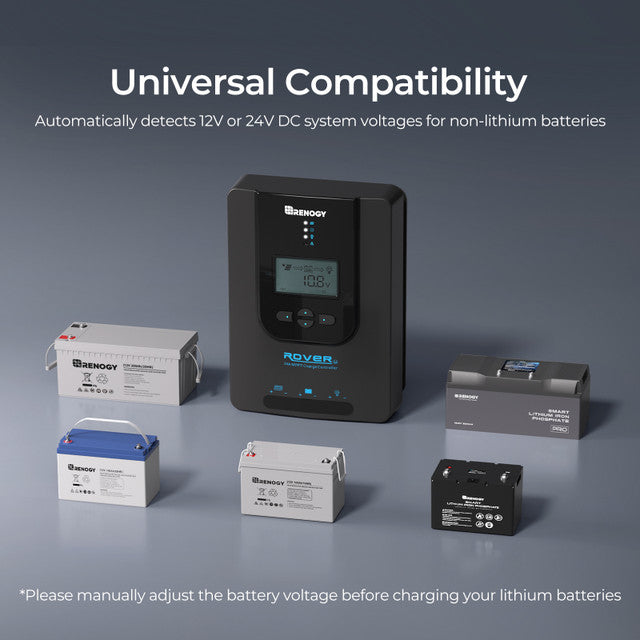

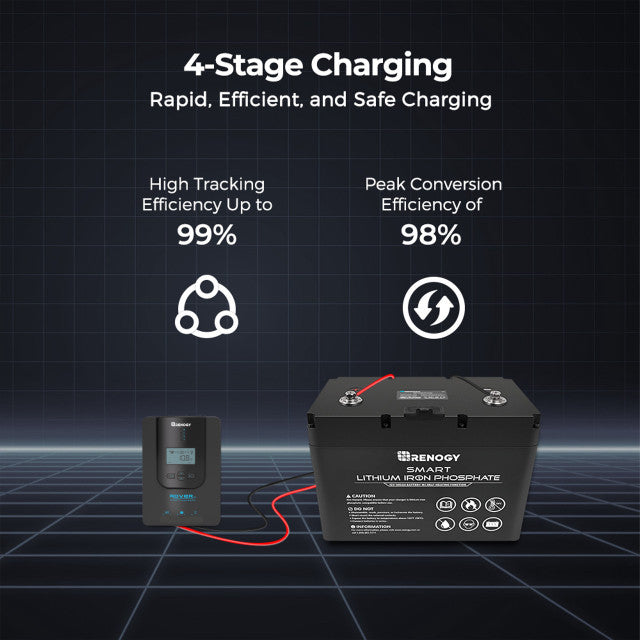

- Intelligent 4-stage charging & automatic 12V/24V voltage detect

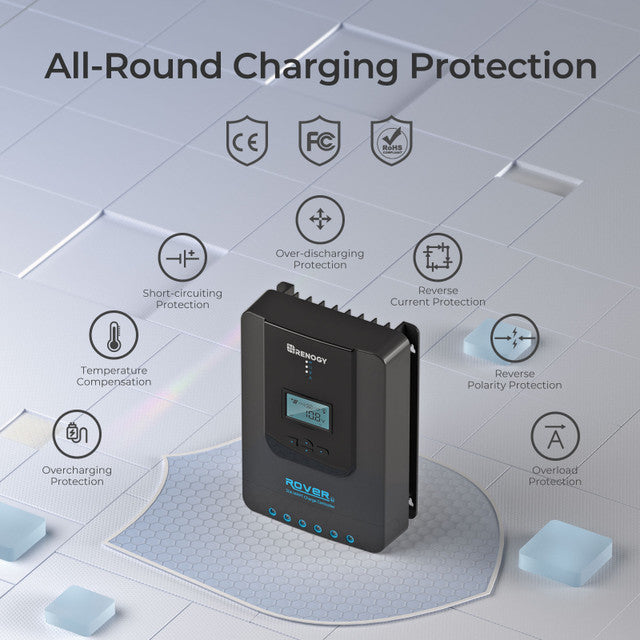

- Multiple electronic protections
- Remote monitoring with RS485 communication port
- Low-temperature charging protection
SPECIFICATIONS:
Electrical Parameters
Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)
Rated Charge Current: 20A
Max. PV Input Voltage: 95 VDC
Max. PV Input Power: 12V/260W, 24V/520W
Power Consumption: £¼100mA/12V; £¼58mA/24V
Max Battery Voltage: 32V
Ground Type: Negative
Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.
Environmental Data
Protection Level: IP32
Operating Temperature Range: -35¡ãC to 45¡ãC; -31¡ãF to 113¡ãF
Storage Temperature Range: -35¡ãC to 75¡ãC; -31¡ãF to 167¡ãF
Operating / Storage Humidity: ¡Ü 90%, No Condensation
Temperature Compensation: -3mV/¡ãC/2V
Mechanical Specifications
Dimensions: 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in
Weight: 3.1 lbs / 1.4 kg
Max. Terminals Size: 8 AWG 10mm2
Certifications
CE: YES
FCC Class B Part 15 Compliant: YES
Warranty: Material and workmanship warranty: 3 Year
WHAT'S IN THE BOX:
1 x Renogy Rover 20A MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x User Manual
The Renogy Rover Li 20 Amp MPPT Solar Charge Controller is perfect for both homeowners and businesses looking to harness solar energy. Its sleek design makes it easy to install in any solar setup. With dimensions of 210 x 151 x 68 mm (8.27 x 5.95 x 2.69 in) and a weight of 3.1 lbs (1.4 kg), it's compact and lightweight. Use it to power your home appliances or commercial equipment efficiently, whether you're off-grid or connected to the grid. Enjoy features like MPPT technology for maximum energy efficiency, compatibility with 12V and 24V solar panels, and fast charging capabilities. The controller also offers multiple electronic protections and real-time monitoring for added peace of mind.
