Power Your Off-Grid Life with Ease
• Ideal for RVs, cabins, homes, boats and remote power backup
• 1500 Watt Pure Sine Wave Inverter for reliable AC power
• Tailored for off-grid 12-volt Lithium battery solar panel systems
High-Efficiency MPPT Controller
• 30A MPPT Charge controller with 98% peak conversion efficiency
• 99% high Tracking efficiency and 4-stage battery charging
• Solar charging between 600W provides 960Wh-3840Wh per day
Long-Lasting Li-Battery Packs
• 2560Wh-3840Wh of 3pcs 100Ah lithium batteries
• Superior charging/discharging efficiency, over 3000 deep cycles
• Built-in BMS and 30A MPPT solar charge controller for double protection
Everything You Need in One Kit

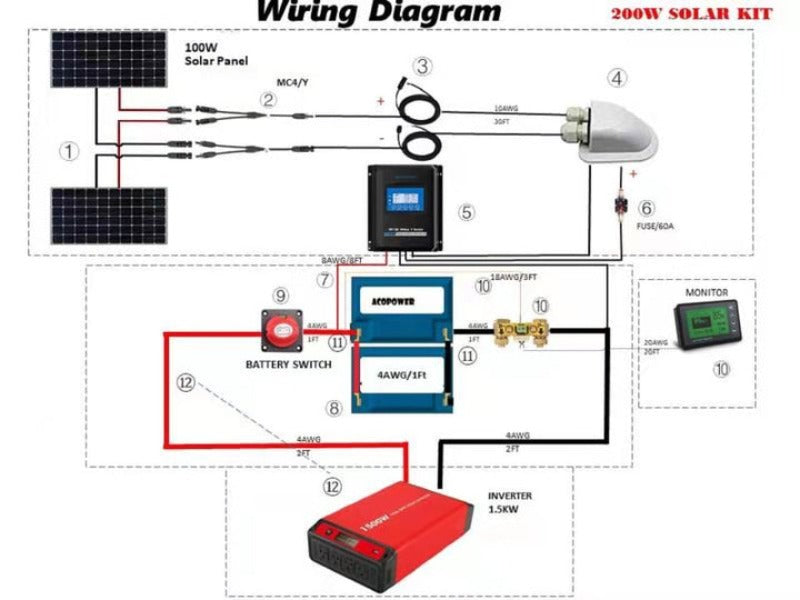

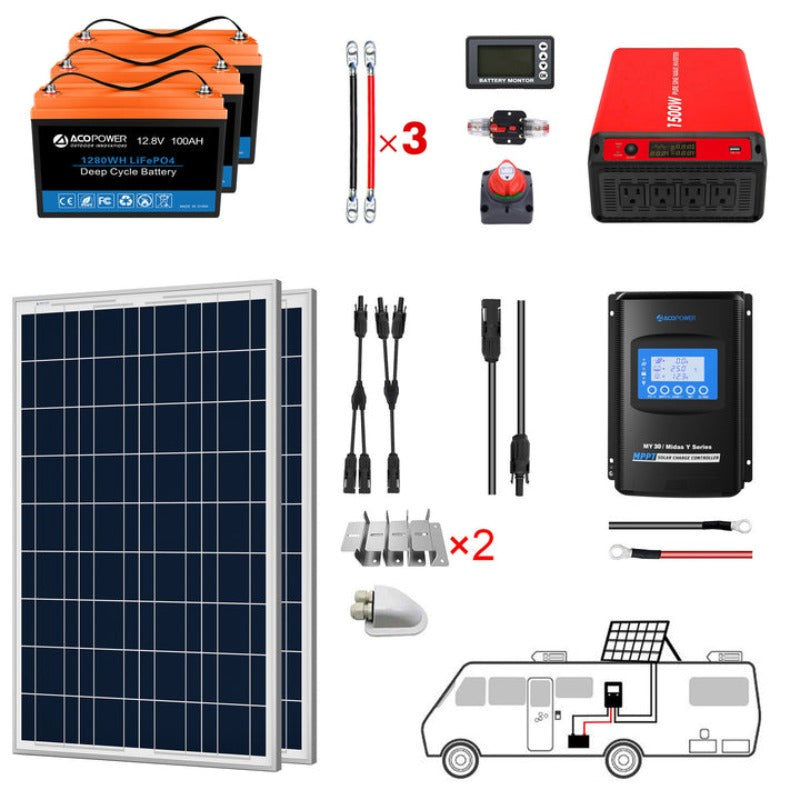

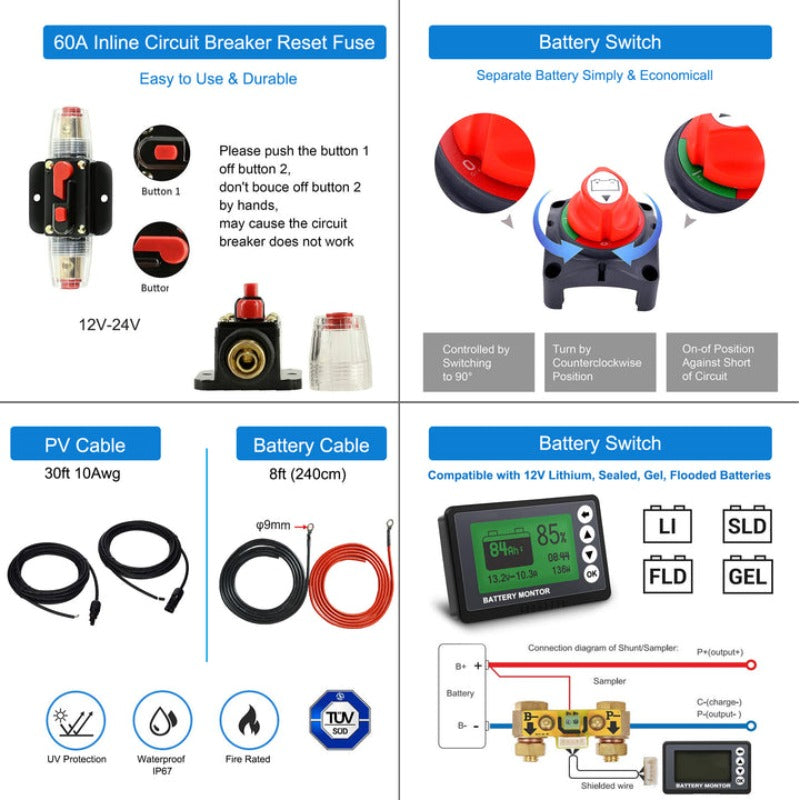

This comprehensive kit includes 2pcs 100W Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications:

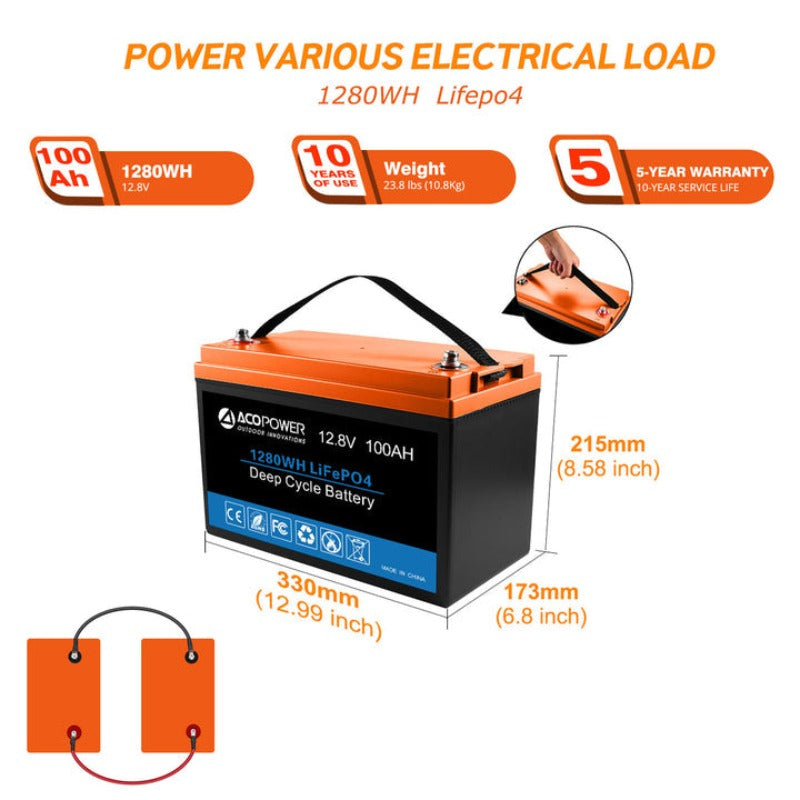

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb
100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A
1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave

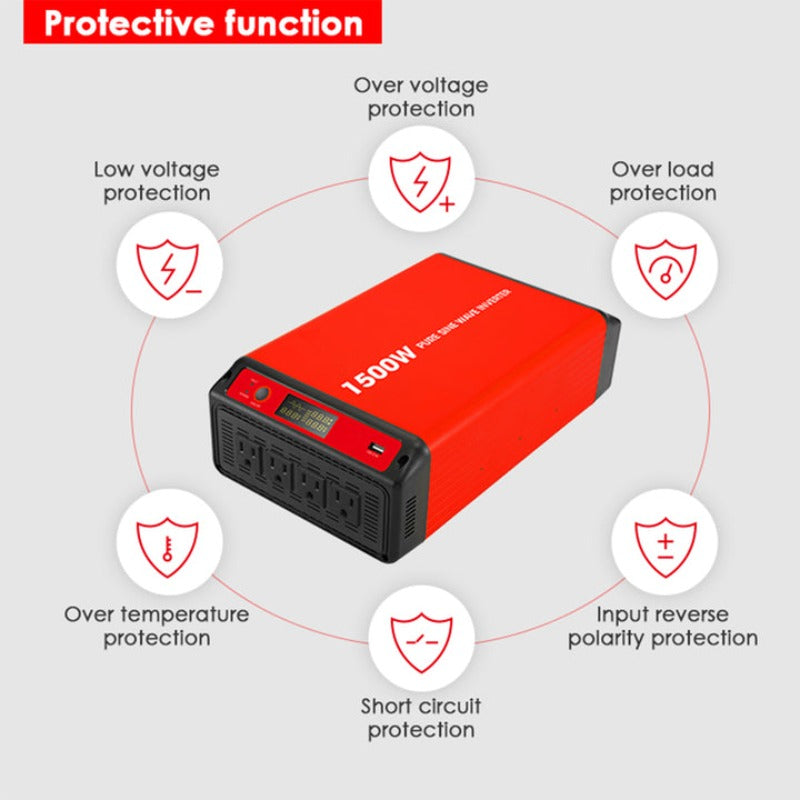

- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

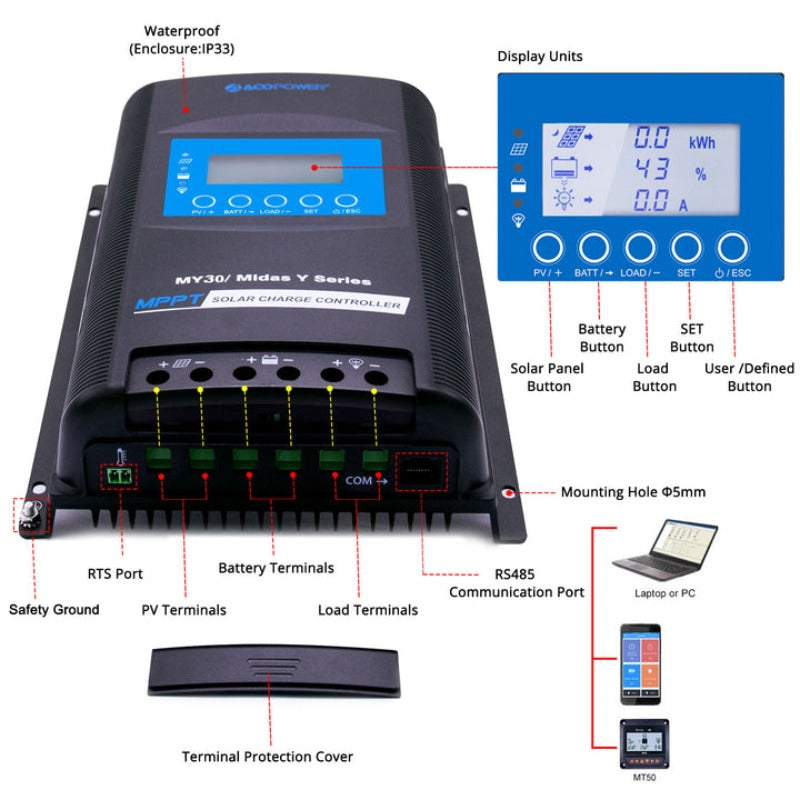

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
What's in the Box:
This Acopower solar kit is perfect for those looking to go off-grid. Ideal for RVs, cabins, homes, boats, or as a backup power source. It comes with a 1500W Pure Sine Wave Inverter for reliable AC power. The 30A MPPT Charge controller offers high efficiency. The kit includes 2pcs 100W Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller, a 60A fuse, a battery switch, a battery monitor, and all necessary cables and brackets. The 12V 100Ah LiFePO4 Deep Cycle Lithium Battery has a rated voltage of 12.8V, weighs 23.8lb, and measures 12.99 x 6.81 (W) x 8.58 (H) inch. The 100W Poly Solar Panel weighs 17.6lb and measures 40.2*26.4*1.4 Inch. The 1500W Pure Sine Wave Inverter weighs 7.79lb and has dimensions of 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch.
