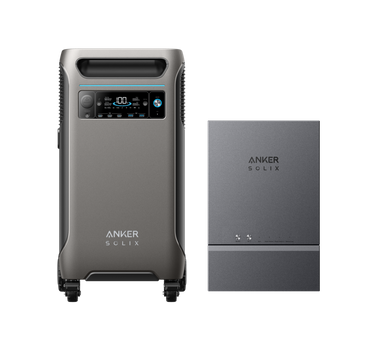

Anker Solix F3800 + Home Power Panel + Subpanel
Discover the ultimate home power solution! The Anker Solix F3800, combined with the Home Power Panel and Subpanel, offers a comprehensive and reliable way to keep your home powered, even during outages.
• Harness solar power: This innovative system captures sunlight and converts it into clean, renewable energy for all your household needs.
• High-capacity and expandable: With a 3800 watt-hour capacity and the ability to add up to six extension batteries, you can achieve a massive 53.76kWh capacity, ensuring you never run out of power.
• Intelligent monitoring: Connect via Wi-Fi or Bluetooth and use the app to keep an eye on all your power sources and customize your energy usage. Plus, its long-lasting LFP batteries and 5-year hassle-free warranty provide peace of mind.
With features like plug-and-play simplicity, 6000W split-phase output, 2400W solar input for fast charging, and compatibility with EV and RV charging, this system is a game-changer for home backup power. It seamlessly integrates solar power, the utility grid, and your home appliances, promoting sustainability and self-sufficiency.
SPECIFICATIONS:
Anker Solix F3800
Capacity: 3840Wh
AC Input: 120V~15A (3H Max), 12A (Continuous), 60Hz
AC Input Power (Charging): 1800W Max
AC Input Power (Bypass Mode): 1440W Max
Solar Panel Input: 2400W (1200W*2) MPPT1: 11-15V 10A; 16V-60V 27A Max MPPT2: 11-15V 10A; 16V-60V 27A Max (firmware 2.1.1+)
Car Charger Output: 12V 0A
Home Panel Power Port: 3800W Max (AC Input), 6000W Max (AC Output), 120V/240V
AC Output Power (Total): 6000W Max
AC Output: 120V~20A Max, 60Hz, 2,400W Max
AC Output (NEMA 14-50/L14-30): 120V/240V~25A Max, 60Hz, 6000W Max
USB-A Output: 5V.4A (12W Max per Port)
USB-C Output: 5V A/9V A/15V A/20V A/20V A (100W Max per Port)
UPS: 20ms
Discharging Temperature: -4°F - 104°F / -20°C - 40°C
Charging Temperature: 32°F - 104°F / 0°C - 40°C
Size: 27.6 × 15.3 × 15.6 in / 70.2 × 38.8 × 39.5 cm
Home Panel
Manufacturer Name: Anker
Wi-Fi: Supported
Input Voltage: 120/240V
Output Voltage: 240V
Max Input Power: 6,000W
Max Output Power: 12,000W
Circuits: 12 Max Connected Battery Energy: 53.8KWh
IP Code: 31
Manufacturer Warranty: 5 Year

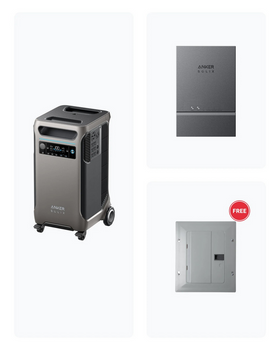

WHAT'S IN THE BOX:
1 x Anker Solix F3800

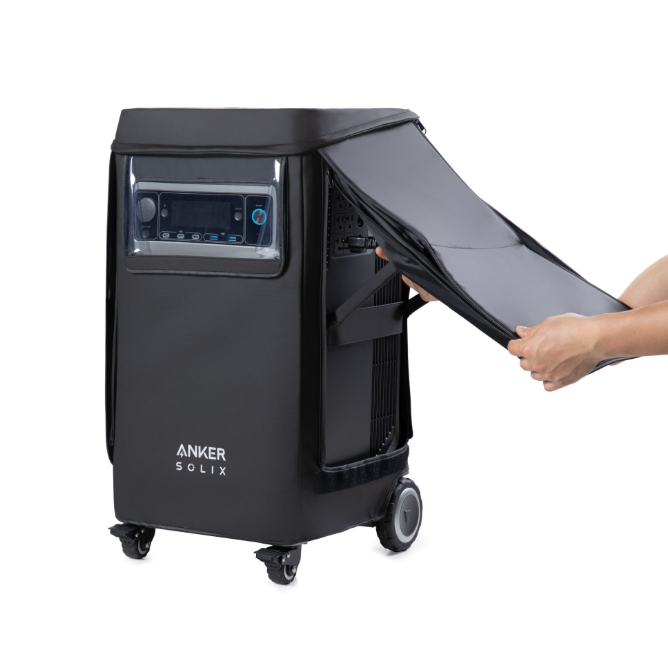

1 x FREE Protective Bag
1 x Anker Home Power Panel
1 x Subpanel
1 x Anker Solix 100A/240V Breaker
1 x Anker Solix Ground Bar Kit
1 x AC Charging Cable
2 x MC4 3-Port Charging Connector
1 x User Manual
This Anker Solix F3800 + Home Power Panel + Subpanel bundle is perfect for homeowners who want reliable backup power. Whether it's a power outage or you're aiming for energy independence, this system has you covered. The Anker Solix F3800 power station is compact, measuring 27.6 × 15.3 × 15.6 in / 70.2 × 38.8 × 39.5 cm, and can be easily placed in your home. It comes with a FREE Protective Bag for added protection. Use it to power essential appliances during outages, charge your EV or RV directly, or simply ensure a continuous power supply for your daily needs. The system is designed for seamless integration into your home, with easy setup via Wi-Fi or Bluetooth using the Anker app. Monitor and control your energy usage effortlessly, and enjoy peace of mind with its 5-year hassle-free warranty.
