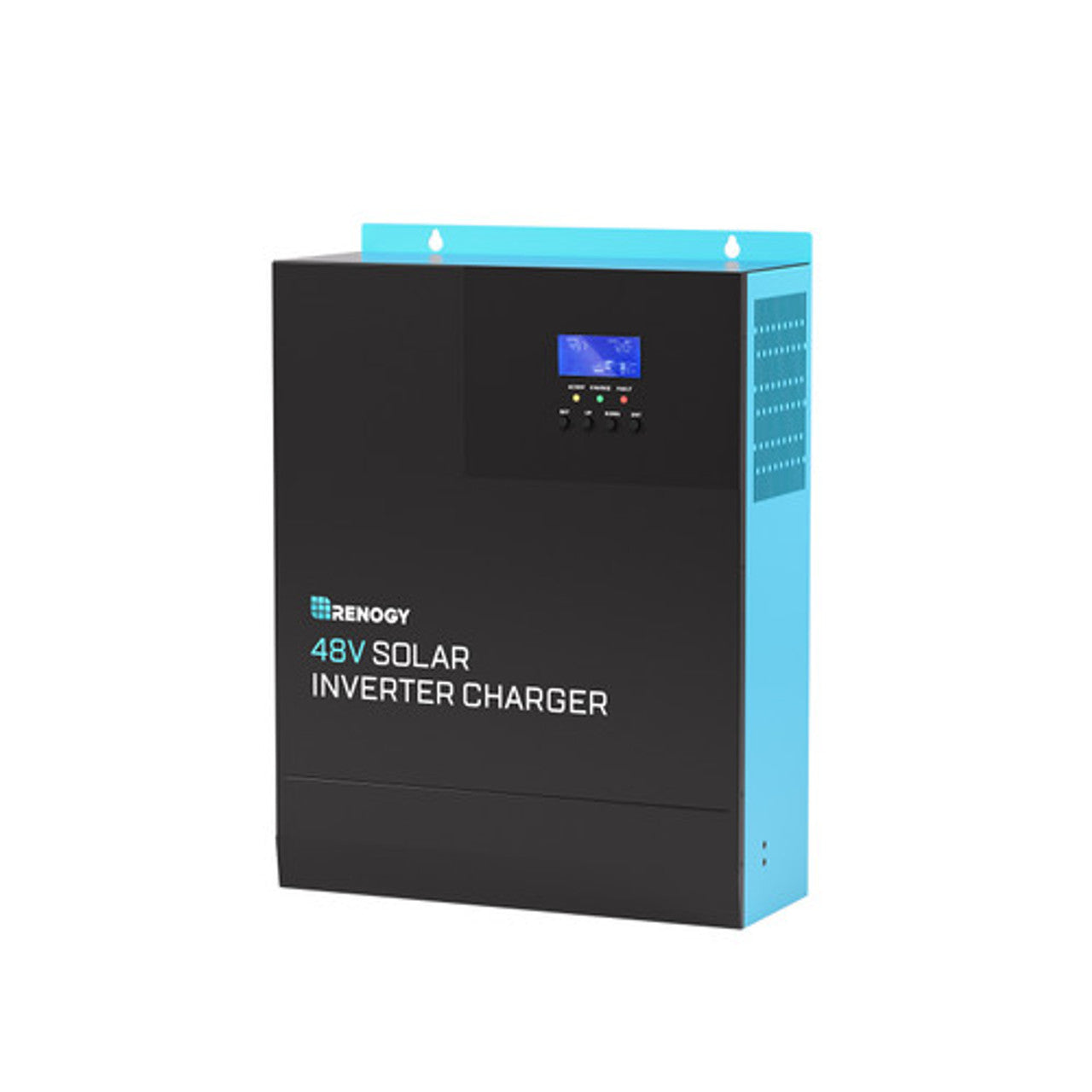

Renogy 48V 3500W All-in-One Powerhouse with Reverse Control
Renogy's 48V 3500W reverse control all-in-one machine is your reliable energy solution. It offers -10ms switchover to an uninterrupted power source, delivering 3500W of pure sine wave power. Compatible with various batteries like AGM, SLD, GEL, and FLD, it's a game-changer.
Designed for your whole home, this machine cuts energy costs with multiple charging modes. On low-light days, it goes for PV priority mode, maximizing solar energy use. In Utility Priority mode, it prioritizes detected AC input for battery charging.
The hybrid charging mode suits unstable grids. It automatically switches to solar charging on sunny days for optimal sustainable energy tapping.
Highlights:
- • 3500W continuous output with 7000W surge power - never run out of power!
- • Sustainable, reliable, and uninterrupted power supply - keep your home running smoothly.
- • <55 dB low-noise operation - enjoy a quiet energy experience.
Specifications:
Output Waveform: Pure Sine Wave
Continuous Output Power: 3500W
Peak Power Rating: 7000W
Output Voltage: 120VAC±5%
Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%
Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)
Nominal Efficiency: > 90%
Bypass Breaker Current Load: 40A
Idle Consumption: 48W
Power Saver Mode Idle Consumption: ≤25W
Charge Controller Type: MPPT
Maximum Input Power: 4400W
Maximum Input Current: 50A
PV Charging Current Range: 0-80A
Recommended Max. PV Open Circuit Voltage: 145VDC
PV Operating Voltage: 60-145VDC
MPPT Voltage Range: 60-115VDC
Short-circuit Protection: Internal Fuse
Wiring Protection: Reverse Polarity
Recommended Wiring: 8 AWG
Rated Input Voltage/Input Voltage Range: 120Vac/90 ~ 140VAC ± 2% Adjustable
Frequency: 50 Hz / 60 Hz (auto detect)
Efficiency: ≥95%
Conversion Time: 10ms
Battery Type: Lead Acid and Lithium Battery
Maximum Charging Current: 40A
Charging Voltage Range: 40-60VDC
Short-circuit Protection: Breakers and fuses
Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)
Reverse Flow Protection: Yes
Dimensions: 16.8 x 12.7 x 4.9 in
Weight: 23.8 lbs
Communication Port: RS485/CAN Communication Port (BT-2 Bluetooth Module)
Cooling Fan: Yes
Operating Temperature Range: 5°F ~ 131°F/ -15°C ~ 55°C
Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C
Humidity: 5% to 95% (three-layer paint protection)
Noise: ≤60dB
IP Grade: IP 20
Safety Class: I
Warranty: 1 Year
What's in the Box:
1 x 48V 3500W Solar Inverter Charger
1 x 16.4FT Inverter Remote Control
1 x User Manual
This Renogy 48V 3500W all-in-one power machine is perfect for homeowners looking to manage their energy cost-effectively. Whether it's powering your entire home or just specific appliances, it's up to the task. With dimensions of 16.8 x 12.7 x 4.9 inches and weighing 23.8 lbs, it's compact and easy to install. Enjoy reliable power with its multiple charging modes, ensuring you're always covered, no matter the weather or grid conditions.
