ACOPOWER 100W 12V Poly Solar RV Kit with 20A PWM Charge Controller
Specifications:
100W Poly Solar Panel
Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(Isc): 6.21A
Max Power Current(Imp):5.72A
Wind resistance: 2400pa
Weight: 17.6 lb
Dimension:40.2*26.4*1.4 inches (1020x670x35mm)
Application Class: Class A
20A PWM Charge Controller
Nominal Voltage: 12 V/ 24V DC
Rated Charge Current: 20A
Max. PV Input Voltage: 50V
Battery Start Charging Voltage: 3V
Temperature Compensation Coefficient: -24mV/¡ãC
Operating Temperature: -40¡ãF to 140¡ãF
Storage Temperature: -40¡ãF to 185¡ãF
IP Enclosure Grade: IP65
Dimensions: 5.59x 3.7x 1.06 inches

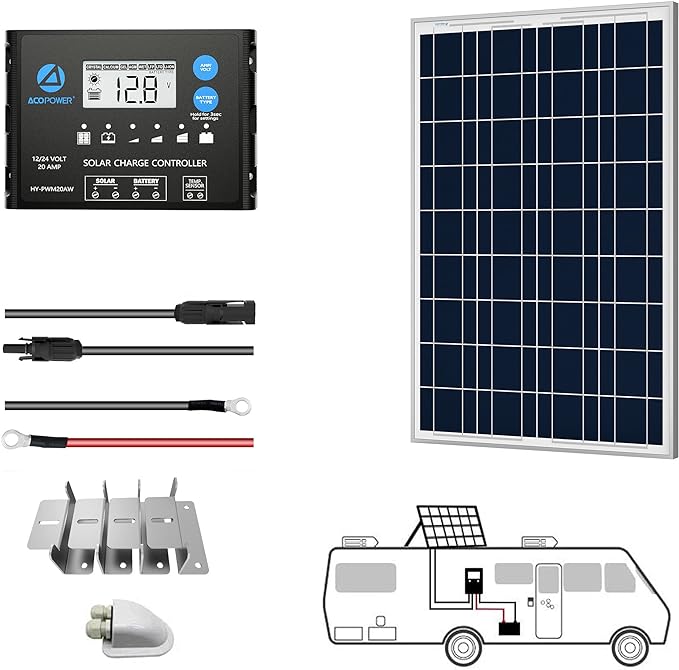

What's in the Box:
- 1 x 100W Polycrystalline Solar Panel
- 1 x 20A PWM Charge Controller
- 2 x Sets Mounting Z Bracket
- 1 x 30ft 12AWG PV Cable
- 1 x 8FT 8AWG Tray Cable
- 1 x Cable Entry Housing
- 1 x Pair PV T/Y Connectors
This ACOPower solar kit is perfect for RV owners, boat enthusiasts, and anyone who loves outdoor adventures. It comes with a 100W polycrystalline solar panel and a 20A PWM charge controller, along with essential wiring and mounting accessories. The 100W solar panel measures 40.2*26.4*1.4 inches (1020x670x35mm) and weighs 17.6 lb. It's designed to charge 12-volt batteries and portable power stations and can be easily installed on structures or vehicles. The 20A PWM charge controller has a nominal voltage of 12 V/ 24V DC and can safely and efficiently recharge various battery types. With this kit, you can enjoy sustainable energy wherever you go.
