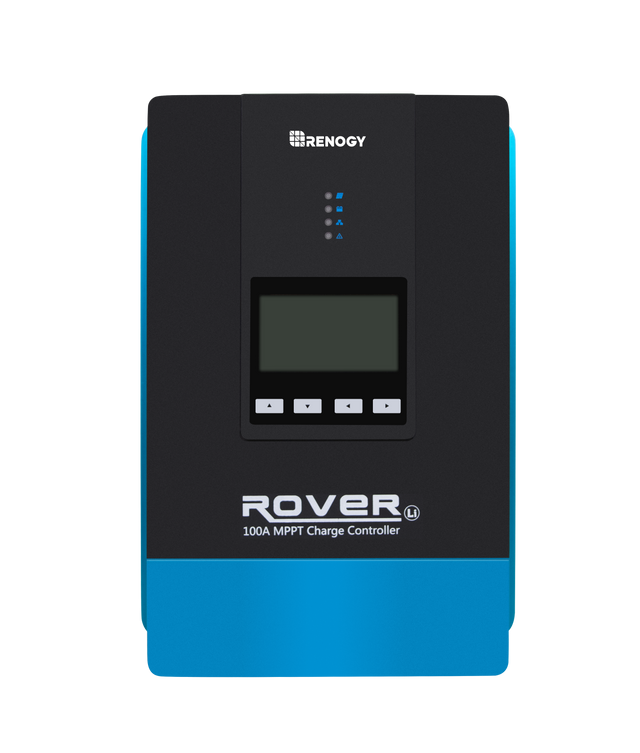

Renogy Rover Li 100 Amp MPPT Solar Charge Controller - Your Solar Powerhouse
Meet the Renogy Rover Li 100 Amp MPPT Solar Charge Controller, your ultimate solution for all solar system needs! It's like a vigilant energy gatekeeper, efficiently regulating the flow of power between your solar panels and batteries.
• Versatile Battery Compatibility: Works seamlessly with lithium, sealed, gel, and flooded batteries, giving you flexibility like never before.
• High - Efficiency MPPT Technology: Ensures maximum power extraction from your solar panels, with a peak conversion efficiency of 98% and a tracking efficiency of 99%.

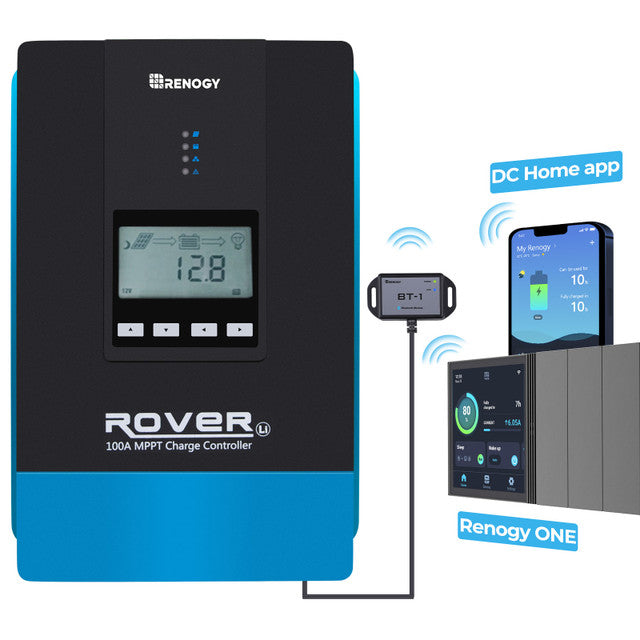

• Smart Connectivity: Connect two controllers in parallel for even more power. Plus, use the DC Home app via the Renogy BT - 1 Bluetooth Module to remotely monitor and control your solar system right from your phone.
This powerful device can handle any energy demand, making it perfect for off - grid living, RVs, boats, and more! It's time to take control of your solar power.
Highlights:
Automatically detects 12V, 24V, 36V and 48V DC system voltages (for non - lithium batteries)
Compatible with AGM, Sealed, Gel, Flooded, and Lithium batteries
MPPT technology
High tracking efficiency up to 99%
Peak conversion efficiency of 98%
Electronic protection against reverse polarity, overcharging, over - discharging, overload, short - circuiting, and reverse current

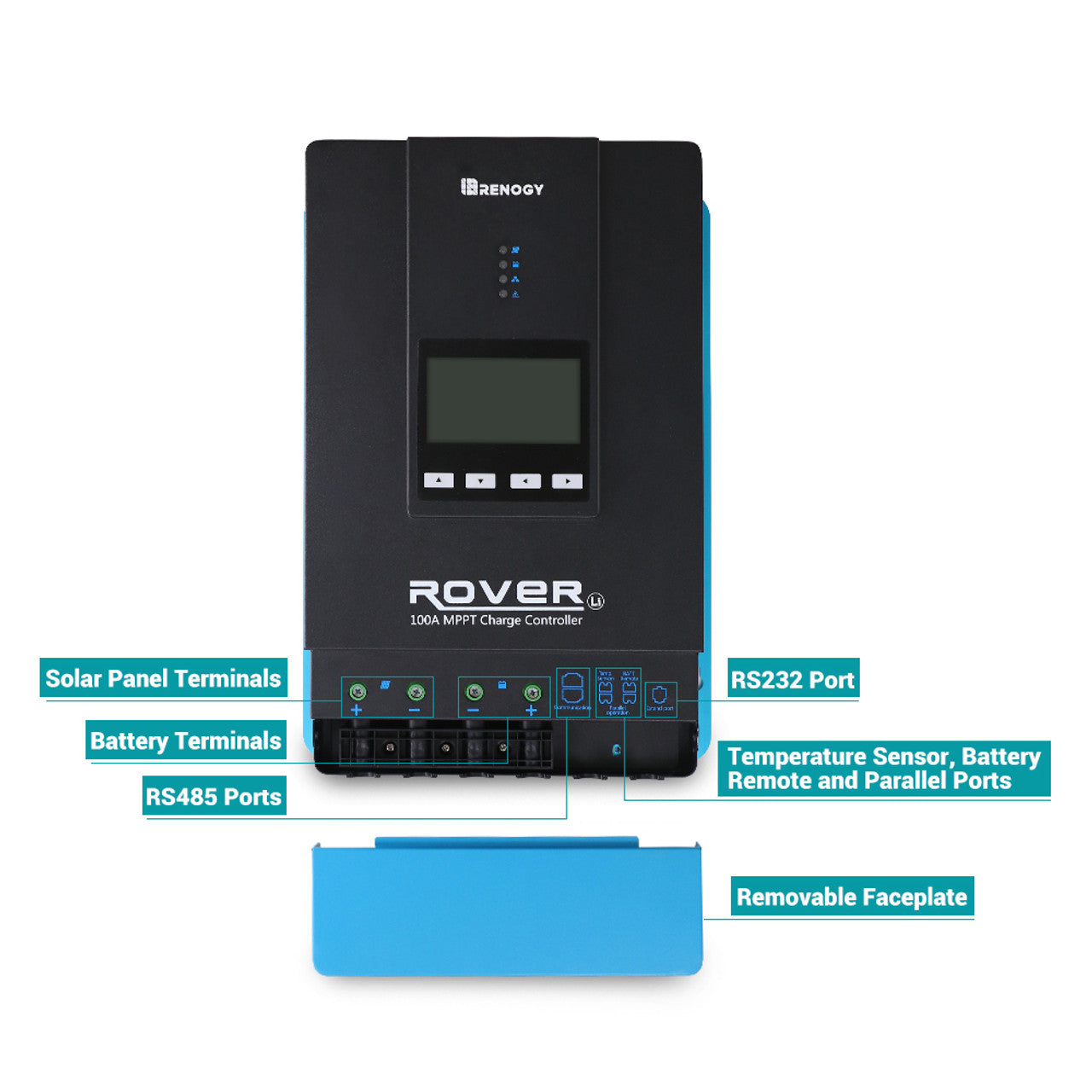

LCD screen and multiple LED indicators
Displays system operation information, customizable parameters, and error codes

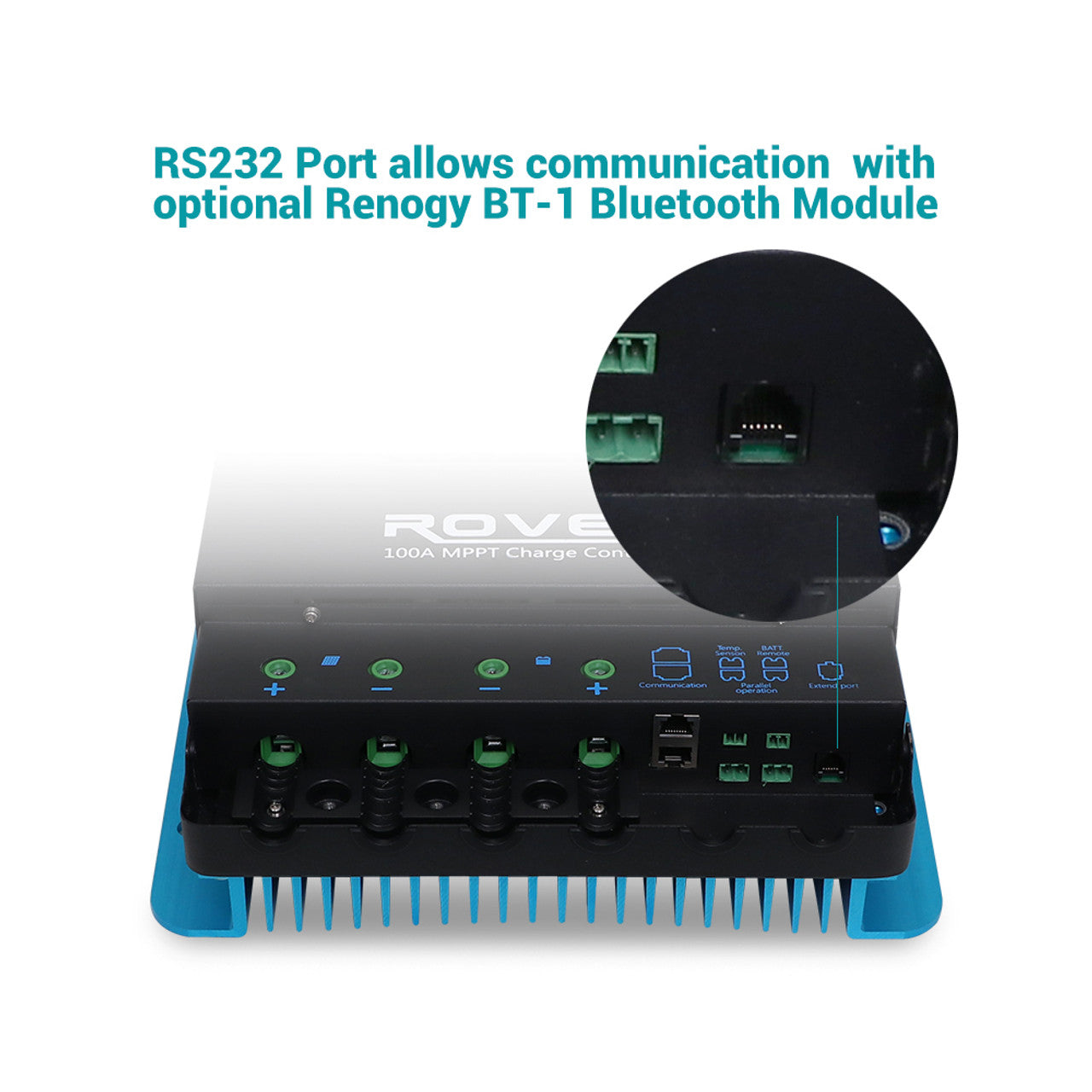

The integrated RS232 port can work with the BT - 1 Bluetooth module
The RS485 port can work with the BT - 2 Bluetooth module
Delivers real - time energy data across the DC Home smart phone app
SPECIFICATIONS:
Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non - lithium batteries)
Rated Charge Current: 100A
Max. PV Input Power: 1300W/12V; 2600W/24V; 3900W/36V; 5200W/48V
Max. PV Input Voltage: 150VDC (25¡ãC), 140VDC(-25¡ãC)
Self - Consumption: 2.7W - 2.9W
Operating Temperature: -35¡ãC to +45¡ãC
Temperature Compensation: -3mV/¡ãC/2V (default)
Dimensions: 12.00 x 17.44 x 4.35 in
Weight: 22 lb.
Enclosure: IP32
Terminals: 25mm2, 4AWG
Certification: CE
Compatible Bluetooth: Renogy BT - 1 & BT - 2 Bluetooth module
Warranty -Accessories: 2 - Year material warranty
WHAT'S IN THE BOX:
1 x Renogy Rover 100A MPPT Solar Charge Controller

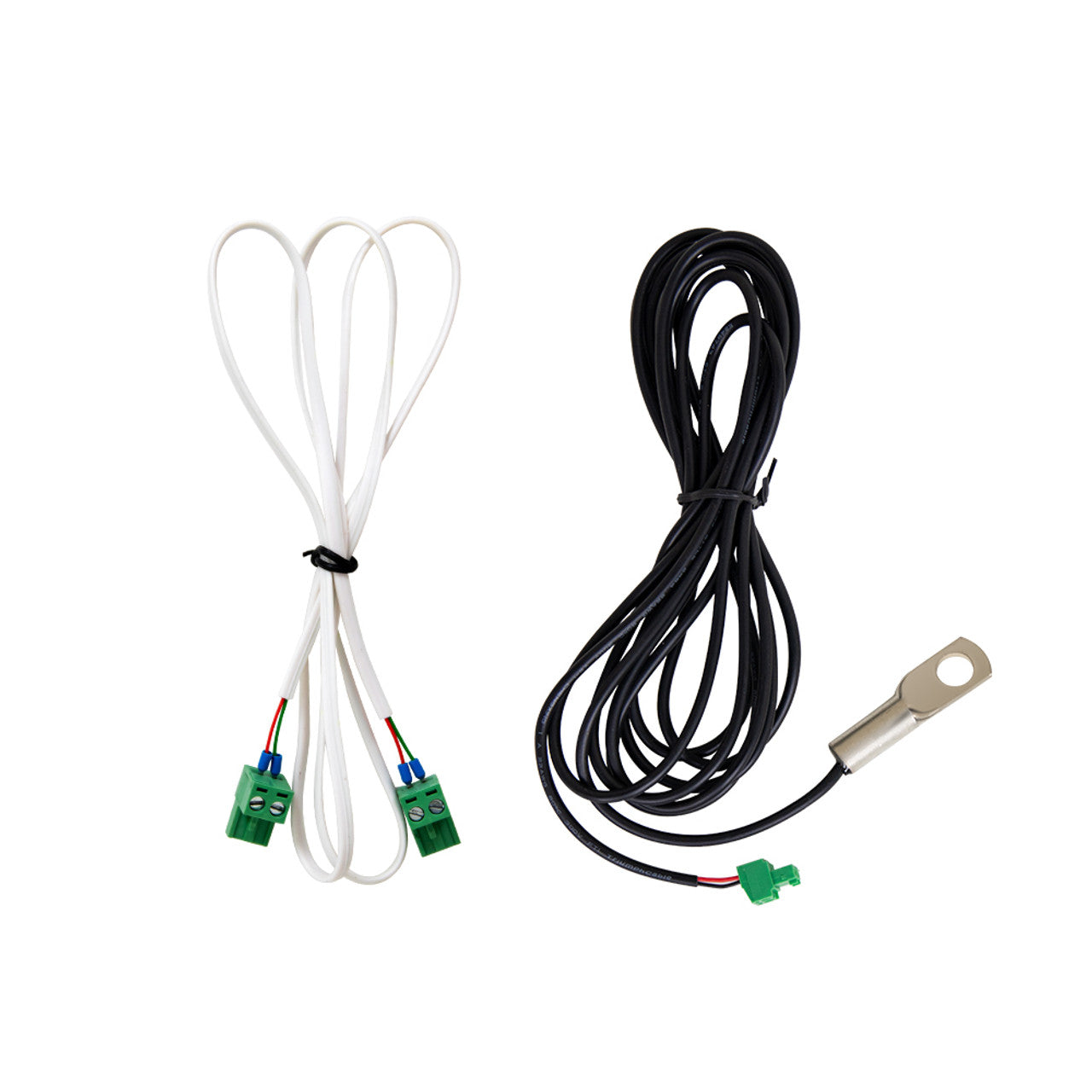

1 x Remote Temperature Sensor
1 x Controller Paralleling Cable
The Renogy Rover Li 100 Amp MPPT Solar Charge Controller is a must - have for those looking to harness solar power. Ideal for off - grid living, RVs, and boats, it can handle various energy needs. With dimensions of 12.00 x 17.44 x 4.35 in and weighing 22 lb, it's easy to install. It works with different battery types like lithium, sealed, gel, and flooded. Connect two controllers in parallel for more power and use the DC Home app via Bluetooth to monitor and control it from your phone.
