Powerful and Versatile
• Ideal for RVs, cabins, homes, and boats.
• Keep your appliances running with 1500W of pure sine wave power.
• Reliable backup for remote areas.
Efficient Charging
• 40A MPPT charge controller with 98% peak efficiency.
• 4-stage charging for fast, safe battery charging.
• Charge 80 - 320Ah per day depending on sunlight.
High-Capacity Batteries
• 2 x 100Ah lithium batteries with 2560 - 3840Wh capacity.
• Over 3000 deep cycles, better than lead-acid.
• Built-in BMS and 60A MPPT for double protection.
Easy Installation
This all-in-one kit has everything you need to set up your solar system. Just add sunlight!
Specifications

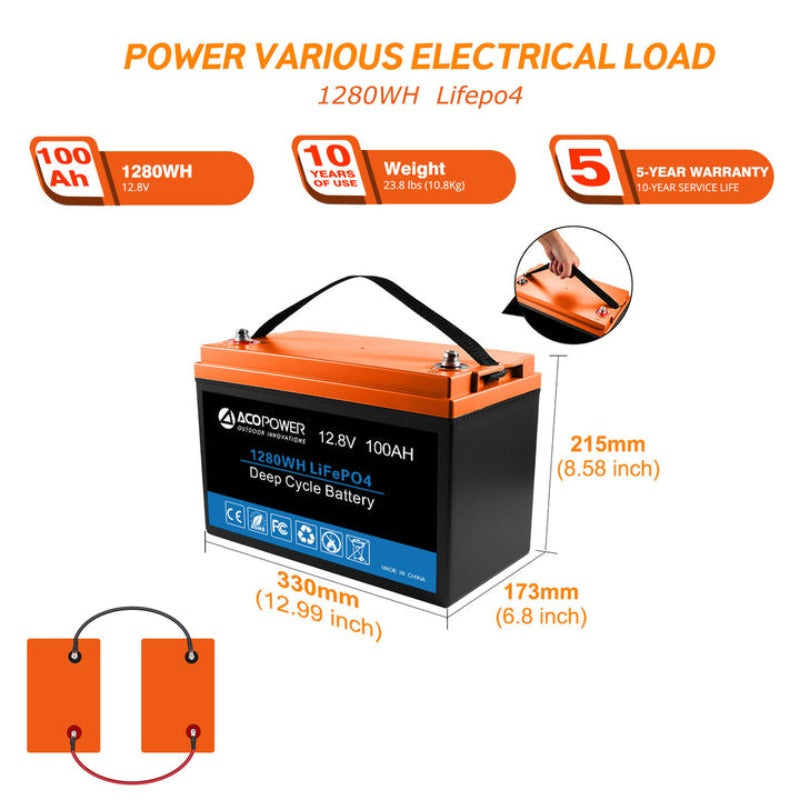

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

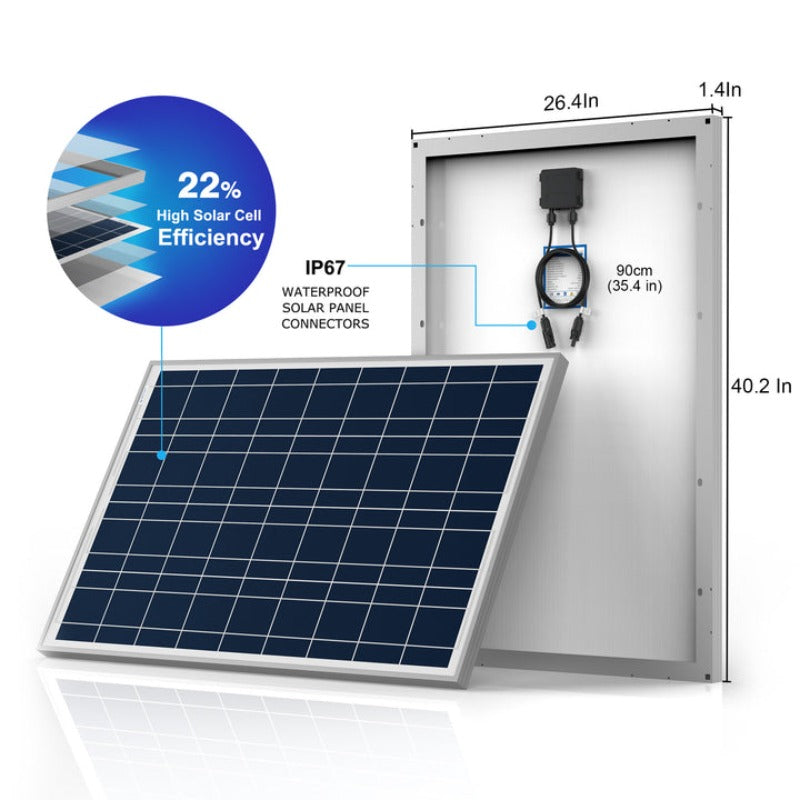

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

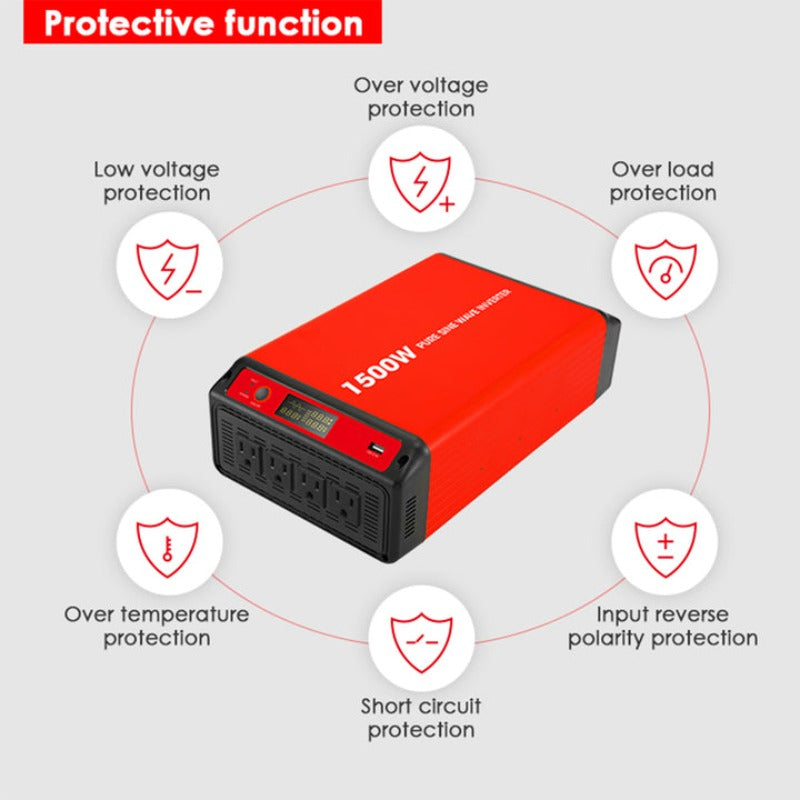

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

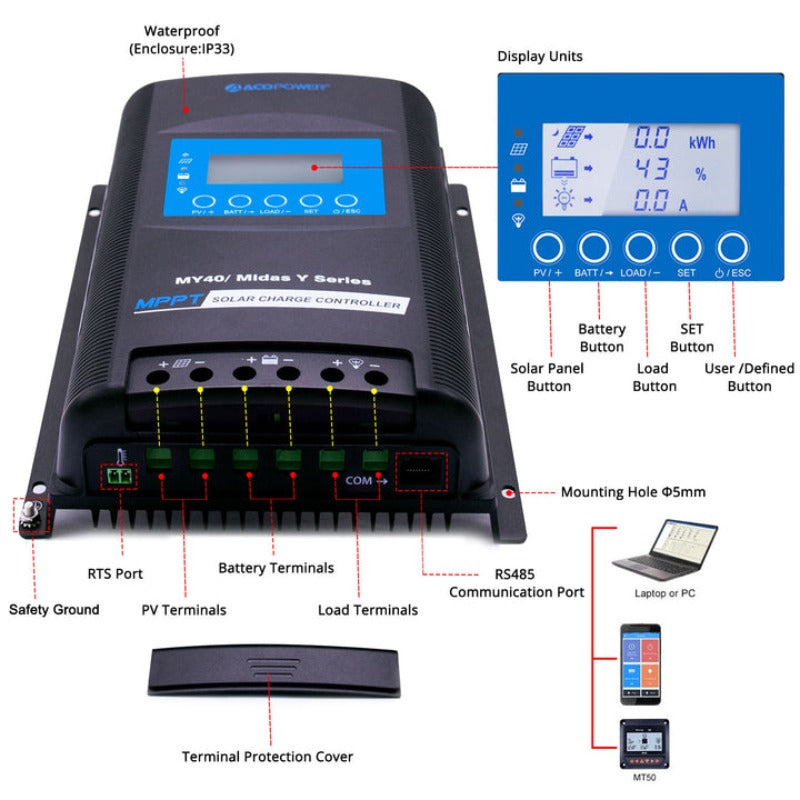

MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

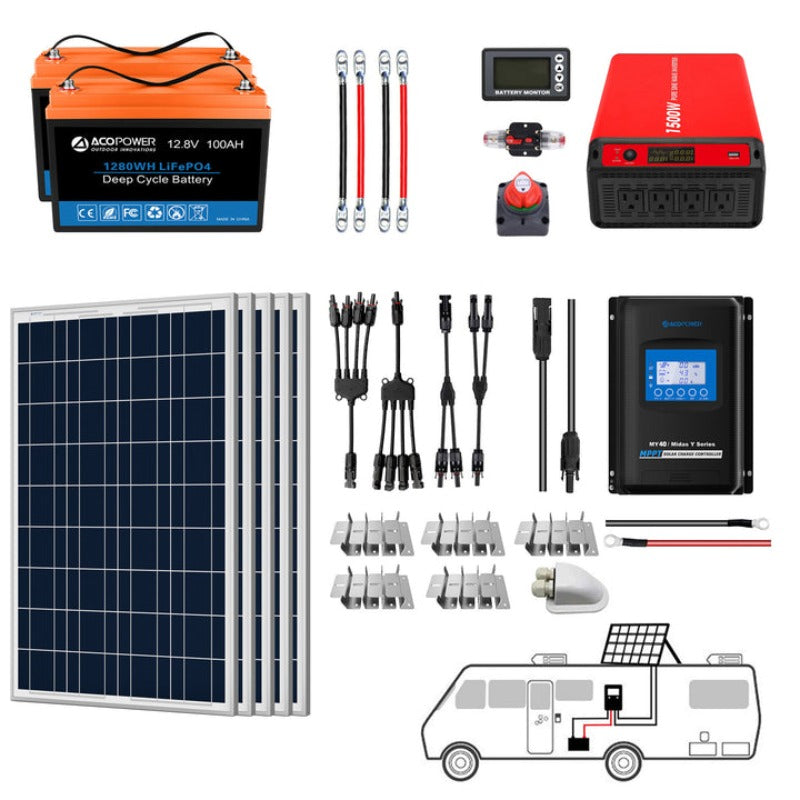

What's in the Box:
2 x Battery
5 x 100W Solar Panel
1 x 1.5K Inverter
1 x 40A Controller

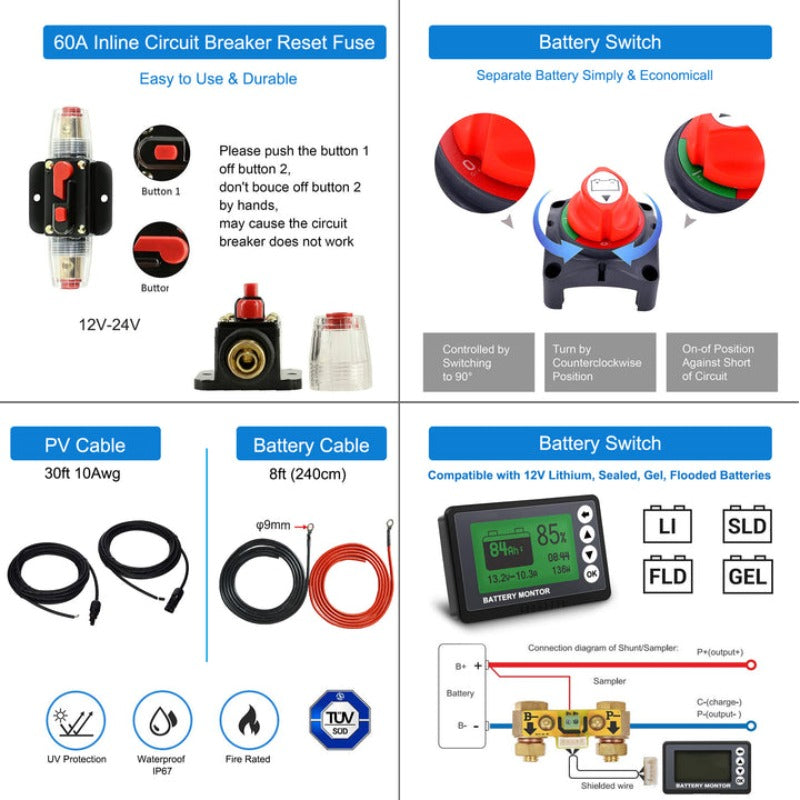

1 x Monitor
1 x Switch
1 x 60A Fuse
5 x sets z Brackets
2 x Pairs Battery Cable
This Acopower solar kit is perfect for those looking to go off-grid. Ideal for RVs, cabins, homes, and boats, it provides a reliable power solution. The 1500W pure sine wave inverter powers your appliances, while the high-capacity lithium batteries and efficient MPPT charge controller ensure long-lasting, efficient power. Each 100W polycrystalline solar panel weighs 17.6lb and measures 40.2*26.4*1.4 inches. The 12V 100Ah lithium battery weighs 23.8lb and measures 12.99 x 6.81 (W) x 8.58 (H) inches. The 1500W inverter weighs 7.79lb and measures 12.94+1.34 (D) x 7.52(W) x 3.86(H) inches. The 40A MPPT charge controller is compact and easy to install.
