ACOPOWER 200W 12V Polycrystalline Solar Kit for RVs - Simplify Your Solar Setup
This cost-effective and user-friendly kit is a game-changer! It's super easy to install and comes with 2 100W solar panels, a 20A charge controller, and all the essential wiring. Whether you're hitting the road in your RV, sailing on your boat, or camping in the great outdoors, this kit is your ticket to a reliable energy source. It's perfect for powering your RV, boat, camper, and various outdoor appliances. The kit also includes mounting accessories for added convenience. Embrace sustainable energy on your adventures today!
ACOPower 100W 12V Polycrystalline Solar Panel
Tailored for home, RV, van life, and more, this solar panel is a reliable power source. It charges 12-volt batteries and portable power stations with ease. Engineered for simple installation on structures or vehicles, it's built to last. With tempered glass, anti-reflective coating, two layers of EVA film, a TPT backsheet, and an anodized aluminum frame, it can withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box is IP65 rated for water resistance. It comes with a 3.2-foot, 16 AWG cable with male and female quick connectors, ready to harness renewable energy efficiently.
ACOPower 20A MPPT Solar Charge Controller
Maximize your solar power with the ACOPower 20A MPPT Solar Charge Controller. It safely and efficiently recharges 12, 24, 36, or 48V batteries, meeting all your power needs. With a negative-ground configuration, it has a tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, it offers versatility. Its user-friendly, plug-and-play design simplifies solar charging. It automatically detects panel voltage and uses different charging modes for optimal battery charging. Whether it's your RV, cabin, or off-grid system, enjoy seamless solar energy utilization.
Features:
- Easy installation
- High Efficiency
- MPPT Technology
Specifications:
Acopower 100 Watts Poly Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40oC to 85oC

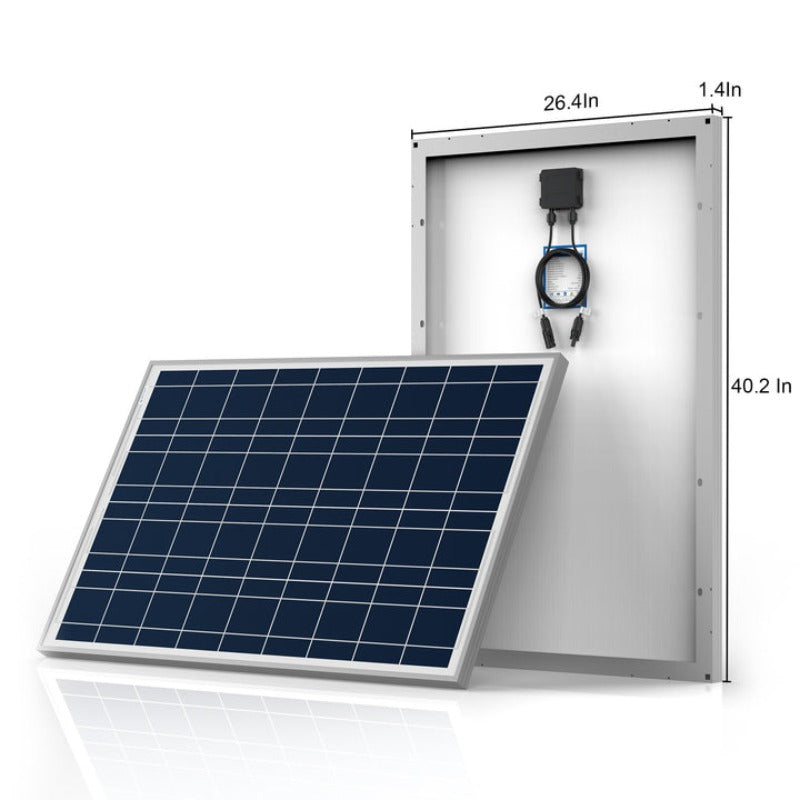

- Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
- Weight: 9.5kg / 20.6 lbs
Acopwer 20 A MPPT Solar Charge Controller
- Nominal system voltage: 12/24V
- DC Auto Rated charge current: 20A
- Battery input voltage range: 8V - 2V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/260W, 24V/520W
- MPP voltage range: V(BAT+2V) - 2V
- Working environment temperature: -25¡æ¡«+50 /li>
- Storage temperature range: -35¡æ¡«+80 /li>
- Grounding: Common negative
- Communication: RS485 (RJ45 interface)
- Power Terminals: 6AWG(16mm2)
- Enclosure: IP30
- Dimensions: 220X154X52mm
- Weight: 1.1kg

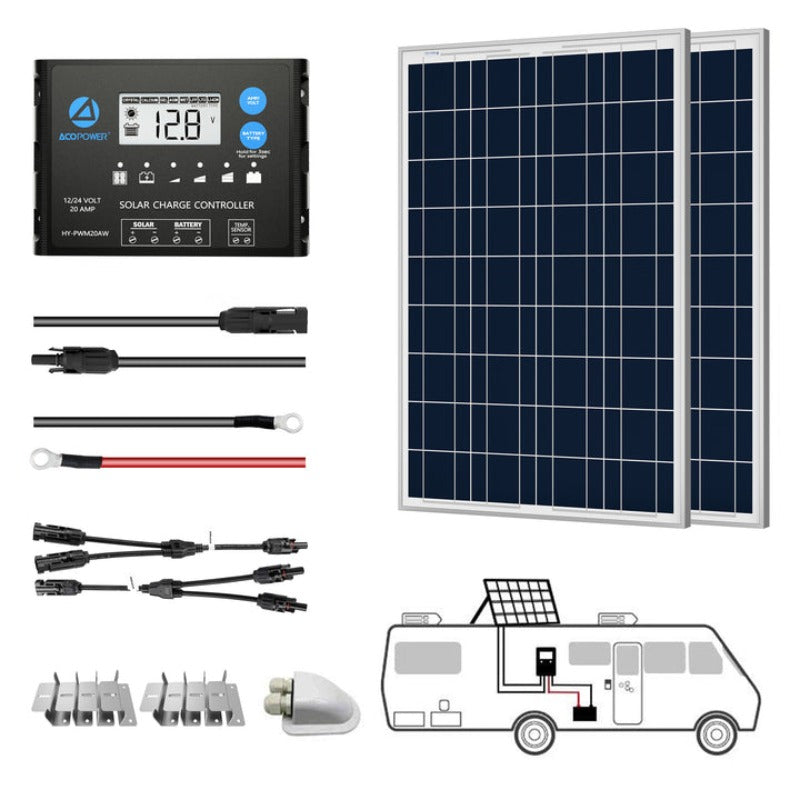

What's in the Box:
- 2 x 100W Polycrystalline Solar Panel
- 1 x 20A PWM Charge Controller

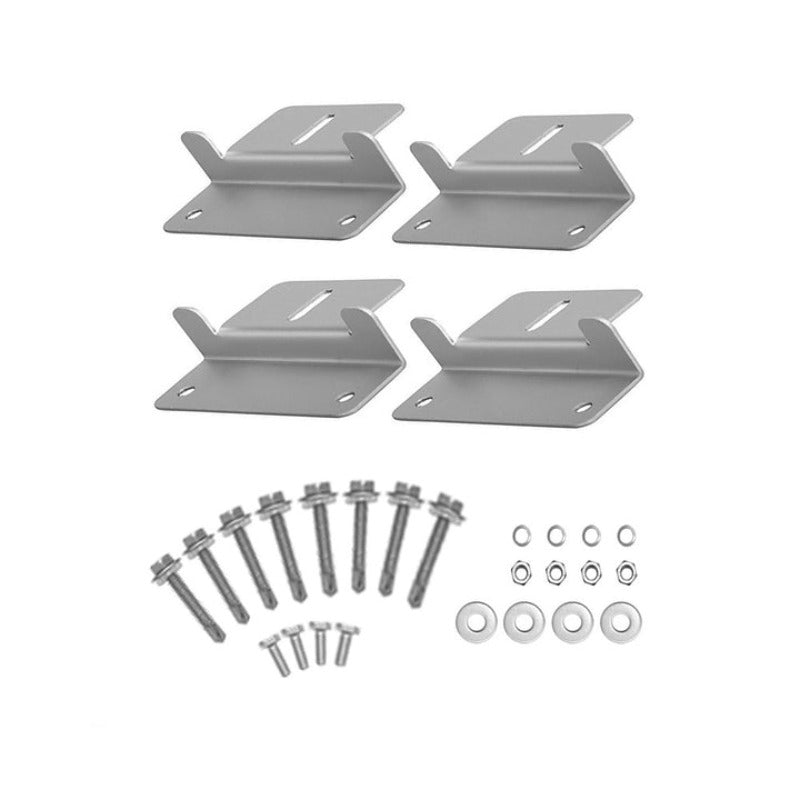

- 2 x Sets Mounting Z Bracket

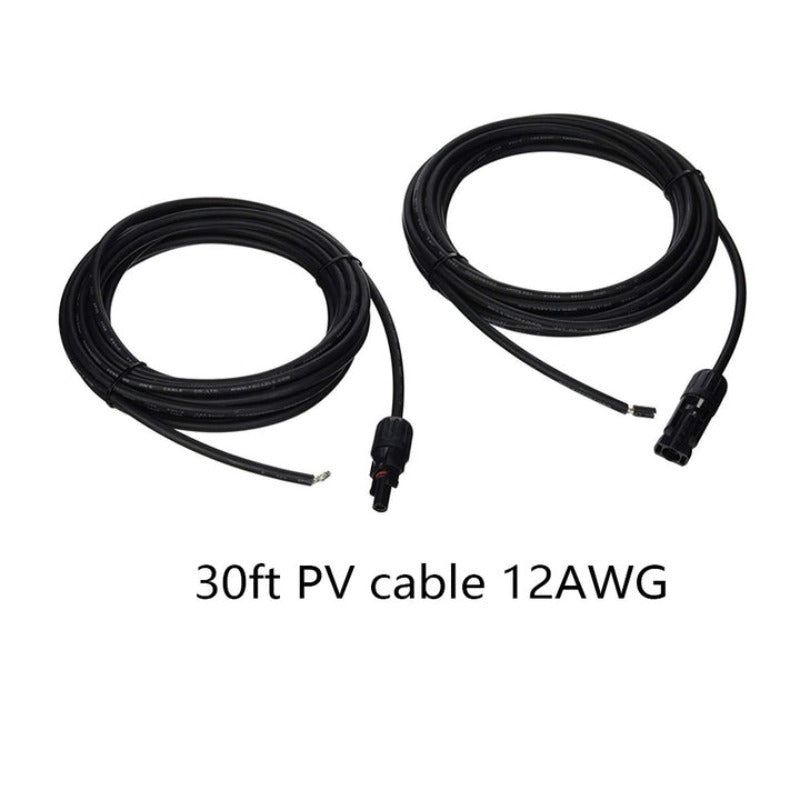

- 1 x 30ft 12AWG PV Cable

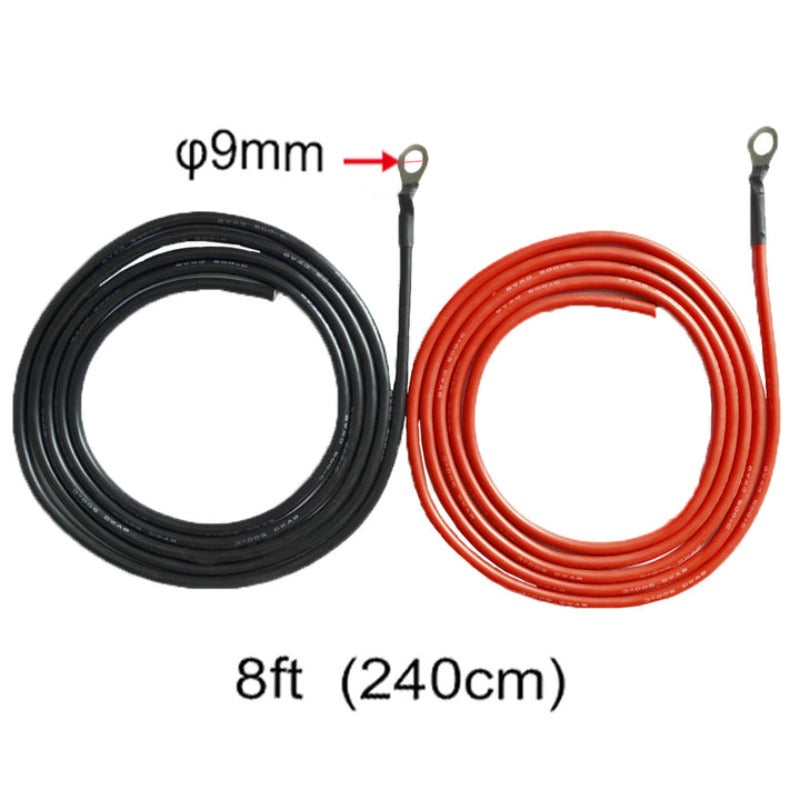

- 1 x 8FT 8AWG Tray Cable
- 1 x Cable Entry Housing
- 1 x Pair PV T/Y Connectors
This ACOPower solar kit is perfect for RV owners, boaters, and campers. Whether you're on the road, at sea, or in the great outdoors, it provides a reliable energy source. The 100W polycrystalline solar panels are 1020x670x35mm (40.2x26.4x1.4 in) in size and weigh 9.5kg (20.6 lbs). The 20A MPPT solar charge controller has a nominal system voltage of 12/24V and weighs 1.1kg. The kit comes with 2 solar panels, a charge controller, mounting brackets, cables, and connectors.
