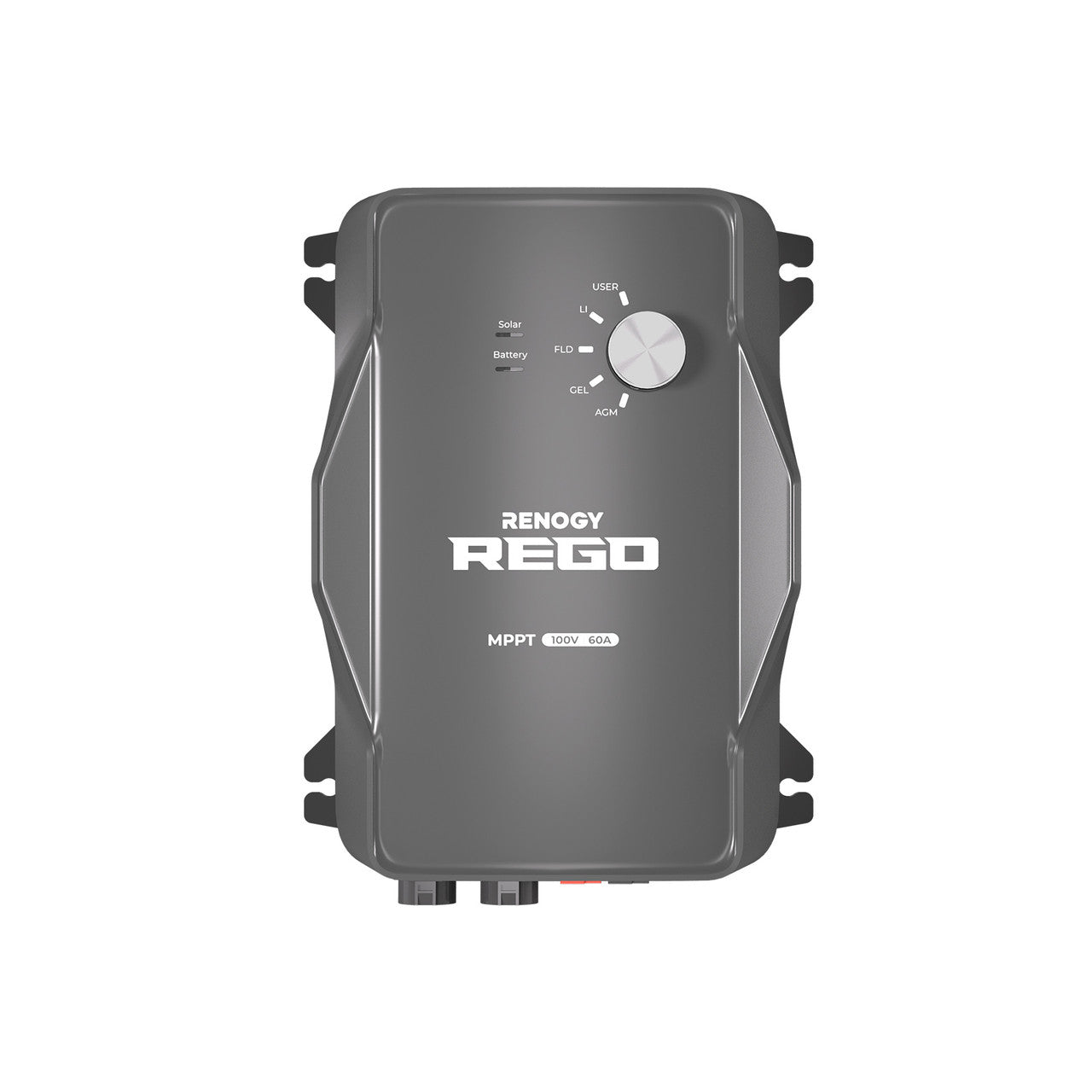

Renogy REGO 60A MPPT Controller
Upgrade your solar energy system with the Renogy REGO 60A MPPT Controller! This cutting-edge device is designed to maximize efficiency and provide comprehensive protection, making it the ultimate choice for both new and experienced solar enthusiasts.
• Maximum Power Point Tracking (MPPT) technology ensures you get the most power from your solar panels, even in changing light conditions.
• Integrated high BPU (Battery Protect Unit) technology offers superior protection against battery damage and failure.
• Sturdy construction and compact size save installation space without sacrificing style.
The REGO charge controller is multi-certified to UL1741, CAN/CSA-C22.2 No. 107.1/CB+IEC 62109/EMC, EN61000-3-1/-3; EN301489-1/17; RF, EN300328; and FCC, 47 CFR 15B. It also features smart energy monitoring, integrated thermal management, and compatibility with multiple battery types. With remote monitoring via Bluetooth and app, you can easily keep track of your solar system's performance from anywhere.
Don't miss out on the opportunity to experience a new level of energy independence. Upgrade your system today with the Renogy REGO 60A MPPT Controller!
Highlights:
Smart energy monitoring
Save up to 60% installation time
Less space
Integrated thermal management

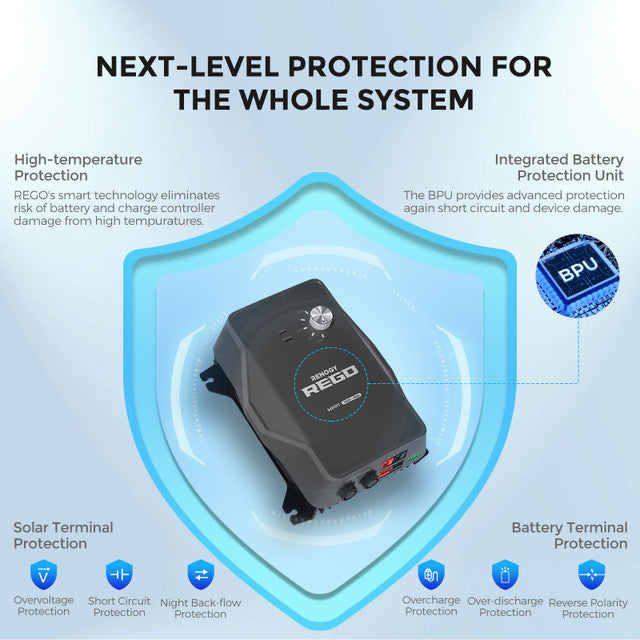

Comprehensive protection
Ultra-high tracking efficiency
Compatible with multiple battery types

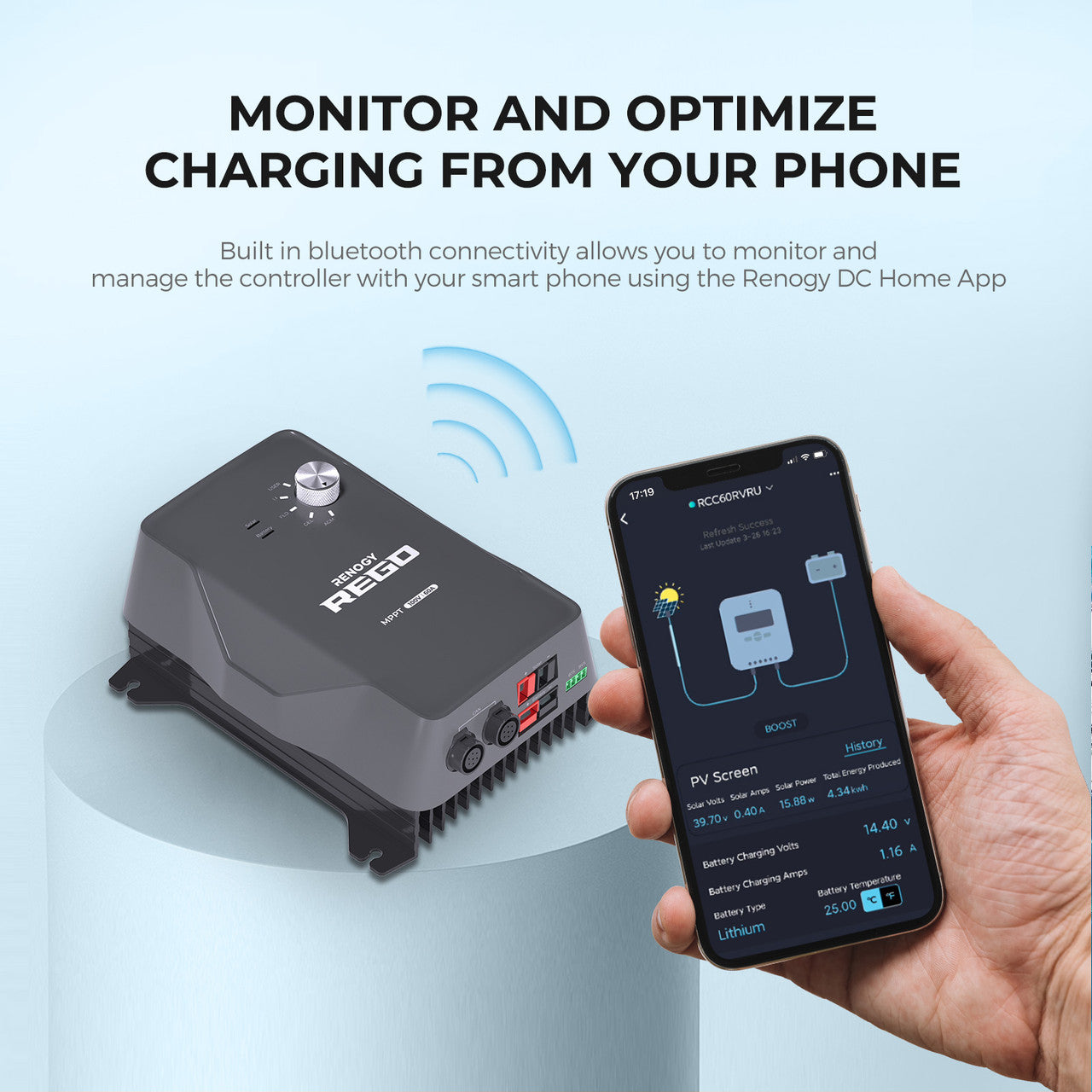

Remote monitoring via Bluetooth and app
Versatile application
Multi-certified
Perfect with Renogy 175W/200W solar panel
SPECIFICATIONS:
Nominal System Voltage: 12 V
Rated Charge Current: 60A
Max. PV Input Power: 800W
MPPT Voltage Range: 15 - 100 VDC /12V
Solar Input Voltage Range (VOC): 100 V
Max Input Current (short-circuit, Isc): 50A
Power Limiting Protection: Up to 800W/12V
Battery Operating Range: 10 -16V
Power Consumption: ≤0.5 W
Ground Type: Common Negative Lug

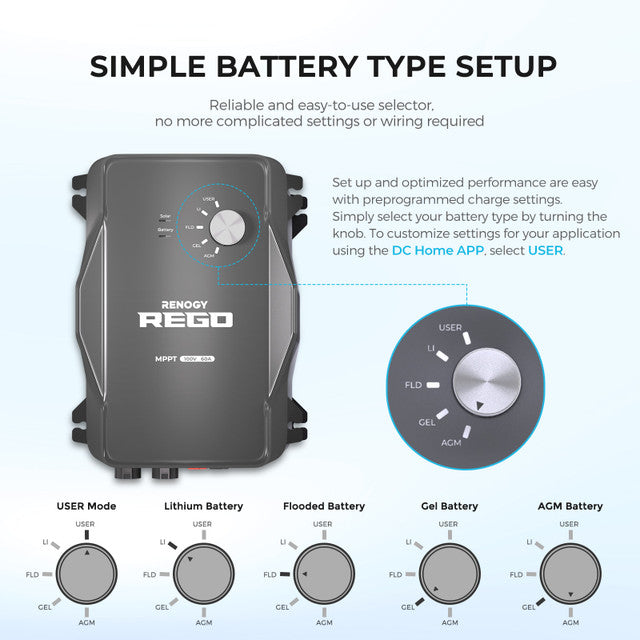

Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER
Operating Temperature Range: -20°C - 60°C
Storage Temperature Range: -25°C-65°C
Operating / Storage Humidity: 0%-90% RH
Temperature Compensation: '-3mV / °C / 2V (non-lithium); '0mV / °C / 2V; no compensation (Lithium)

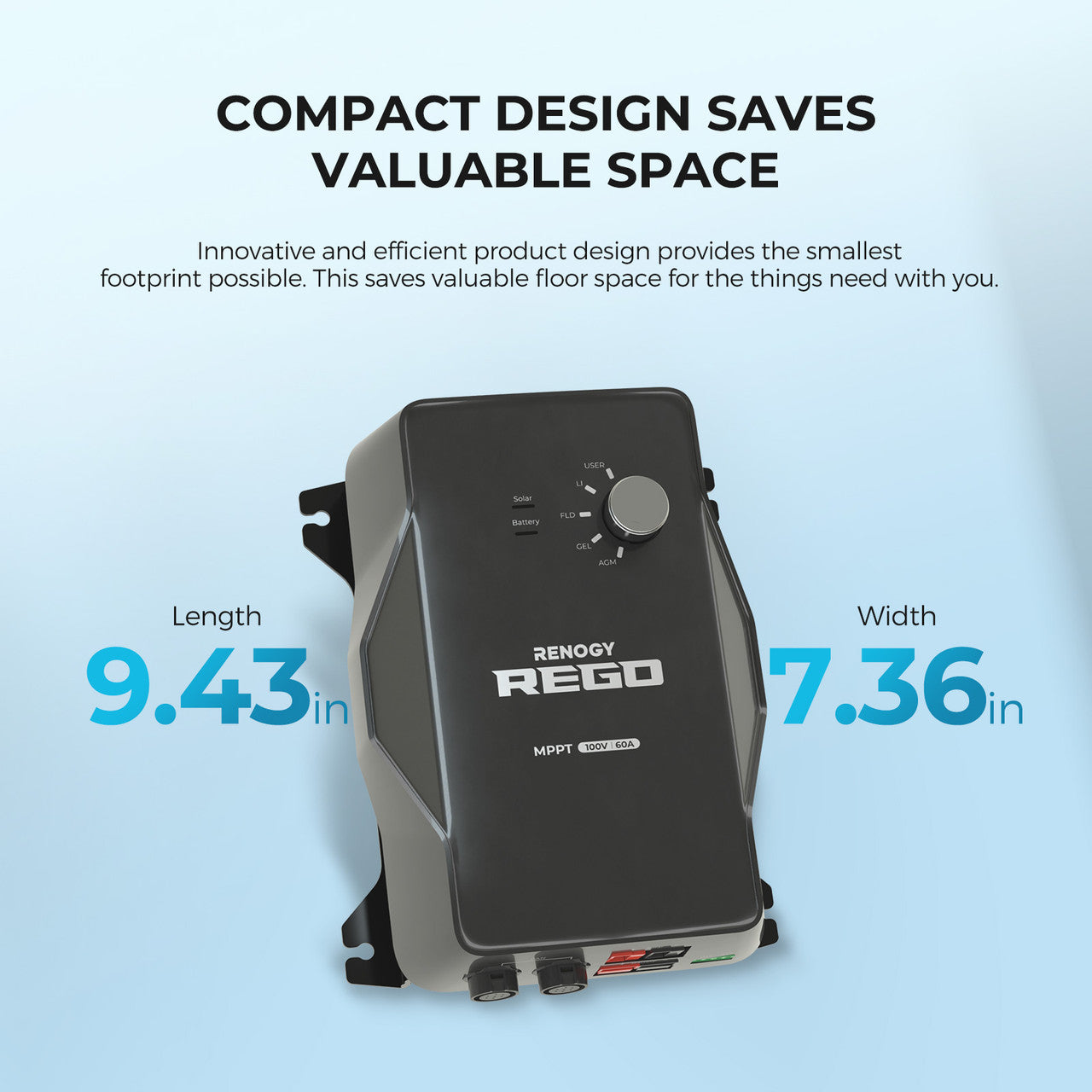

Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm
Weight: 5.07 lbs/ 2.30kg

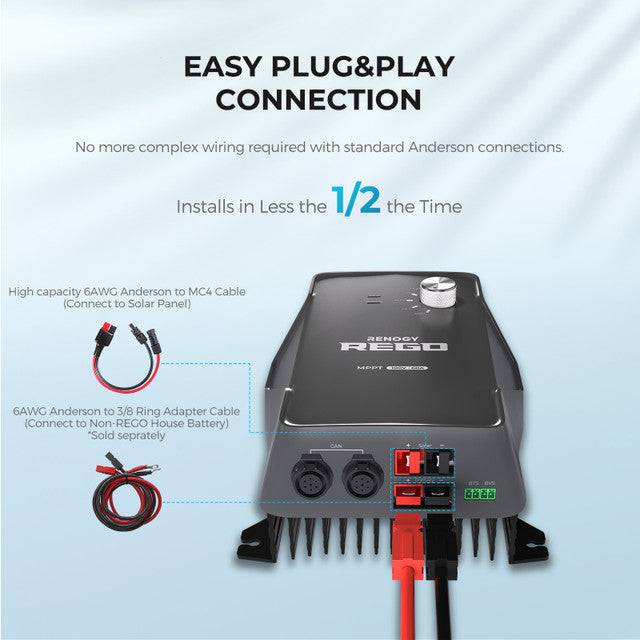

Terminals Size: Anderson PP75
Remote Monitor: Bluetooth Module BT-2 (RS485 / CAN bus signal) (Optional)
Certifications: CE and RoHS Compliant, FCC Class B Part 15 Compliant
Material and Workmanship Warranty: 5 Year

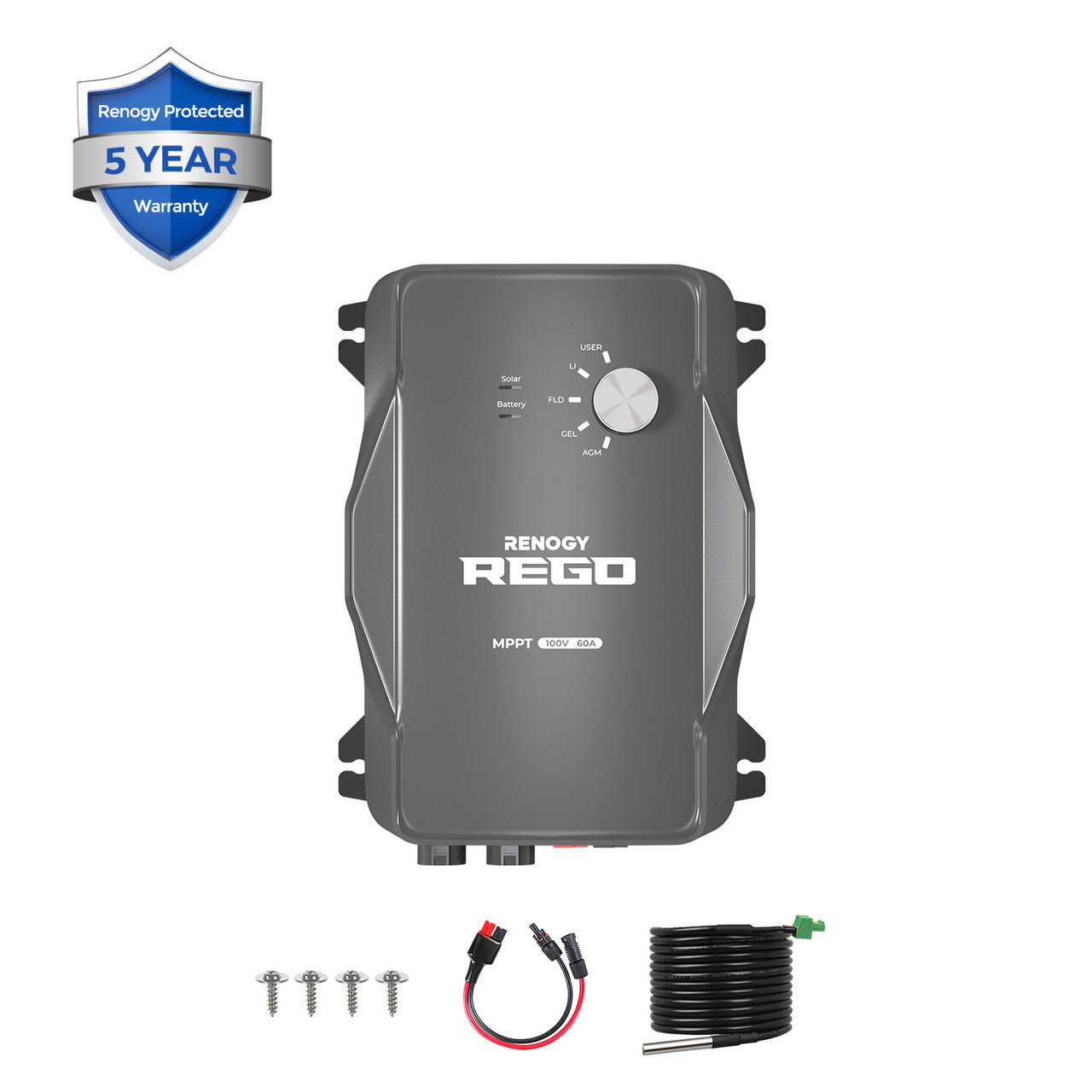

WHAT'S IN THE BOX:
1 x REGO 12V 60A MPPT Charge Controller
1 x Renogy Temperature Sensor
1 X Solar Adapter Cable
4 X Mounting Screws
1 x 5Ft 6AWG Anderson Adapter Cable (Option 1)
1 x 10Ft 6AWG Anderson Adapter Cable (Option 2)
The Renogy REGO 60A MPPT 12V Solar Charge Controller is perfect for anyone looking to harness the power of the sun. Whether you're a seasoned solar enthusiast or just starting out, this controller is easy to install and packed with features to maximize your solar energy system's efficiency. With its compact size (9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm) and lightweight design (5.07 lbs/ 2.30kg), it won't take up much space or weigh you down. The controller is compatible with multiple battery types, including AGM/Sealed, GEL, FLOODED, LFP, and USER, and can handle a nominal system voltage of 12V, a rated charge current of 60A, and a max PV input power of 800W. It also features smart energy monitoring, integrated thermal management, and remote monitoring via Bluetooth and app, so you can keep track of your system's performance from anywhere.
