Renogy All-in-One Energy Monitoring Hub - The Ultimate Solution for RV & VAN Owners!
Are you tired of constantly monitoring your energy systems while on the go? Look no further! Renogy One Core is here to revolutionize the way you manage your energy. With its advanced features and user-friendly interface, it's the perfect companion for all your off-grid adventures.
• All-in-One Energy Monitoring: Keep track of every amp of power generated and consumed with ease. Monitor real-time updates, historical data, and error notifications from the comfort of your favorite location.
• Smart Home Automation: Transform your RV or VAN into a smart home with Renogy One Core. Connect to your smart home appliances and trigger alerts on door entry or climate sensors for ultimate convenience.

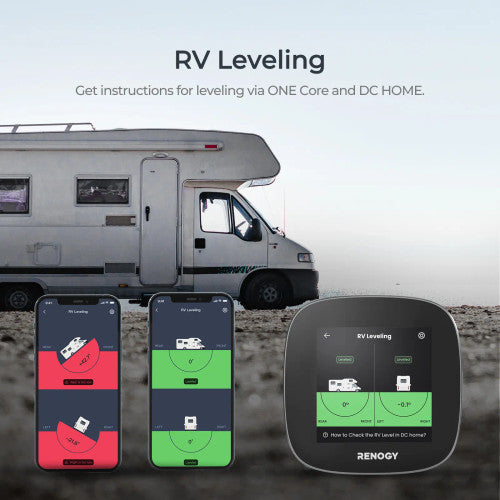

• Built-in RV Levelling Sensor: Enjoy a smooth and stable ride even on the bumpiest terrains. The built-in 6-axis RV levelling sensor detects changes in orientation and rotational movement to ensure optimal stability.

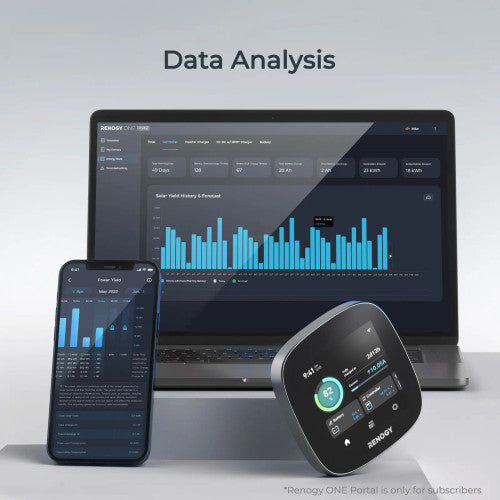

Renogy One Core bridges the gap between the world's oldest known power source and the latest Wi-Fi tech. It's a cloud-based energy monitoring device with 24/7 energy analysis, providing you with reliable, convenient, and realistic ways to keep track of your energy systems.
With ENERGY EFFICIENCY AT YOUR FINGERTIPS, Renogy ONE Core is tailor-made for your off-grid dreams. Reduce your carbon footprint by tracking every amp of power generated and consumed.
REMOTE MONITORING bridges the distance between your energy system and your favorite location. Monitor real-time updates, historical data, and error notifications from your off-road camper with ease.
RENOGY ONE CORE is the one command center for all your devices, providing complete home automation. Say goodbye to manual controls and hello to a smarter, more convenient lifestyle.

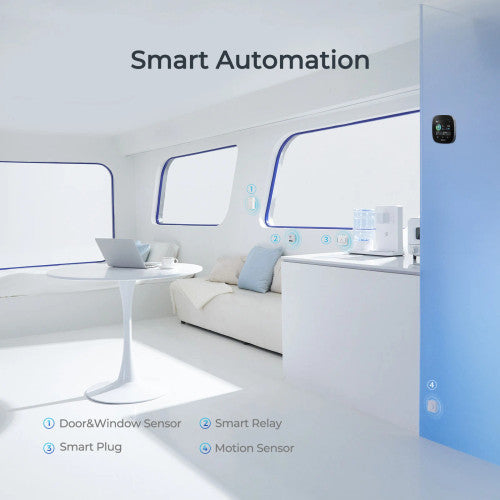

SMART HOME AUTOMATION is just a click away with Renogy ONE Core. Double up as a smart home hub by connecting to your smart home appliances and triggering alerts on door entry or climate sensors.
Specifications:
Operating Voltage: 8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V: Operating, WiFi On, 100% illumination: 3.2 W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W

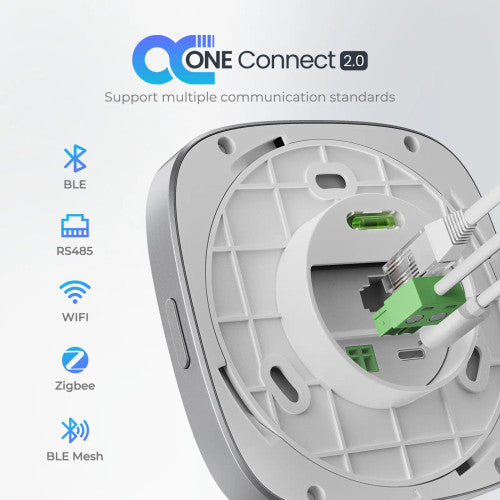

Communication: Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485
Touch Screen: 4 inches (480 x 480p)
Leveling Range and Accuracy: ±89°, 0.1°
Operating Temperature: -4°F to 158°F (-20°C to 70°C)
Operating Humidity: 0% to 95% RH
Operating Altitude: Less than 5000m above sea level
Installation: Flush mount or place on a table

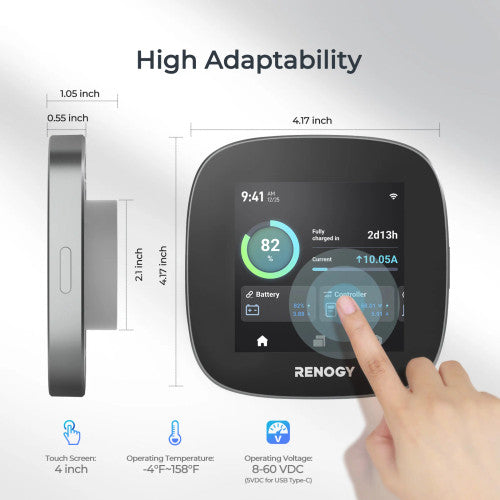

Dimensions: 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight: 0.28 lb (128g)
Certification: CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty: 2 years
What's in the Box:
1 x Renogy ONE Core
1 x Quick Guide
1 x 5m Power Cable
4 x M3.5 x 14mm Mounting Screws
1 x User Manual
Renogy All-in-One Energy Monitoring Hub is designed for RV and VAN owners who want to manage their energy systems easily. It has a 4-inch touch screen and weighs 0.28 lb. With features like all-in-one energy monitoring, smart home automation, and a built-in RV levelling sensor, it's the perfect solution for off-grid adventures. Operating Voltage is 8-60 VDC (5 VDC for USB Type-C). It communicates via Wi-Fi, Bluetooth, Zigbee, and RS-485. The leveling range is ±89° with an accuracy of 0.1°. Operating temperature is -4°F to 158°F (-20°C to 70°C), humidity is 0% to 95% RH, and altitude is less than 5000m above sea level. It can be flush mounted or placed on a table. Comes with a Renogy ONE Core, Quick Guide, 5m Power Cable, 4 mounting screws, and a User Manual.
