Power Your Life Off-Grid!

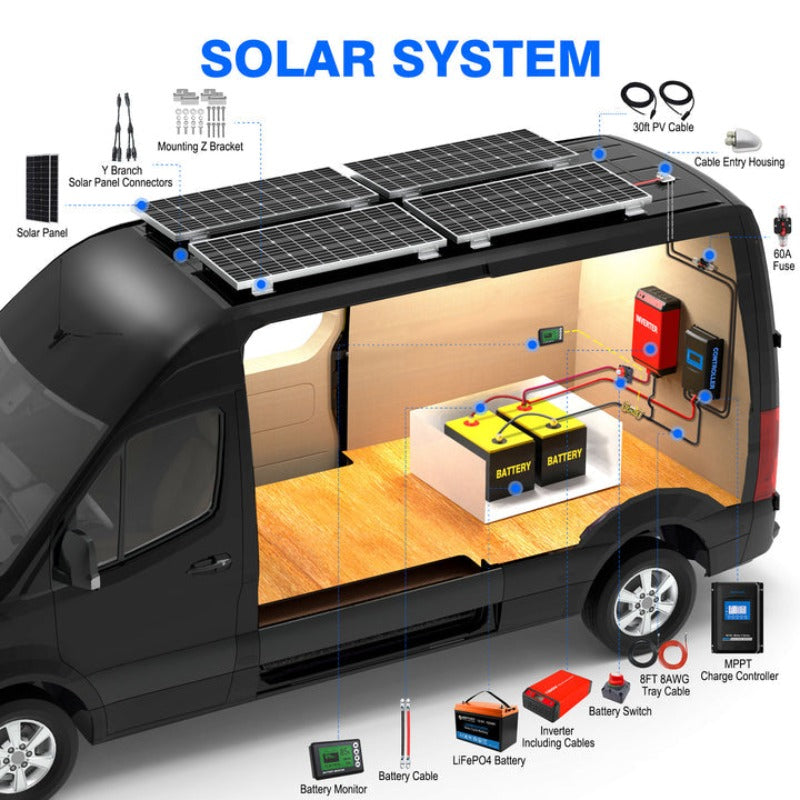

• Ideal for RVs, cabins, homes, boats, and remote power backup.
• Enjoy abundant AC power (120VAC) with a 1500 Watt Pure Sine Wave Inverter.
• High-capacity Li-battery packs with superior charging/discharging efficiency.
Superior Charging Efficiency
• 40A MPPT Charge controller with 98% peak conversion efficiency and 99% tracking efficiency.
• 4-stage battery charging process for swift, efficient, and secure charging.
• Solar charging between 200W - 800W provides 960Wh - 3840Wh of charge per day, depending on sunlight.
Ready to Install

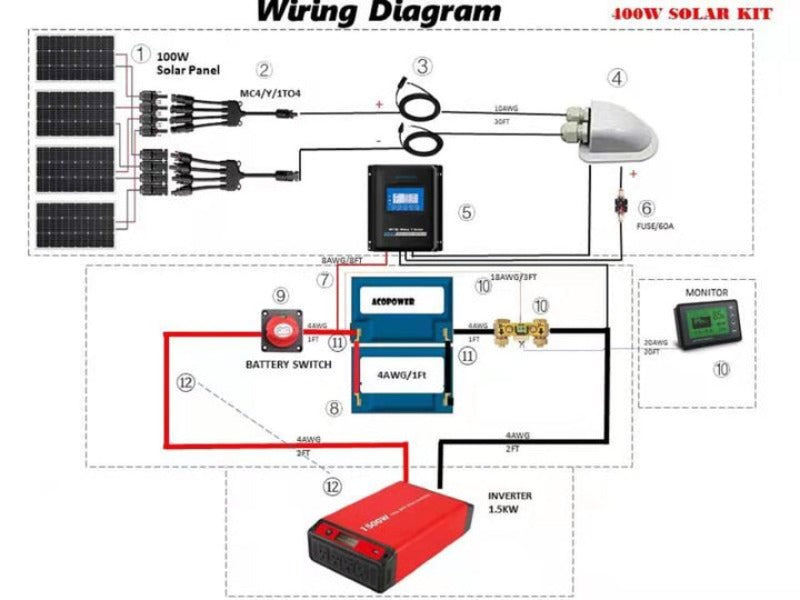

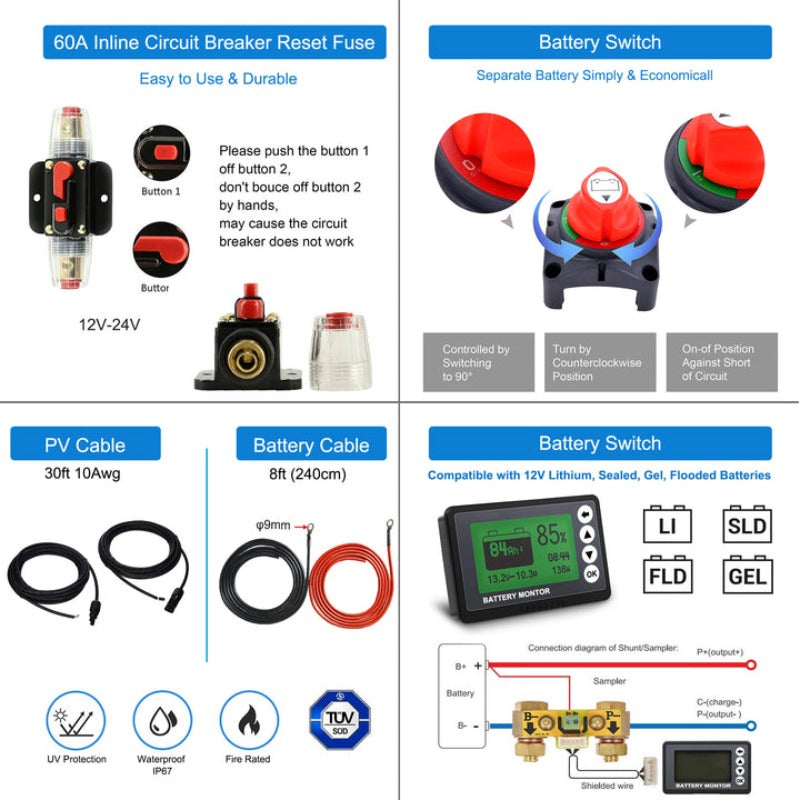

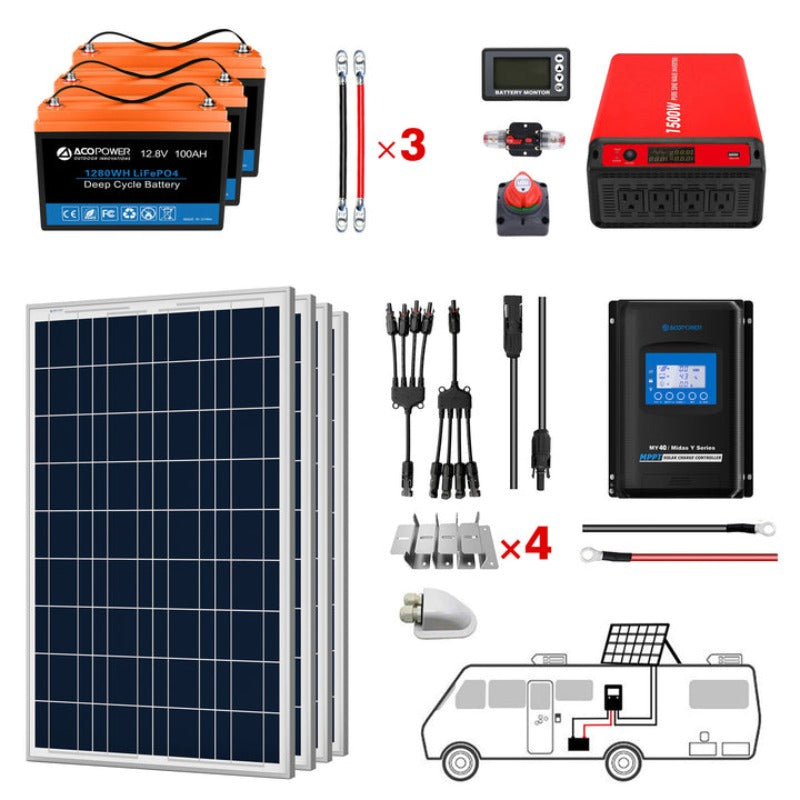

• Comprehensive kit includes 4pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller, a 40A fuse, a battery switch, a battery monitor, and all necessary cables and solar mounting Z brackets.
Specifications:

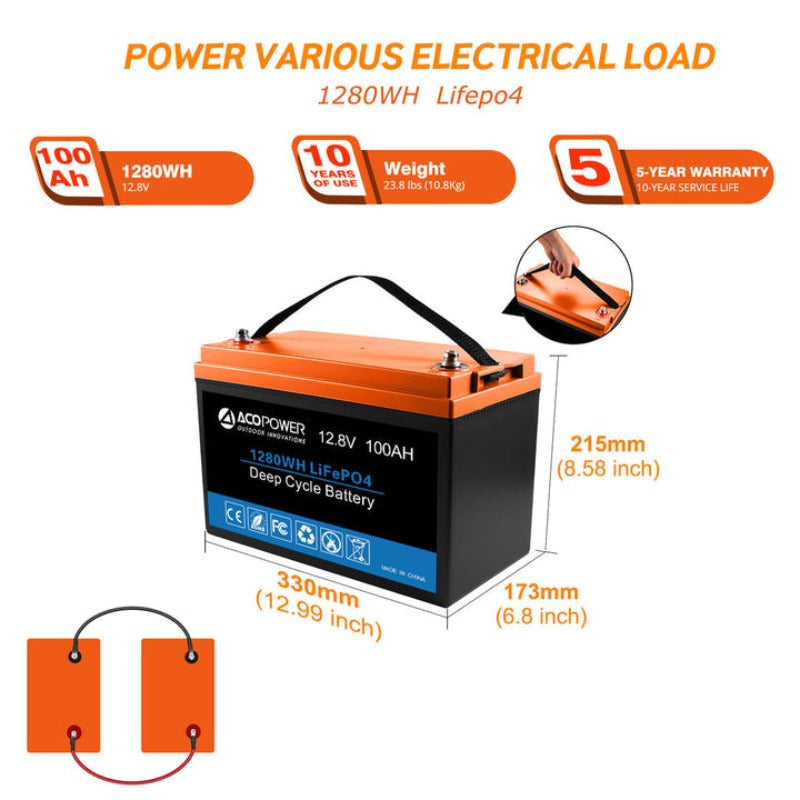

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

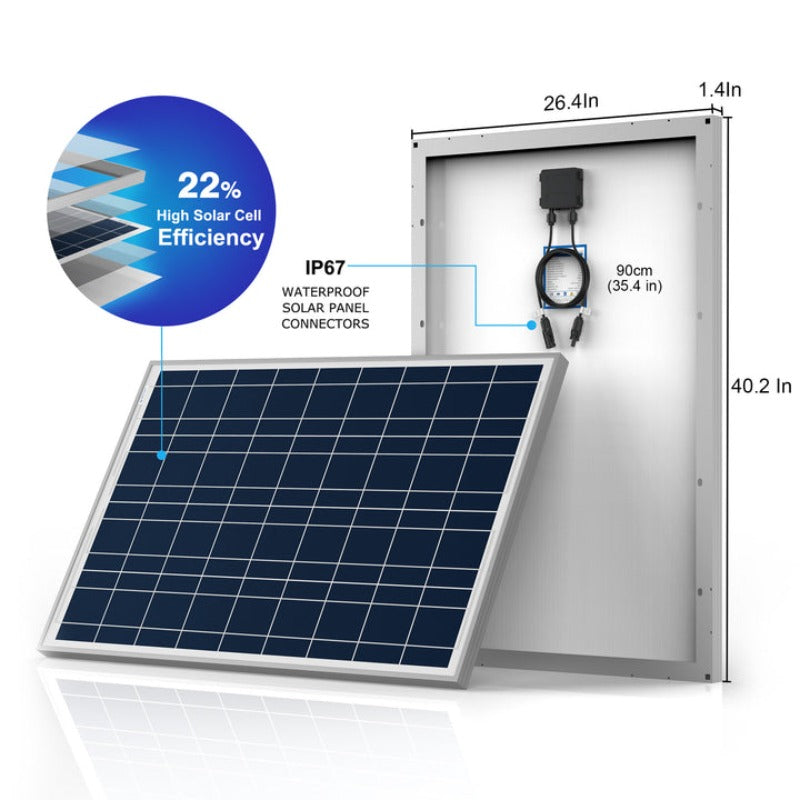

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

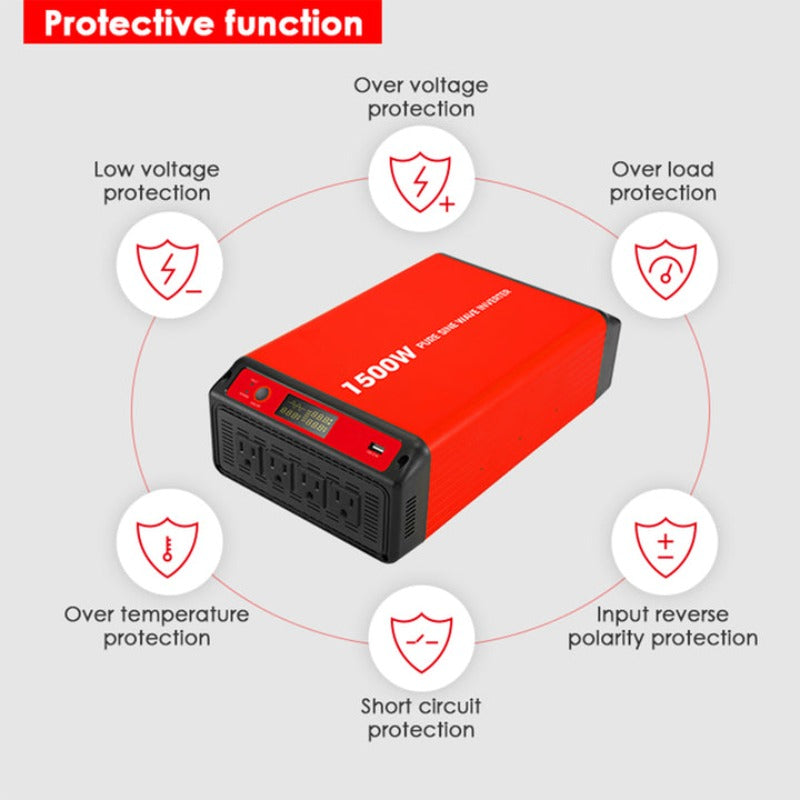

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

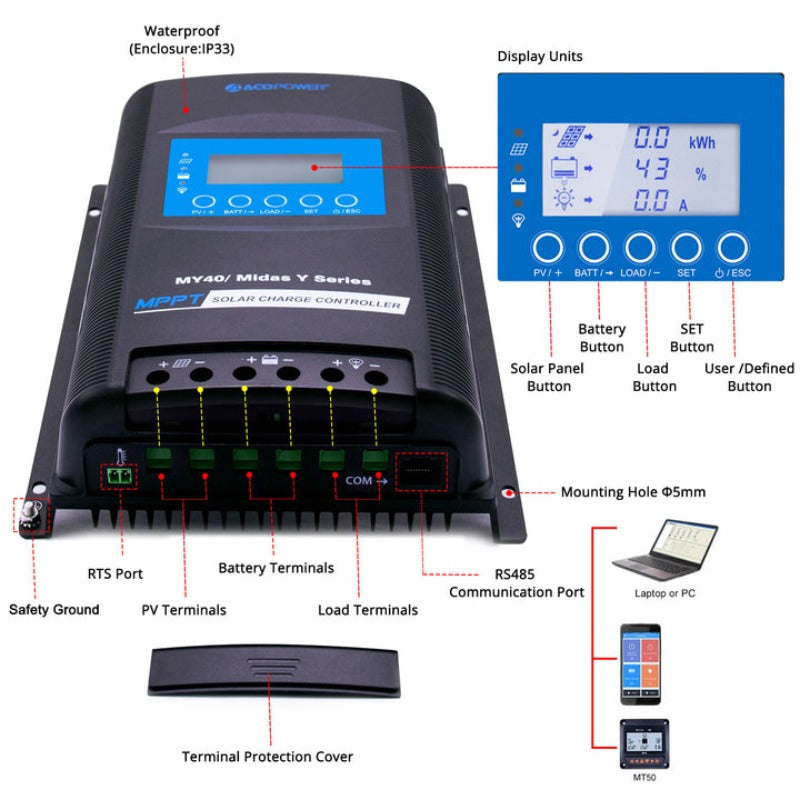

MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
What's in the Box:
This Acopower solar panel kit is perfect for those looking to go off-grid. It's great for RVs, cabins, homes, boats, or as a backup power source. The kit comes with everything you need for installation, including 4 100W polycrystalline solar panels, 3 100Ah LiFePO4 deep cycle lithium batteries, a 1500W DC to AC power inverter, a 60 amp MPPT solar charge controller, a 40A fuse, a battery switch, a battery monitor, and all necessary cables and solar mounting Z brackets. The 12V 100Ah LiFePO4 deep cycle lithium battery has a rated voltage of 12.8V, a charge voltage of 14.2 - 14.6V, a battery capacity of 1280WH, a depth of discharge of 100%, a standard charge current of 20A, a max continuous charge current of 50A, a max continuous discharge current of 100A, dimensions of 12.99 x 6.81 (W) x 8.58 (H) inches, and weighs approximately 23.8lb. The 100W poly solar panel has a peak power of 100W, a peak circuit voltage of 22V, a max power voltage of 17.48V, a short circuit current of 6.21A, a max power current of 5.72A, weighs 17.6lb, has dimensions of 40.2*26.4*1.4 inches, and is of application class A. The 1500W pure sine wave inverter has a continuous output of 1500W, a surge power of 3000W, a pure sine wave form, and protections against under voltage, overvoltage, overload, and output short circuit. It weighs 7.79lb and has dimensions of 12.94+1.34 (D) x 7.52(W) x 3.86(H) inches. The 40A MPPT solar charge controller has a rated charge current of 40A, a battery voltage range of 8V - 32V, a max PV open circuit voltage of 100VDC, a max PV input power of 12V/520W, 24V/1040W, and is compatible with various deep cycle battery options.
