Acopower 100W High-Performance Recreational Vehicle Power System
The Acopower 100W High-Performance Recreational Vehicle Power System is a must-have for RV enthusiasts! It's a comprehensive and high-performance power solution designed just for you.
• 100-Watt Monocrystalline Solar Panel: Efficiently converts sunlight into electricity, providing a reliable power source.
• 800 Ampere-Hours Gel Battery: Offers ample power to run lights, fridges, charge laptops & phones, and more.
• 3-Kilowatt Inverter: Seamlessly converts DC to AC power, compatible with a wide range of devices. The 600-watt wind turbine boosts energy efficiency.
Whether you're a full-time RVer or a weekend adventurer, this system ensures an uninterrupted power supply. It's easy to install and user-friendly.
SPECIFICATIONS:
100W Monocrystalline Black Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8 lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A

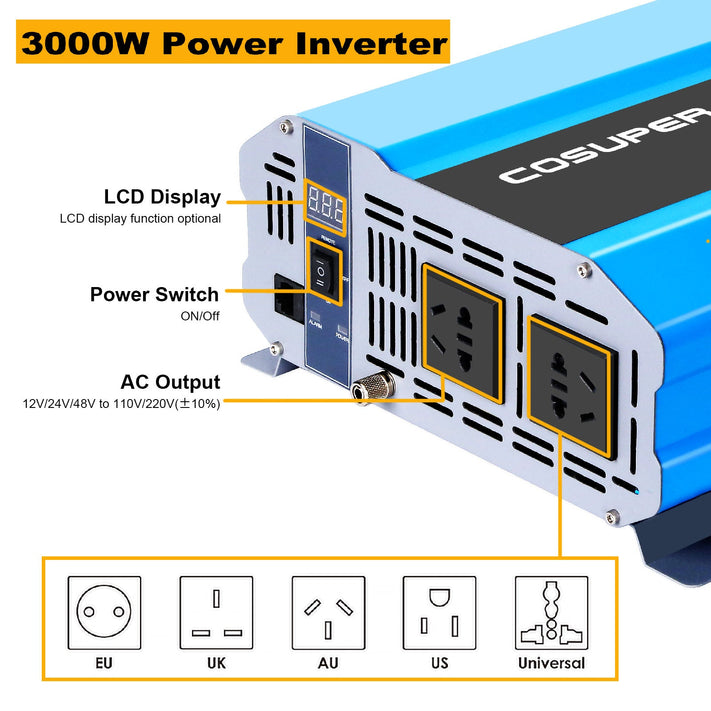

3000W Inverter 12VDC to 120VAC
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

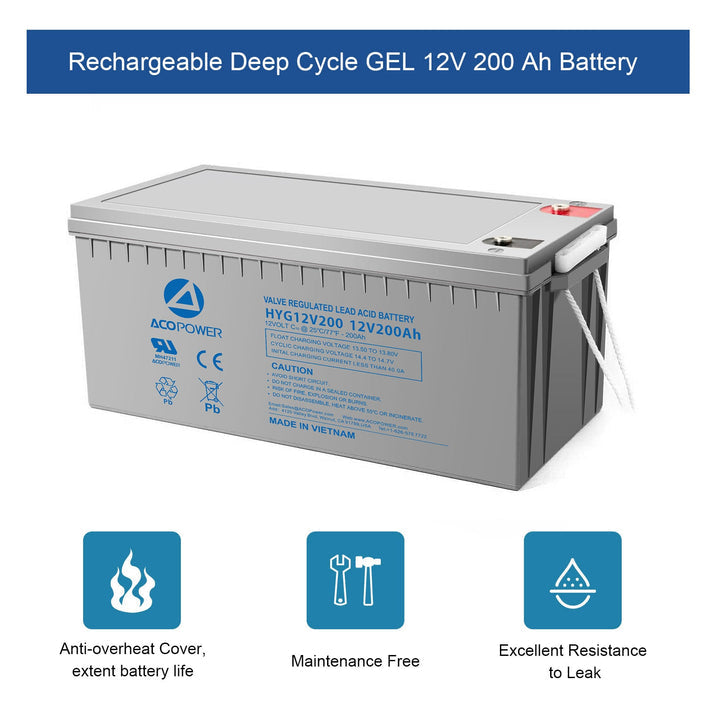

12V 200 Ah Rechargeable Deep Cycle GEL Battery
- Nominal Voltage 12V
- Rated capacity (10 hour rate): 200Ah
- dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
- Approx. Weight: 62.5kg(137.5lbs)¡À3%

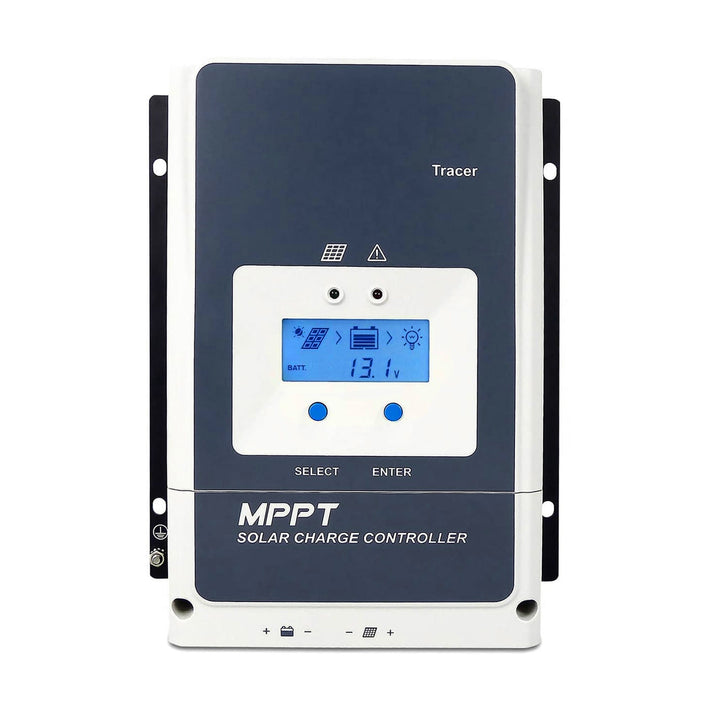

MPPT 50A Charge Controller
- Rated charge current: 50A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V/138V
- Max.PV input power: 12V/325W,24V/1250W,36V/1875W,48V/2500W
- Common positive grounding design
- Compatible with Various Deep Cycle Battery options: Sealed (Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

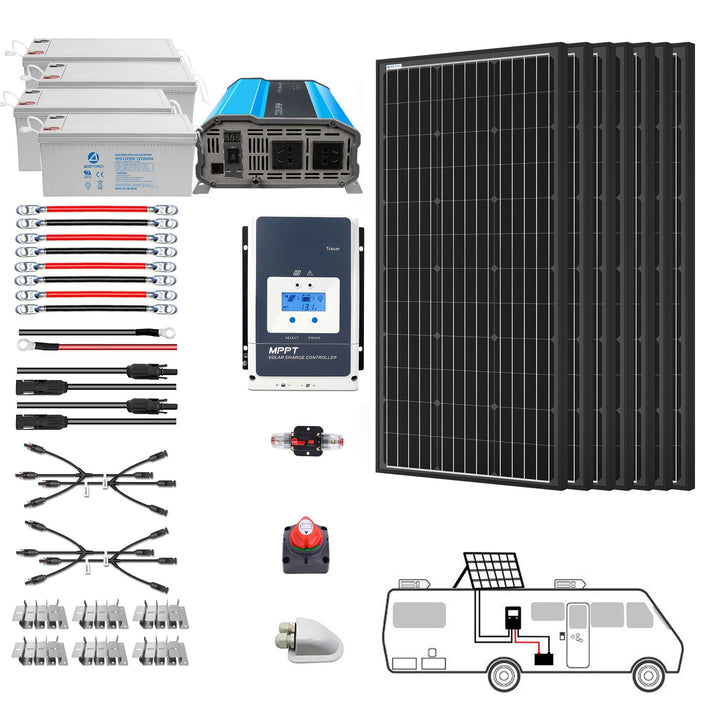

WHAT'S IN THE BOX:
6 x 100W Mono Solar Panel
1 x 3000W Inverter
4 x 200Ah Gel Battery
1 x 50A MPPT Charge Controller
1 x 50A Fuse
1 x Battery Switch
6 Sets x Mounting Z Bracket
2 Pairs x 30ft 12AWG PV Cable
4 Pairs x 1Ft 2AWG Battery Cable
1 Pair x 8FT 8AWG Tray Cable
1 x Cable Entry Housing
2 Pairs x Y3 Branch Solar Panel Connectors
This Acopower power system is perfect for RVs, cabins, homes, and boats. It's designed for full-time RVers and weekend adventurers. The 100W monocrystalline solar panel is 40.2*20.1*1.4 inches and weighs 12.8 lb. The 3000W inverter is 18.23(D) x 9.53(W) x 4.65(H) inches and weighs 12.1 lb. The 12V 200 Ah gel battery is 20.55x 9.37 (W) x 8.58 (H) inches (total height 8.74 inches) and weighs about 62.5kg(137.5lbs)±3%. It provides power for running various appliances and electronics during your off-grid adventures.
