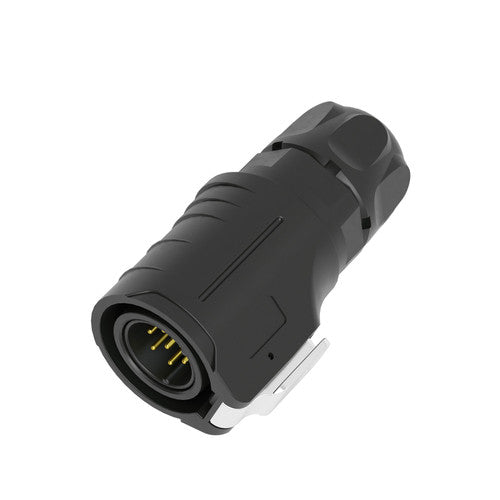

Renogy LP16 7-Pin Male Terminator Plug - Boost Your Signal Strength!

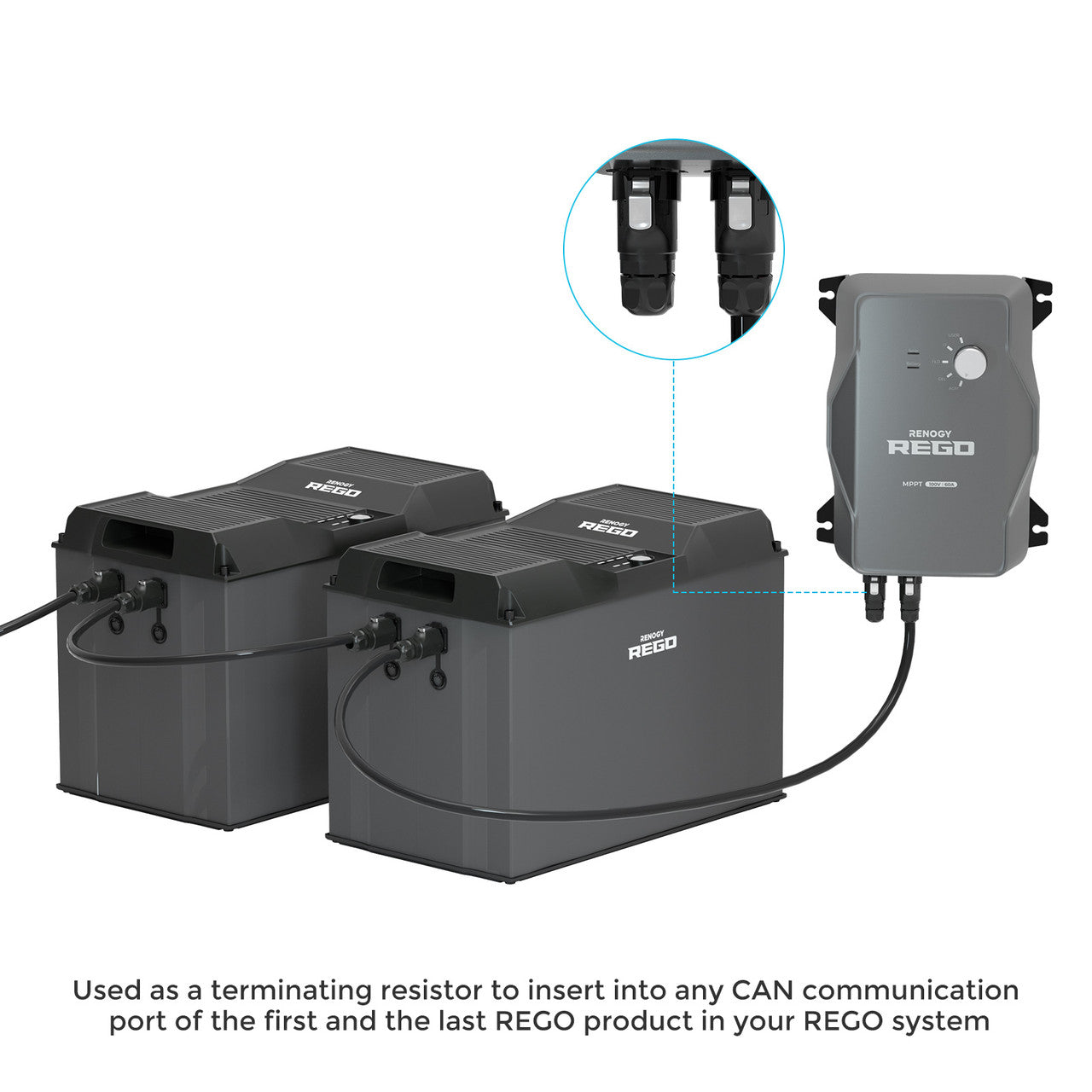

Upgrade your communication signal system with the Renogy LP16 Terminator Plug. This 7-pin male resistor easily fits into any redundant CAN communication port in your REGO series products. It significantly weakens and eliminates signal reflection and echo, ensuring a stronger, clearer signal.
• Plug and Play: Enjoy quick and stable operation right out of the box.
• Gold Plated Contact Core: The 3um gold plating on LP16's contact core guarantees consistent, stable, and efficient electrical performance.
• IP65 Waterproof: With an IP65 rating, this terminator can withstand harsh outdoor conditions while maintaining top-notch performance.
Specifications:
Rated Current: 5A
Rated Voltage: 250V AC
Contact Diameter: ¦Õ1.0mm*7
Rated Power Of Resistance: 1/4W
Resistance Value: 120¦¸
Life Cycle: ¡Ý500 times
Temperature rise: 5A Per contact at 30K
Rated Temperature: -25¡ãC - 85¡ãC/-4¨H-185¨H
Dimensions: 2.13 x 0.9 x 1.18 in.
Weight: 0.05lbs
Certification: TUV¡¢UL¡¢CQC¡¢ROHS
Warranty: 1 year
What's in the Box:
1 x LP16 Terminator Plug (7-Pin)
1 x User Manual
This Renogy LP16 7-Pin Male Terminator Plug is perfect for anyone looking to enhance their communication signal system. It's designed to fit into REGO series products' redundant CAN communication ports. Ideal for both indoor and outdoor use. Technical specs include dimensions of 2.13 x 0.9 x 1.18 in and a weight of 0.05lbs. Comes with a 1-year warranty and is certified TUV, UL, CQC, ROHS.
