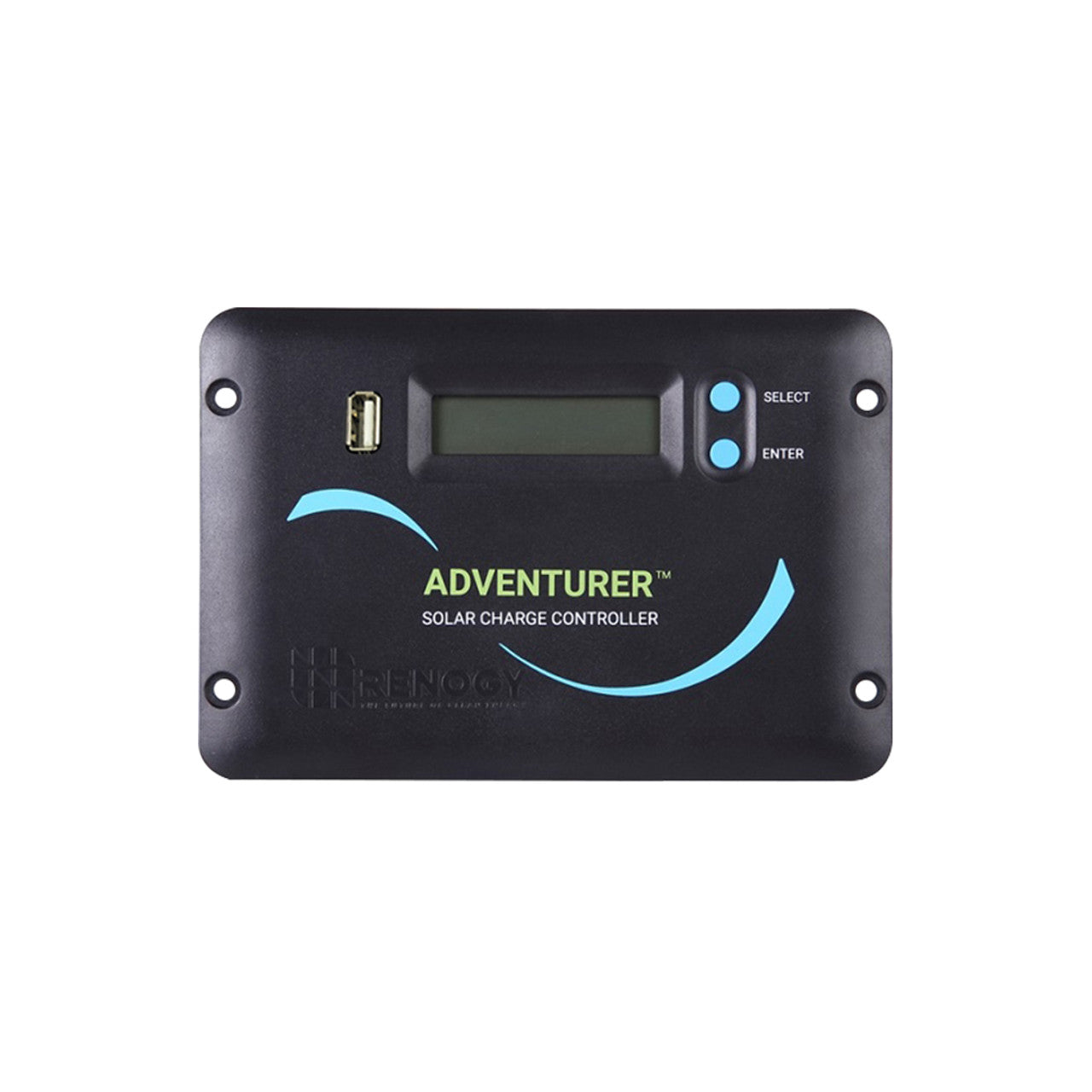

Renogy Adventurer-Li 30A Negative-Ground PWM Flush Mount Charge Controller - Your Reliable Solar Power Companion
Discover the perfect solution for efficient solar panel system operation with the Renogy Adventurer-Li 30A Charge Controller.
• Customizable lithium charging voltage for most market lithium batteries

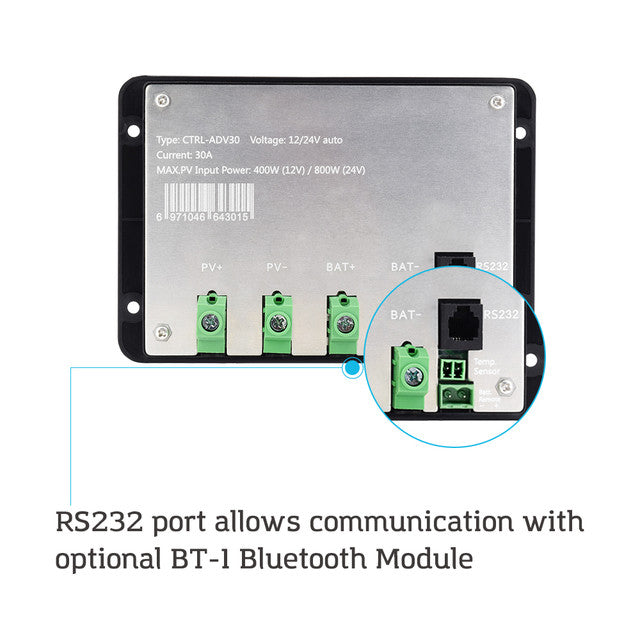

• RS232 port for communication with Renogy BT-1 Bluetooth module
• 30A PWM charge controller for 12V or 24V photovoltaic systems
This negative-ground controller, with its LCD display, ensures optimal charge regulation from solar panels to the battery bank. It features self-diagnostic and protective functions, extending battery life.
Choose Renogy for reliable solar power management!
Highlights:
Unique USB port on the front display

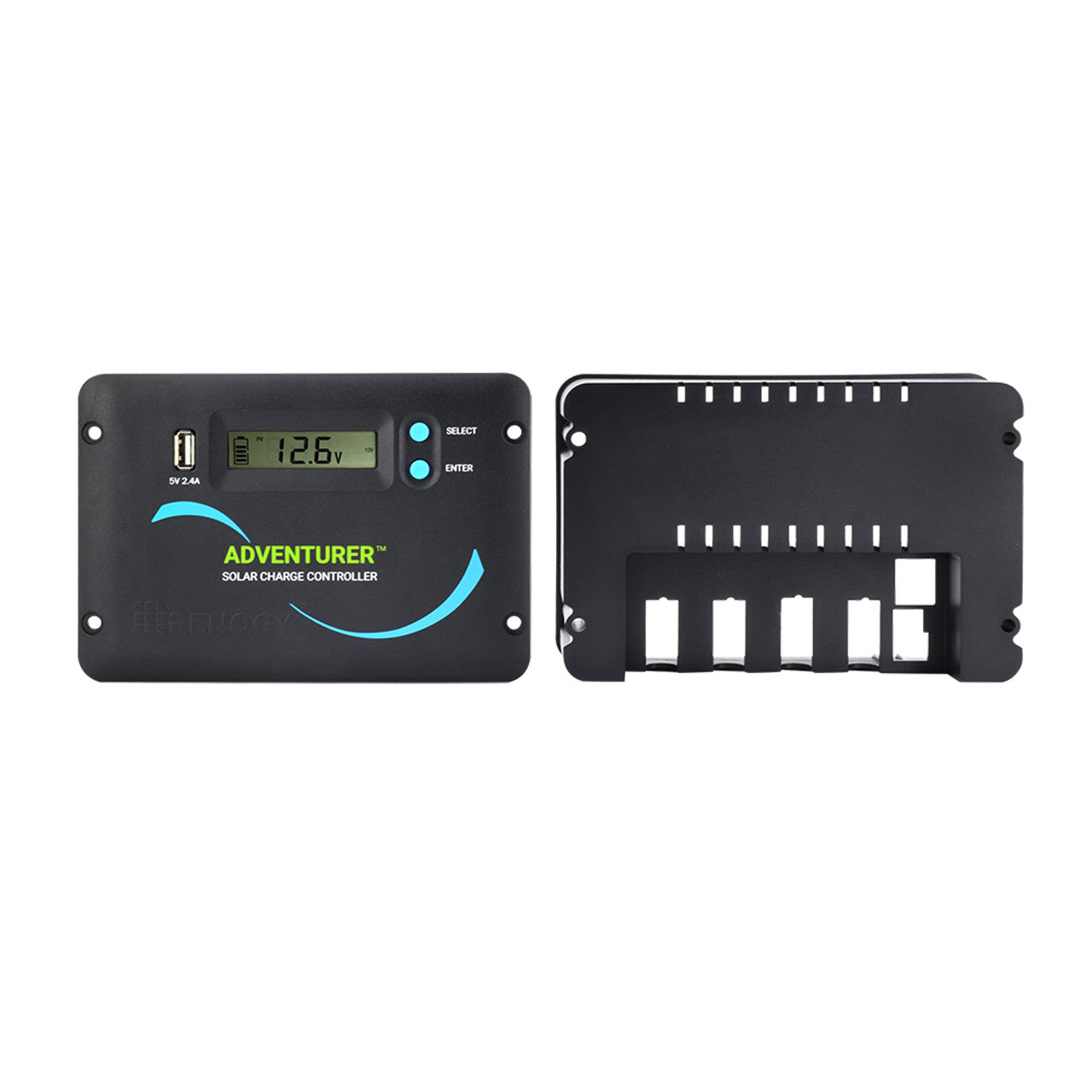

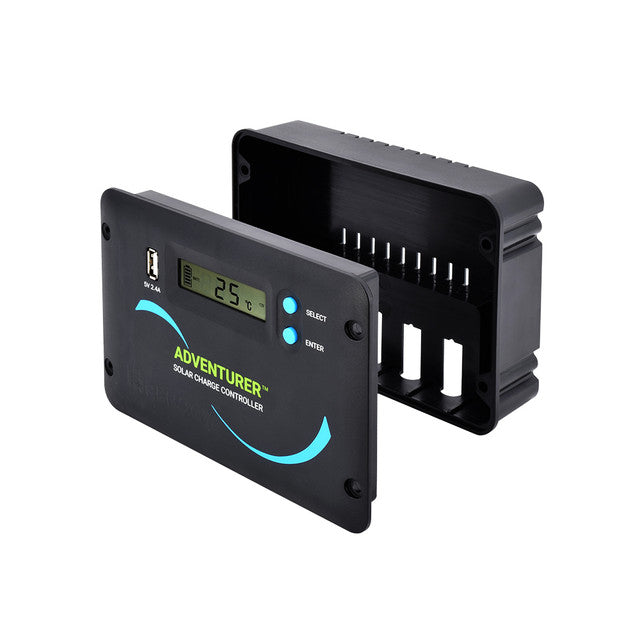

The only Renogy controller with flush mount capabilities

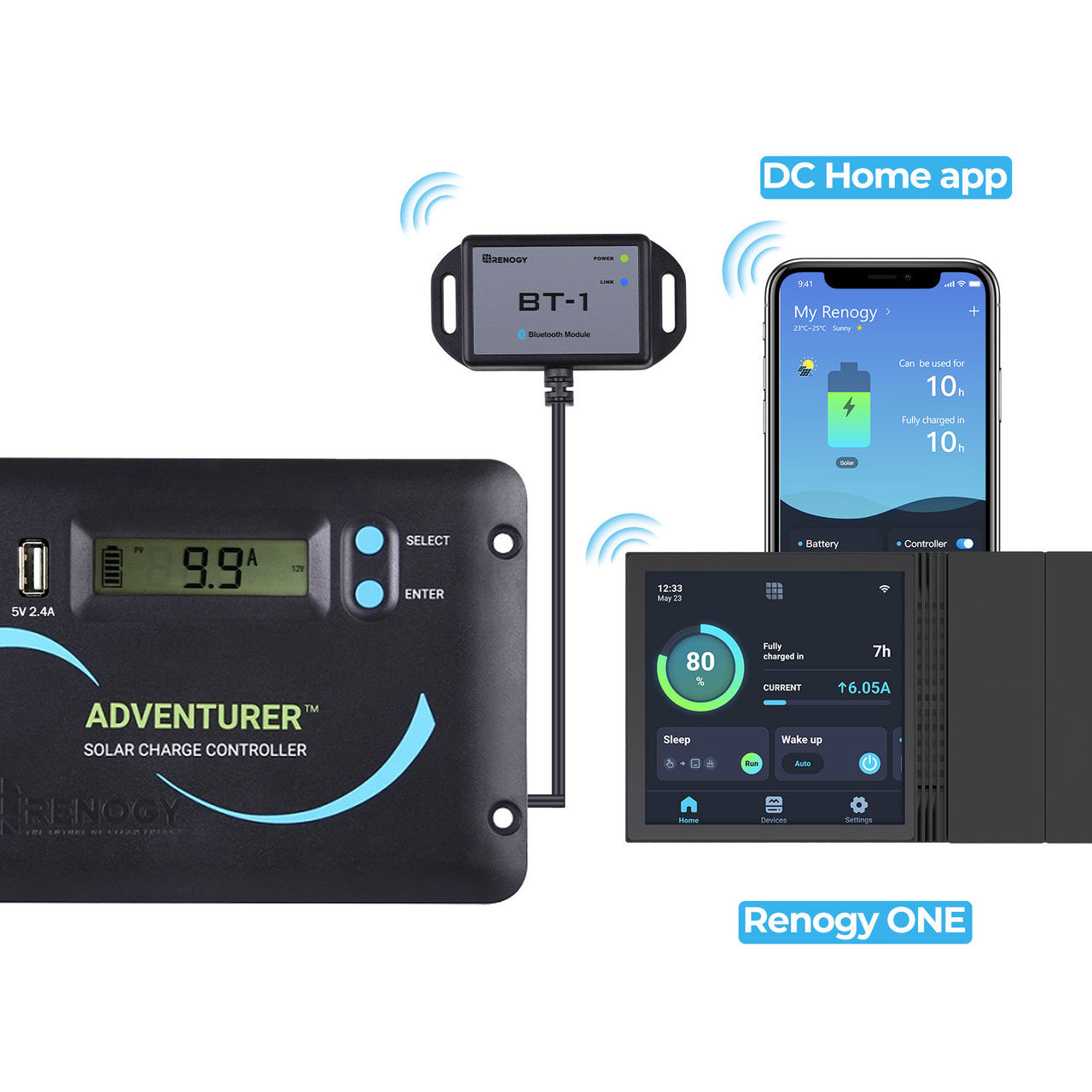

The RS232 port can work with the BT-1 Bluetooth module to deliver real-time energy data across the DC Home smartphone and Renogy ONE M1
Negative-ground controller
Protection against overcharging, overload, short-circuit, and reverse polarity
4 Stage PWM charging (Bulk, Boost, Float, and Equalization) prevents batteries from over-charging and over-discharging
12V and 24v compatibility

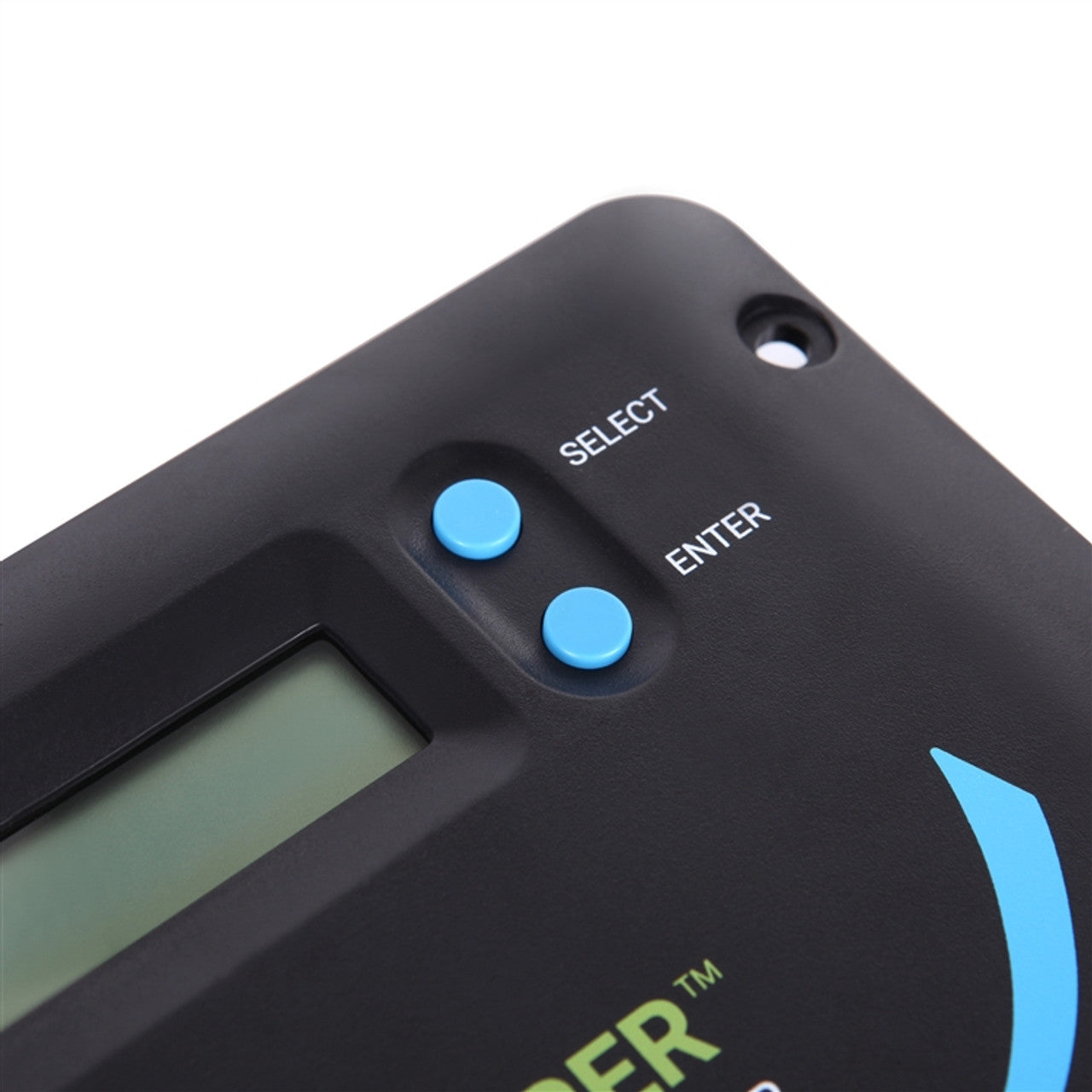

LCD screen for displaying operating information and data
Compensates for temperature, automatically corrects charging and discharging parameters, and improves battery longevity
Compatible with Sealed, Gel, Flooded, and Lithium batteries
SPECIFICATIONS:
Nominal Voltage: 12 VDC/ 24 VDC
USB Output: 5V, 2.4A Max
Rated Charge Current: 30A
Max. PV Input Voltage: 50 VDC
Equalization Voltage: Sealed: 14.6 V; Gel: None; Flooded: 14.8 V
Boost Voltage: Sealed: 14.4 V; Gel: 14.2 V; Flooded: 14.6 V; Lithium: 14.2 V
Float Voltage: 13.8 V
Max. PV Input Power: 12V(400W) / 24V(800W)
Self-consumption: ≤13mA
Temperature Compensation Coefficient: -3mV/°C/2V
Operating Temperature: -13°F to 131°F
Storage Temperature: -31°F to 176°F
Enclosure: IP20
Dimensions: 6.56 x 4.50 x 1.90 inches
Terminals: Up to 8 AWG
Weight: 0.6 lbs
Certification: CE
Compatible Bluetooth: Renogy BT-1 Bluetooth module
Accessories: 2-Year material warranty
Charge Controllers: Adventurer
WHAT'S IN THE BOX:
1 x Renogy Adventurer Li 30A PWM Charge Controller
1 x Renogy Adventurer Box
The Renogy Adventurer-Li 30A Negative-Ground PWM Flush Mount Charge Controller is designed for RVs and campers. It's perfect for those looking to efficiently manage their solar power systems. With dimensions of 6.56 x 4.50 x 1.90 inches and weighing 0.6 lbs, it's easy to install. This charge controller offers customizable lithium charging, works with a Bluetooth module, and is compatible with 12V or 24V photovoltaic systems, ensuring reliable and efficient solar power management.
