Renogy Ultra-Power 2500W Solar Kit
Discover the ultimate solution for harnessing solar energy! This kit is a game-changer for homeowners and off-grid adventurers seeking reliable and clean power. • High-Efficiency Power Generation: With included monocrystalline solar panels, enjoy maximum power even in low light. • Smart Battery Storage: The reliable lithium battery bank stores excess energy for any time use. • Stable Power Conversion: A top-notch inverter turns DC to AC, perfect for all your devices.
Whether you're aiming to cut grid reliance or enjoy green energy in remote spots, this kit delivers consistent power. Harness the sun's power now and embrace a sustainable lifestyle!
2.5kW Solar Power Output
The included high-efficiency monocrystalline solar panels ensure maximum power generation even in low-light conditions, providing clean energy for various applications.
Advanced Battery Storage
Equipped with a reliable lithium battery bank, the kit stores excess energy for use during nighttime or cloudy days, ensuring continuous power availability.
Pure Sine Wave Inverter
Convert the stored DC energy into stable AC power with a high-quality inverter that supports sensitive electronics and household appliances.
Comprehensive Kit
Includes solar panels, inverter, charge controller, cables, and mounting hardware, offering a complete solution to jumpstart your solar energy system without the need for additional components.
Built-In Safety Features
The charge controller and battery management system (BMS) protect your setup from overcharging, over-discharging, and short-circuits, ensuring safe and long-lasting operation.
Harness the power of the sun and reduce your dependence on traditional energy sources with the Renogy 2.5kW Essential Plus Kit. It's a simple yet robust solution for eco-friendly, reliable energy in both residential and off-grid setups.
Specifications:
- Maximum Power at STC: 320W
- Optimum Operating Voltage (Vmp): 32.7V
- Open-Circuit Voltage (Voc): 40.1V
- Optimum Operating Current (Imp): 9.79A
- Short-Circuit Current (Isc): 10.36A
- Operating Temperature: -40¡ãF to 185¡ãF
- Cell Efficiency: 21%
- Maximum System Voltage: 1000V DC (UL)
- Maximum Series Fuse Rating: 15A
- Weight: 39.7lbs
- Dimensions: 65.6 x 39.4 x 1.4 in
- Certifications: CE, ISO, UL
- Output Waveform: Pure Sine Wave
- Continuous Output Power: 3500W
- Peak Power Rating: 7000W
- Output Voltage: 120VAC¡À5%
- Output Frequency: 50 Hz ¡À 0.3% 60 Hz¡À 0.3%
- Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)
- Charge Controller Type: MPPT
- Maximum Input Power: 4800W
- Maximum Input Current: 50A
- Dimensions: 16.8*12.7*4.9 in / 426*322*124 mm
- Weight: 23.8 lbs /10.8kg
- Battery Type: AGM
- Rated Capacity: 200Ah (20 Hour Rate to 10.5V)
- Nominal Voltage: 12V
- Internal Resistance: Approx. 3.5m¦¸
- Connection Method: In Series, and In Parallel (up to 4)
- Dimensions: 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
- Weight: 127.9 lbs / 58 kg
- Standard Operation Temperature: 77¡ãF¡À9¡ãF£¨25¡ãC¡À5¡ãC£©
- Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
- Accessories: 1-year material and workmanship warranty

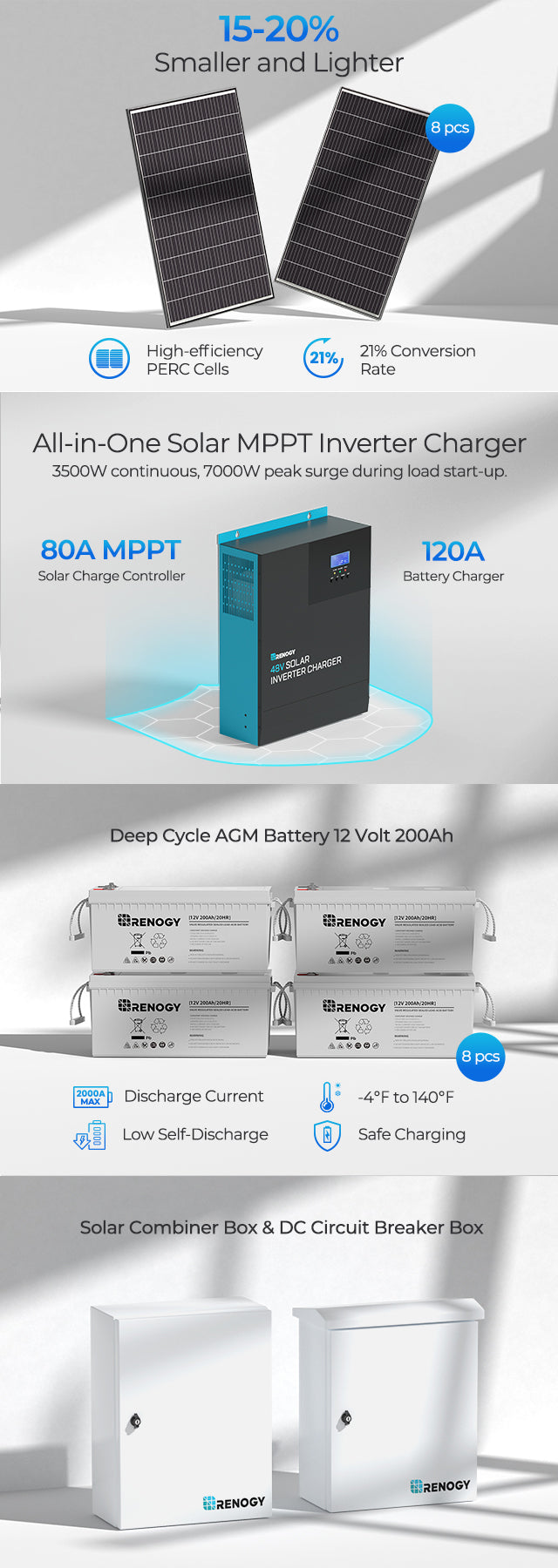

What's in the Box:
2 x 4 Pieces of 320 Watt Monocrystalline Solar Panel
4 x 40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)
1 x 5 Strings Solar Combiner Box
4 x 16A 1P DC Miniature Circuit Breaker
1 x DC Circuit Breaker Box
1 x 50A 1P DC Miniature Circuit Breaker
1 x 16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)
2 x 8Ft 8AWG Solar Stranded Copper PV Wire
1 x 160A 2P DC Molded Case Circuit Breaker
1 x 48V 3500W Solar Inverter Charger
8 x 12V 200Ah AGM Battery
8 x 12Inch 1AWG Copper Battery Interconnect Cable for 3/8Inch Lugs
2 x 8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)
1 x BT-2 Bluetooth Module
The Renogy 2500W Solar Kit is perfect for homeowners and off-grid enthusiasts. It's easy to set up and use, with everything you need included. The kit comes with high-efficiency monocrystalline solar panels that can generate power even in low light. The reliable lithium battery bank stores extra energy for use at night or on cloudy days. The pure sine wave inverter turns DC energy into stable AC power for your devices. The kit also has built-in safety features to protect your setup. The solar panels are 320W each, with dimensions of 65.6 x 39.4 x 1.4 in and a weight of 39.7lbs. The inverter has a continuous output power of 3500W and dimensions of 16.8*12.7*4.9 in / 426*322*124 mm, weighing 23.8 lbs /10.8kg. The 12V 200Ah Deep Cycle AGM Battery has dimensions of 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm and weighs 127.9 lbs / 58 kg.
