Acopower Adventure Pro Solar Power Kit
The Acopower Adventure Pro Solar Power Kit is your ultimate companion for all your outdoor escapades!
• High-Efficiency Solar Panel: Harness the sun's power with a 200W mono solar panel, maximizing energy conversion for smooth device operation.
• Robust Lithium Battery: Store and use solar energy on the go with a 300Ah lithium battery (equivalent to three 100Ah batteries).
• Versatile Inverter: Convert DC to AC power with a 400W inverter, running various electronic devices.
This kit is not only powerful but also incredibly convenient. Whether you're hiking, camping, or on a road trip, it's easy to carry and set up, ensuring you have power wherever you are. Stay connected, keep your devices charged, and embrace the freedom of endless energy while reducing your carbon footprint.
- RV-Ready Solar powered
- Three 100Ah deep cycle lithium batteries
- Two 200W Solar Panel
- 1500W Power inverter
- 2 Sets Z Bracket
- 40A MPPT Solar charge controller
- All cables necessary for the DIY system
- Mounting equipment
- Common positive grounding design
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium-ion.
SPECIFICATIONS:
12V 200Ah LiFePO4 Battery
Rated voltage 12.8V
Battery Capacity: 1280WH
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimensions (in): 12.99 x 6.81 (W) x 8.58 (H) inch
Weight: 23.8 lbs.

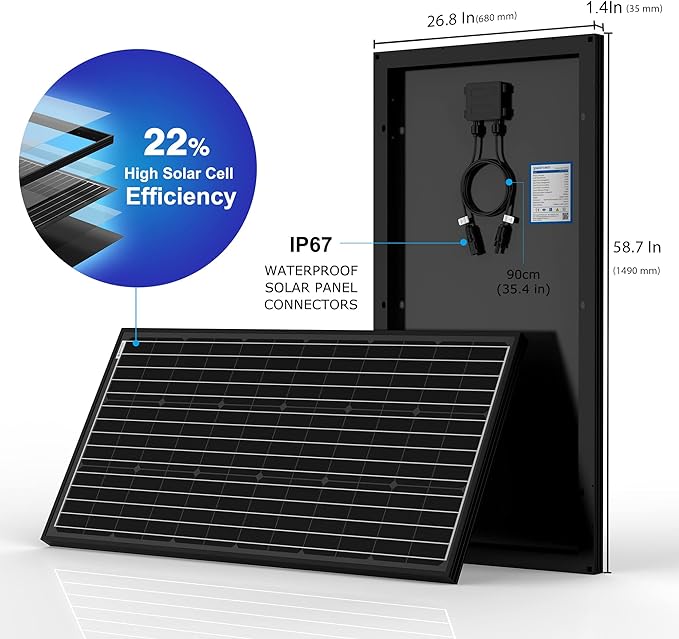

200W Mono Solar Panel
Nominal for 12V battery charger
Peak Power (PMax): 200W
Peak Circuit Voltage: 24.3V
Max Power Voltage: 20.4V
Short Circuit Current: 10.2A
Max Power Current: 9.8A
Weight: 26.5 lb., Dimension: 58.7*26.8*1.4 Inch

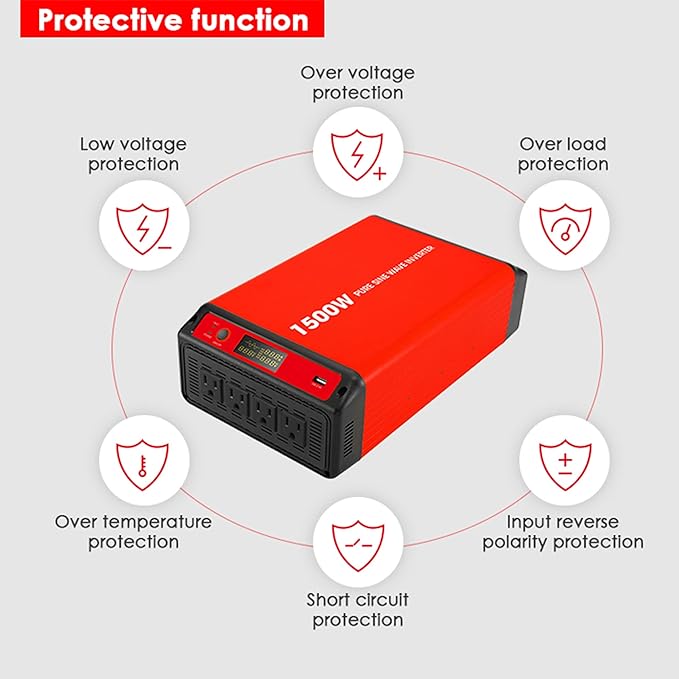

1500W Inverter 12VDC to 120VAC
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine
Wave Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
Weight: 7.79 lbs.
Dimension: 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
MPPT 40A Charge Controller
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W, 24V/1040W

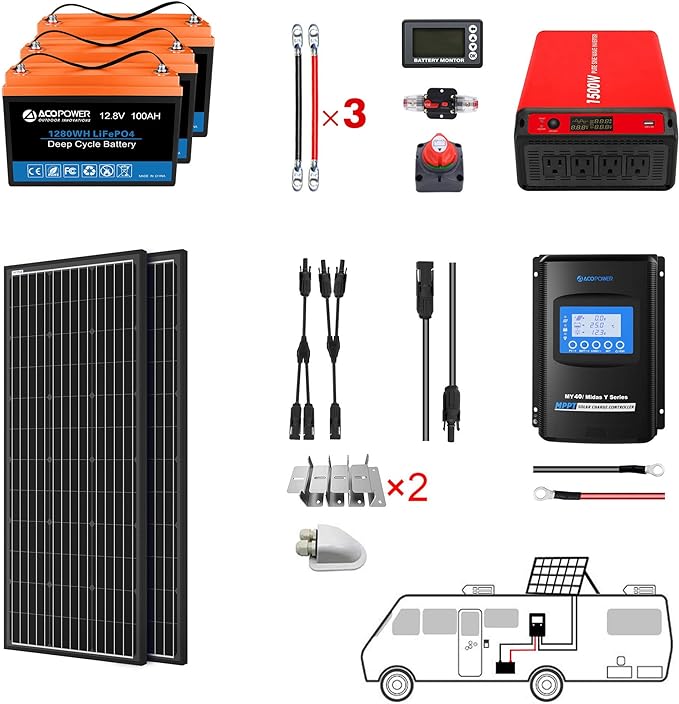

WHAT'S IN THE BOX:
3 x 100Ah LiFePO4 Battery
2 x 200W Solar Panel
1 x 1500W Sine Power Inverter (with inverter cables)
1 x 40A MPPT Charge Controller

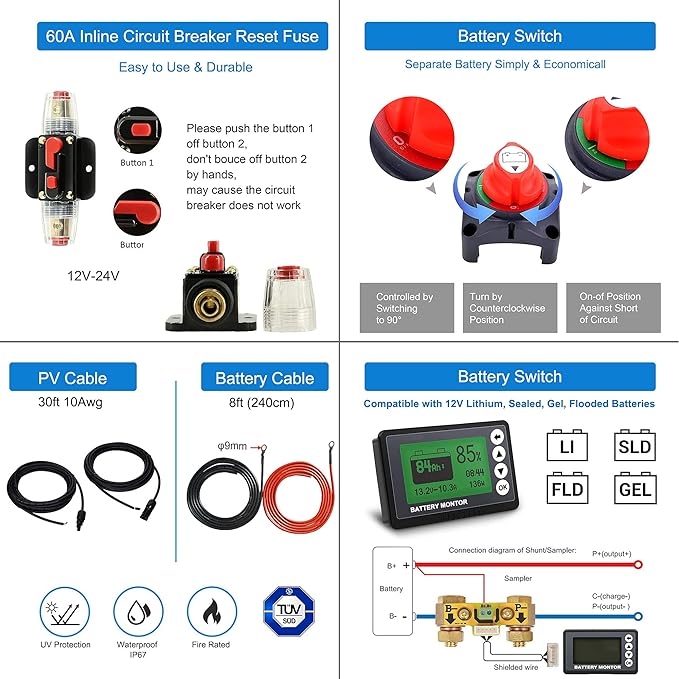

1 x 60A Fuse
1 x Battery Switch
1 x Battery Monitor
1Pair x 30ft 10AWG PV Cable
3 Pair x 1Ft 4AWG Battery Cable
1 Pair x 8FT 8AWG Tray Cable
2 Sets x Mounting Z Brackets
1 x Cable Entry Housing
1 Pair x Y Branch Solar Panel Connectors
This Acopower Adventure Pro Solar Power Kit is perfect for outdoor enthusiasts! Whether you're camping, hiking, or on a road trip, it provides a reliable power source. The kit includes a 200W mono solar panel, a 300Ah lithium battery (equivalent to three 100Ah batteries), and a 400W inverter. It's easy to carry and set up, ensuring you have power wherever you go. The 12V 200Ah LiFePO4 battery has a rated voltage of 12.8V, a capacity of 1280WH, weighs 23.8 lbs, and has dimensions of 12.99 x 6.81 (W) x 8.58 (H) inches. The 200W mono solar panel has a peak power of 200W, weighs 26.5 lb, and dimensions of 58.7*26.8*1.4 inches. The 1500W inverter has a continuous output of 1500W, a surge power of 3000W, weighs 7.79 lbs, and dimensions of 12.94+1.34 (D) x 7.52(W) x 3.86(H) inches. The MPPT 40A charge controller has a rated charge current of 40A, a battery voltage range of 8V - 32V, and a max PV input power of 12V/520W, 24V/1040W.
