ACOPOWER 500W 12V Poly Solar RV Kits, 40A MPPT Charge Controller

$739.99 $50.00
Save: 93% off

Availability : In-Stock

100% Original Products

90 Days Easy Returns View More Return Policy

Ship to me This item ships free on all orders

Product Information

Discover the freedom of sustainable energy with our ACOPower solar RV kit! This cost-effective and user-friendly kit is a breeze to install, featuring six 100W solar panels, a 40A charge controller, and essential wiring. It's the perfect choice for powering your RV, boat, camper, or any outdoor appliances, providing a reliable energy source for remote structures. The kit also comes with mounting accessories for added convenience.

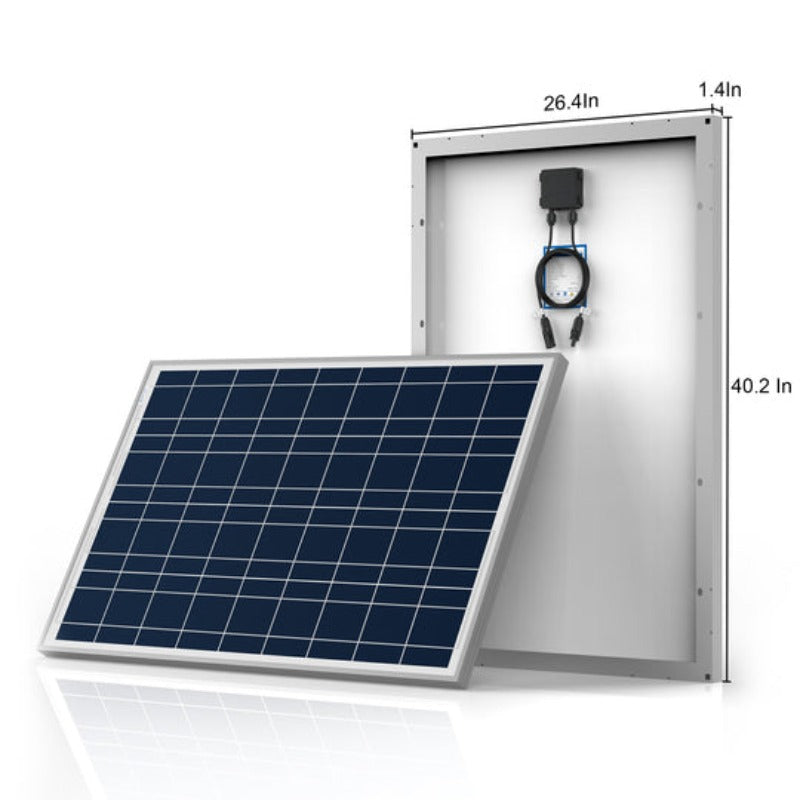

ACOPower 100W 12V Polycrystalline Solar Panel

Designed for home, RV, van life, and more, this solar panel is a reliable choice for charging 12-volt batteries and portable power stations. It's easy to install on structures or vehicles, with a durable build of tempered glass with anti-reflective coating, two layers of EVA film, a TPT backsheet, and an anodized aluminum frame that can withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box has an IP65 rating for water resistance. Equipped with a 3.2-foot, 16 AWG cable with male and female quick connectors, it's ready to harness renewable energy efficiently.

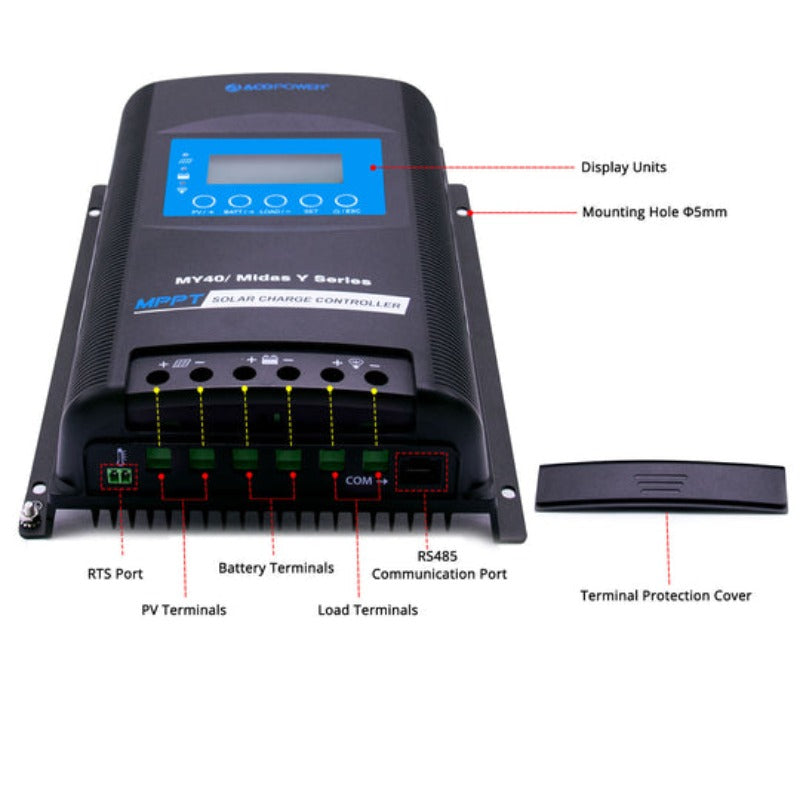

ACOPower 40A MPPT Solar Charge Controller

Maximize your solar power potential with the ACOPower 40A MPPT Solar Charge Controller. It allows you to safely and efficiently recharge 12, 24, 36, or 48V batteries, meeting a variety of power needs. With a negative-ground configuration, it offers an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, including flooded, sealed, gel, and li-ion batteries, it provides versatility in energy storage.

The user-friendly, plug-and-play design simplifies the solar charging process. It automatically detects the solar panel voltage and uses bulk, boost, float, and equalization charging modes to optimize the battery charging cycle. Whether you're powering your RV, cabin, or off-grid system, it ensures a seamless and effective solar energy utilization experience.

Features:

Easy installation
High efficiency
MPPT technology
Sustainable energy
Common negative grounding design
Warranty
Multiple packages

Acopower 100 Watts Poly Solar Panel

Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.21A
Maximum Operating Current (Imp): 5.72A
Operating Temperature: -40oC to 85oC
Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
Weight: 9.5kg / 20.6 lbs

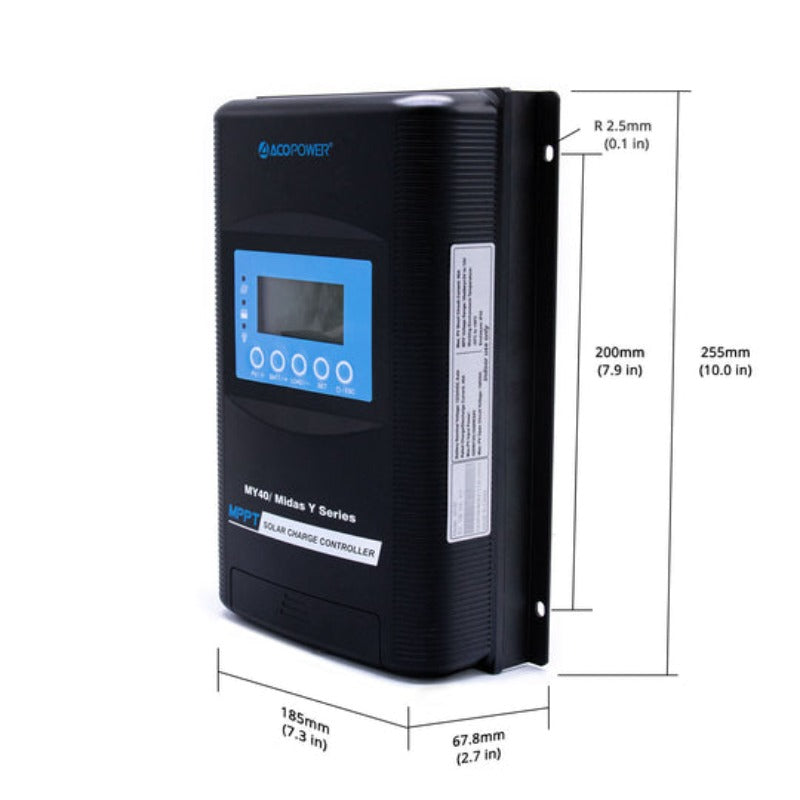

Acopower MIDAS 40 A MPPT Solar Charge Controller

Nominal System Voltage: 12/24VDC
Auto Grounding: Common negative
Rated Charge Current: 40A
Battery Input Voltage Range: 8V - 2V
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
Rated charge Power: 520W/12V 1040W/24V
MPPT Voltage Range: (Battery Voltage+2V) ~72V
RS485 Interface: 5VDC/200mA(RJ45)
Working temperature: -25¡æ¡«+50 /p>
Storage temperature: -20¡æ¡«+70 /p>
Terminals: Up to 6 AWG
Enclosure: IP33
Dimension: 10x7.28x2.67 in / 255¡Á185¡Á67.8mm
Weight: 3.75lbs / 1.7kg

What's in the Box:

5 x 100W Poly Solar Panel
1 x 40A MPPT Charge Controller

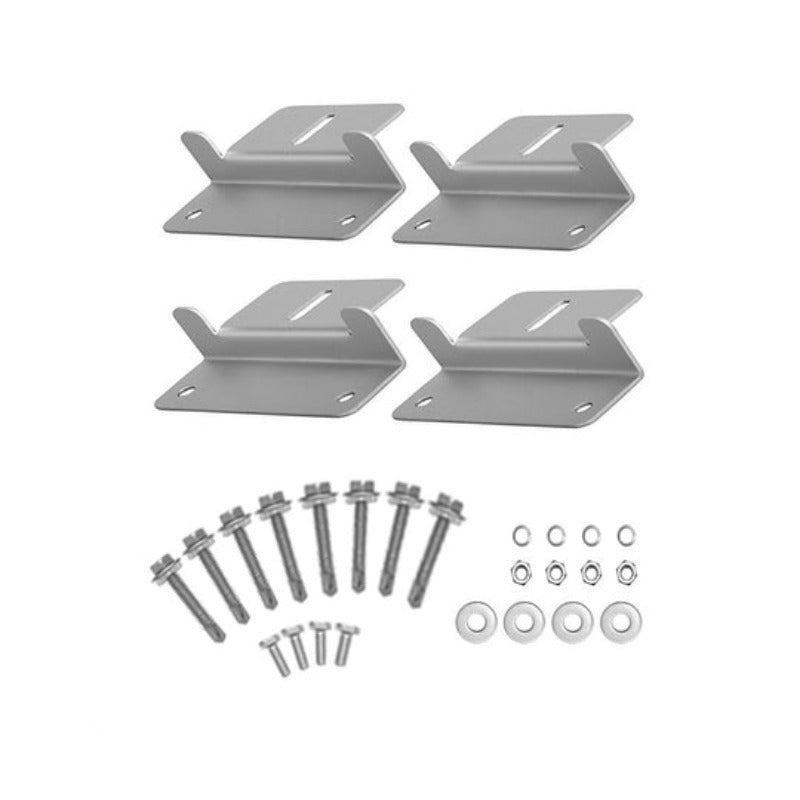

5 x Sets Mounting Z Bracket
1 x 30ft 12AWG PV Cable
1 x 8FT 8AWG Tray Cable
1 x Cable Entry Housing

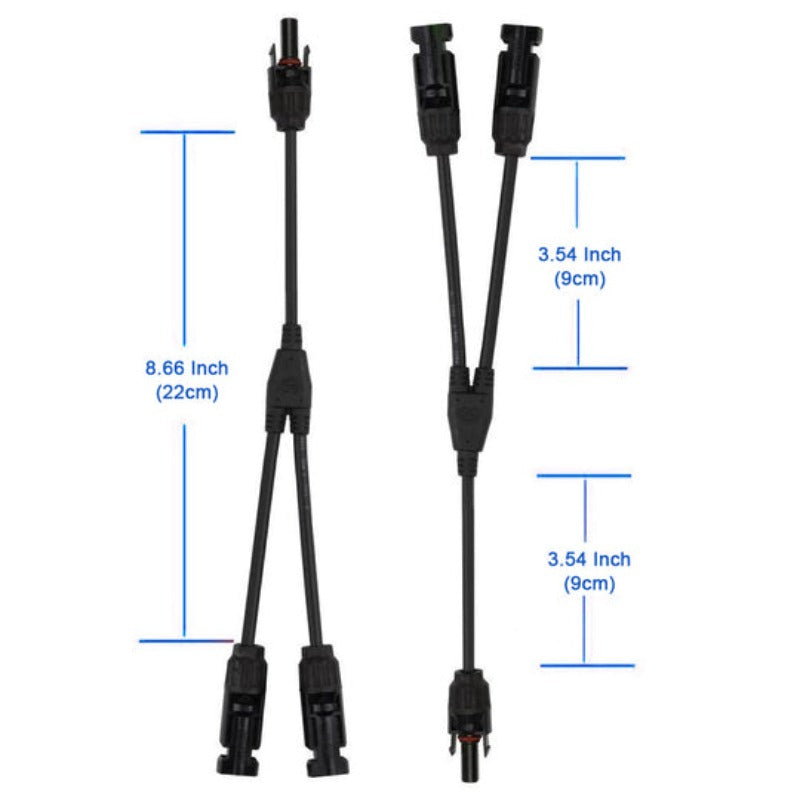

1 x Pair PV T/Y Connectors
1 x Pair 1Y4 Branch Connector

ACOPOWER 500W 12V Polycrystalline Solar RV Kit with 40A MPPT Charge Controller - Your Ultimate Off-Grid Energy Solution

This ACOPower solar kit is perfect for RV owners, boaters, campers, and anyone who wants a reliable off-grid energy solution. It comes with six 100W polycrystalline solar panels, a 40A MPPT charge controller, and all the necessary wiring and mounting accessories. The 100W solar panels measure 1020x670x35mm and weigh 9.5kg each. The 40A MPPT charge controller has a dimension of 10x7.28x2.67 in and weighs 3.75lbs. With easy installation and high efficiency, this kit allows you to harness the power of the sun for your outdoor adventures.
