Power Your Off-Grid Life with Ease!
Are you tired of being tied to the grid? Our Acopower Solar RV Kit is here to set you free! With a 1500 Watt Pure Sine Wave Inverter, it delivers abundant AC power to run your household appliances. Whether you're in an RV, cabin, home, or boat, this kit is your ticket to a self-sufficient lifestyle.
High-Efficiency Charging
• The 40A MPPT Charge controller ensures fast and efficient charging with a peak conversion efficiency of 98% and a high Tracking efficiency of 99%.
• Solar charging between 200W-800W provides approximately 960Wh-3840Wh of charge per day, depending on sunlight availability.
Long-Lasting Li-Battery Packs
• Equipped with 2560Wh-3840Wh of 3pcs 100Ah lithium batteries, these packs offer superior charging/discharging efficiency and can endure over 3000 deep cycles, outperforming lead-acid batteries.
• The built-in BMS and 40A MPPT solar charge controller provide double protection for your lithium battery.
Easy Installation

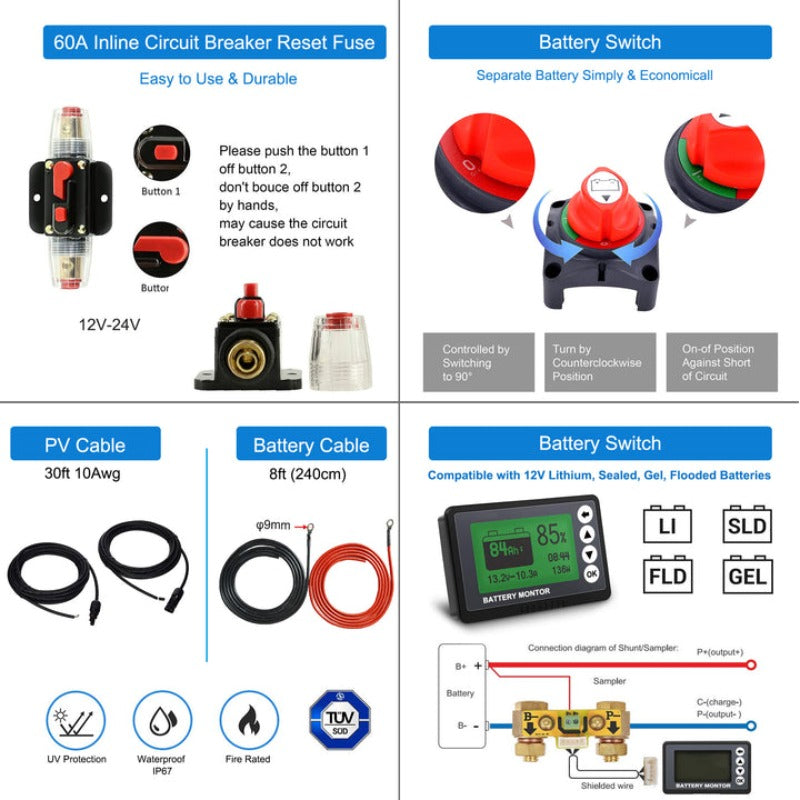

This all-in-one kit has everything you need for a DIY solar charge system. It includes 5pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 40A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications:

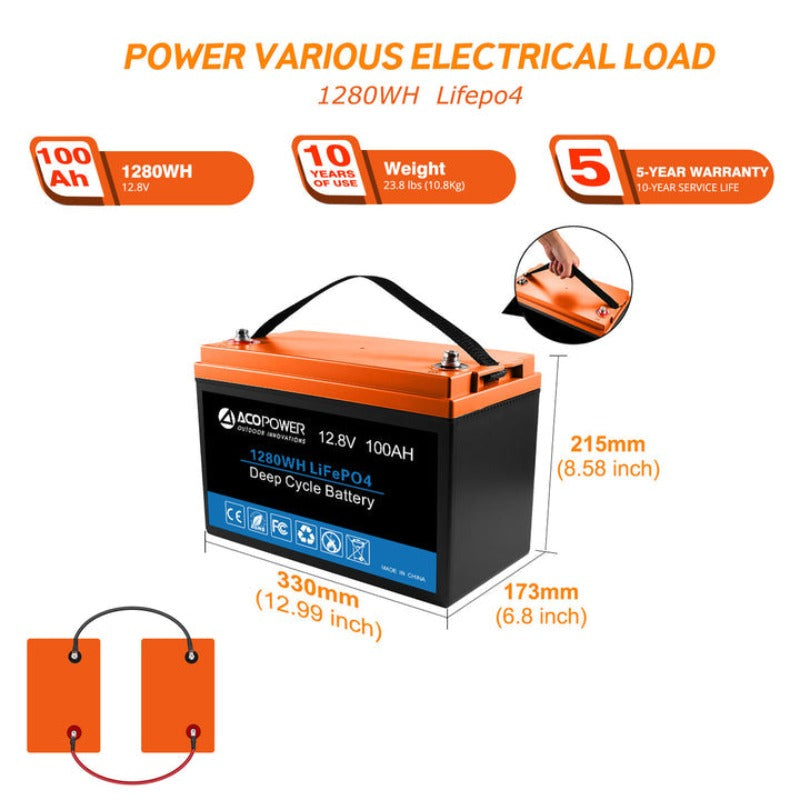

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

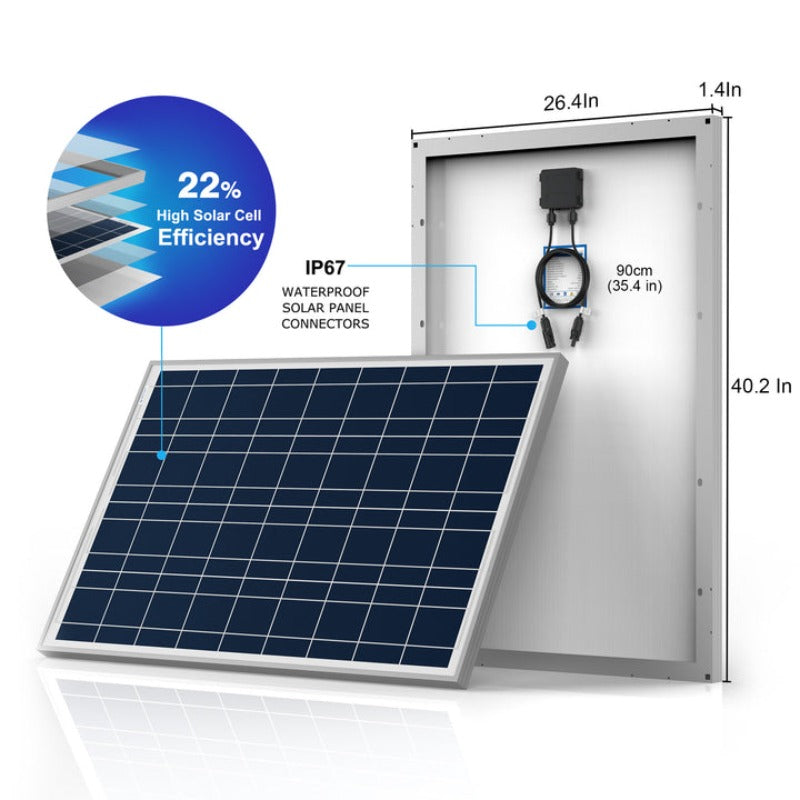

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

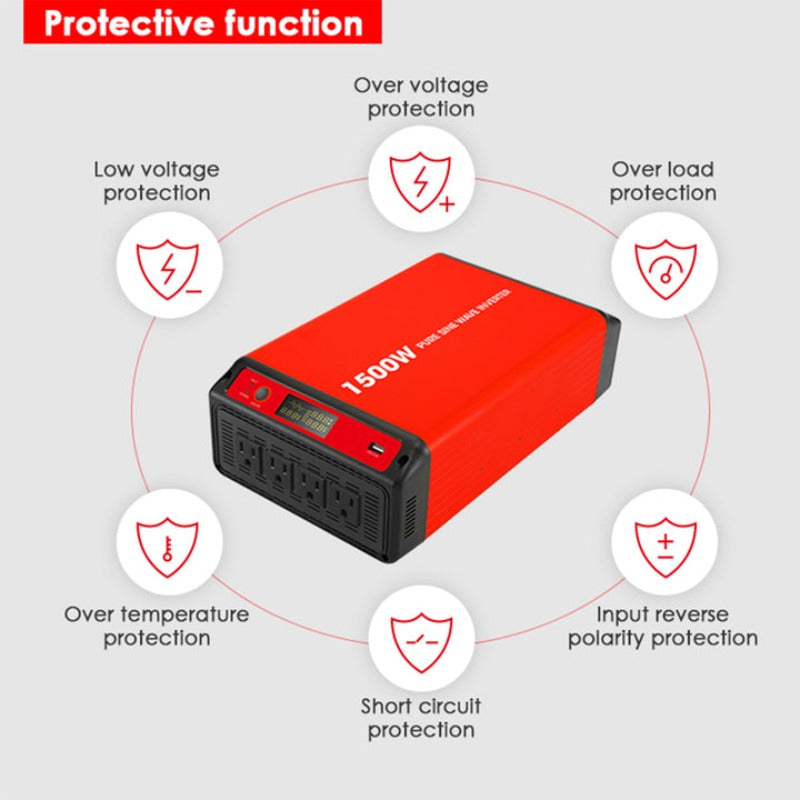

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

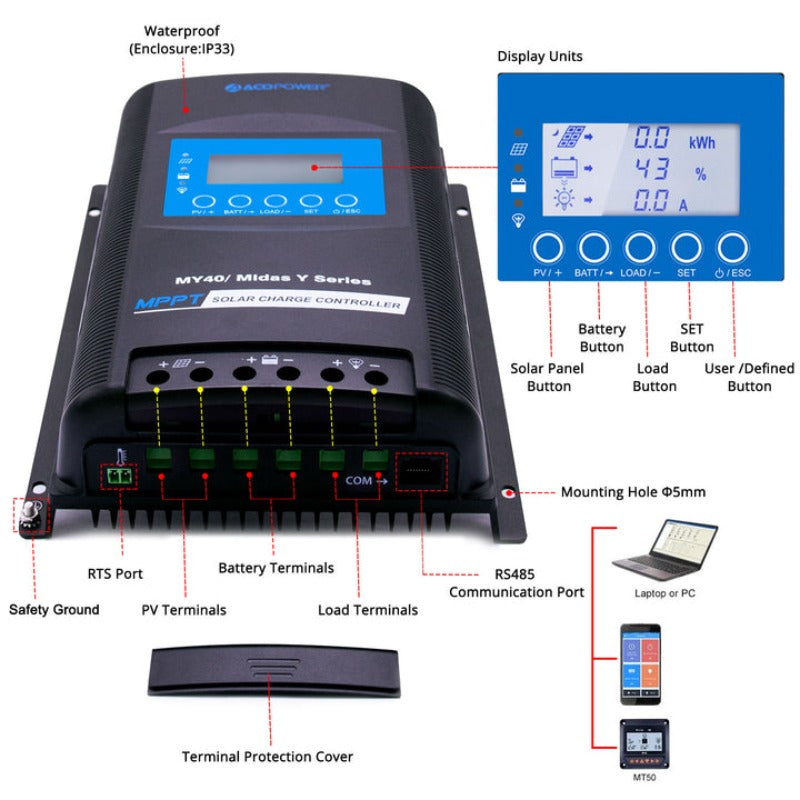

MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

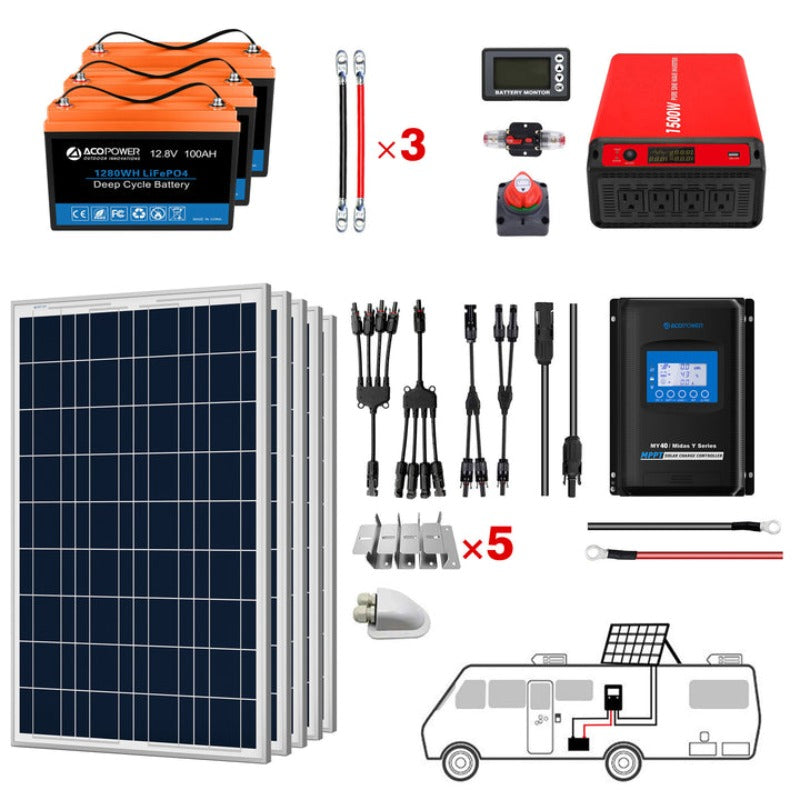

What's in the Box:
3 x Battery
5 x 100W Solar Panel
1 x 3K Inverter
1 x 40A Controller
1 x Monitor
1 x Switch
1 x 40A Fuse
6 x sets z Brackets
3 x Pairs Battery Cable
This Acopower solar kit is perfect for those seeking an off-grid power solution. Ideal for RVs, cabins, homes, and boats, it offers a self-sufficient lifestyle. The kit includes 5 100W polycrystalline solar panels, 3 100Ah LiFePO4 deep cycle lithium batteries, a 1500W inverter, a 60A MPPT solar charge controller, and more. 12V 100Ah LiFePO4 Deep Cycle Lithium Battery: Rated voltage 12.8V, weighs 23.8lb, dimensions 12.99 x 6.81 (W) x 8.58 (H) inch. 100W Poly Solar Panel: Peak power 100W, weighs 17.6lb, dimensions 40.2*26.4*1.4 Inch. 1500W Pure Sine Wave Inverter: Continuous output 1500W, surge power 3000W, weighs 7.79lb, dimensions 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch.
