Renogy 800W 12V Monocrystalline Solar Premium Kit with Rover 60A Charger
Take control of your power needs with this amazing solar kit! Whether you're off - grid or on the move, this Renogy kit is your solution. It comes with a powerful 800W 12V monocrystalline solar panel and a reliable Rover 60A charger controller, ensuring smooth energy flow all day long.
• High - quality components: This premium kit includes solar panels, charge controllers, electrical wiring, and fuses. The eight 100W solar panels are space - efficient and can power large loads like TVs, washing machines, and electric stoves. With an average daily electricity production of 2.4kWh, it's an economical choice too.
• Easy to install: All the tools you need to assemble a new system are included, like Z - brackets, required wires, and pre - drilled holes for quick and safe attachment on the panel's back frame.
• Expandable: Equipped with the Rover Li 60A MPPT charge controller, the kit supports expansion. For example, a 12V system can be expanded up to 800W and a 24V system up to 1600W by adding more panels.

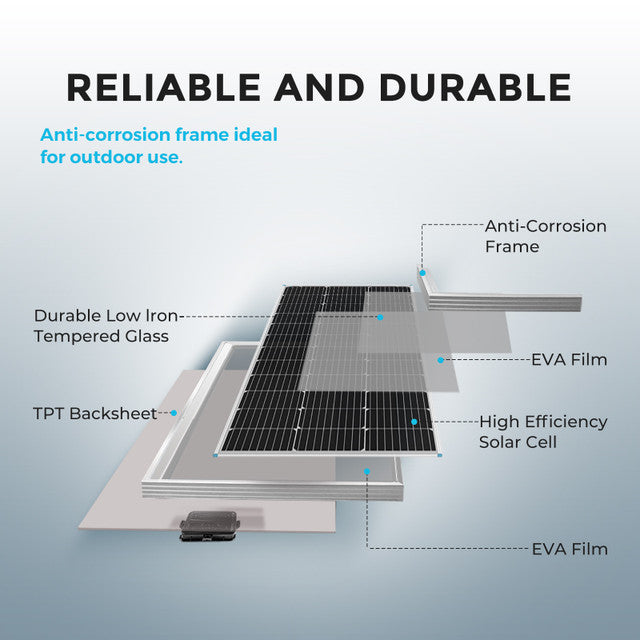

• Efficient performance: The panel's bypass diode ensures great low - light performance, and the TPT back sheet removes extra heat efficiently, keeping output steady. The maximum efficiency of a module is 17.8%.
• Full system protection: The Rover Li 60A MPPT Charge Controller has built - in protection against reverse polarity, overcharging, overload, short - circuiting, and reverse current.

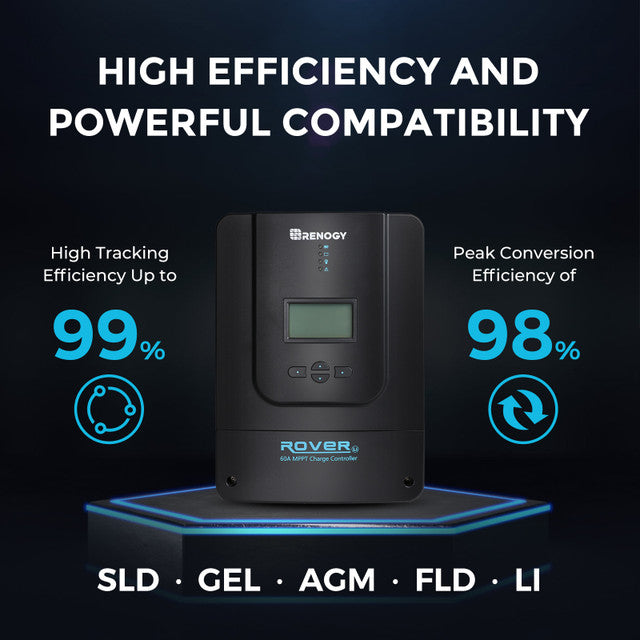

• Auto detect and powerful compatibility: It automatically detects DC system voltages of 12V, 24V, 36V, or 48V. The LCD screen and LED indicators show solar charging, battery operation, fault codes, and configurable parameters.
• Quality and weatherproof: Advanced encapsulation material enhances cell performance and provides a long service life. The IP65 Junction Box prevents low - pressure water jets and environmental particulates, and IP67 waterproof solar connectors keep water and dust out when used outdoors.
Build a reliable and eco - friendly power supply with this Renogy kit, perfect for yards, barns, RVs, boats, or campers!
Highlights:
High - quality components
Easy installation
Expandable
Efficient performance
Full system protection
Auto detect and powerful compatibility
Quality and weatherproof

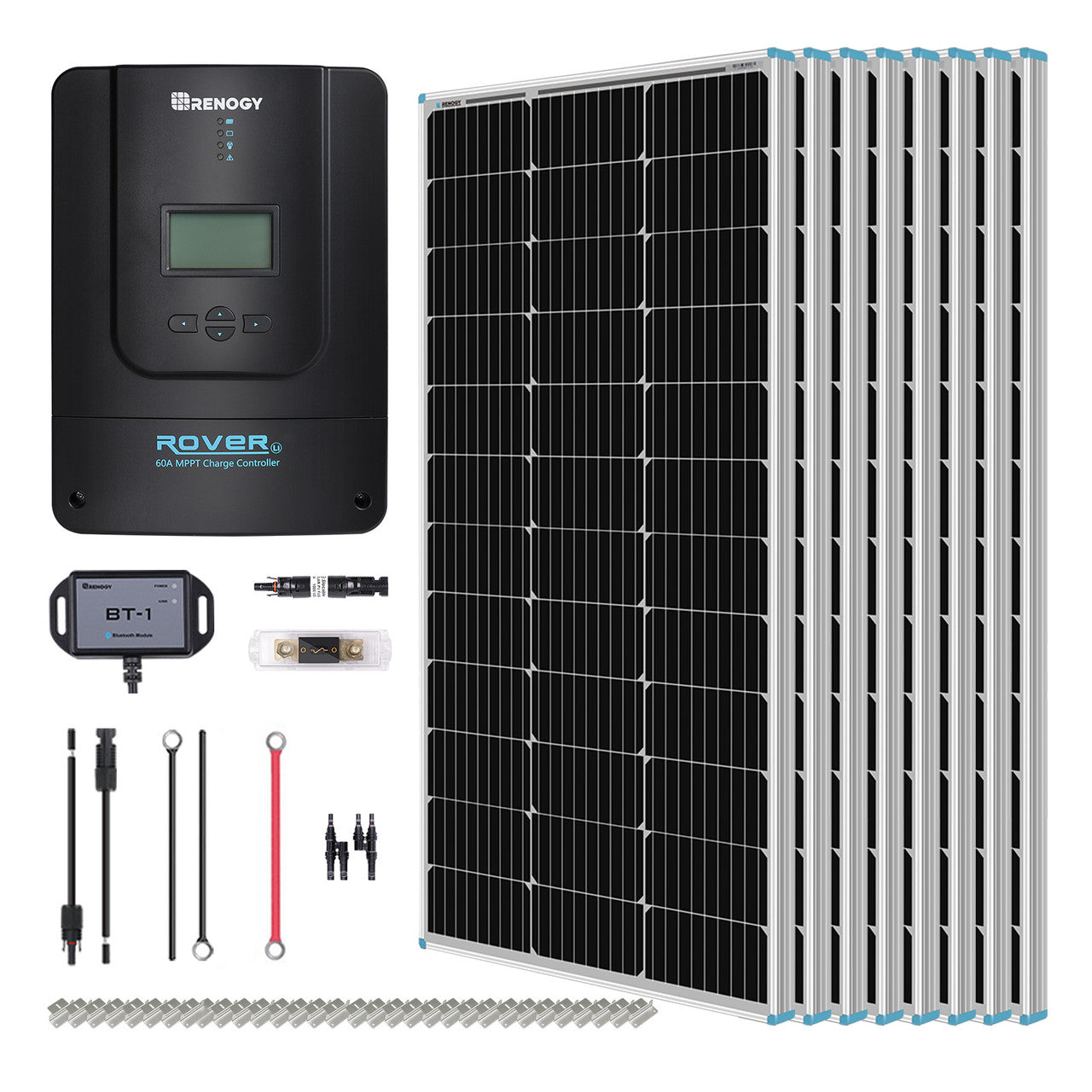

This kit comes with 8 x 100W Mono Solar Panel, 1 x Rover Li 60A MPPT Charge Controller, 1 x 20ft 10AWG AK, 1 x 2ft 4AWG Fuse Cable, 1 x 8ft 4AWG Tray Cable, 8 x Mounting z Brackets (Set), 1 x 15A In - line Fuse and 60A ANL Fuse, 1 x Renogy Solar Y Branch Connectors MMF+FFM Pair, 1 x BT - 1 Bluetooth Module. Panels have a 25 - year power output warranty (5 - year 95% output warranty, 10 - year 90% output warranty, 25 - year 80% output warranty) and a 10 - year material and workmanship warranty. Accessories have a 1 - year material and workmanship warranty.

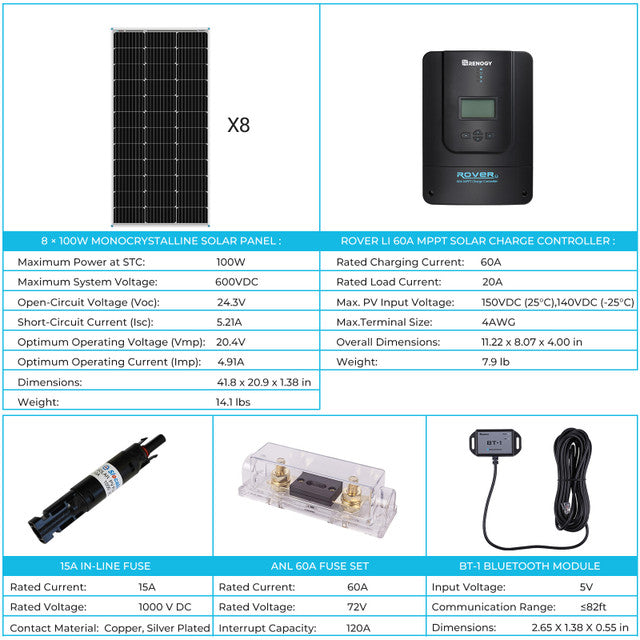

SPECIFICATIONS:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open - Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short - Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs/6.4kg
ROVER LI 60A MPPT SOLAR CHARGE CONTROLLER
Rated Charge Current: 60A
Rated Load Current: 20A
Max. PV Input Voltage: 150 VDC (25¡ãC), 140VDC (-25¡ãC)
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Self - Consumption: 0.7W - 1.2W
Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight: 7.9 lbs.
Enclosure: IP32
Terminals: 25mm2 4AWG
RENOGY 8FT 4AWG TRAY CABLES (A PAIR)
Length: 8ft
AWG: 4
Rating Voltage: 600/1000V
Temperature: -40¡ãF to +185¡ãF
RENOGY 2FT 4AWG ANL FUSE CABLE
Length: 2ft
AWG: 4
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature: -40¡ãF to +194¡ãF
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40¡ãF to +185¡ãF
RENOGY 15A IN - LINE FUSE HOLDER W/FUSE
Rated Current: 15A
Rated Voltage: 1000 V DC
Contact Material: Copper, Silver Plated
Replaceable Fuse: Cylindrical PV Fuse (10 x 38mm)
ANL 60A FUSE SET
Current Rating: 60A
Voltage Rating: 72V
Interrupt Capacity: 360A (48V)

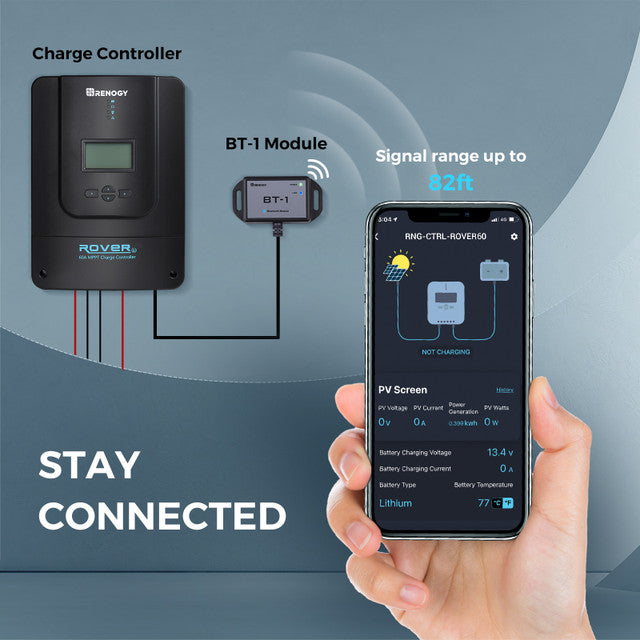

BT - 1 BLUETOOTH MODULE
Input Voltage: 5V
Communication Range: ¡Ü82ft
Compatible Models: All Renogy Controllers with RJ12 port
Operation Temperature: -20¡ãC~85¡ãC (-4¡ãF to 185¡ãF)
RENOGY SOLAR SOLAR Y BRANCH CONNECTORS MMF+FFM PAIR
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Protection Class: Class II
Protection Degree: IP67, mated
Insulation Material: PC/PA
Temperature Range: -40¡ãF to 194¡ãF

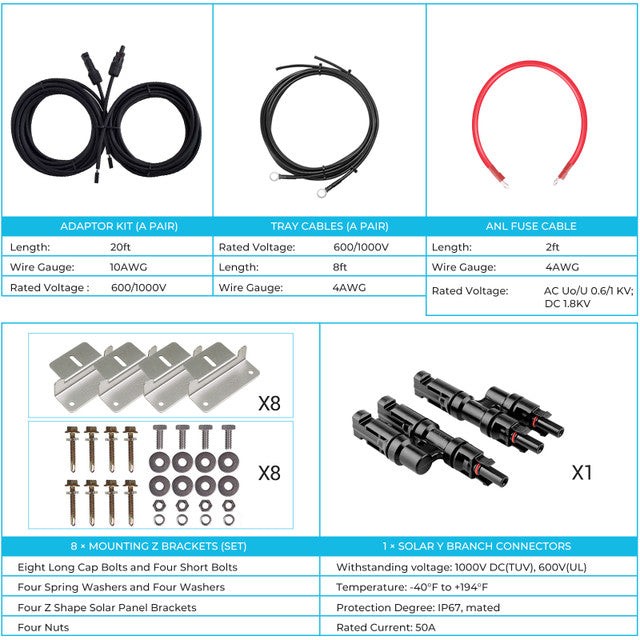

MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
WARRANTY
Panels: 25 - year power output warranty: 5 - year 95% output warranty, 10 - year 90% output warranty, 25 - year 80% output warranty 10 - year material and workmanship warranty
Accessories: 1 - year material and workmanship warranty
WHAT'S IN THE BOX:
8 x 100W Mono Solar Panel
1 x Rover Li 60A MPPT Charge Controller
1 x 20ft 10AWG AK
1 x 2ft 4AWG Fuse Cable
1 x 8ft 4AWG Tray Cable
8 x Mounting z Brackets (Set)
1 x 15A In - line Fuse and 60A ANL Fuse
1 x Renogy Solar Y Branch Connectors MMF+FFM Pair
1 x BT - 1 Bluetooth Module
This Renogy 800W 12V Monocrystalline Solar Premium Kit is perfect for those looking to generate their own power. Ideal for yards, barns, RVs, boats, or campers. The kit includes an 800W 12V monocrystalline solar panel and a Rover 60A charger controller. The 100W solar panels are 41.8 x 20.9 x1.4 in and weigh 14.1lbs/6.4kg each. The Rover Li 60A MPPT Charge Controller has dimensions of 285 x 205 x 102mm (11.22 x 8.07 x 4.00in) and weighs 7.9 lbs. It can be used to power large loads like TVs, washing machines, and electric stoves, offering an economical way to get your daily 2.4kWh of electricity.
