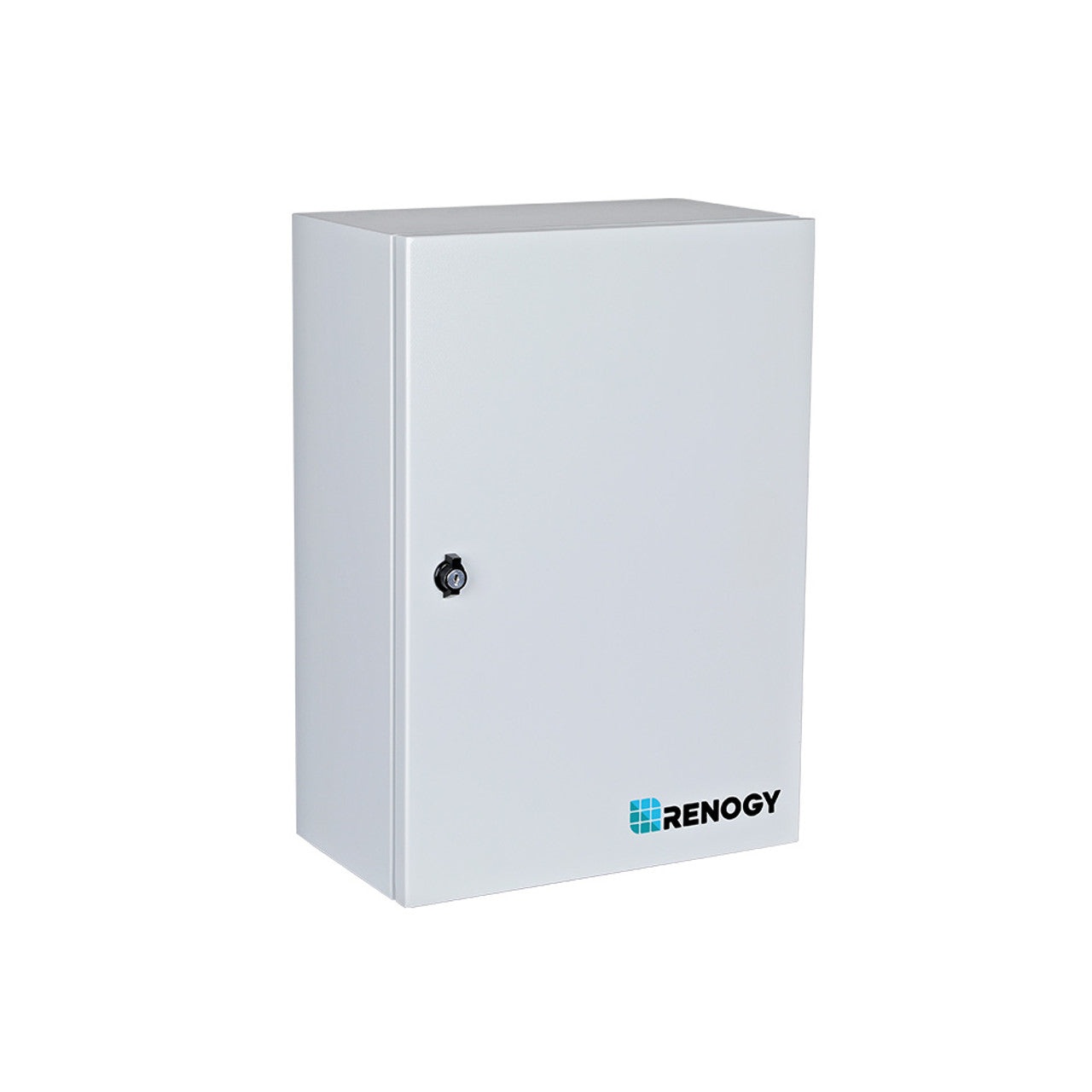

Renogy DC Circuit Breaker Box - Protect Your Solar System with Ease
Are you tired of dealing with electrical issues in your solar power system? Look no further than the Renogy DC Circuit Breaker Box! This innovative product offers centralized installation and protection for devices in both residential and commercial solar systems.

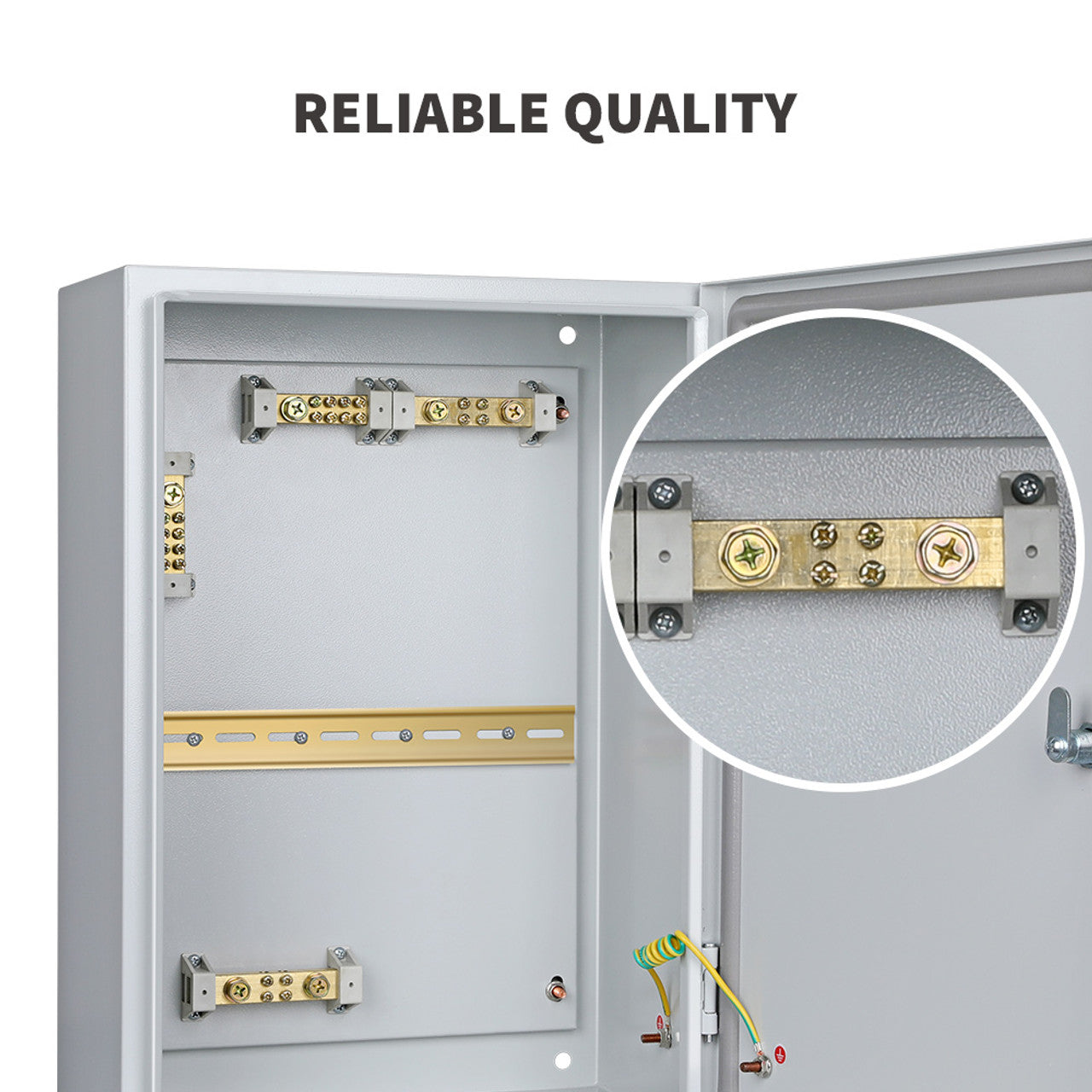

• Durable and corrosion-resistant: Constructed with high-quality cold-formed steel, this circuit breaker box is built to last. Its built-in copper busbars ensure excellent electrical conductivity, guaranteeing stable system operation.
• Easy installation: With a sleek and compact design, this circuit breaker box is a breeze to install. Plus, you can have peace of mind knowing that your system is running safely and efficiently.
• Comprehensive protection: Equip each pair of devices with this circuit breaker to achieve section management and comprehensive protection. Disconnect relevant circuits during maintenance or inspection for added safety. Protect your equipment from lightning strikes and ground faults with surge protection and ground fault protection systems.

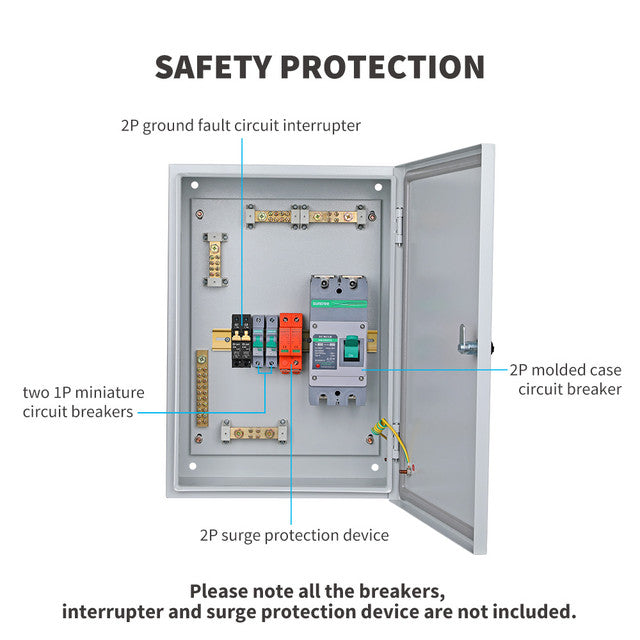

For solar panel systems, we recommend the following combination: two 1P miniature circuit breakers, one 2P molded case circuit breaker, one 2P surge protection device, and one 2P ground fault circuit interrupter. Please note that all breakers, interrupters, and surge protection devices are not included.
Don't let electrical problems disrupt your solar power system. Invest in the Renogy DC Circuit Breaker Box today and enjoy worry-free power generation for years!
Highlights:
Centralized manage
Safety protection
Easy installation
Reliable quality
Worry-free use
SPECIFICATIONS:
Maximum PV Input/Output Voltage: 250VDC
Maximum PV Input/Output Current: 63A/Circuit
Maximum Battery Input/Output Voltage: 1000VDC
Maximum Battery Input/Output Current: 250A
Busbar Material: Copper
Busbar Rated Current: 200A
PV Busbar Terminal: Compression Terminals (8), Lug Terminal (1)
Battery Busbar Terminal: Compression Terminals (4), Lug Terminal (2)
Grounding Busbar Terminal: Compression Terminals (20), Lug Terminal (1)
Busbar Screw: M5 (Compression Terminal), M8 (Lug Terminal)
Recommended Busbar Terminal Torque: 26 inch¡¤lbs (2.9 N¡¤m) (Compression Terminal), 106 inch¡¤lbs (12 N¡¤m) (Lug Terminal)
PV/Grounding Busbar Conductor Size: 14 AWG~6 AWG (Compression Terminal), 12 AWG~4 AWG (Lug Terminal)
Battery Busbar Conductor Size: 14 AWG~6 AWG (Compression Terminal), 12 AWG~2/0 AWG (Lug Terminal)

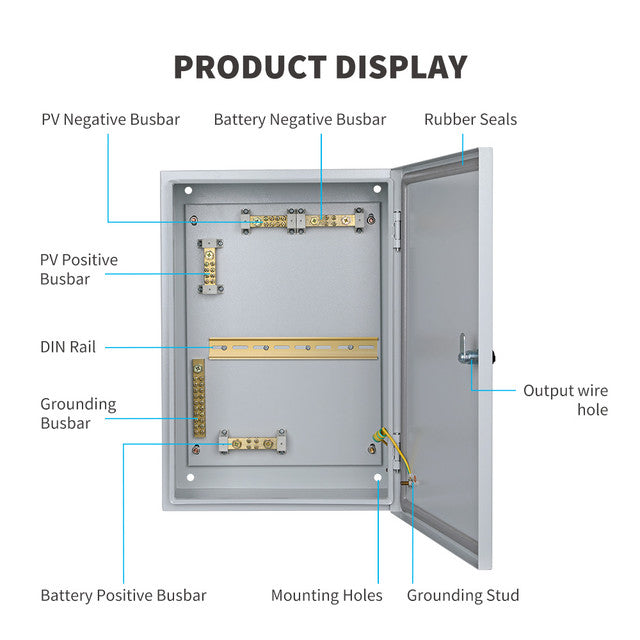

Number of Poles: 5 (PV Positive Busbar, PV Negative Busbar, Battery Positive Busbar, Battery Negative Busbar, Grounding Busbar)
Enclosure Material: Cold-Formed Steel
Enclosure Protection Rating: IP54
Enclosure Security: Keyed Cam Lock
Mounting Method: Vertical Wall Mount
Installation Environment: Indoor

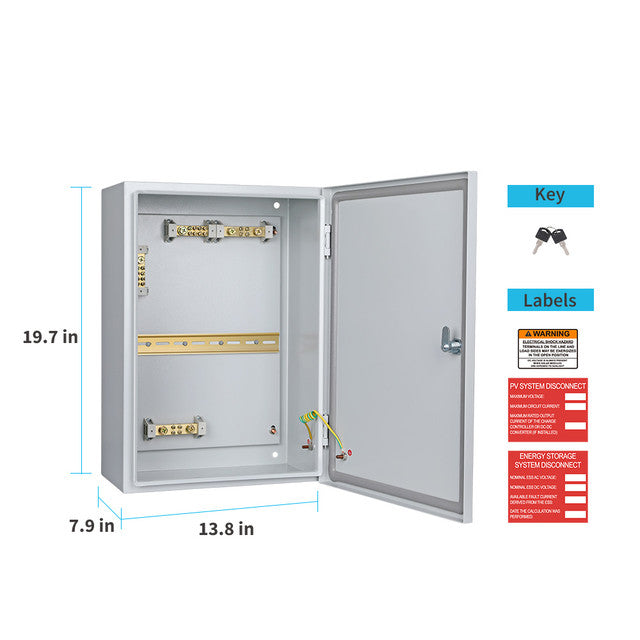

Dimensions: 19.7 x 13.8 x 7.9 inch (500 x 350 x 200 mm)
Weight: 22.7 lb
Knockout Diameter: 1.99 inch (4), 1.12 inch (4)
Conductor Size: 4 AWG-4/0 AWG
Key: 1
Labels: 3
Material and Workmanship Warranty: 1 Year
WHAT'S IN THE BOX:
1 x Renogy DC Circuit Breaker Box
1 x Key
3 x Labels
The Renogy DC Circuit Breaker Box is designed for residential and commercial solar systems. It offers centralized installation and protection for devices. Made of cold-formed steel, it's durable and corrosion-resistant. The box has built-in copper busbars for good electrical conductivity. It's easy to install with a sleek and compact design. Dimensions are 19.7 x 13.8 x 7.9 inch (500 x 350 x 200 mm) and it weighs 22.7 lb. It comes with 1 box, 1 key, and 3 labels, along with a 1-year material and workmanship warranty.
