EcoFlow 5kWh Power Kit Advanced Modular Power Station

$8,699.00 $50.00
Save: 99% off

Availability : In-Stock

Please Choose:

Size

100% Original Products

90 Days Easy Returns View More Return Policy

Ship to me This item ships free on all orders

Product Information

While we offer shipping for EcoFlow products to Hawaii and Alaska, EcoFlow does not provide after sales services in those regions. Therefore we kindly recommend buying a CPS Accidental Warranty when shipping to Hawaii or Alaska.
EcoFlow Advanced Modular 5kWh Power Station for RVs & Tiny Homes
Discover the ultimate modular power solution for your RV or tiny home! The EcoFlow 5kWh Power Kit is a game-changer, offering:

Main features:
- • Plug and Play: Effortless setup for all your power needs.
- • Fast & Multiple Charging: Charge quickly with solar, alternator, or shore power.
- • Advanced 48V System: More efficient and safer power management.
The Ultimate Plug and Play Solution
Set up is a breeze with the EcoFlow Power Kit. It's perfect for DIY enthusiasts, with fewer components and less wiring than traditional solutions. Enjoy instant deployment and use, with less effort and fewer mistakes.

The EcoFlow Power Kit provides a hassle free DIY experience with instant deployment and use. The plug and play functionality means less wiring effort, less wiring mistakes, and more time to enjoy your electronic goods.

Fast & Multiple Charging

Charge your devices quickly and efficiently with the EcoFlow Power Kit. Whether you're in the sun, on the move, or at a campsite, there are plenty of options for charging. Solar charge up to 4800W, use your alternator for 1000W, or take advantage of shore power for a 3000W boost. And if you need backup power, EcoFlow's smart generators have you covered.

Advanced 48V System

The 48V design of the EcoFlow Power Kit system is more efficient than traditional 12V systems, with less heat and power loss. The built in Battery Management System protects the LFP Batteries from high current and over-voltage, ensuring a safe and balanced power solution.
Integrated & Compact

The Power Hub combines multiple components into one compact device, reducing wiring and installation headaches. Cable management is easy, with all your power needs in one convenient hub.

Expandable

The Power Hub is massively expandable, allowing you to connect up to 3 LFP batteries in parallel for increased energy storage. Choose from configurations of 2kWh to 15kWh to fit your needs.

Configurations Available

2kWh - 1 x 2kWh LFP battery
4kWh - 2 x 2kWh LFP battery
5kWh - 1 x 5kWh LFP battery
10kWh - 2x 5kWh LFP battery
15kWh - 3x 5kWh LFP battery

Monitor & Control

The EcoFlow Power Kit Console gives you complete control over your power solution. Monitor power consumption and manage your system wirelessly with the EcoFlow App. The intuitive interface makes it easy to optimize and configure your power setup.

Configurations Available

Get Set Kit Includes: Battery + Power Hub + Cable Pack

Prepared Kit Includes: Battery + Power Hub + Cable Pack + Smart Distribution Panel + Mounting Strap

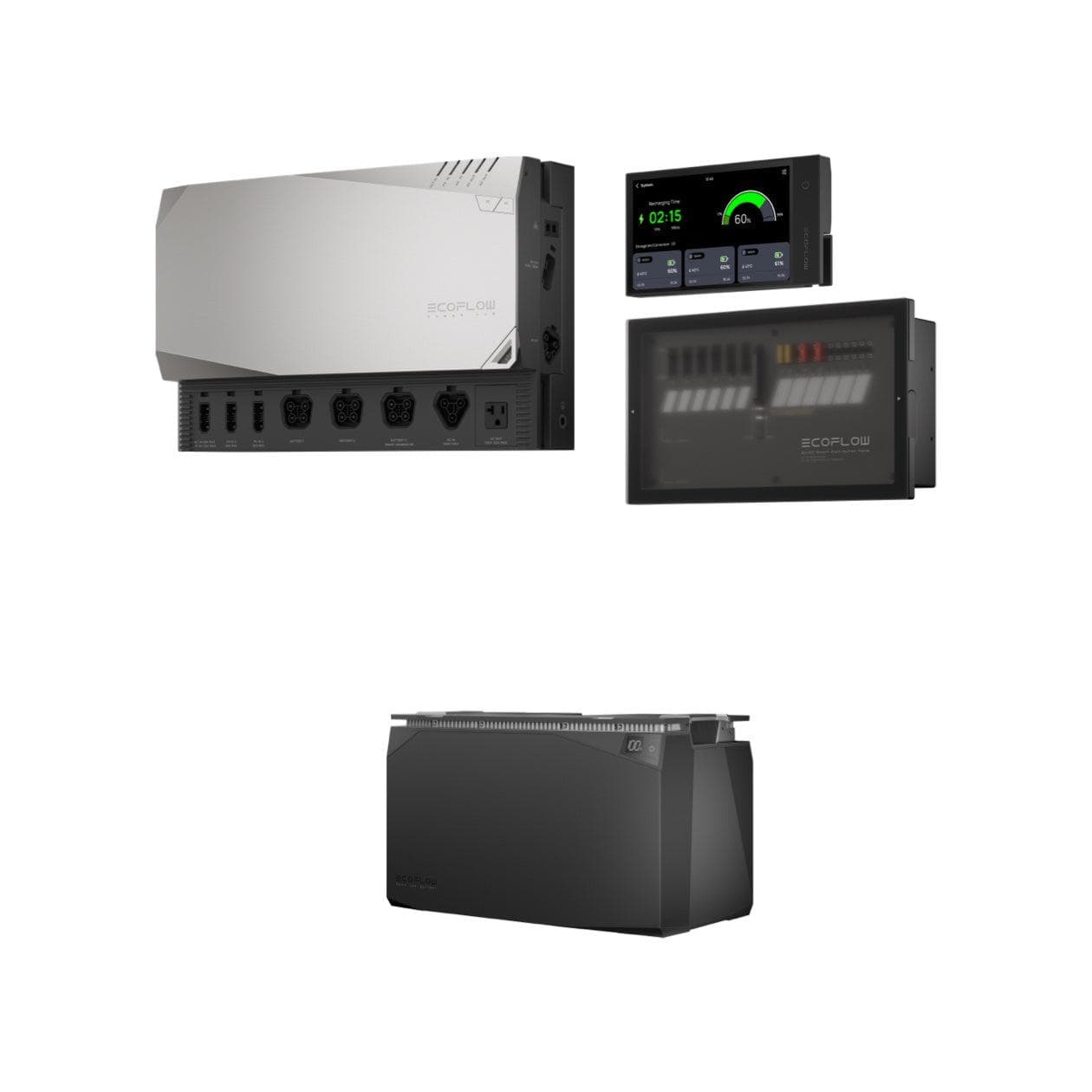

Independence Kit Includes: Battery + Power Hub + Cable Pack + Smart Distribution Panel + Mounting Strap + Monitor + Smart Generator

/mceItemMediaService
- 1x EcoFlow Power Hub
- 1x 5kWh LFP Battery
- 1x Cable Pack
- 1x Smart Distribution Panel (Only with Prepared and Independence Kits)
- 1x Mounting Strap (Only with Prepared and Independence Kits)
- 1x Monitor (Only with Independence Kit)
- 1x Smart Generator (Only with Independence Kit)
Warranty:
5-year warranty on all Power Kit Components, Cables and Accesories have 1-year warranty

Capacity:
5 kWh

Power Hub:
Net Weight - 31 lbs.
Dimensions (in.) - 11.8 x 18.9 x 5.5 (HxWxD)
AC Main Output/Frequency - Pure Sine Wave, 3600W (Surge 7200W), 120V, 50Hz/60Hz
DC Main Output - 13.6V/70A 1000W Max; 26.4V/60A 1600W Max
AC Main Input - X-Stream Fast Charging 3000W Max, 30A Max
AC Main Input Voltage/Frequency - 100-120V, 50Hz/60Hz
Solar Charging Input - 15-150V 30A, 1600W Max
Alternator Charging Input - 13V-60V, 60A, 1000W Max
Operating Temperature - -13°F - 140°F
Discharge Temperature - -13°F - 140°F
Charge Temperature - -13°F - 140°F
Storage Temperature - -13°F - 140°F
Tests and Certifications - UL Standard, FCC, ICES
Wi-Fi - Yes
Bluetooth - Yes
Mobile App - Yes

5kWh LFP Battery:
Capacity - 5120Wh (51.2V, 100Ah)
Cell Chemistry - Lithium Iron Phosphate
Cycle Life - ~3500 Cycles up to 80% Capacity
Net Weight - 90 lbs
Dimension (in.) - 11.8 x 19.7 x 10.2 (HxWxD)
Protection Level - IP54
Tests and Certifications - UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
Storage Temperature - -4°F - 140°F
Operating Temperature - -4°F - 140°F

Power Kit Console:
Touch Screen (Diagonal Measurement) - 7 inch (6 x 3.4 in.) (WxH)
Power Supply Voltage - 12 VDC
Operating Temperature - -4°F - 140°F
Dimension (inch) - 4.5 x 8 x 0.9 in. (HxWxD)
Net Weight - 1 lb
Tests and Certifications - UL Standard, FCC, ICES, CE, UKCA, E-Mark, RCM, TELEC, KCC

AC/DC Smart Distribution Panel:
AC Main Input - 30A Max, 120V, 3600W
DC Main Input - 70A Max
AC Output - 6 AC Positions, 20A Max each
DC Output - 12 Fused DC Positions (6 Positions controllable via Power Kit Console and App)
Dimensions - 8.3 x 13.9 x 3.9 in. (HxWxD)
Net Weight - 5.7 lbs
Protection Level - IP21
Operating Temperature - -13°F - 140°F
Tests and Certifications - UL Standard, FCC, PSE

Smart Generator:
Dimensions - 23.5 x 11.7 x 18.7 in (HxWxD)
Weight - 62.8 lbs
Type - Inverter generator
Frequency - 60Hz
Rated Voltage - 100~120V/200~240V
Rated Power - 1800W (1900W peak)
DC Output Voltage - 42-58.8V
DC Current - 32A Max

Engine Specs
Model - R80-i
Type - Single cylinder, four-stroke, forced-air cooling, overhead value
Displacement - 79.7cc
Fuel Type - Unleaded gasoline
Fuel Tank Capacity - 4 L / 1.05 gal.
Engine Oil Capacity - 0.38 L / 0.1 gal.
Noise Level (at a 7m distance) - 56~67dB (full load)
Continuous Working Time - 3.5 hrs (full load)
Number of outlets - 4 nominal, 1 30A

Wave Portable AC Unit:
Net weight - 38.58 lbs
Dimensions - 20.39 x 12.2 x 16.38 in (HxWxD)
Wi-Fi - Yes
Bluetooth - Yes
AC Input Voltage/Frequency - 115V 60Hz
AC Input Power - Max 700W
Add-On Battery Power - Max 600W
Solar Charging Input - 11-35V Max 12A Max 200W
Car Charging Input - 12 V/24V Max 8A Max 200W
Ambient Temperature - 5°C ~ 50°C (41°F ~ 122°F)
Cooling Temperature Settings - 16°C ~ 30°C (60.8°F ~ 86°F)
Cooling Capacity - 1200W
Circulation Air Volume - 290m'3'/h
Refrigerant/Amount - R134a/14.1oz
Rated Cooling Power (AC/DC) - 460W/410W
Max. Cooling Power - 600W
Noise - <55dB
No-Drain Function - Yes
Shut Down When Full Function - Yes

EcoFlow Advanced Modular 5kWh Power Station for RVs & Tiny Homes

The EcoFlow Advanced Modular 5kWh Power Station is perfect for RV and tiny home owners. It offers a plug and play solution for all your power needs, with features like fast and multiple charging options and an advanced 48V system. The power station is integrated and compact, with a power hub that combines multiple components into one convenient device. It's also expandable, allowing you to connect up to 3 LFP batteries in parallel for increased energy storage. The power station comes in different configurations, including a Get Set Kit, Prepared Kit, and Independence Kit. The Power Hub has a net weight of 31 lbs and dimensions of 11.8 x 18.9 x 5.5 (HxWxD). The 5kWh LFP Battery has a capacity of 5120Wh, a net weight of 90 lbs, and dimensions of 11.8 x 19.7 x 10.2 (HxWxD).
