ACOPOWER 600W All-Black Mono Solar Panel Kit with 50A Controller
Discover the ultimate off-grid solar solution with the ACOPOWER 600W Solar Panel System Set! This kit is a game-changer, offering convenience, efficiency, and reliability in one package.
• Six 100W mono solar panels paired with a 50A MPPT waterproof solar charge controller for comprehensive power generation.
• Grade A+ solar cells with 22% energy storage efficiency ensure fast and efficient charging.
• 50A MPPT solar charge controller provides high tracking efficiency and 3-stage charge control for safe operation.

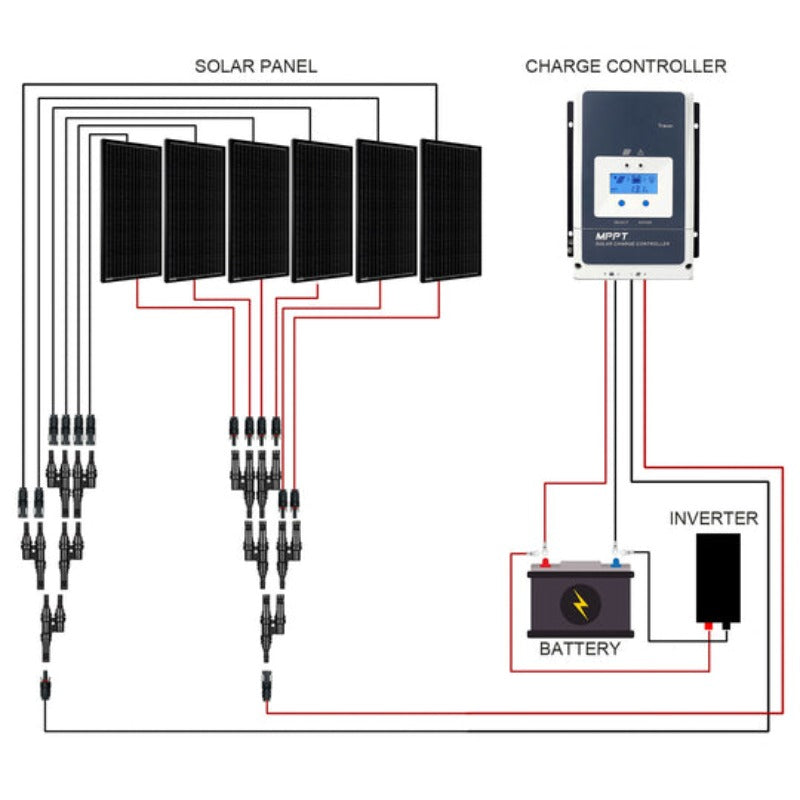

The ACOPOWER 600W Solar Panel System Set is designed for various applications, including RVs, cabins, homes, boats, and backup power needs. Its compact size makes it perfect for RVs and campers. Multiple 100-watt solar panels can be connected in parallel or series to create flexible power setups.
Whether you're on the go or need a reliable off-grid power source, this kit is a must-have. Upgrade your energy game today!
Features:
- Easy installation
- High Efficiency
- Safe Operation
Specifications:
Acopwoer 100 Watts Mono Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.14A
- Maximum Operating Current (Imp): 5.71A
- Operating Temperature: -40oC to 85oC

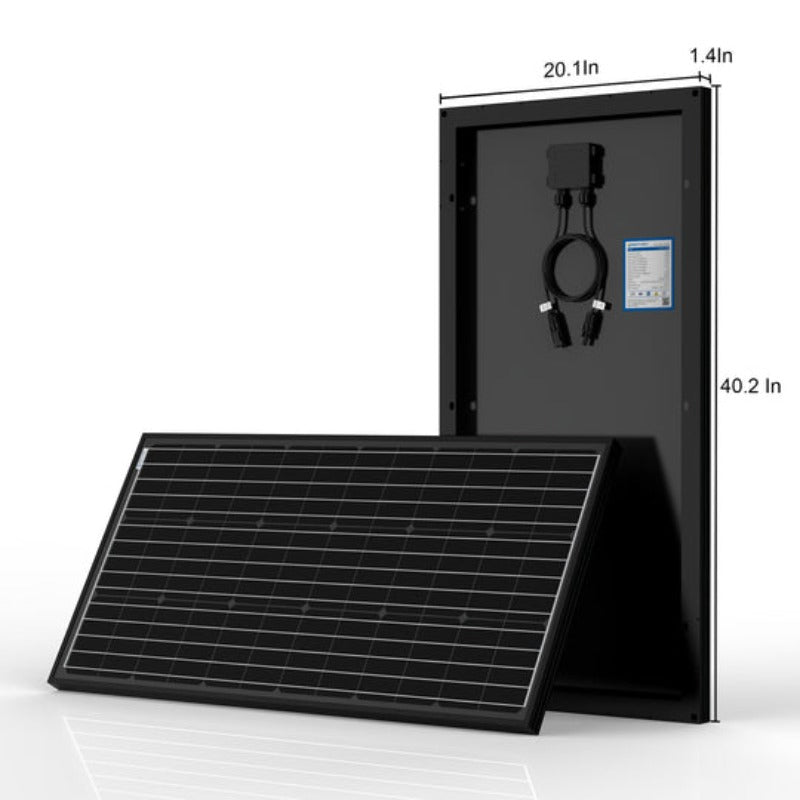

- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Weight: 5.8kg / 12.78 lbs
Acopower 50 A MPPT Solar Charge Controller
- Nominal System Voltage: 12v/24v/36v/48v DC
- Auto work Grounding: Common negative
- Rated Charge Current: 50A
- Battery Input Voltage Range: 8V 2V
- Max. PV Open Circuit Voltage: 150V/138V
- MPP voltage range:V(BAT)+2V 08V
- Max. PV input power: 937.5 W/12V, 1875W/24V, 2812.5W/36V, 3750W/48V
- Rated Charge Power : 624W/12V, 1250W/24V, 1875W/36V ,2500W/48V
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- RS485 Interface: 5VDC/200mA(RJ45)

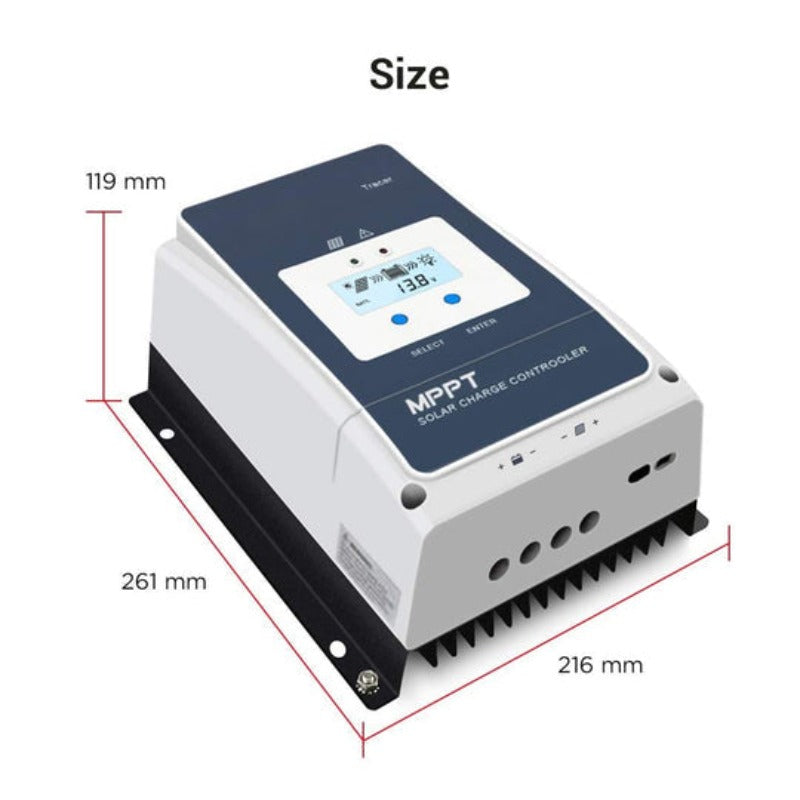

- Dimension:261*216*119mm Installion
- Notes: First connect the battery; Then connect the load; Finally connect the solar panel.

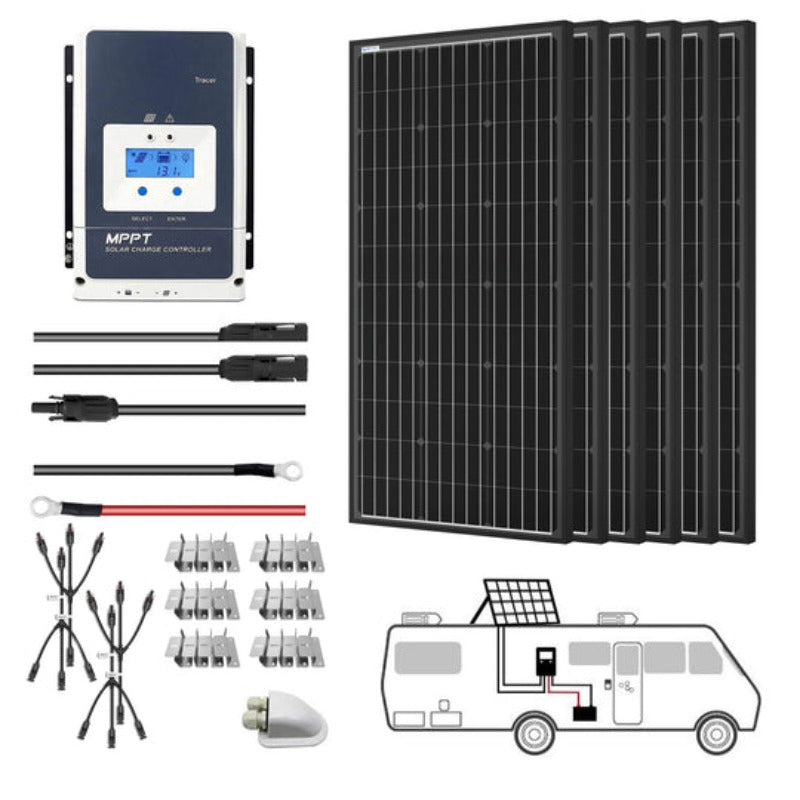

What's in the Box:
- 6 x Mono Solar Panel
- 1 x 50A MPPT Charge Controller

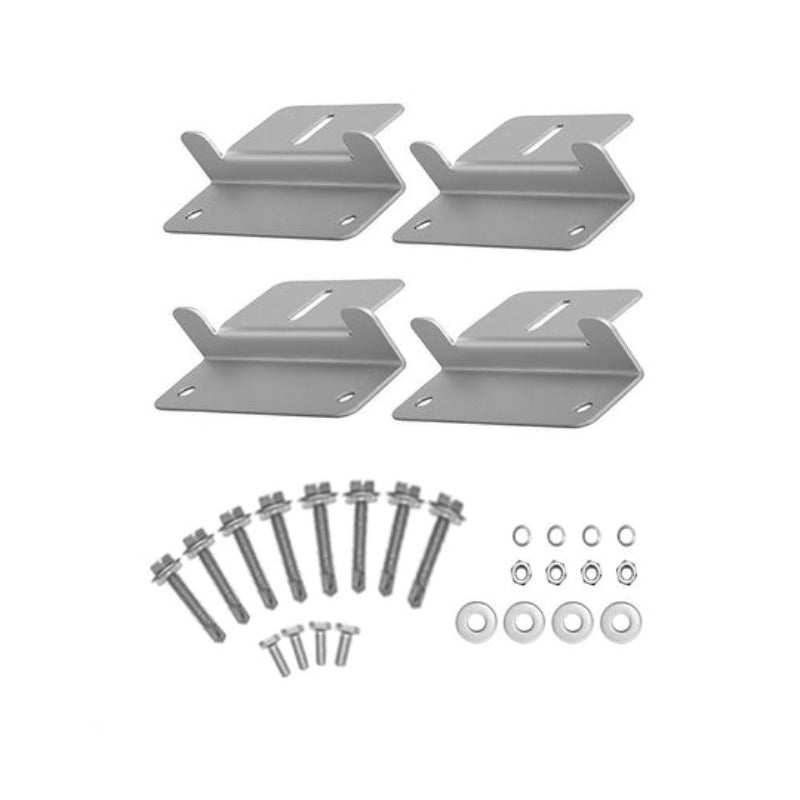

- 6 x Mounting Z Bracket
- 1 x 30ft 12AWG PV Cable

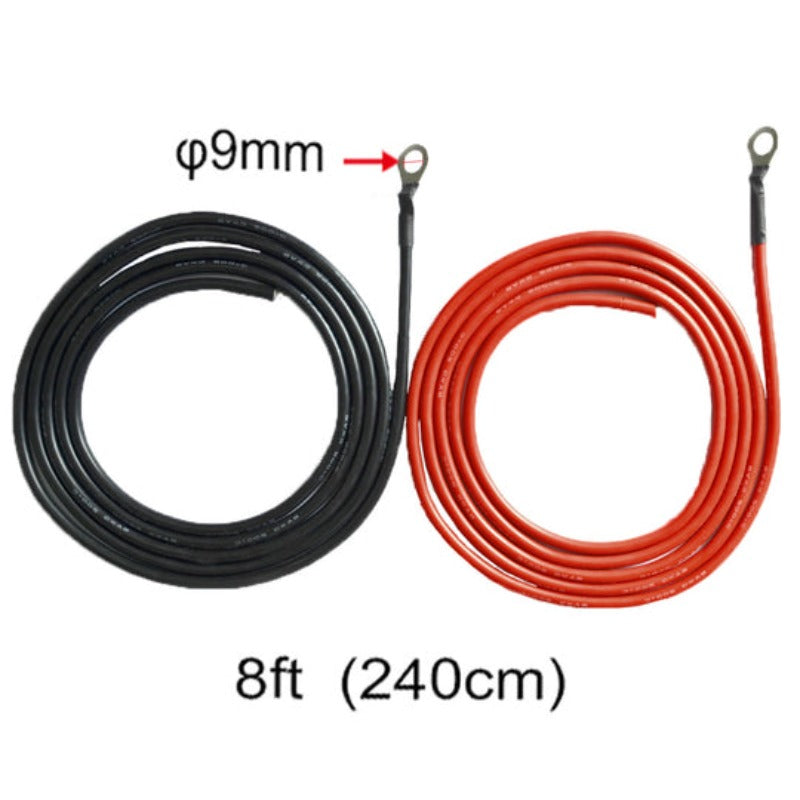

- 1 x 8FT 8AWG Tray Cable

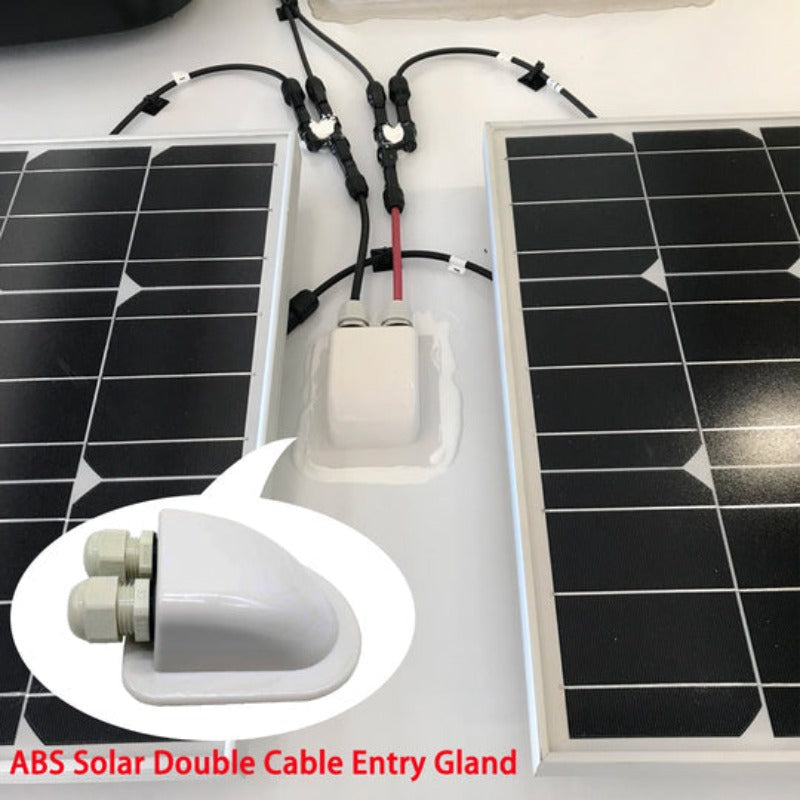

- 1 x Cable Entry Housing
- 2 x Pairs 1Y3 Branch Connectors
The ACOPOWER 600W All-Black Mono Solar Panel Kit with 50A Controller is perfect for those seeking a reliable off-grid power source. Ideal for RVs, cabins, homes, and boats, it offers flexibility and convenience. Each 100W mono solar panel measures 1130x510x35mm (44.5x20.1x1.4 in) and weighs 5.8kg (12.78 lbs). The kit comes with six panels, a 50A MPPT charge controller, mounting brackets, cables, and more.
