Acopower 100w mono kitAll Black 500w 40A

ACOPOWER 500W Mono Solar RV Kit - All Black, 40A

Power your RV adventures with ease! The ACOPOWER 500W Mono Solar RV Kit is here to revolutionize your off-grid experience. This comprehensive kit includes five 100W mono solar panels and a 40A MPPT charge controller, providing a reliable and efficient power source for your RV or other mobile applications.

Key Features:

• • High-efficiency monocrystalline solar cells for maximum power output, even in challenging conditions.
• • Advanced MPPT technology to optimize charging and protect your battery.
• • Easy plug-and-play installation for quick setup and hassle-free operation.

Benefits:

• • Enjoy sustainable and eco-friendly energy wherever your travels take you.
• • Reduce reliance on traditional power sources and save money on energy costs.
• • Experience reliable performance and peace of mind with a durable and rugged construction.

Technical Specifications:

Acopwoer 100 Watts Mono Solar Panel

• Maximum Power at STC (Pmax): 100W
• Open-Circuit Voltage (Voc): 22V
• Maximum Operating Voltage (Vmp): 17.48V
• Short-Circuit Current (Isc): 6.14A
• Maximum Operating Current (Imp): 5.71A
• Operating Temperature: -40oC to 85oC

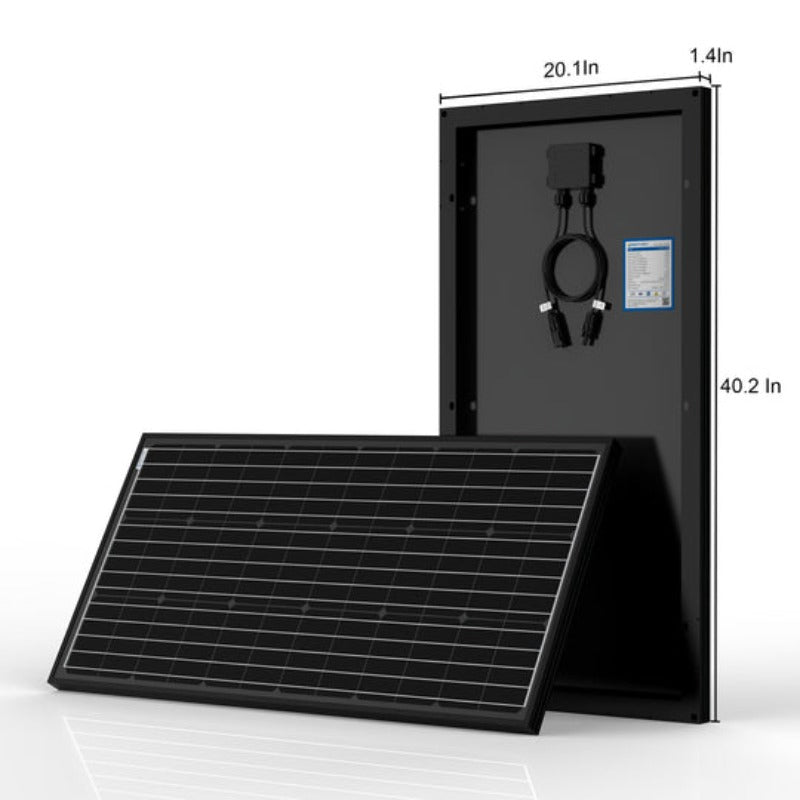

• Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
• Weight: 5.8kg / 12.78 lbs

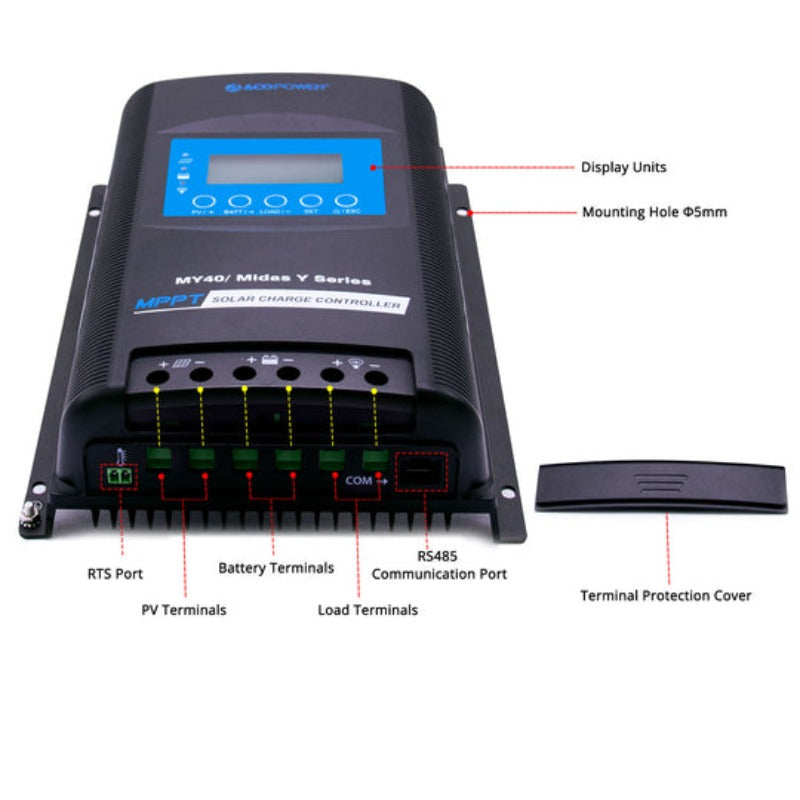

Acopower MIDAS 40 A MPPT Solar Charge Controller

• Nominal System Voltage: 12/24VDC
• Auto Grounding: Common negative
• Rated Charge Current: 40A
• Battery Input Voltage Range: 8V 2V
• Max. PV Open Circuit Voltage: 100V (1) 92V (2)
• Rated charge Power: 520W/12V 1040W/24V
• MPPT Voltage Range: (Battery Voltage+2V) ~72V
• RS485 Interface: 5VDC/200mA(RJ45)
• Working temperature: -25¡æ¡«+50 /li>
• Storage temperature: -20¡æ¡«+70 /li>
• Terminals: Up to 6 AWG
• Enclosure: IP33

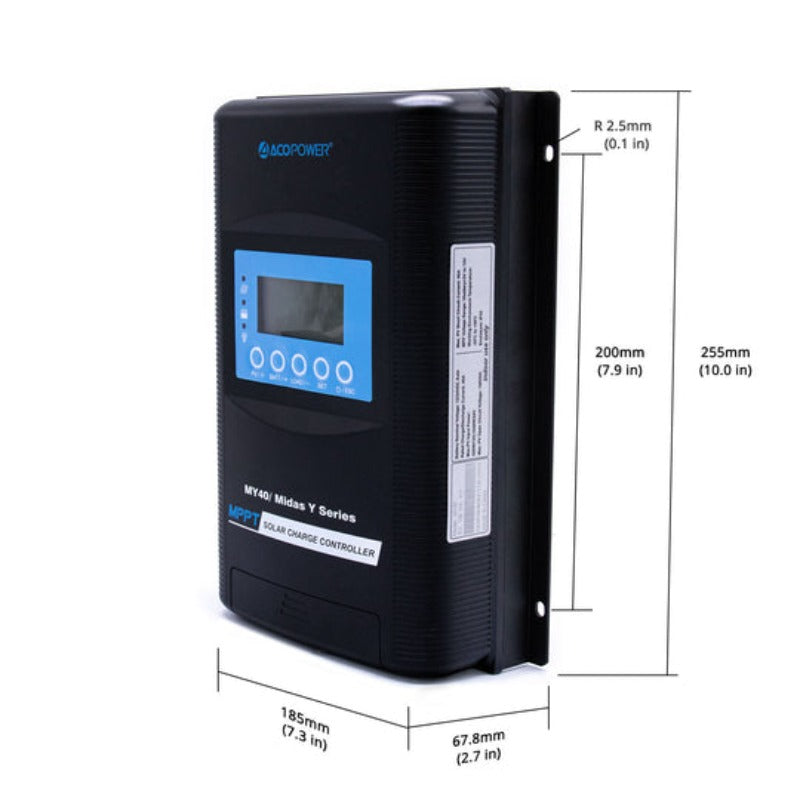

• Dimension: 10x7.28x2.67 in / 255¡Á185¡Á67.8mm
• Weight: 3.75lbs / 1.7kg

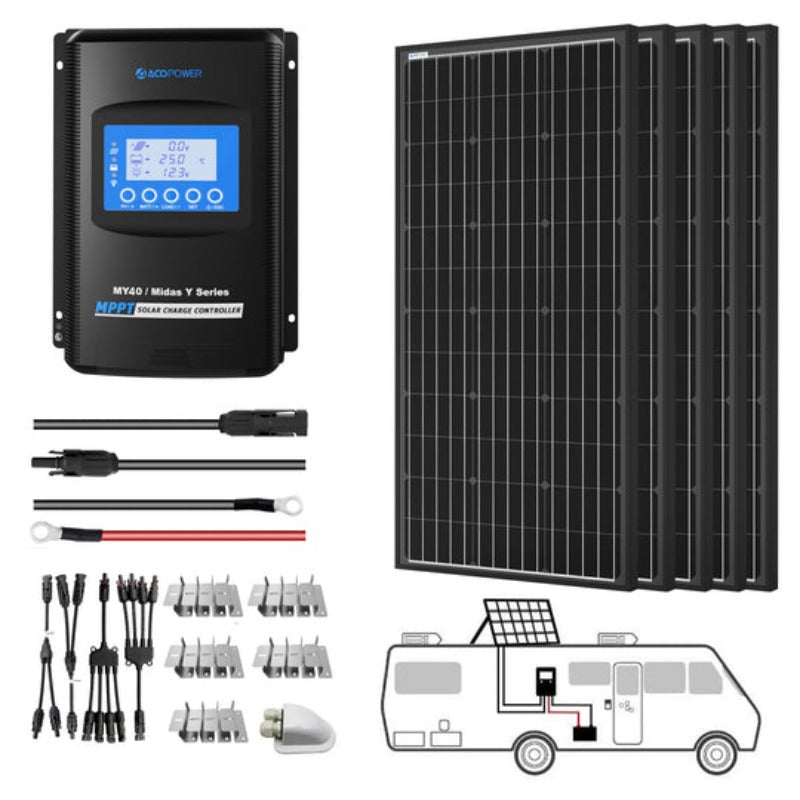

What's in the Box:

• 5 x Mono Solar Panel
• 1 x 40A MPPT Charge Controller
• 5 x Sets Mounting Z Bracket
• 1 x 30ft 12AWG PV Cable
• 1 x 8FT 8AWG Tray Cable

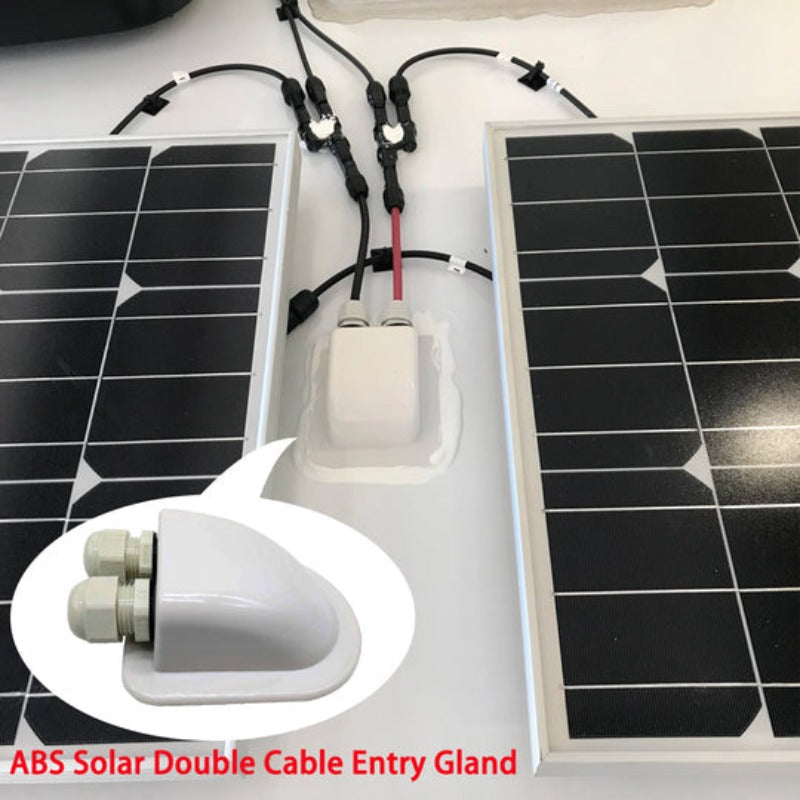

• 1 x Cable Entry Housing

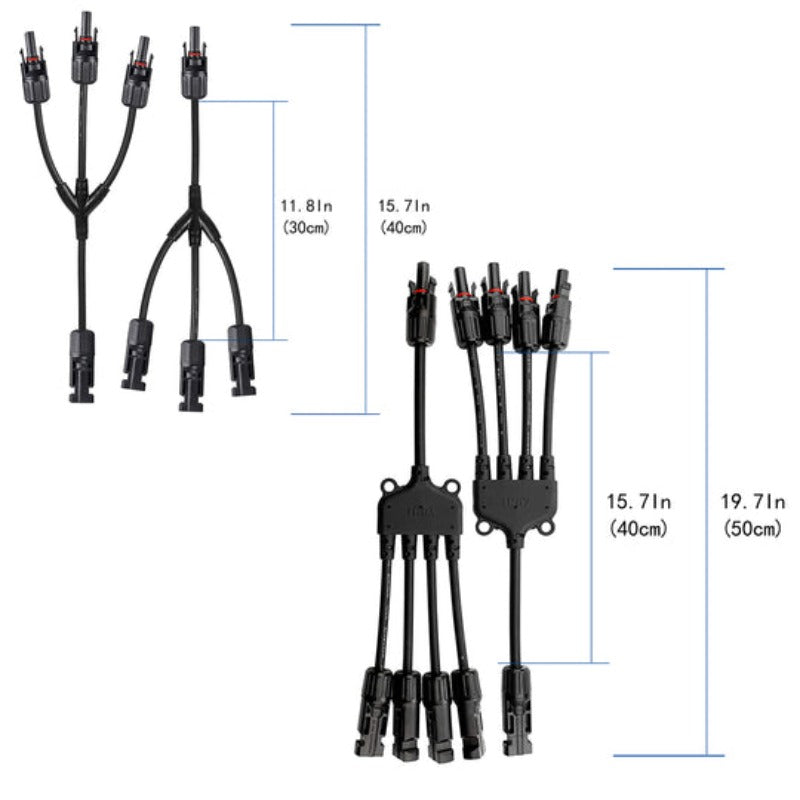

• 1 x Pair 1Y3 Branch Connector
• 1 x Pair 1Y4 Branch Connector

The ACOPOWER 500W Mono Solar RV Kit is perfect for RV owners and adventurers. It's designed to provide an independent power source while on the move. The kit includes five 100W mono solar panels and a 40A MPPT charge controller. Each solar panel has a dimension of 1130x510x35mm (44.5x20.1x1.4 in) and weighs 5.8kg (12.78 lbs). The charge controller has a dimension of 10x7.28x2.67 in (255x185x67.8mm) and weighs 3.75lbs (1.7kg). Ideal for off-grid RV living, camping, or reducing reliance on traditional power sources.
