Acopower 200W Mono Solar Power System with 300Ah Battery
The Acopower 200W Mono Solar Power System with 300Ah Battery is here to revolutionize your off-grid adventures! No more power breaks, just pure, uninterrupted energy.
• High-Efficiency Solar Panel: Harness the sun's power with a 200W mono-crystalline solar panel. It's super efficient at turning sunlight into electricity, so you can power your devices wherever you are.
• Massive Battery Capacity: With a 300Ah (3x100Ah) lithium battery setup, you've got serious energy storage. Keep your gadgets running all day and night.
• User-Friendly Design: Easy to set up with a plug-and-play design. And it comes with short circuit, overcharging, and temperature control for worry-free use.
Whether you're camping under the stars, exploring the backcountry in your RV, or just need a reliable power source on the go, this system is your perfect companion. Embrace an eco-friendly lifestyle and take control of your power needs today!
- RV-Ready Solar powered
- Three 100Ah deep cycle lithium batteries
- One 200W Solar Panel
- 1500W Power inverter
- 1 Set Z Bracket
- 30A MPPT Solar charge controller
- All cables necessary for the DIY system
- Mounting equipment
- Common positive grounding design
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium-ion.
SPECIFICATIONS:
12V 200Ah LiFePO4 Battery
Rated voltage 12.8V
Battery Capacity: 1280WH
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimensions (in): 12.99 x 6.81 (W) x 8.58 (H) inch
Weight: 23.8 lbs.

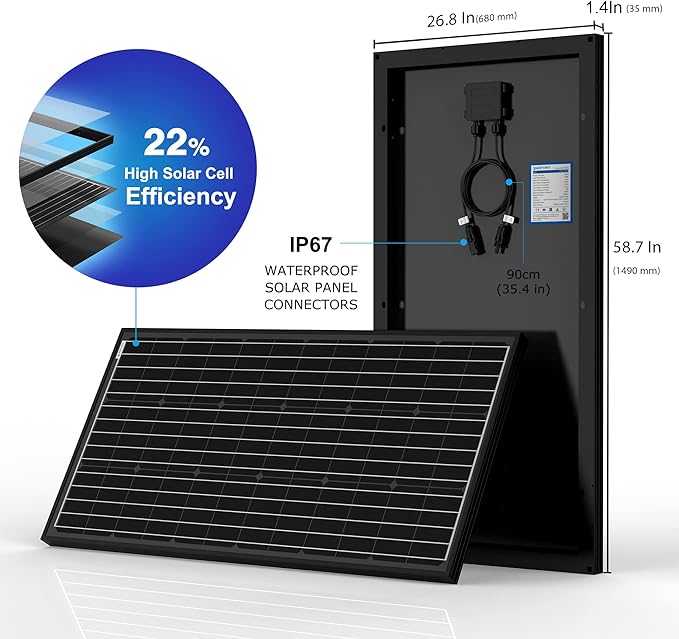

200W Mono Solar Panel
Nominal for 12V battery charger
Peak Power (PMax): 200W
Peak Circuit Voltage: 24.3V
Max Power Voltage: 20.4V
Short Circuit Current: 10.2A
Max Power Current: 9.8A
Weight: 26.5 lb, Dimension: 58.7*26.8*1.4 Inch

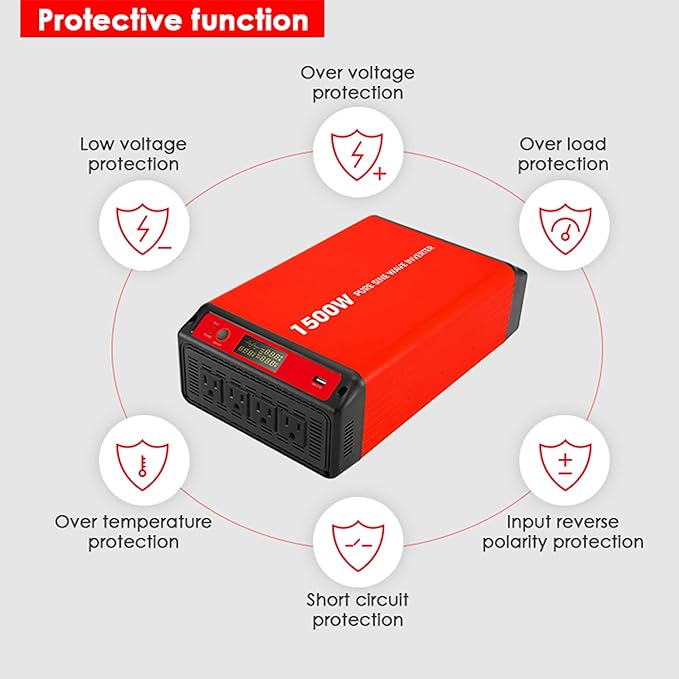

1500W Inverter 12VDC to 120VAC
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine
Wave Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
Weight: 7.79 lbs.
Dimension: 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

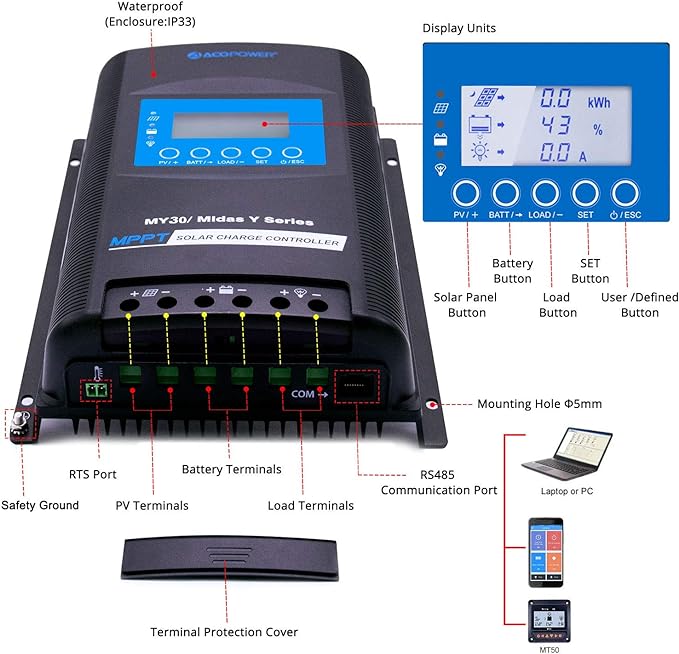

MPPT 30A Charge Controller
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/3900W, 24V/780W

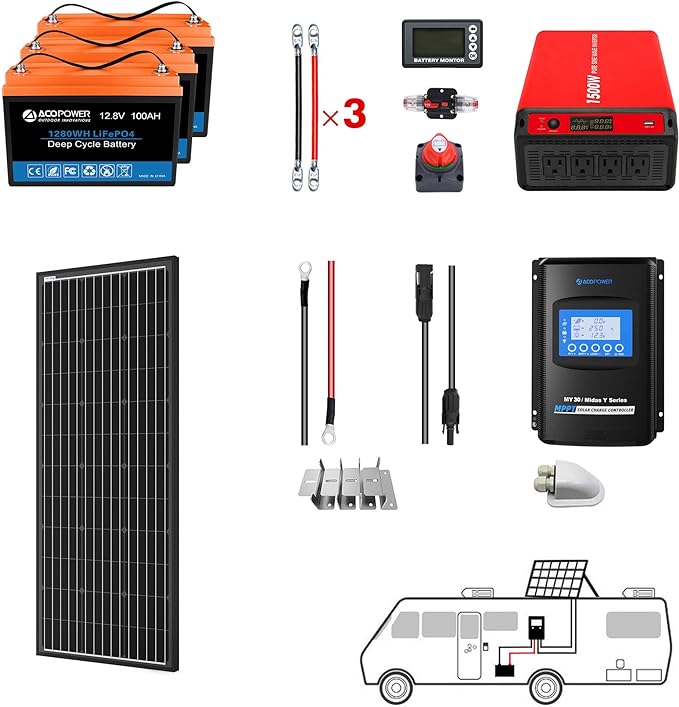

WHAT'S IN THE BOX:
3 x 100Ah LiFePO4 Battery
1 x 200W Solar Panel
1 x 1500W Sine Power Inverter (with inverter cables)
1 x 30A MPPT Charge Controller

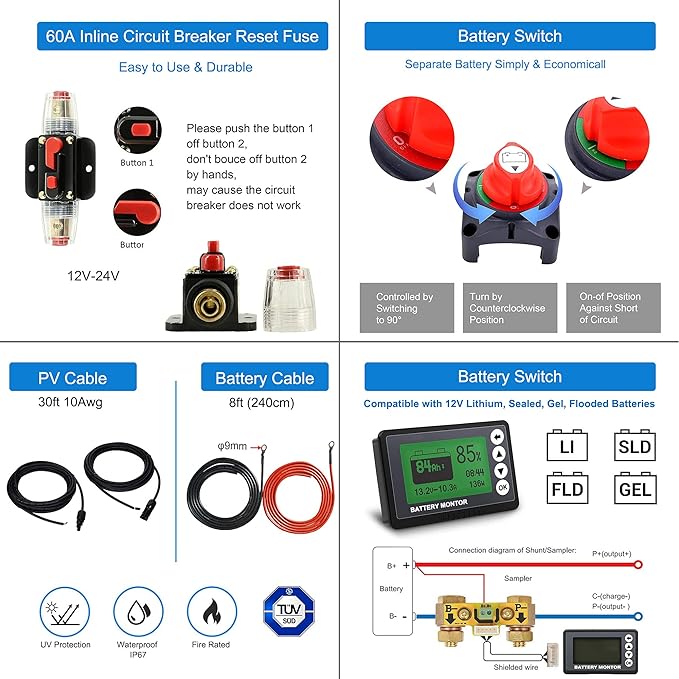

1 x 60A Fuse
1 x Battery Switch
1 x Battery Monitor
1Pair x 30ft 10AWG PV Cable
3 Pair x 1Ft 4AWG Battery Cable
1 Pair x 8FT 8AWG Tray Cable
1 Set x Mounting Z Brackets
1 x Cable Entry Housing
1 Pair x Y Branch Solar Panel Connectors
This Acopower 200W Mono Solar Power System with 300Ah Battery is perfect for outdoor enthusiasts. Whether you're camping, RVing, or exploring remote areas, it provides a reliable power source. The system includes a 200W mono-crystalline solar panel, three 100Ah lithium batteries, a 1500W power inverter, a 30A MPPT charge controller, and all necessary cables and mounting equipment. The 12V 200Ah LiFePO4 battery has a rated voltage of 12.8V, a capacity of 1280WH, weighs 23.8 lbs, and has dimensions of 12.99 x 6.81 (W) x 8.58 (H) inch. The 200W mono solar panel has a peak power of 200W, weighs 26.5 lb, and has dimensions of 58.7*26.8*1.4 Inch. The 1500W inverter has a continuous output of 1500W, a surge power of 3000W, weighs 7.79 lbs, and has dimensions of 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch. The MPPT 30A charge controller has a rated charge current of 30A and a battery voltage range of 8V - 32V.
