Renogy 600W 12V Monocrystalline Solar Premium Kit with Rover 60A Charger Controller
Embark on your off-grid adventures with confidence using the Renogy 600W 12V Monocrystalline Solar Premium Kit with Rover 60A Charger Controller! This all-in-one solution harnesses the sun's power for you.
• All-in-one solution for off-grid living
• Space-efficient solar panels for medium-sized loads

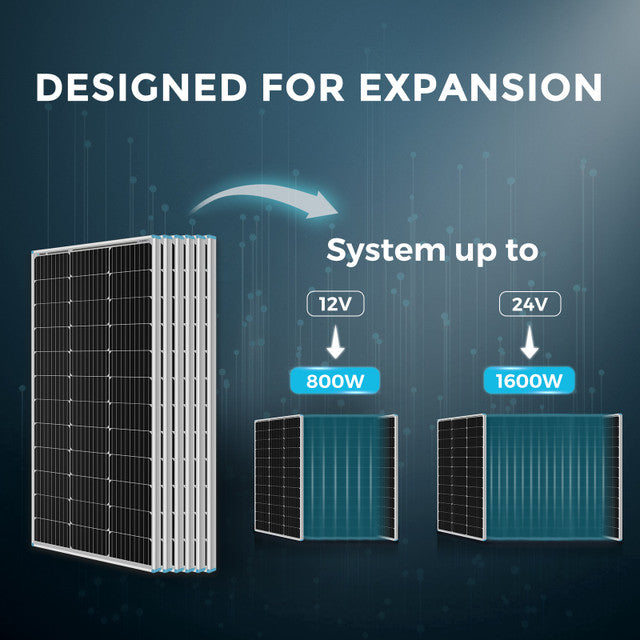

• Expandable up to 800W for 12V systems and 1600W for 24V systems
Easy Installation:
Get started quickly with the included tools like Z-brackets, wires, and pre-drilled holes for a safe and straightforward setup.
Efficient Performance:
The panel's bypass diode ensures great low-light performance, and the TPT back sheet keeps output steady. Max efficiency is 17.8%. Expand your power with the Rover Li 60A MPPT charge controller.
Full System Protection:
The Rover Li 60A MPPT Charge Controller safeguards against reverse polarity, overcharging, overload, short-circuiting, and reverse current.
Auto Detect and Powerful Compatibility:
Automatically detects 12V, 24V, 36V, or 48V DC system voltages. LCD screen and LED indicators show solar charging, battery operation, fault codes, and configurable parameters.
Quality:

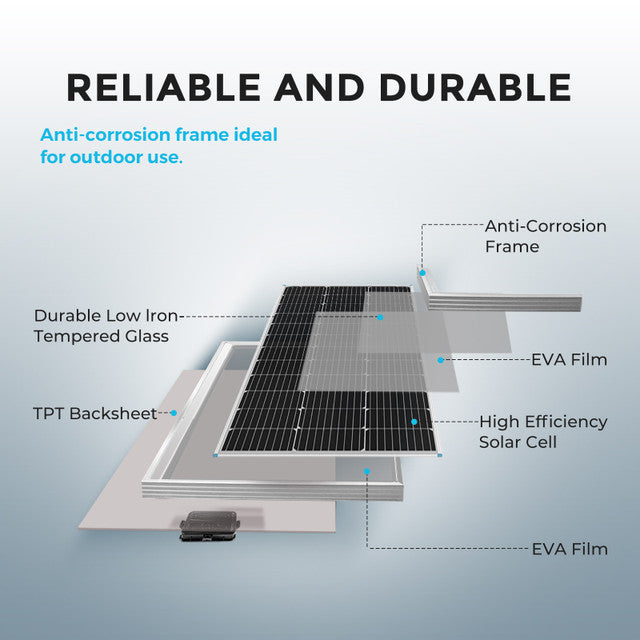

Advanced encapsulation material enhances cell performance and provides a long service life, shielding cells from damage.
Weatherproof:
The IP65 Junction Box keeps out low-pressure water jets and environmental particulates. IP67 waterproof solar connectors prevent water and dust infiltration outdoors.
Start generating clean, renewable energy right away with this easy-to-install and maintain premium kit. Make a smart choice for sustainable living!
Highlights:
Efficient performance
Full system protection
Auto detect and powerful compatibility
Solid quality
Weatherproof
Ready and easy installation
Full kit including 100W solar panel, 60A MPPT solar charge controller, a pair of 8Ft tray cables, 2Ft 4AWG fuse cable, a pair of 20Ft 10AWG solar adaptor kit, 15A in-line fuse holder, 60A fuse set, Bluetooth module, solar Y branch connectors, and Mounting brackets
Panels: 25-year power output warranty: 5-year 95% output warranty, 10-year 90% output warranty, 25-year 80% output warranty 10-year material and workmanship warranty; Accessories: 1-year material and workmanship warranty

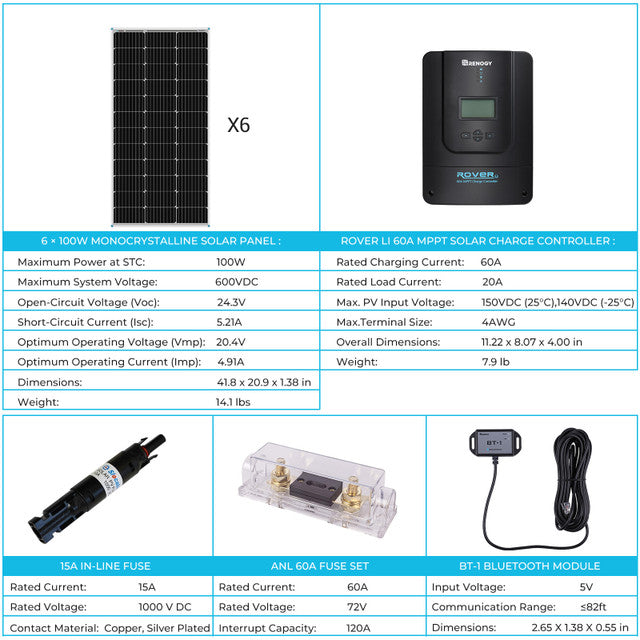

SPECIFICATIONS:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs/6.4kg

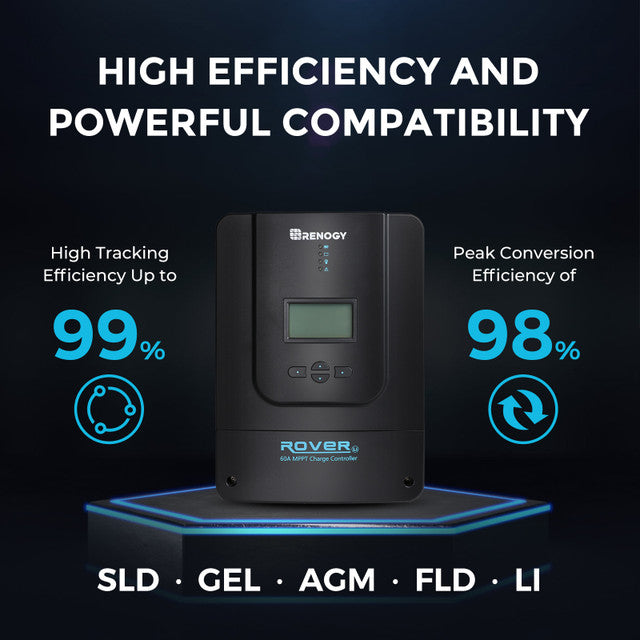

ROVER LI 60A MPPT SOLAR CHARGE CONTROLLER
Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current: 60A
Rated Load Current: 20A
Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Compatible Bluetooth: Renogy BT-1 Bluetooth module

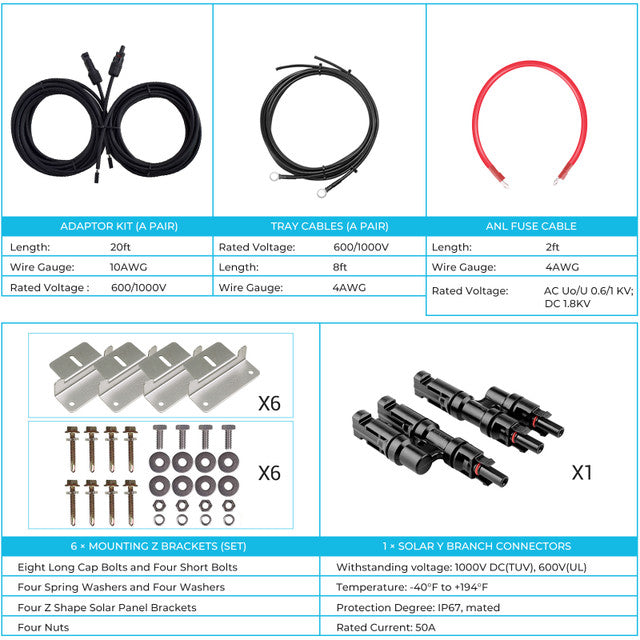

RENOGY 8FT 4AWG TRAY CABLES (A PAIR)
Length: 8ft
AWG: 4
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 2FT 4AWG ANL FUSE CABLE
Length: 2ft
AWG: 4
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature: -40°F to +194°F
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 15A IN-LINE FUSE HOLDER W/FUSE
Rated Current: 15A
Rated Voltage: 1000 V DC
Contact Material: Copper, Silver Plated
Replaceable Fuse: Cylindrical PV Fuse (10 x 38mm)
ANL 60A FUSE SET
Current Rating: 60A
Voltage Rating: 72V
Interrupt Capacity: 360A (48V)

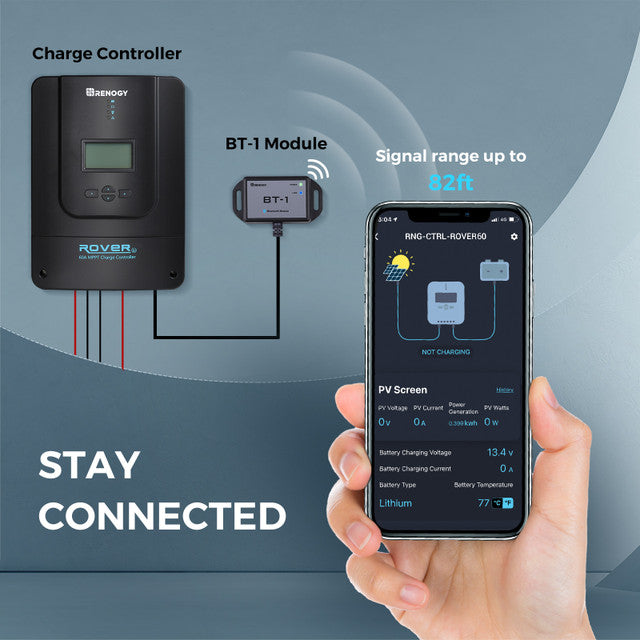

BT-1 BLUETOOTH MODULE
Input Voltage: 5V
Communication Range: ≤82ft
Compatible Models: All Renogy Controllers with RJ12 port
Operation Temperature: -20°C~85°C (-4°F to 185°F)
RENOGY SOLAR SOLAR Y BRANCH CONNECTORS MMF+FFM PAIR
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Protection Class: Class II
Protection Degree: IP67, mated
Insulation Material: PC/PA
Temperature Range: -40°F to 194°F
MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts

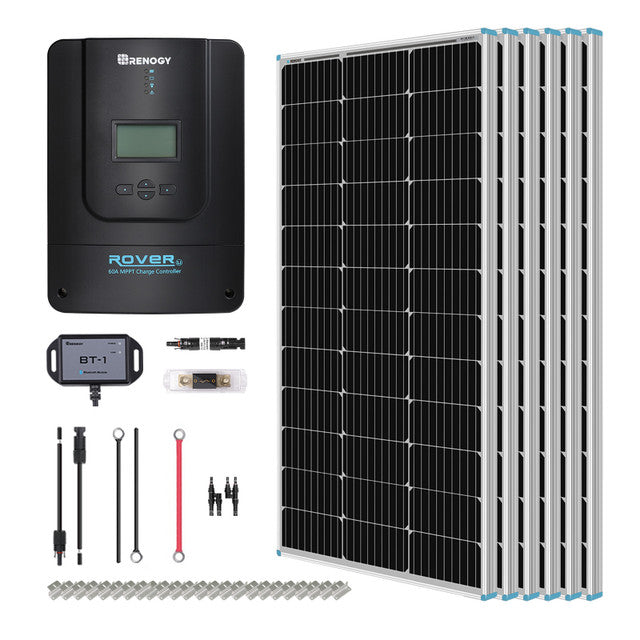

WHAT'S IN THE BOX:
6 x 100W Mono Solar Panel
1 x Rover Li 60A MPPT Charge Controller
1 x 20ft 10AWG AK
1 x 2ft 4AWG Fuse Cable
1 x 8ft 4AWG Tray Cable
6 x Mounting z Brackets (Set)
1 x 15A In-line Fuse and 60A ANL Fuse
1 x Renogy Solar Y Branch Connectors MMF+FFM Pair
1 x BT-1 Bluetooth Module
This Renogy solar kit is perfect for off-grid adventures. Ideal for those seeking to live off the grid, it comes with six 100W solar panels, a Rover 60A charger controller, and more. The 100W solar panels measure 41.8 x 20.9 x1.4 in and weigh 14.1lbs/6.4kg. It's easy to install with included tools and can handle medium-sized loads like TVs, washing machines, and electric stoves. Expandable up to 800W for 12V systems and 1600W for 24V systems, it offers efficient performance, full system protection, and auto detect compatibility.
