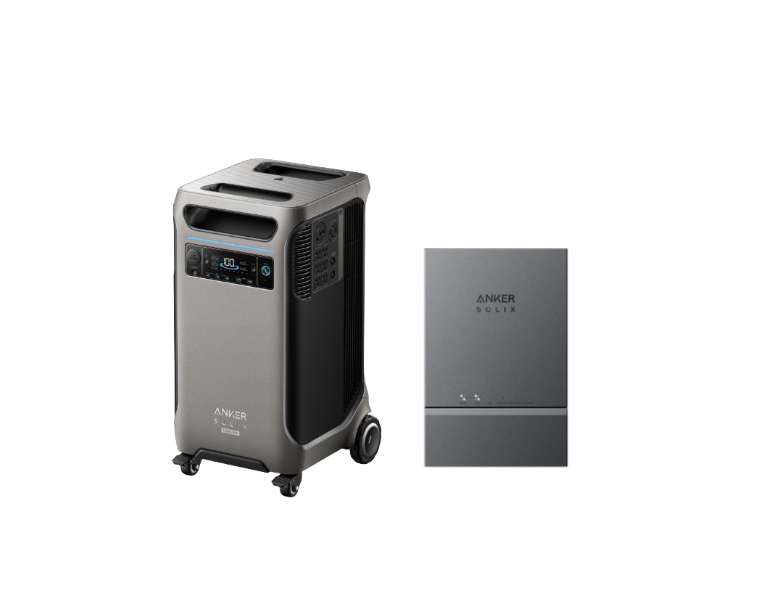

Anker SOLIX F3800 Plus Home Power Solution with Free Solar Panel
Never worry about power outages again! The Anker SOLIX F3800 Plus ensures your home stays powered through blackouts, extreme weather, or high energy costs. Enjoy unmatched reliability, ultra-fast solar charging, and seamless generator compatibility.
Key Features
- Massive Backup Power • 6,000W output (expandable to 12,000W) to run your whole home.
- Ultra-Fast Solar Recharging • Get 100% charged in just 1.5 hours with up to 3,200W solar input.
- Seamless Generator Integration • Works with any 240V generator and supports 6,000W generator charging.
- Smart Energy Savings • 50% more fuel-efficient than traditional generators and up to $5,000/year in energy savings.
- Instant Backup Switching • Ensures a seamless transition to battery power during an outage.
- Easy Installation • 50% lower cost than traditional energy storage, with a simple setup completed in hours.
Uninterrupted Power for Your Entire Home
With a 53.8kWh expandable capacity, the F3800 Plus is perfect for long-term outages. It powers lights, fridges, and high-wattage appliances like dryers and pool pumps with its dual 120V/240V output. Short-term blackouts are no problem, thanks to the instant backup feature.
Harness the Sun for Full Recharge in 1.5 Hours
The F3800 Plus takes solar efficiency to the next level. With up to 3,200W of solar input, it fully recharges in just 1.5 hours when paired with eight 400W solar panels. Maximize renewable energy and cut costs.
Generator Compatible for Ultimate Energy Security
No matter how long the grid stays down, you'll have power. The F3800 Plus seamlessly integrates with any 240V generator, supporting 6,000W generator charging. Save fuel with smart fuel efficiency.
Smart Home Energy Management & Savings
Designed for daily use, the F3800 Plus isn't just for emergencies. Use AC Coupling technology to store energy at low rates and use it at peak rates, reducing grid reliance and saving up to $5,000 per year. The Anker app optimizes power usage.
Silent, Clean Power with Effortless Setup
Unlike noisy gas generators, the F3800 Plus provides whisper-quiet operation with zero emissions. Installation is 50% cheaper than traditional storage systems, taking just one electrician and a few hours. Connect directly to 10 essential loads with no extension accessories needed.
SPECIFICATIONS:
Battery
- Type: LiFePO4 Cell
- Cell Part Number: 32140FS-15000mAh
- Charging Cycle: 3000+ (to 80%)
- Capacity: 51.2Vdc 75Ah / 3840Wh
Input
- AC Input: 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE
- AC Input Power (Charging): 1800W Max
- AC Input Power (Bypass Mode): 1440W Max
- Solar Panel Input 1: 11-165V - 17A Max (1600W Max Each)
- Solar Panel Input 2: 11-165V - 17A Max (1600W Max Each)
- DC Input Port: 60V Max, 120A Max
Output
- Car Charger Output: 12V - 10A
- Home Panel Power Port: 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE
- Total AC Output Power: 6000W Max
- AC Output 1: 120V~ 20A Max, 60Hz, 2400W Max
- AC Output 2: 120V~ 20A Max, 60Hz, 2400W Max
- AC Output (NEMA L14-30R): 120V/240V~ 25A Max, 60Hz, 6000W Max
- USB-A Output: 5V - 2.4A (12W Max Per Port)
- USB-C Output: 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port)
UPS (Uninterruptible Power Supply)
Environmental Operation
- Discharging Temperature: -4°F to 104°F / -20°C to 40°C
- Charging Temperature: 32°F to 104°F / 0°C to 40°C
Dimensions & Weight
- Size: 27.6 x 15.3 x 15.6 in (70.2 x 38.8 x 39.5 cm)
- Weight: 62kg / 136.7lb
WHAT'S IN THE BOX:
1 x Anker SOLIX F3800 Plus
1 x FREE 400W Anker Solar Panel
1 x AC Charging Cable
1 x MC4 3-Port Solar Charging Connector
1 x User Manual









The Anker SOLIX F3800 Plus is a must-have for homeowners. Whether dealing with power outages, extreme weather, or high energy costs, this power station has you covered. With features like massive backup power, ultra-fast solar recharging, and seamless generator integration, it ensures your home stays powered. The 53.8kWh expandable capacity can handle long-term outages, powering everything from lights to high-wattage appliances. It's easy to install, 50% cheaper than traditional energy storage, and can be set up in hours. The F3800 Plus is whisper-quiet, has zero emissions, and connects directly to 10 essential loads. Its size is 27.6 x 15.3 x 15.6 in (70.2 x 38.8 x 39.5 cm), and it weighs 62kg / 136.7lb. It comes with an AC Charging Cable, MC4 3-Port Solar Charging Connector, and User Manual. Perfect for daily use, it helps you save on energy costs and provides ultimate energy security.
