Versatile Power Solution
Meet your off-grid energy needs with this all-in-one solar kit! Ideal for RVs, cabins, homes, and boats, it provides reliable backup power wherever you are. • High-capacity lithium battery packs offer efficient charging and discharging, with over 3000 deep cycles. • The 30A MPPT charge controller ensures swift and secure battery charging, with 98% peak conversion efficiency. • The 1500W pure sine wave inverter delivers stable AC power to run your household appliances.
Easy Installation

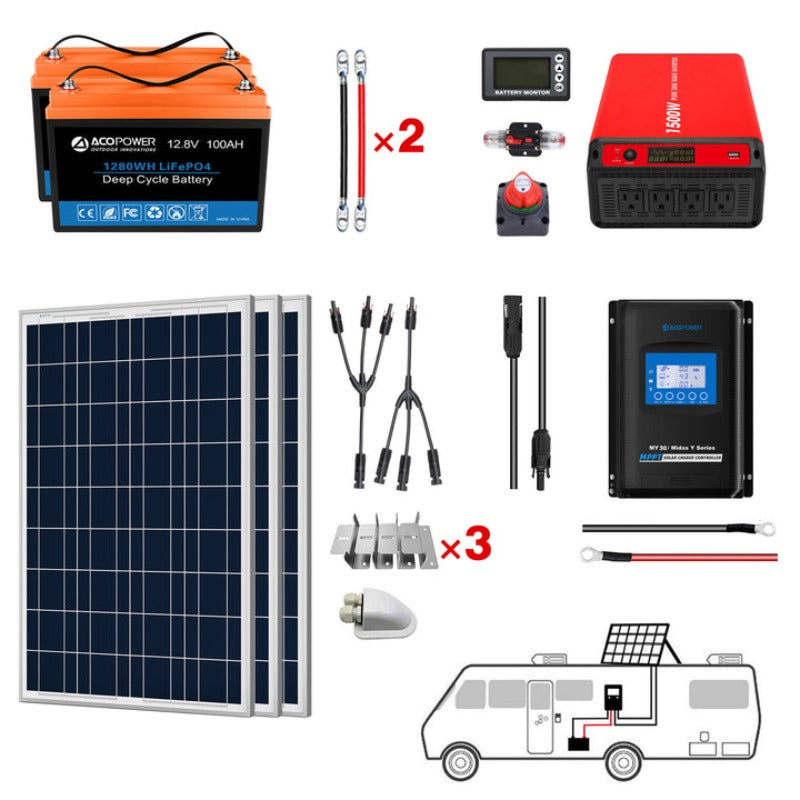

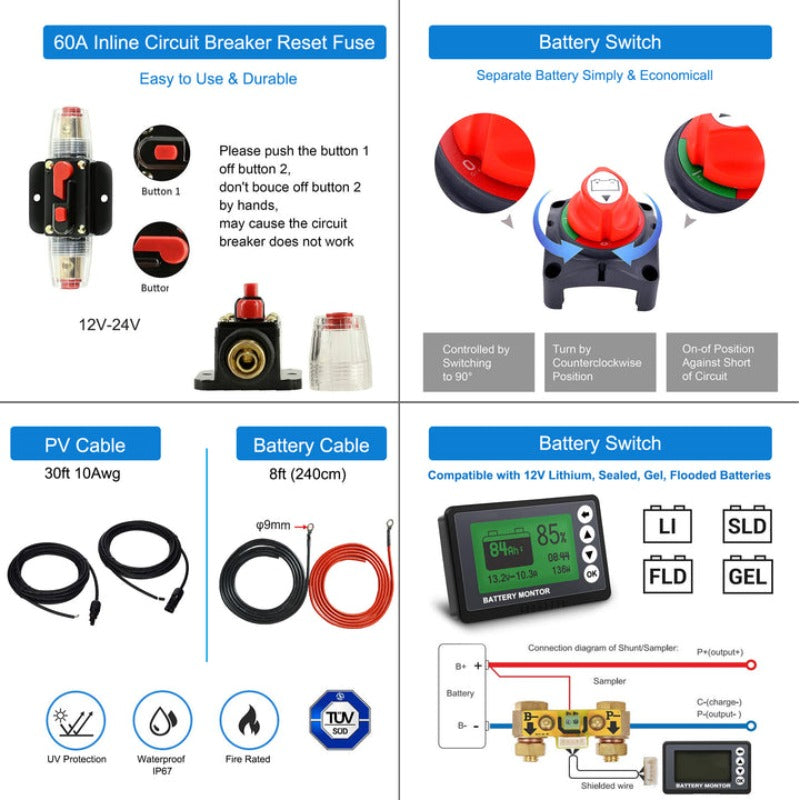

Get started right away! This DIY-friendly kit includes everything you need: 3 x 100W polycrystalline solar panels, 2 x 100Ah LiFePO4 deep cycle lithium batteries, a 1500W DC to AC power inverter, a 60A MPPT solar charge controller, a 60A fuse, a battery switch, a battery monitor, and all necessary cables and mounting brackets.
Technical Specifications

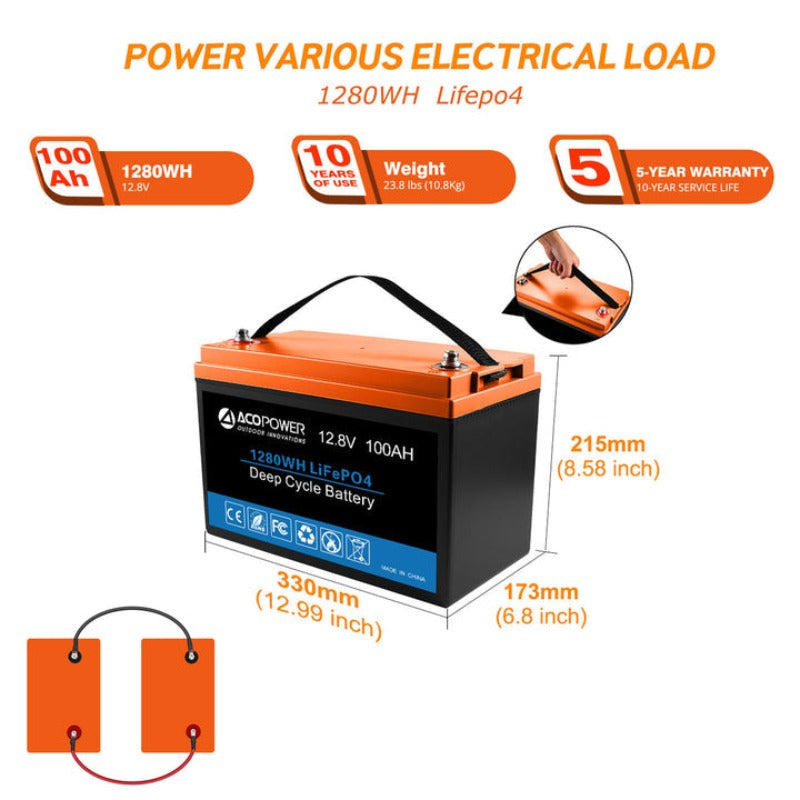

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage: 12.8V, charge voltage: 14.2 - 14.6V, capacity: 1280WH, depth of discharge: 100%, standard charge current: 20A, max continuous charge current: 50A, max continuous discharge current: 100A, dimension: 12.99 x 6.81 (W) x 8.58 (H) inch, weight: 23.8lb

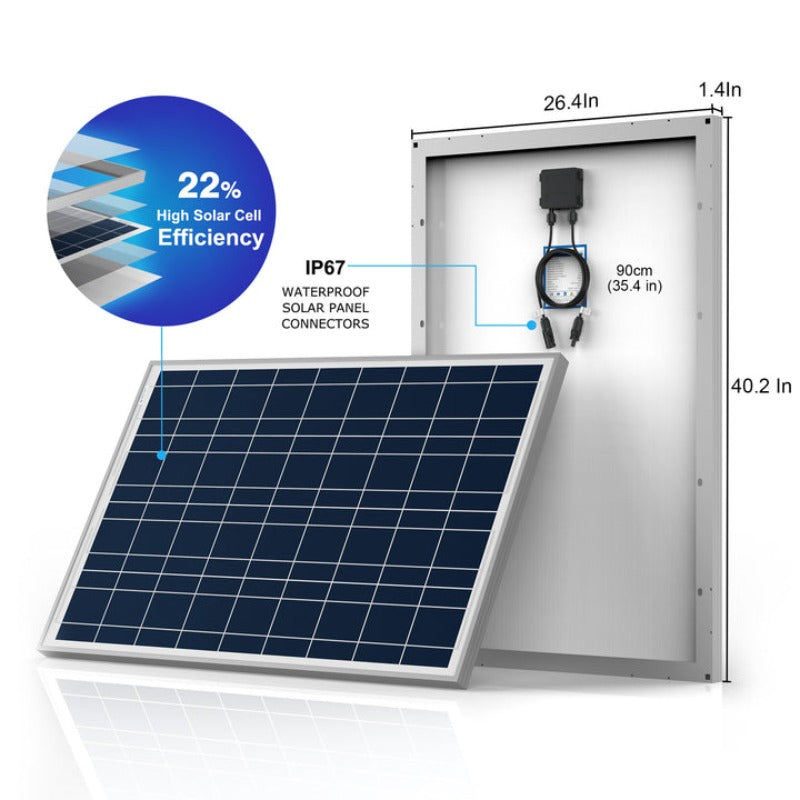

100W Poly Solar Panel
Nominal for 12V battery charger, peak power: 100W, peak circuit voltage: 22V, max power voltage: 17.48V, short circuit current: 6.21A, max power current: 5.72A, weight: 17.6lb, dimension: 40.2*26.4*1.4 Inch, application class: Class A

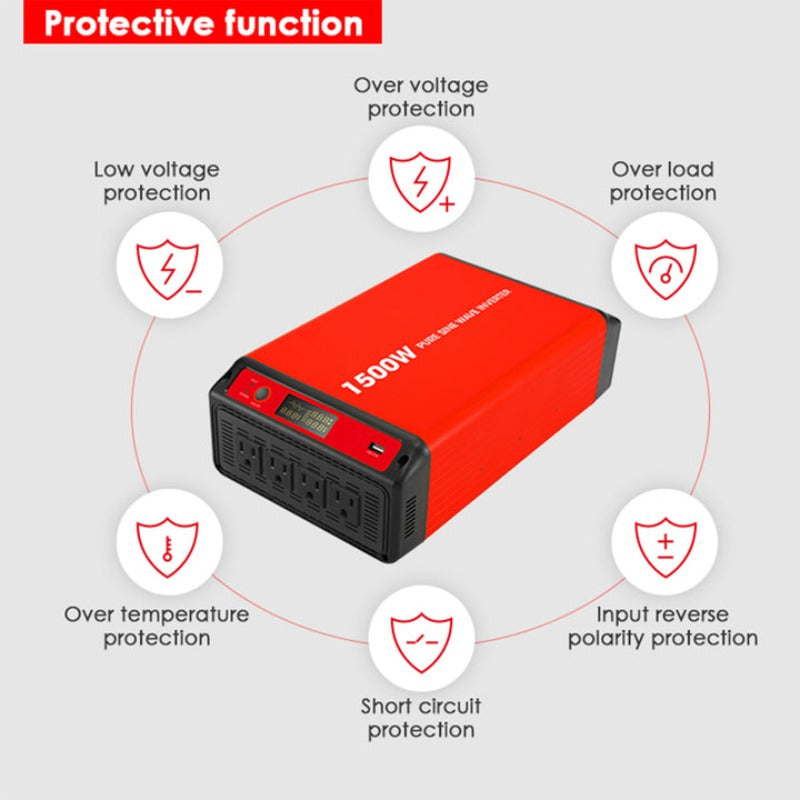

1500W Pure Sine Wave Inverter
Continuous output 1500W, surge power 3000W, wave form: pure sine wave, protection: under voltage, overvoltage, overload, output short circuit protection, weight: 7.79lb, dimension: 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

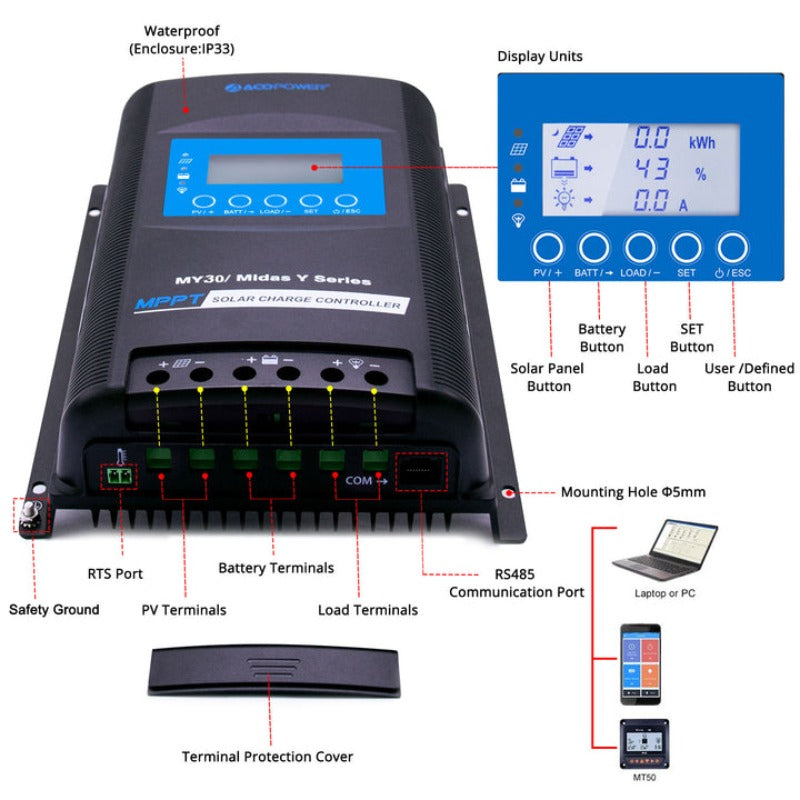

MPPT Solar Charge Controller 30A
Rated charge current: 30A, battery voltage range: 8V~32V, max PV open circuit voltage: 100VDC, max PV input power: 12V/390W, 24V/780W, compatible with various deep cycle battery options
This Acopower solar kit is perfect for those looking to go off-grid. Whether you're in an RV, cabin, home, or boat, this kit has you covered. It comes with everything you need for easy installation, including 3 100W polycrystalline solar panels, 2 100Ah LiFePO4 deep cycle lithium batteries, a 1500W DC to AC power inverter, a 60A MPPT solar charge controller, a 60A fuse, a battery switch, a battery monitor, and all necessary cables and mounting brackets. The lithium battery packs are high-capacity and offer efficient charging and discharging, with over 3000 deep cycles. The 30A MPPT charge controller ensures swift and secure battery charging, with 98% peak conversion efficiency. The 1500W pure sine wave inverter delivers stable AC power to run your household appliances. Technical specs: 12V 100Ah LiFePO4 Deep Cycle Lithium Battery - Rated voltage: 12.8V, charge voltage: 14.2 - 14.6V, capacity: 1280WH, depth of discharge: 100%, standard charge current: 20A, max continuous charge current: 50A, max continuous discharge current: 100A, dimension: 12.99 x 6.81 (W) x 8.58 (H) inch, weight: 23.8lb; 100W Poly Solar Panel - Nominal for 12V battery charger, peak power: 100W, peak circuit voltage: 22V, max power voltage: 17.48V, short circuit current: 6.21A, max power current: 5.72A, weight: 17.6lb, dimension: 40.2*26.4*1.4 Inch, application class: Class A; 1500W Pure Sine Wave Inverter - Continuous output 1500W, surge power 3000W, wave form: pure sine wave, protection: under voltage, overvoltage, overload, output short circuit protection, weight: 7.79lb, dimension: 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch; MPPT Solar Charge Controller 30A - Rated charge current: 30A, battery voltage range: 8V~32V, max PV open circuit voltage: 100VDC, max PV input power: 12V/390W, 24V/780W, compatible with various deep cycle battery options
