Renogy 200W 12V Solar Premium Kit - Your Path to Energy Independence
Key Features:

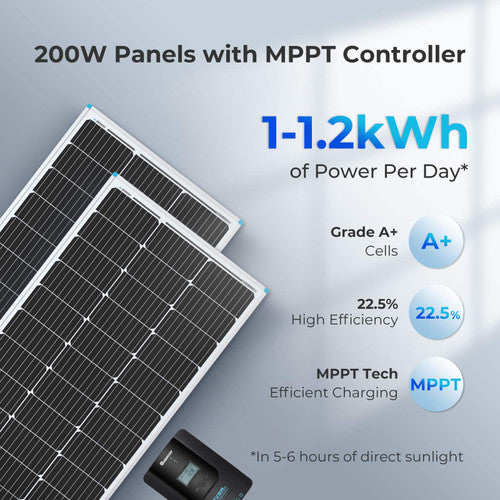

- • High-Efficiency Solar Panels: Two 100W monocrystalline solar panels that deliver consistent power, even in low light. They're built to last with high weather resistance.

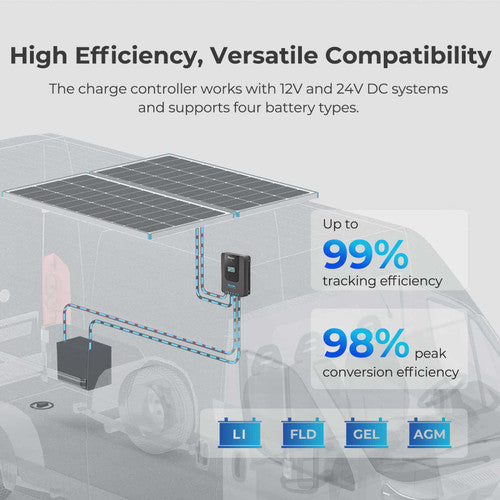

- • MPPT Charge Controller: A 20A MPPT charge controller that ensures maximum power harvesting, improving efficiency by up to 30% compared to PWM controllers. It protects against overcharging and short circuits, extending battery life.
- • Bluetooth Connectivity: Monitor your system's performance via the Renogy DC Home App. Track power generation, system voltage, and charging status remotely from your smartphone.
Specifications:
- Maximum Power: 100W
- Maximum System Voltage: 600V DC (UL)
- Open-Circuit Voltage (Voc): 24.3V
- Optimum Operating Voltage (Vmp): 20.4V
- Short-Circuit Current (Isc): 5.21A
- Optimum Operating Current (Imp): 4.91A
- Dimensions: 41.8 x 20.9 x1.4 in
- Weight: 14.1lbs
- Nominal Voltage: 12V/24V DC Auto Recognition
- Rated Charging Current: 20A
- Rated Load Current: 20A
- Max. Battery Voltage: 32V
- Max. PV Input Power: 260W/12V, 520W/24V
- Max. PV Input Voltage: 100VDC
- Operating Temperature: -35¡ãC to +45¡ãC
- Max.Terminal Size: 8AWG
- Rated Load Current: 10% to 90% NC
- Overall Dimension: 8.3 x 5.9 x 2.3 in
- Length: 20ft
- Wire Gauge: 10AWG
- Rating Voltage: 600/1000V
- Temperature: -40¡ãF to +185¡ãF
- Rating Voltage: 600/1000V
- Length: 8ft
- Wire Gauge: 10AWG
- Temperature: -40¡ãF to +185¡ãF
- Length and Wire Gauge: 2ft and 10AWG
- Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
- Temperature: -40¡ãF to +194¡ãF
- Rated Current: 10A
- Rated Voltage: 1000 V DC
- Contact Material: Copper, Silver Plated
- Replaceable Fuse: Cylindrical PV Fuse (10x38mm)
- Current Rating: 20A
- Voltage Rating: 72V
- Interrupt Capacity: 40A
- Withstanding voltage: 1000V DC(TUV), 600V(UL)
- Temperature: -40¡ãF to +194¡ãF
- Protection Class: Class II
- Protection Degree: IP67, mated
- Rated Current: 50A
- Input Voltage: 5V
- Communication Range: ¡Ü82ft
- Compatible With: All Renogy Controllers with RJ12 port
- Operating Temperature: - 20¡æ~85¡æ£¨-4¡ãF to 185¡ãF£©
- Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
- Four Z Shape Solar Panel Brackets: Four Nuts
- Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
- Accessories: 1-year material and workmanship warranty

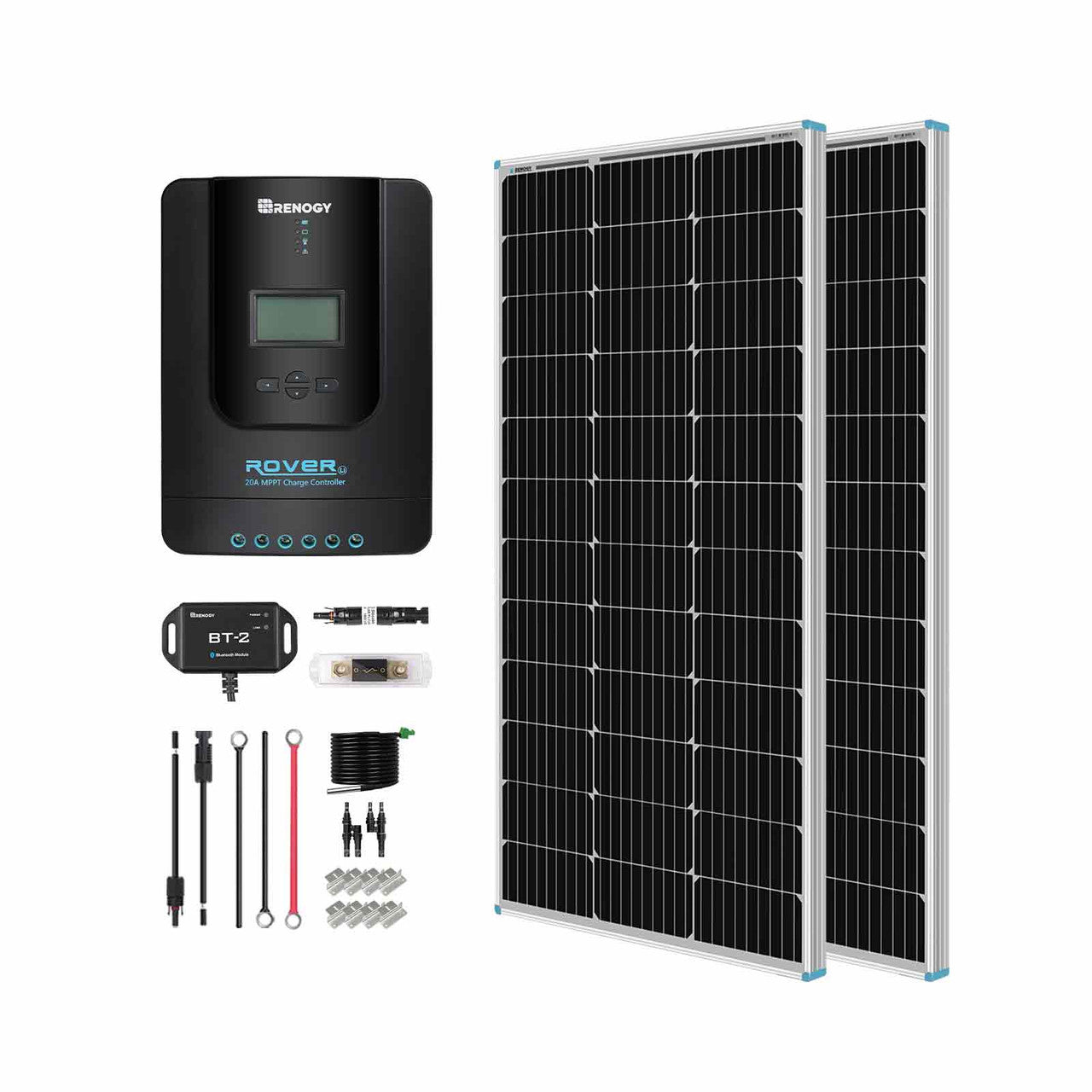

What's in the Box:
2 x 100W Mono Solar Panel
1 x Rover 20A MPPT Charge Controller 20A Ctrl
1 x 20ft 10AWG AK, 2ft 10AWG Fuse Cable, 8ft 10AWG Tray Cable
1 x AK/ Fuse Cable/ Tray Cable
2 x Mounting Z Brackets (Set)
1 x BT-1 Bluetooth Module
1 x 10A In-line Fuse and 20A ANL Fuse
1 x Solar Y Branch Connectors MMF+FFM Pair
The Renogy 200 Watt 12 Volt Solar Premium Kit is perfect for those looking to power small to medium off-grid systems like RVs, cabins, or boats. It includes two 100W monocrystalline solar panels, a 20A MPPT charge controller, and a Bluetooth module for easy monitoring. The panels are 41.8 x 20.9 x1.4 in and weigh 14.1lbs each. With high weather resistance, they deliver consistent power even in low light. The MPPT charge controller improves efficiency and protects the battery. Bluetooth connectivity allows you to track power generation, system voltage, and charging status from your smartphone. The kit also comes with all the necessary cables, connectors, and mounting brackets for a seamless installation.
