Acopower 100W Mono 300Ah Portable Solar Kit
Discover the ultimate portable solar solution! The Acopower 100W Mono 300Ah Portable Solar Kit is a game-changer in the world of solar energy.
• High-Efficiency Solar Absorption: With its remarkable 100W mono design, this kit absorbs sunlight like a pro and converts it into clean energy.
• Versatile Power Output: Boasting a robust 1.5kW output, connect multiple devices simultaneously, from laptops to air compressors.
• User-Friendly Design: Foldable and easy to set up, plus an LCD screen for real-time energy data.
This solar kit is perfect for campers, RV enthusiasts, and those embracing an off-grid lifestyle. It comes with three 100Ah lithium batteries, four 100W monocrystalline solar panels, a 40A MPPT solar charge controller, a 1500W power inverter, and all necessary cables. Get ready to power your adventures!
SPECIFICATIONS:

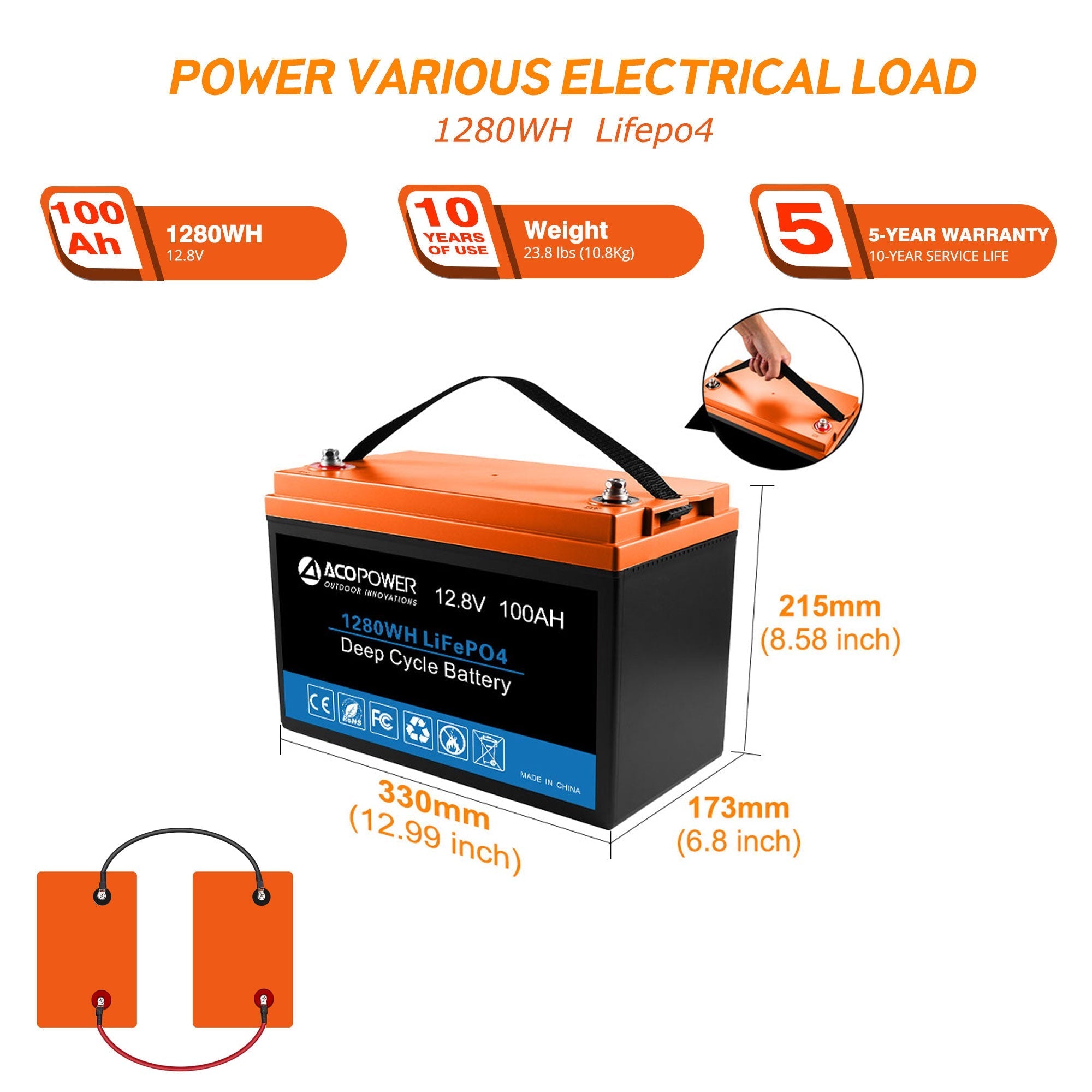

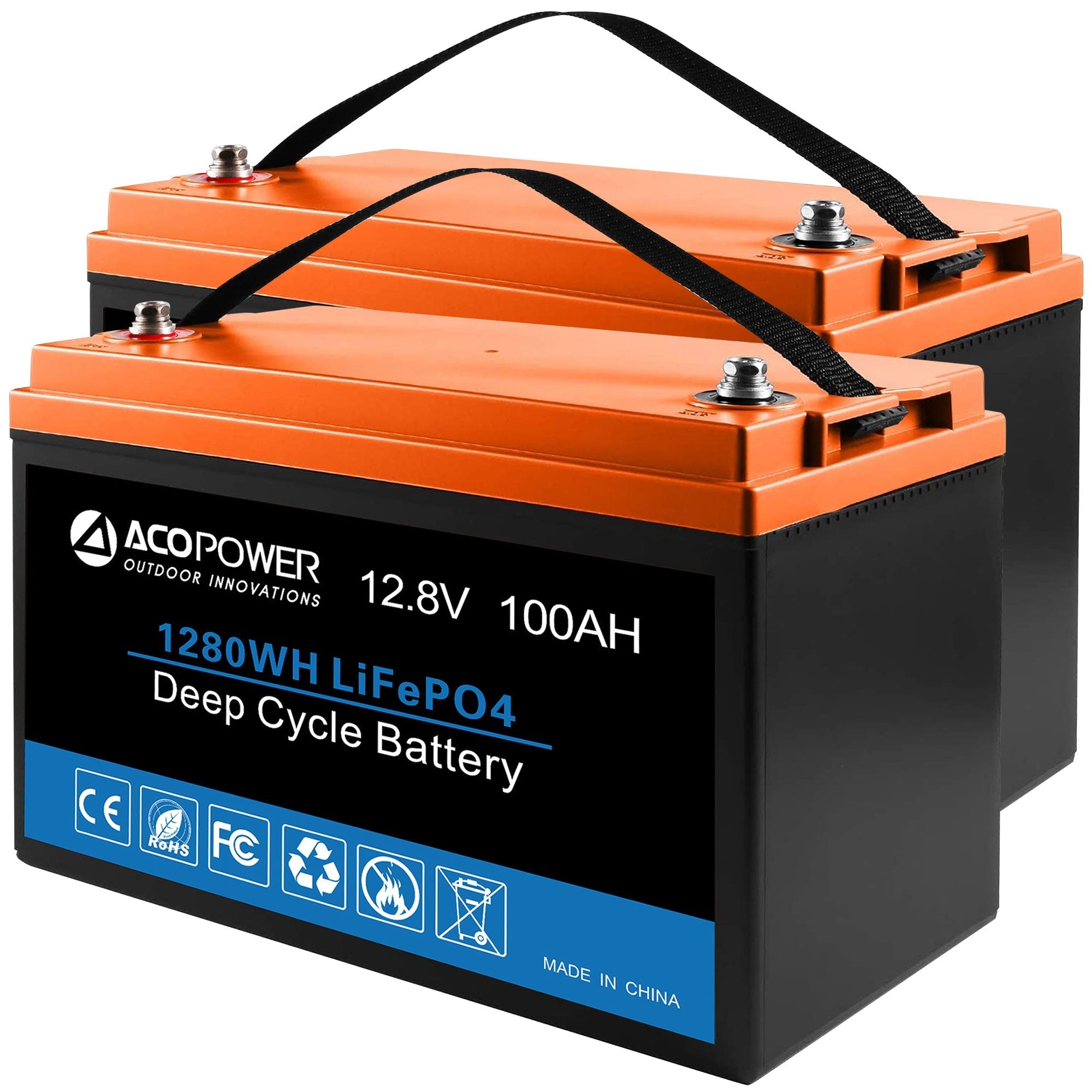

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity: 1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimension (inch): 12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb
100W Mono Solar Panel
Peak Power (Pmax): 100W
Peak Circuit Voltage (Voc): 22.5V
Max Power Voltage (Vmp): 17.48V
Short Circuit Current (ISC): 6.14A
Max Power Current (Imp): 5.71A
Weight: 12.8 lb
Dimension: 40.2 x 20.1 x 1.4 Inch

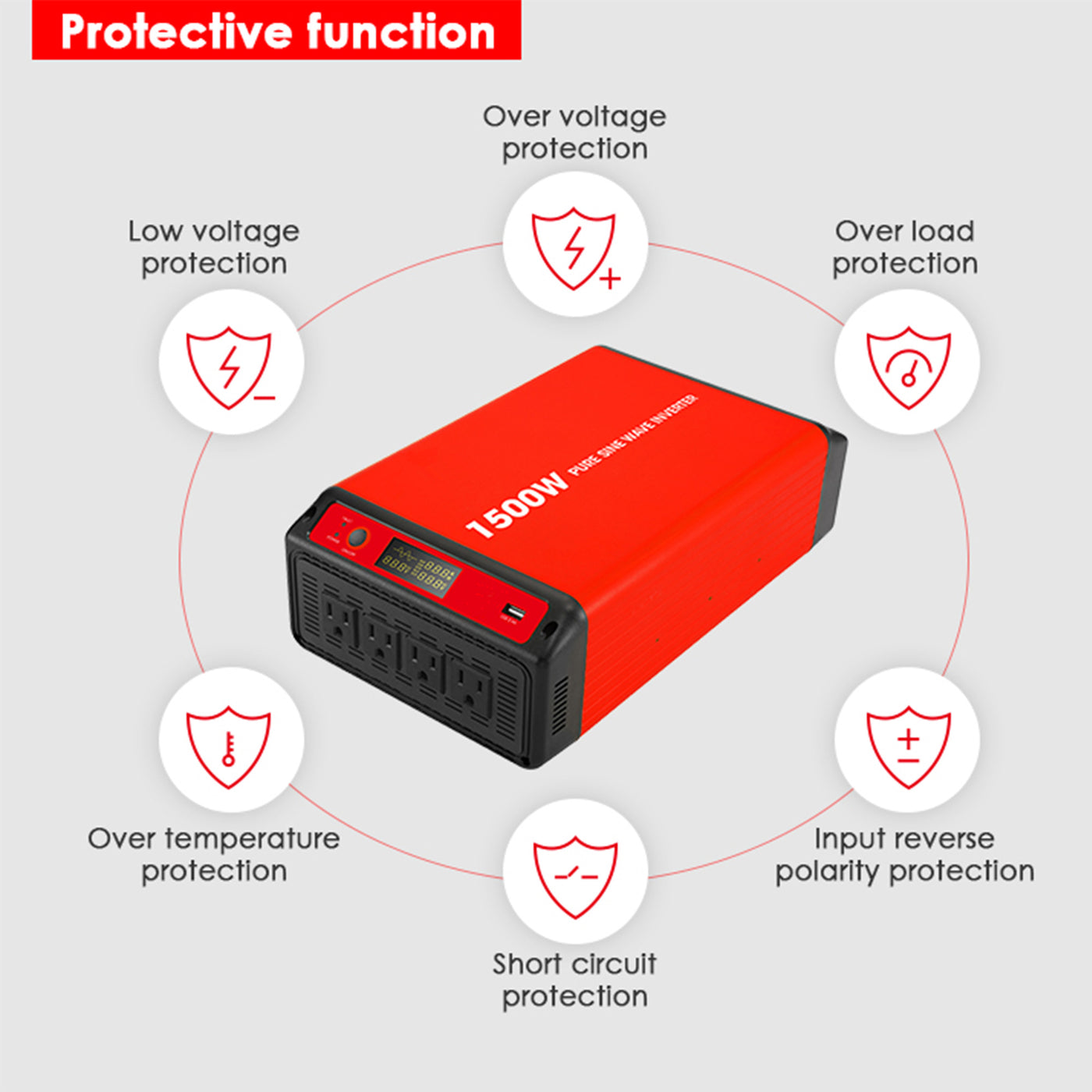

1500W Pure Sine Wave Inverter
Continuous output: 1500W
Surge Power: 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload protection, Output short circuit protection
Weight: 7.79lb
Dimension (inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

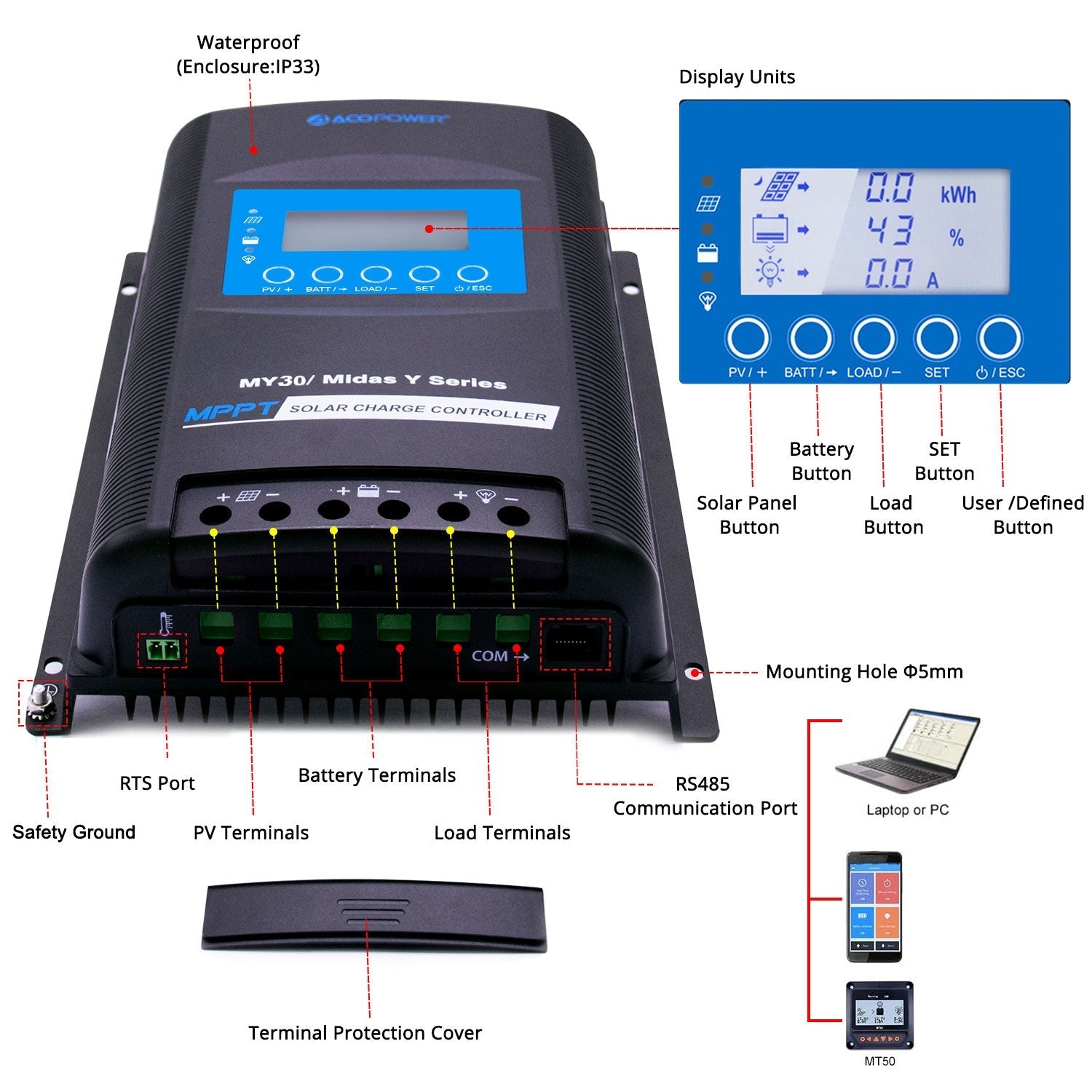

MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W, 24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. Lead acid batteries and lithium batteries.
WHAT'S IN THE BOX:
4 x Acopower 100-Watt Monocrystalline Solar Panel, 12V
1 x 40A MPPT Solar Charge Controller
3 x 100Ah LiFePO4 Deep Cycle Lithium Battery
1 x 1500W Power Inverter
1 x 500A Battery Monitor
1 x Battery Switch
1 x 10 AWG PV Cable (30')
3 x 4 AWG Battery Cable (1')
4 Sets x Z Bracket
1 x 8 AWG Tray Cable (8')
1 x Y Branch Solar Panel Connector
1 x Waterproof Cable Entry Gland Box
1 x 60A Fuse
The Acopower 100W Mono 300Ah Portable Solar Kit is perfect for campers, RV enthusiasts, and those living an off-grid lifestyle. It's easy to use and set up, with a foldable design. The kit includes three 100Ah lithium batteries, four 100W monocrystalline solar panels, a 40A MPPT solar charge controller, a 1500W power inverter, and all necessary cables. The 12V 100Ah LiFePO4 Deep Cycle Lithium Battery has a rated voltage of 12.8V, a capacity of 1280WH, and weighs about 23.8lb. Each 100W Mono Solar Panel weighs 12.8 lb and has dimensions of 40.2 x 20.1 x 1.4 Inch. The 1500W Pure Sine Wave Inverter has a continuous output of 1500W, a surge power of 3000W, and weighs 7.79lb. The MPPT Solar Charge Controller 40A has a rated charge current of 40A and is compatible with various battery types.
