Renogy REGO 12V 60A MPPT Solar Charge Controller Bundle with 10Ft Power Cable
Upgrade your solar power system with the Renogy REGO 12V 60A MPPT Solar Charge Controller! This amazing bundle comes with a 10Ft power cable, making it a breeze to set up. It's perfect for anyone looking to harness the power of the sun efficiently.

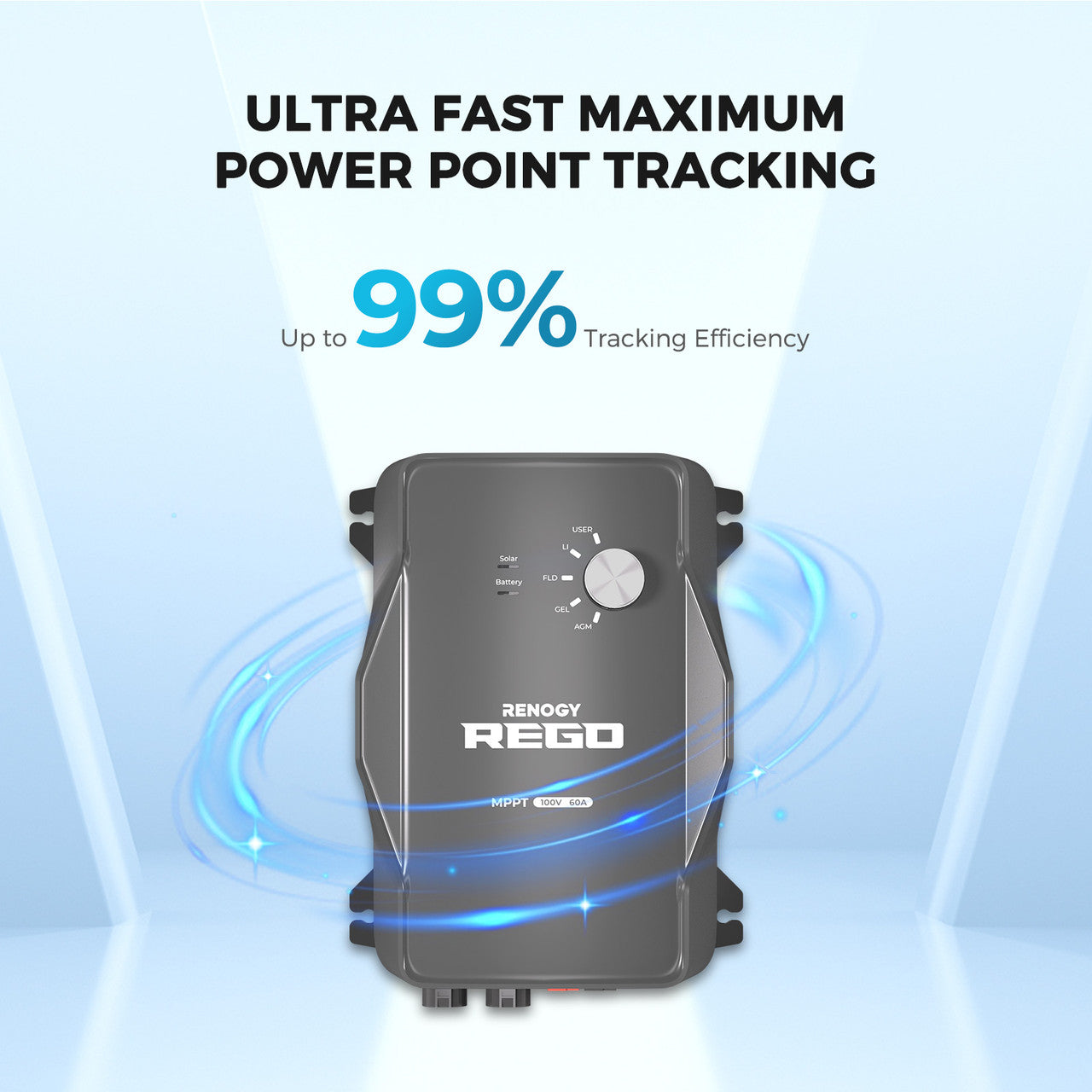

• High-Efficiency MPPT Technology: With 99% tracking efficiency, this controller ensures optimal solar power generation for your system. Say goodbye to wasted energy!

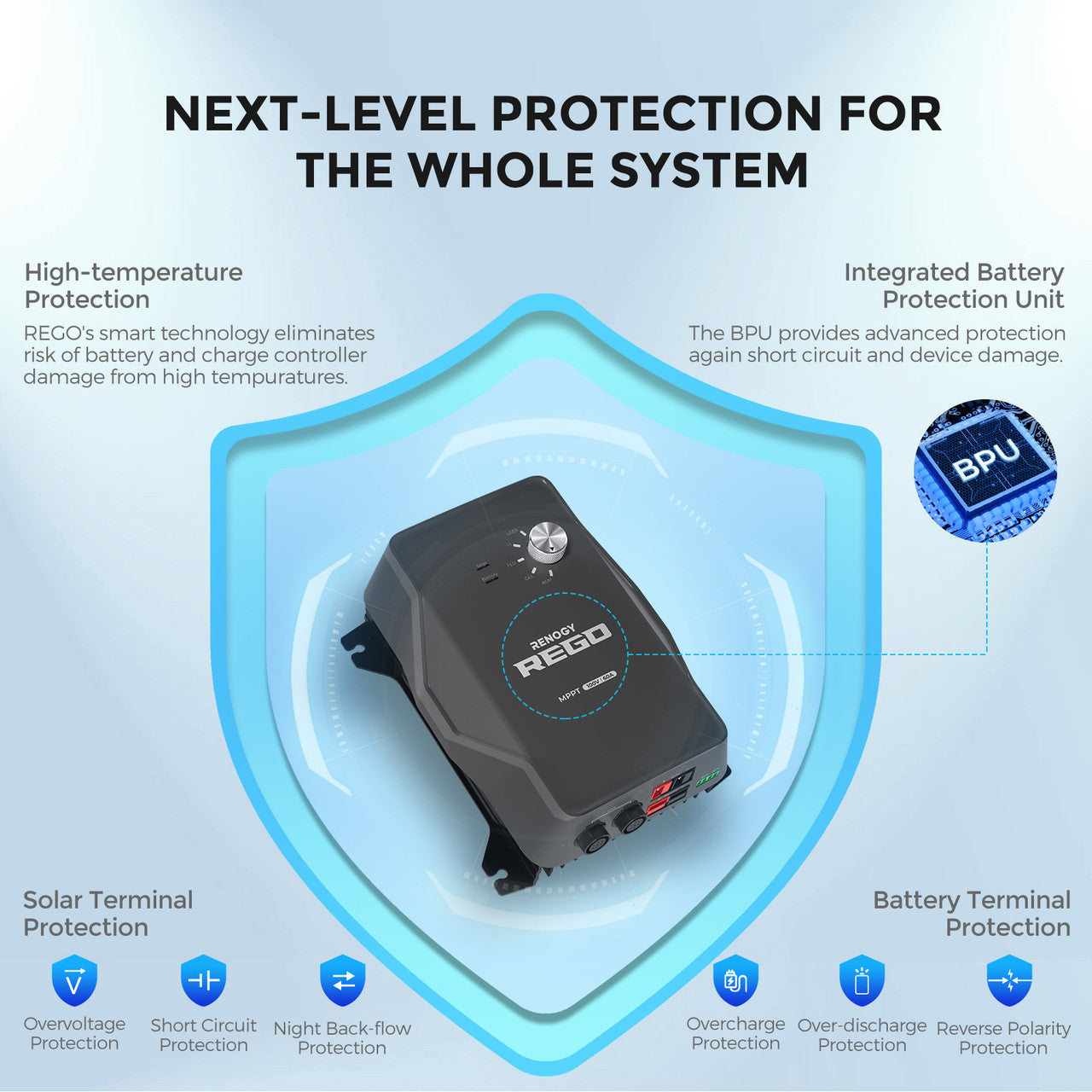

• Comprehensive Battery Protection: The integrated Battery Protection Unit safeguards your battery system from damage and failure. It automatically disconnects the battery from non-essential loads to prevent complete drainage.

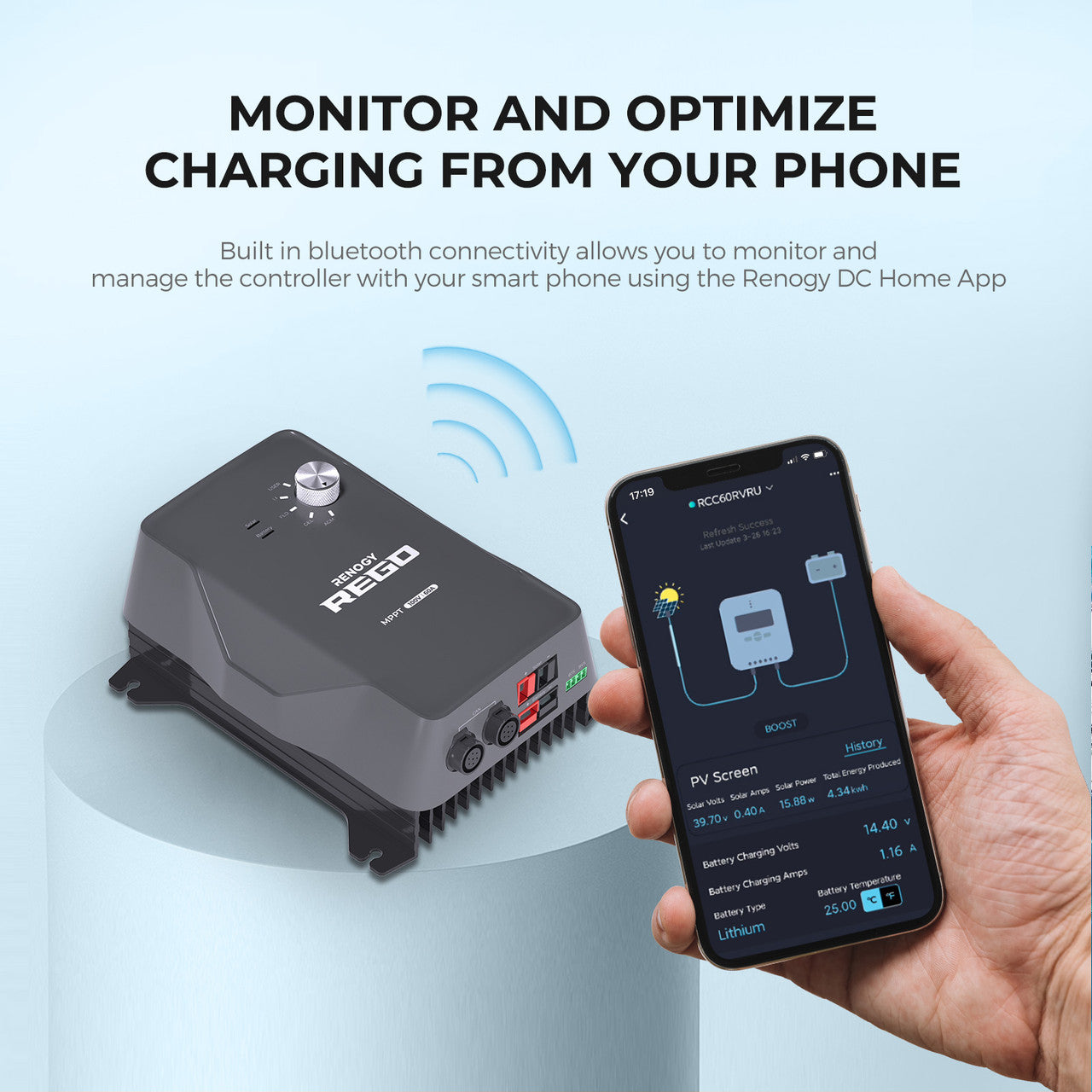

• Easy Monitoring and Control: Customize your solar charging experience using the built-in Bluetooth and the Renogy DC Home app on your smartphone. Monitor and manage your system with ease, no matter where you are.
Plus, this solar charge controller is tested to the highest quality standards and offers stable and efficient charging across a wide temperature range of -4 °F to 140 °F. Don't miss out on this must-have for your solar setup!
Specifications:
Nominal System Voltage: 12 V
Rated Charge Current: 60A
Max. PV Input Power: 800W
MPPT Voltage Range: 15 - 100 VDC /12V
Solar Input Voltage Range (VOC): 100 V
Max Input Current (short-circuit, Isc): 50A
Power Limiting Protection: Up to 800W/12V
Battery Operating Range: 10 -16V
Power Consumption: ≤0.5 W
Ground Type: Common Negative Lug

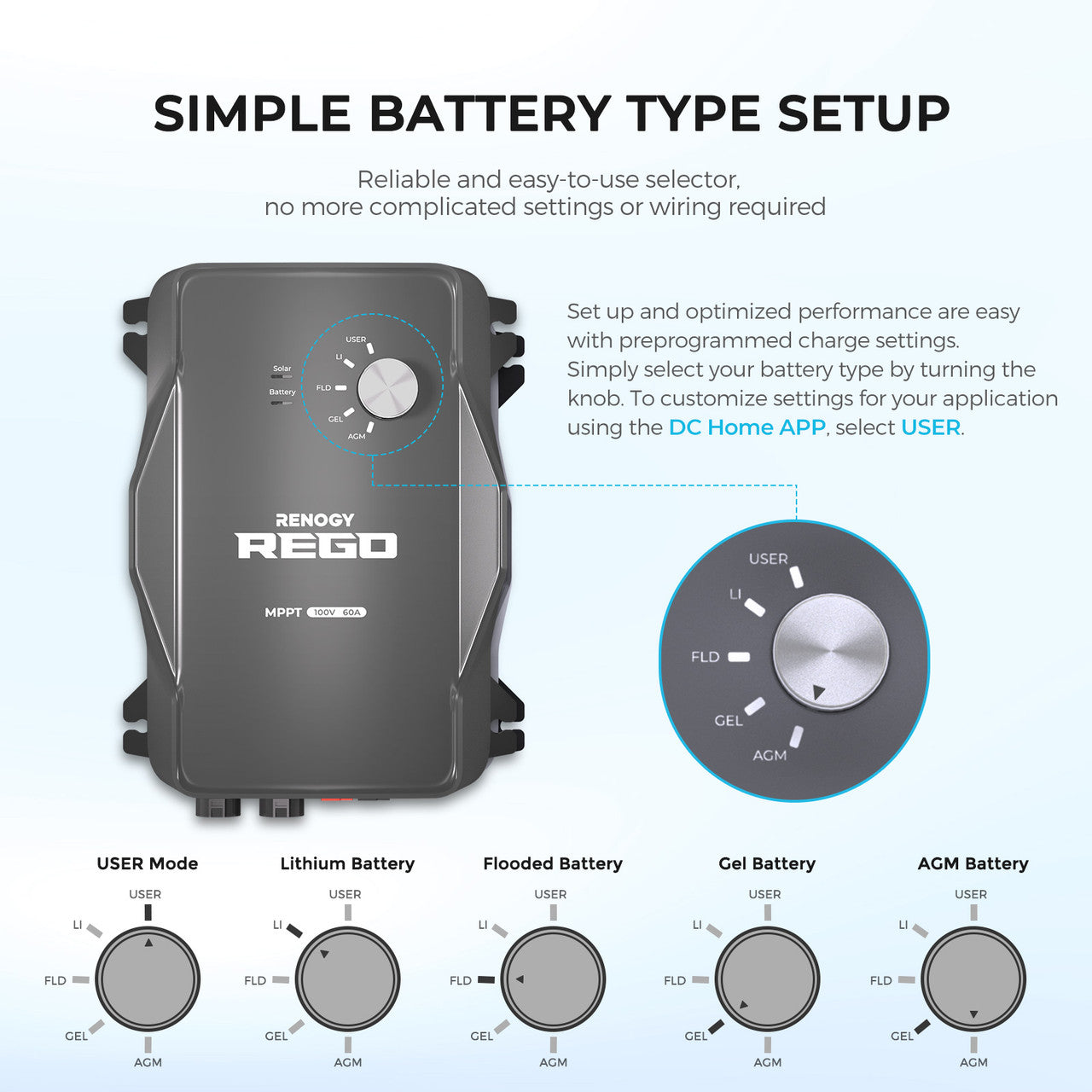

Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*
Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection
Operating Temperature Range: -20 °C - 60°C
Storage Temperature Range: -25 °C - 65°C
Operating / Storage Humidity: 0%-90% RH
Temperature Compensation: '-3mV / °C / 2V (Non-Lithium)’; '0mV / °C / 2V; no compensation (Lithium)

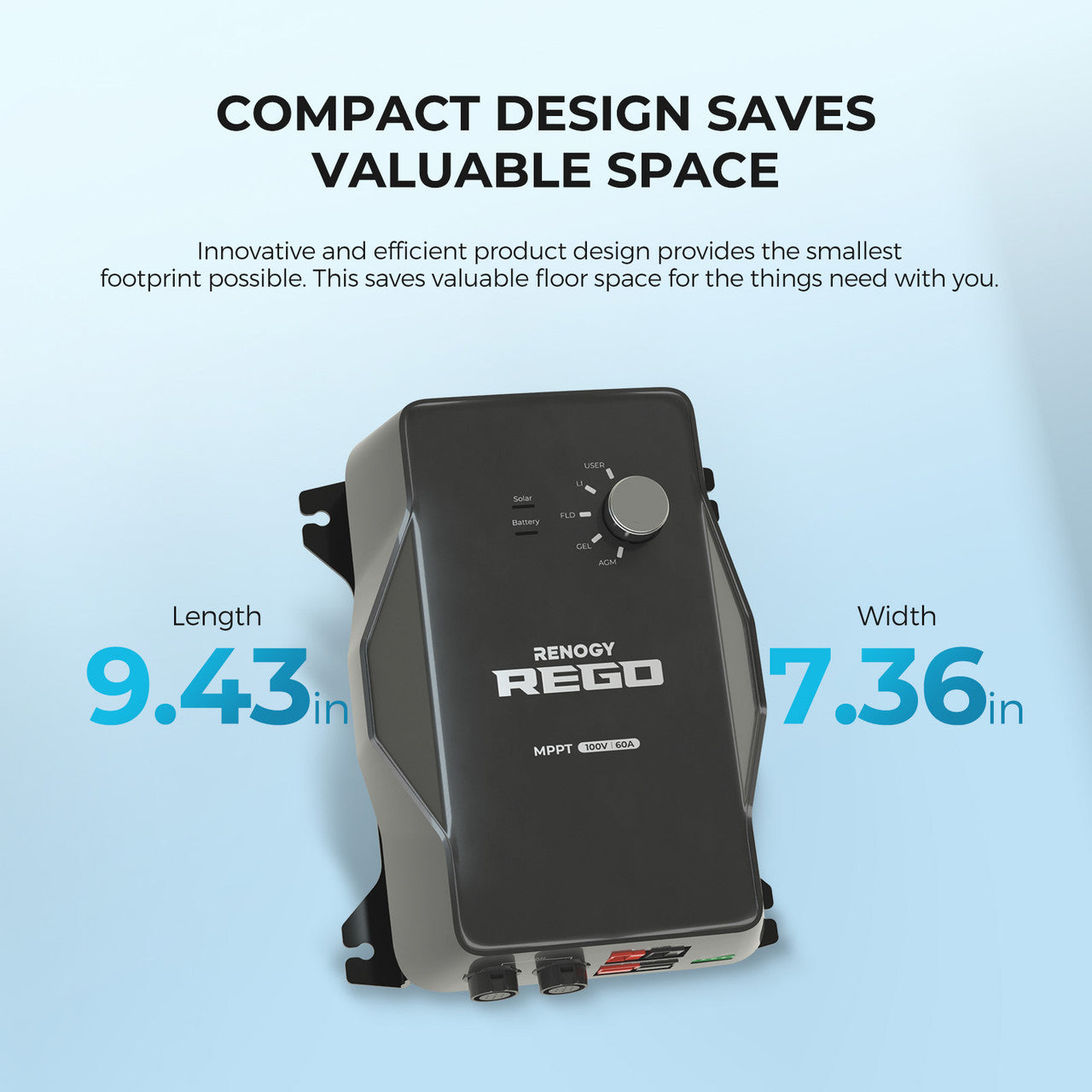

Dimensions: 9.43 x 7.36 x 4.28 in.
Weight: 5.07lbs

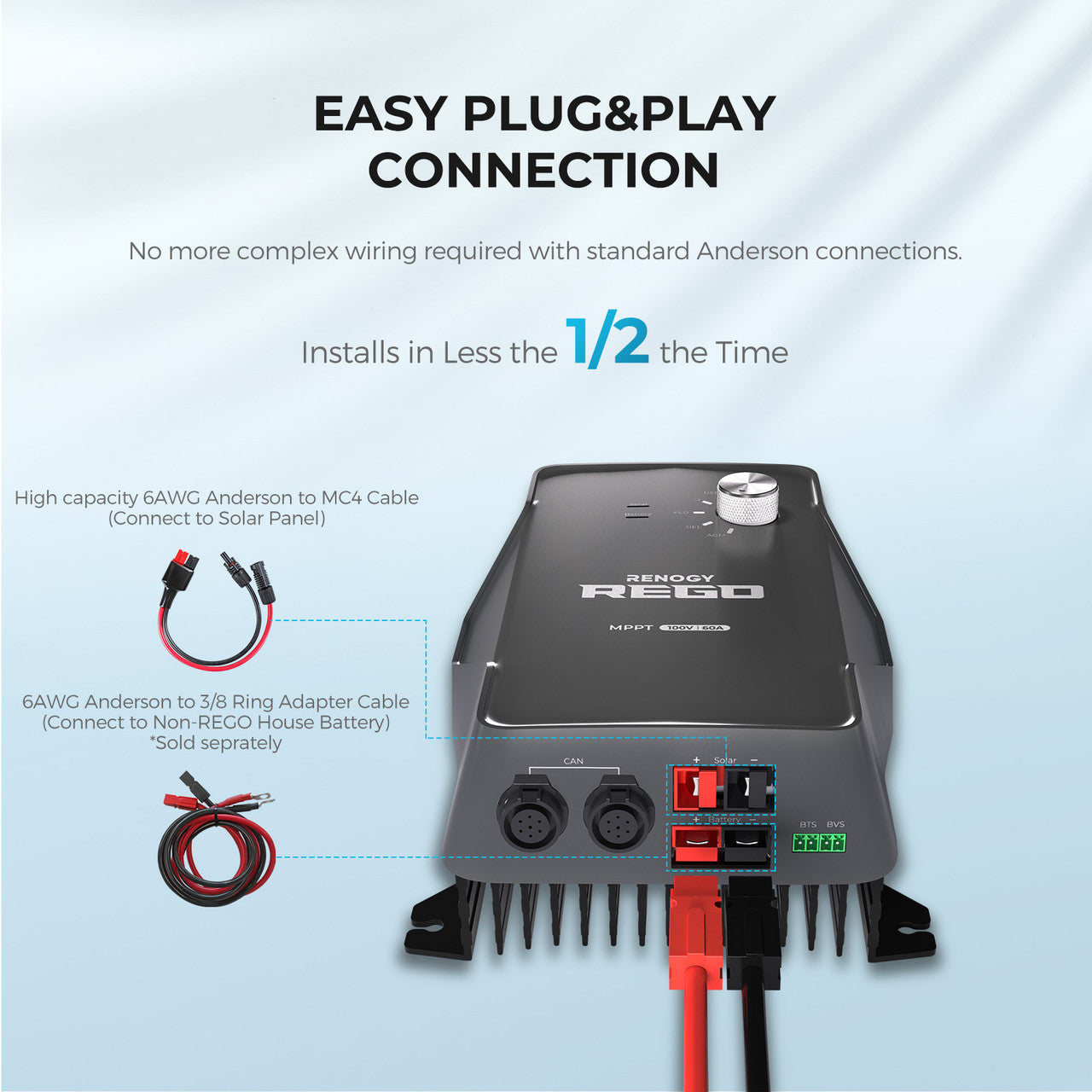

Terminals Size: Anderson PP75
Remote Monitor: Bluetooth Module BT-2 (RS485 / CAN bus signal)
CE and RoHS compliant: YES
FCC Class B Part 15 Compliant: YES
Material and workmanship warranty: 5 Year

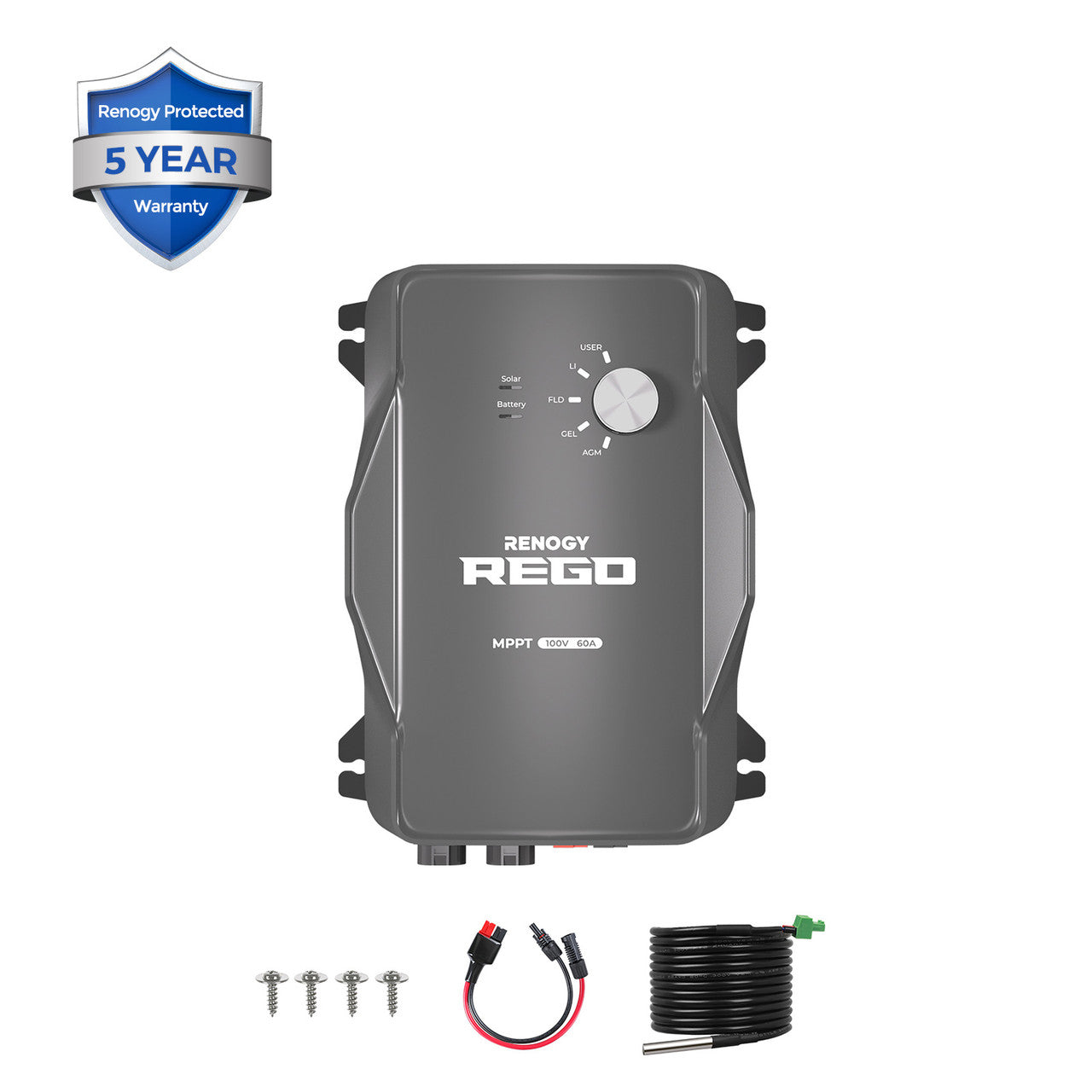

What's in the Box:
1 x REGO 12V 60A MPPT Charge Controller
1 x Renogy Temperature Sensor
1 x Solar Adapter Cable
4 x Mounting Screws
1 x 10Ft 6AWG Anderson Adapter Cable
1 x User Manual
This Renogy REGO 12V 60A MPPT Solar Charge Controller is perfect for homeowners and DIY enthusiasts looking to add solar power to their property. It comes with a 10Ft power cable for easy installation. The controller is 9.43 x 7.36 x 4.28 inches in size and weighs 5.07lbs. It uses MPPT technology for efficient power generation, protects your battery from damage, and can be easily monitored and controlled via your smartphone using the Renogy DC Home app.
