Power Your Off-Grid Life with Ease
Are you tired of being tied to the grid? Our Acopower solar kit is here to set you free! Ideal for RV enthusiasts, cabin owners, homeowners, and boaters, this kit provides a reliable off-grid power solution.
Key Features
- Versatile Application: Perfect for setting up a 12-volt Lithium battery solar panel system. The 1500-watt Pure Sine Wave Inverter can power household appliances, and the battery bank ensures a steady energy supply.
- Efficient MPPT Controller: With a peak conversion efficiency of 98% and a tracking efficiency of 99%, it charges your battery quickly, efficiently, and safely. Solar charging between 200W-800W provides 960Wh-3840Wh of charge per day.
- High-Capacity Li-Battery Packs: Equipped with 2 100Ah lithium batteries, they offer higher charging/discharging efficiency and over 3000 deep cycles. The built-in BMS and 60A MPPT solar charge controller ensure double protection.
What's in the Box

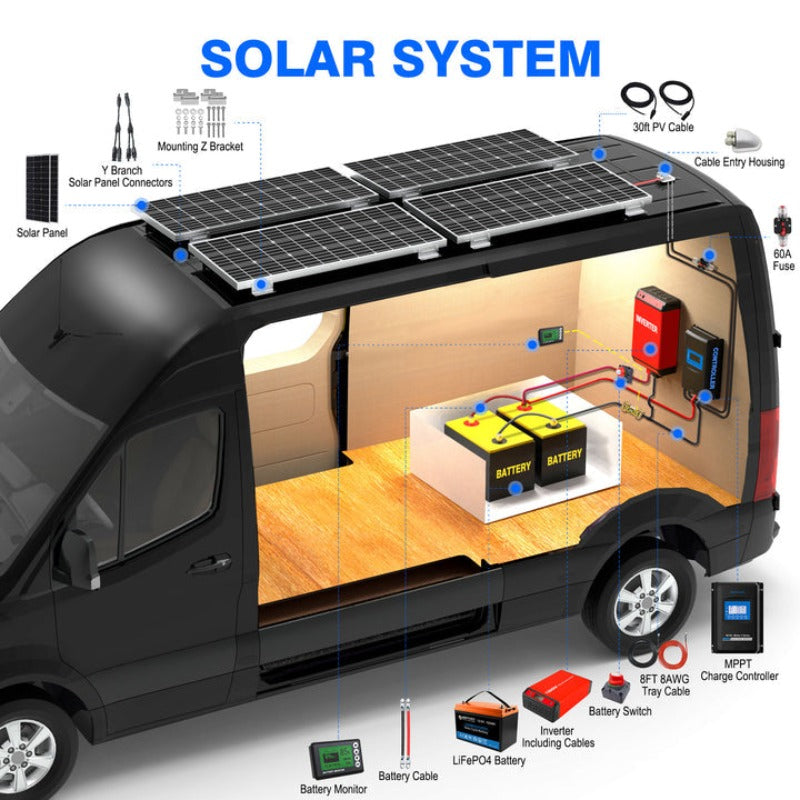

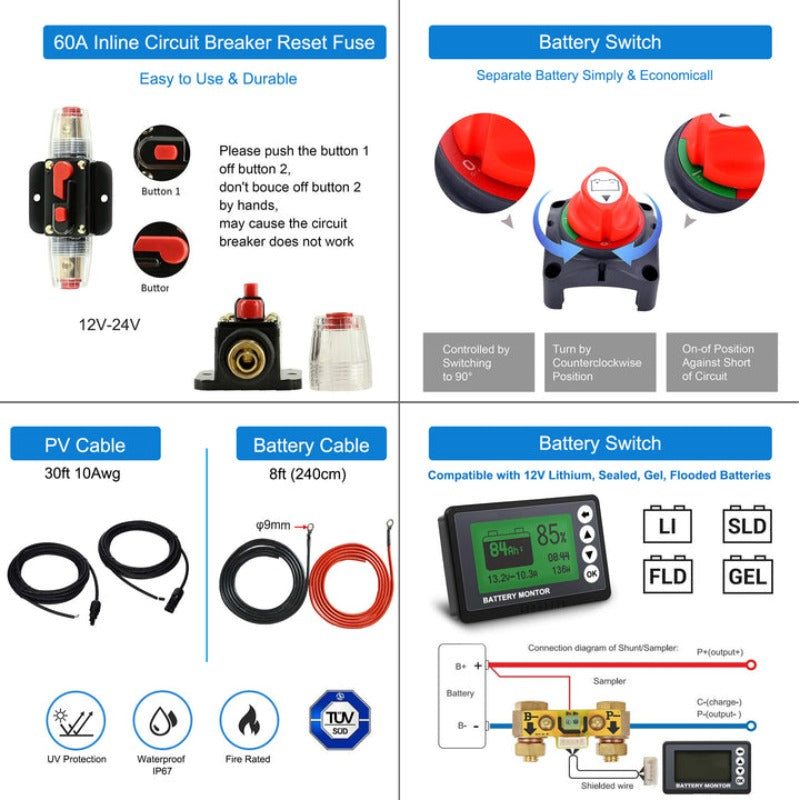

Get everything you need for a DIY solar charge system. The kit includes 8pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Technical Specifications

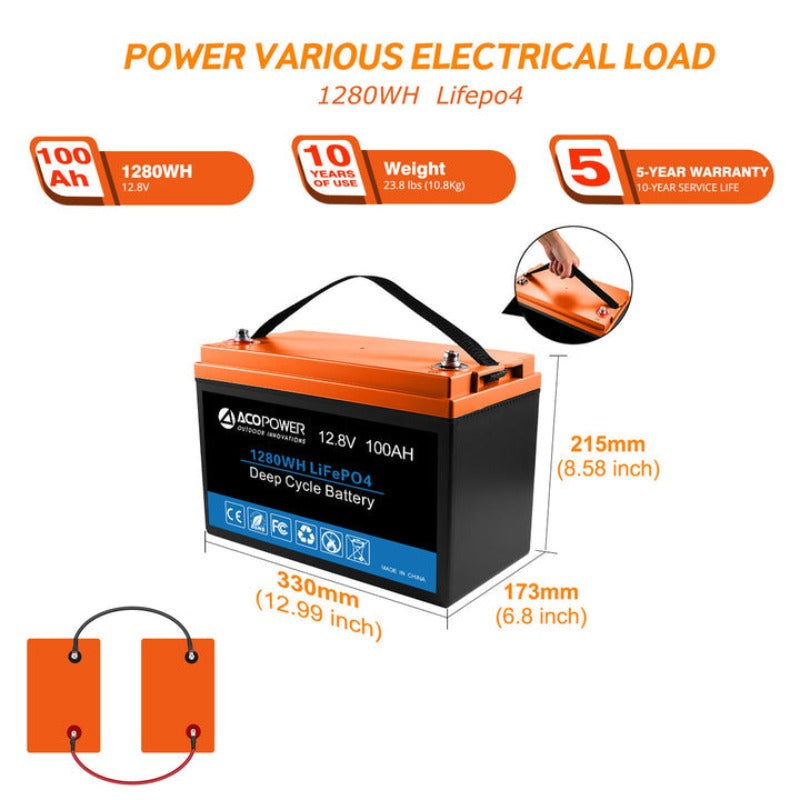

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage: 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

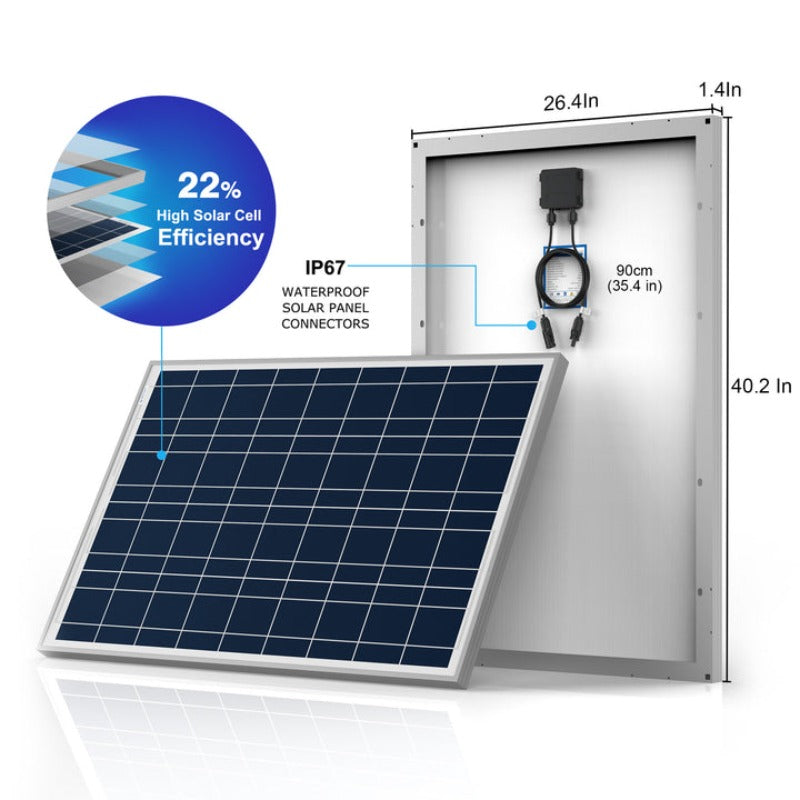

100W Poly Solar Panel
Nominal for 12V battery charger
Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(Isc):6.21A
Max Power Current(Imp):5.72A
Weight:17.6lb
Dimension:40.2*26.4*1.4 Inch
Application Class: Class A
1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

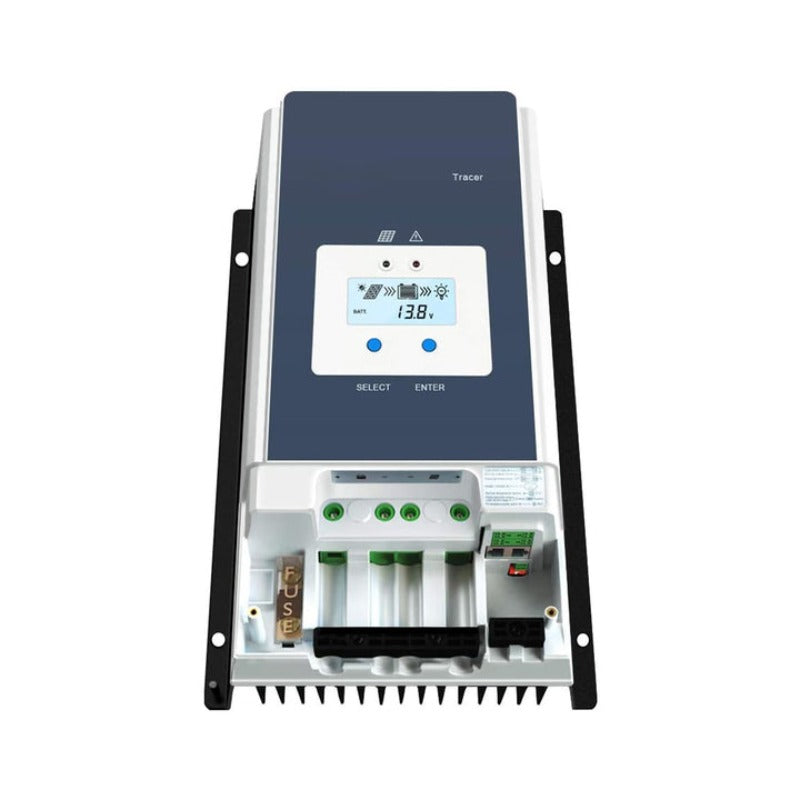

MPPT Solar Charge Controller 60A
Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
This Acopower solar kit is perfect for those seeking an off-grid power solution. It's great for RVers, cabin owners, homeowners, and boaters. The kit comes with 8 100W polycrystalline solar panels, 3 100Ah LiFePO4 deep cycle lithium batteries, a 1500W inverter, a 60A MPPT solar charge controller, and all necessary cables and brackets. The 12V 100Ah lithium battery has a rated voltage of 12.8V, weighs about 23.8lb, and measures 12.99 x 6.81 (W) x 8.58 (H) inch. The 100W poly solar panel has a peak power of 100W, weighs 17.6lb, and measures 40.2*26.4*1.4 Inch. The 1500W pure sine wave inverter has a continuous output of 1500W and weighs 7.79lb. The 60A MPPT solar charge controller has a rated charge current of 60A.
