Acopower 100W Mono 300Ah/1.5kW Portable Solar Power System
A perfect power solution for outdoor enthusiasts! Whether you're camping, hiking, or simply enjoying time off the grid, this solar power system has got you covered.
• Compact & Lightweight: Easy to carry wherever you go.
• High Capacity: 300Ah and 500W output ensure you never run out of power.
• Durable: Built to withstand the toughest outdoor conditions.
The 1500W Pure Sine Wave Inverter provides up to 120 VAC to plug in household appliances, and the MPPT charge controller brings a peak conversion efficiency of 98% ensuring minimal energy loss from the 12V solar panel to your device. The controller also optimizes the lifespan of the 1280Wh lithium batteries, which are rated to last more than 4000 cycles of charging and discharging.
Invest in your power independence today and let this solar power system revolutionize your outdoor experience!

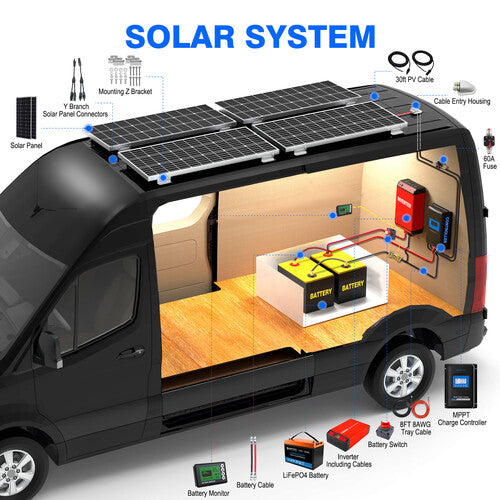

- RV-Ready solar power out of the box
- Three 100Ah lithium batteries
- Five 100W Monocrystalline solar panels
- 40A MPPT Solar charge controller
- 1500W Power inverter
- 500A Battery monitor
- All cables necessary for DIY system
- Mounting equipment
- Limited 5-Year Manufacturer Warranty
- Limited 25-Year Manufacturer Warranty (on 85% Output)
SPECIFICATIONS:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity: 1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimension (inch): 12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

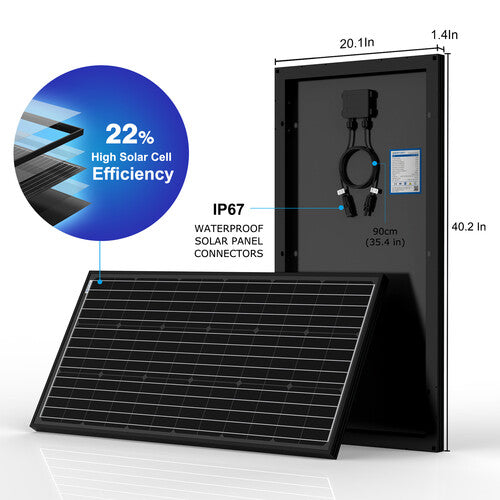

100W Mono Solar Panel
Peak Power (Pmax): 100W
Peak Circuit Voltage (Voc): 22.5V
Max Power Voltage (Vmp): 17.48V
Short Circuit Current (ISC): 6.14A
Max Power Current (Imp): 5.71A
Weight: 12.8 lb
Dimension: 40.2 x 20.1 x 1.4 Inch
1500W Pure Sine Wave Inverter
Continuous output: 1500W
Surge Power: 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload protection, Output short circuit protection
Weight: 7.79lb
Dimension (inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

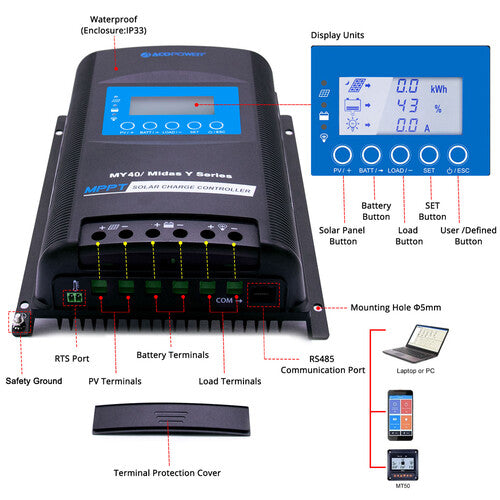

MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W, 24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. Lead acid batteries and lithium batteries.

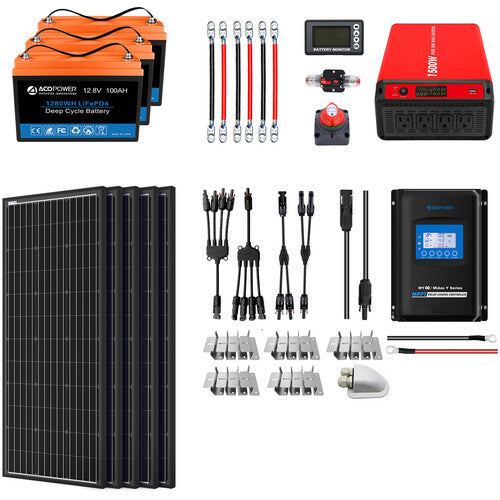

WHAT'S IN THE BOX:
5 x Acopower 100-Watt Monocrystalline Solar Panels, 12V
1 x 40A MPPT Solar Charge Controller
3 x 100Ah LiFePO4 Deep Cycle Lithium Battery
1 x 1500W Power Inverter

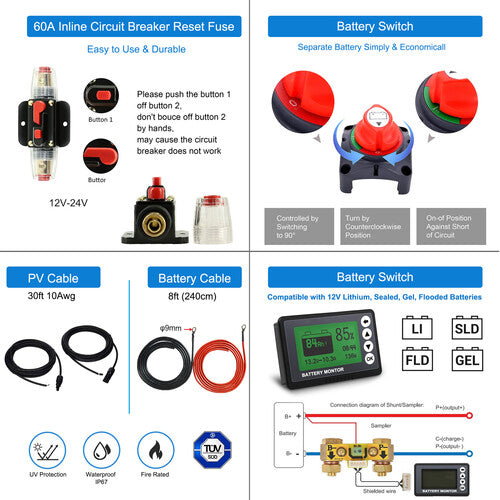

1 x 500A Battery Monitor
1 x Battery Switch
1 x 10 AWG PV Cable (30')
3 x 4 AWG Battery Cable (1')
1 x 8 AWG Tray Cable (8')
1 x Y Branch Solar Panel Connector
1 x Waterproof Cable Entry Gland Box
1 x 60A Fuse
This Acopower 100W Mono 300Ah/1.5kW Portable Solar Power System is designed for outdoor lovers. It's great for camping, hiking, or any off-grid adventures. The whole system is compact and lightweight, making it easy to carry around. The lithium batteries have a capacity of 300Ah and can output 500W, ensuring you always have power. The system includes five 100W Monocrystalline solar panels, a 40A MPPT Solar charge controller, a 1500W Power inverter, a 500A Battery monitor, and all necessary cables for DIY installation. The 12V 100Ah LiFePO4 Deep Cycle Lithium Battery has a rated voltage of 12.8V, weighs about 23.8lb, and its dimensions are 12.99 x 6.81 (W) x 8.58 (H) inch. Each 100W Mono Solar Panel weighs 12.8 lb and has dimensions of 40.2 x 20.1 x 1.4 Inch. The 1500W Pure Sine Wave Inverter has a continuous output of 1500W, a surge power of 3000W, weighs 7.79lb, and its dimensions are 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch. The MPPT Solar Charge Controller 40A has a rated charge current of 40A and is compatible with various battery types.
