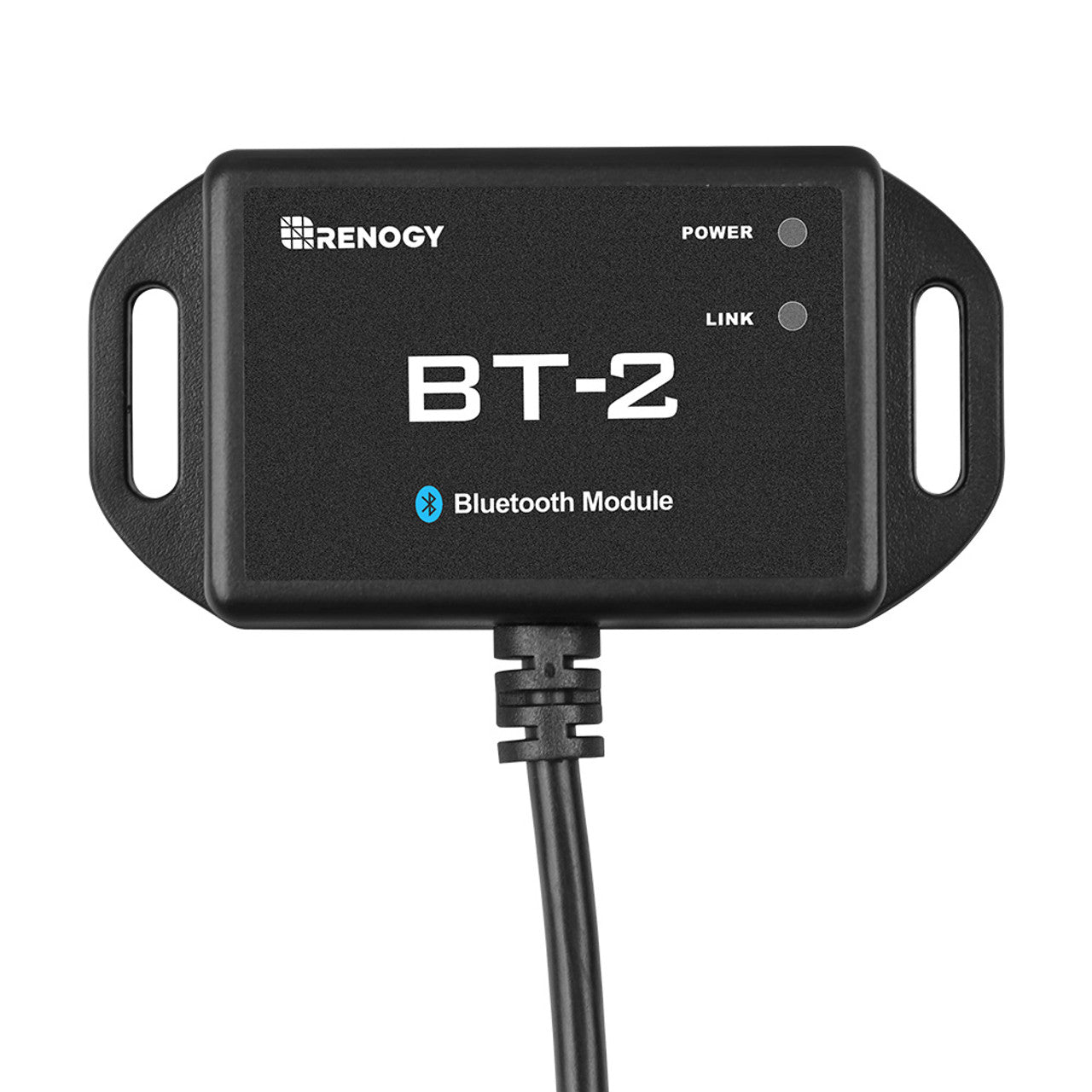

Renogy RCM-BT2: Your Key to Smart Green Energy Control
Revolutionize your green energy setup with Renogy's BT2 Bluetooth Module! It's the ultimate solution to make your energy system smarter and more efficient.
Key Features:

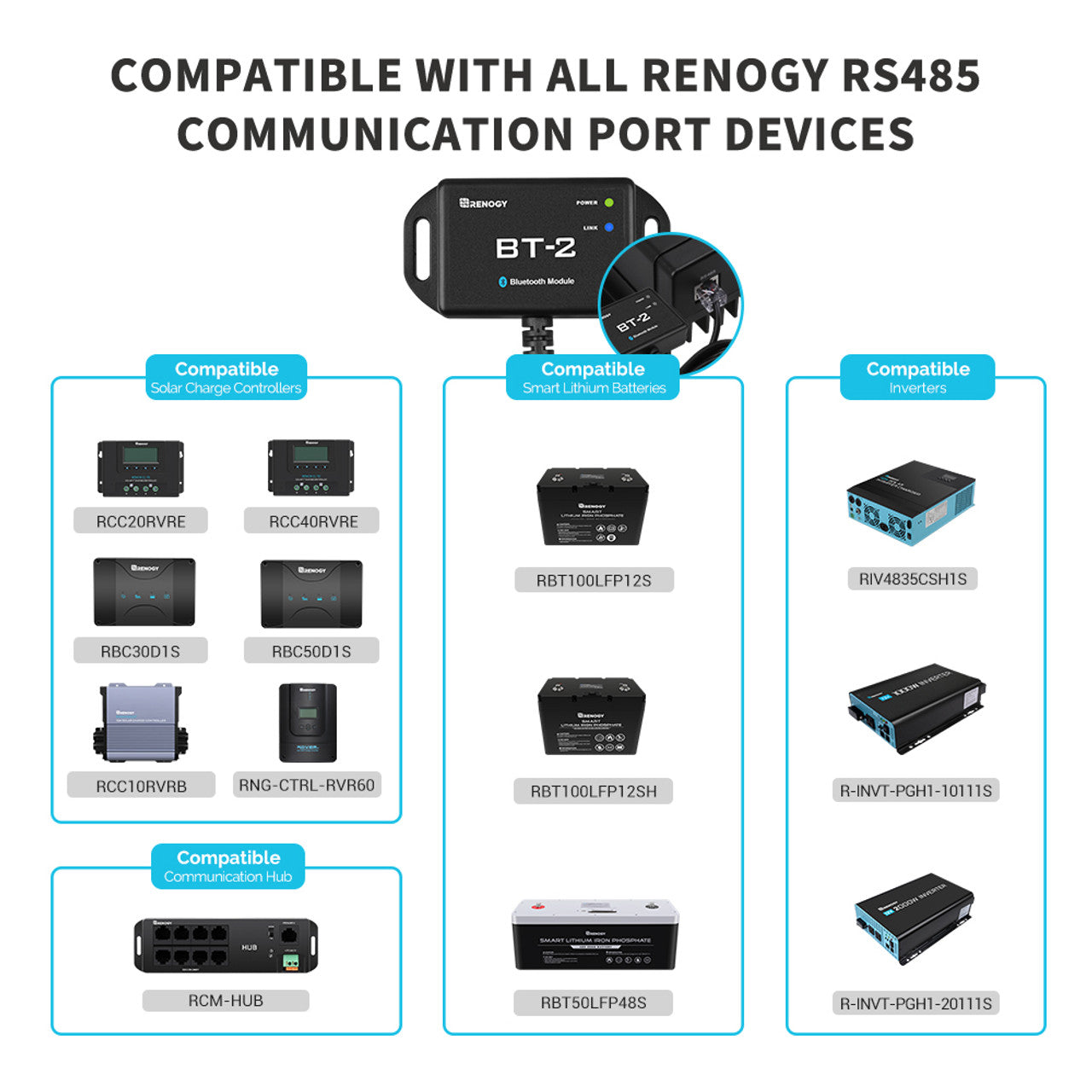

- Precise Control: Compatible with various Renogy devices like Rover Elite MPPT solar charge controllers, smart lithium batteries, and more via the RS485 communication port.

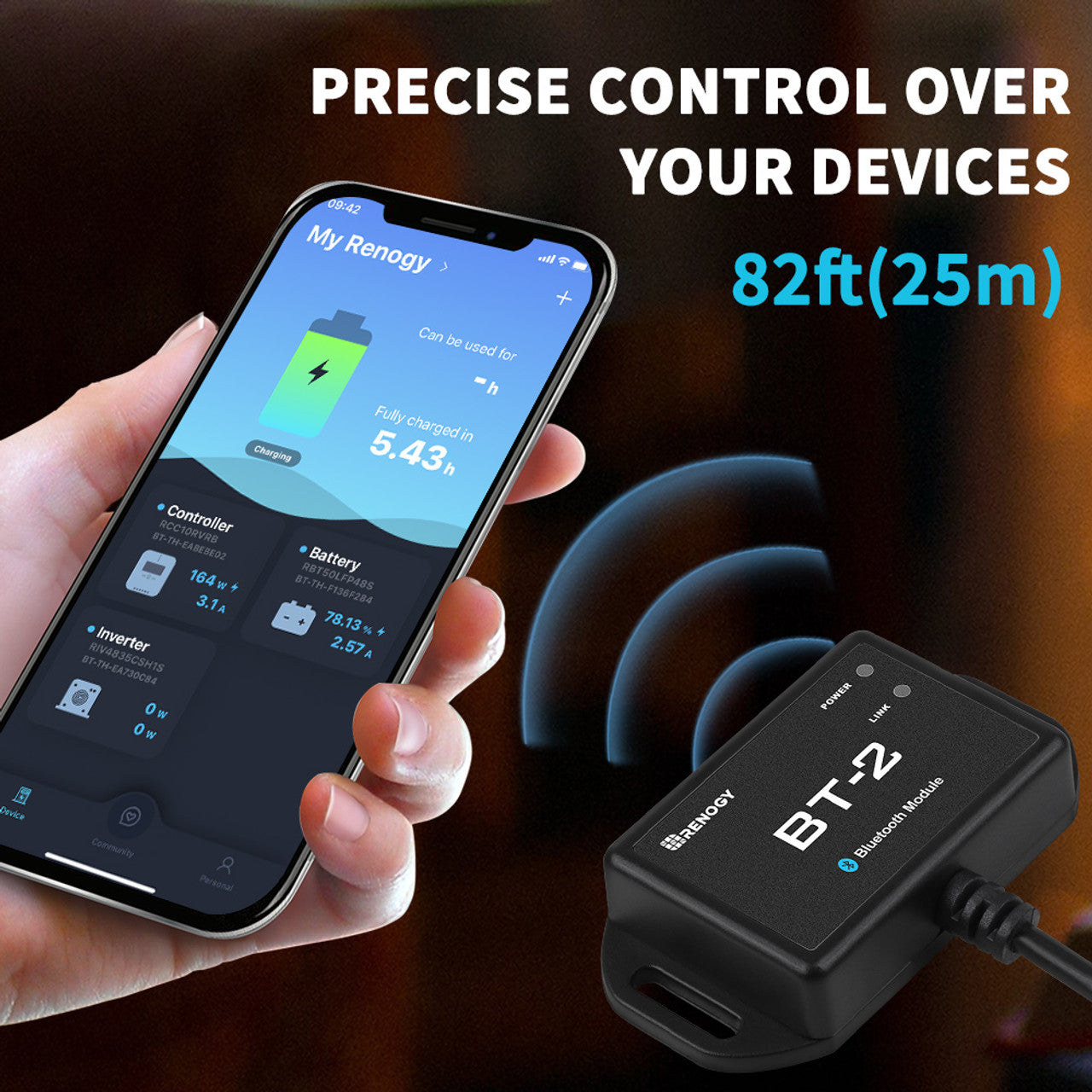

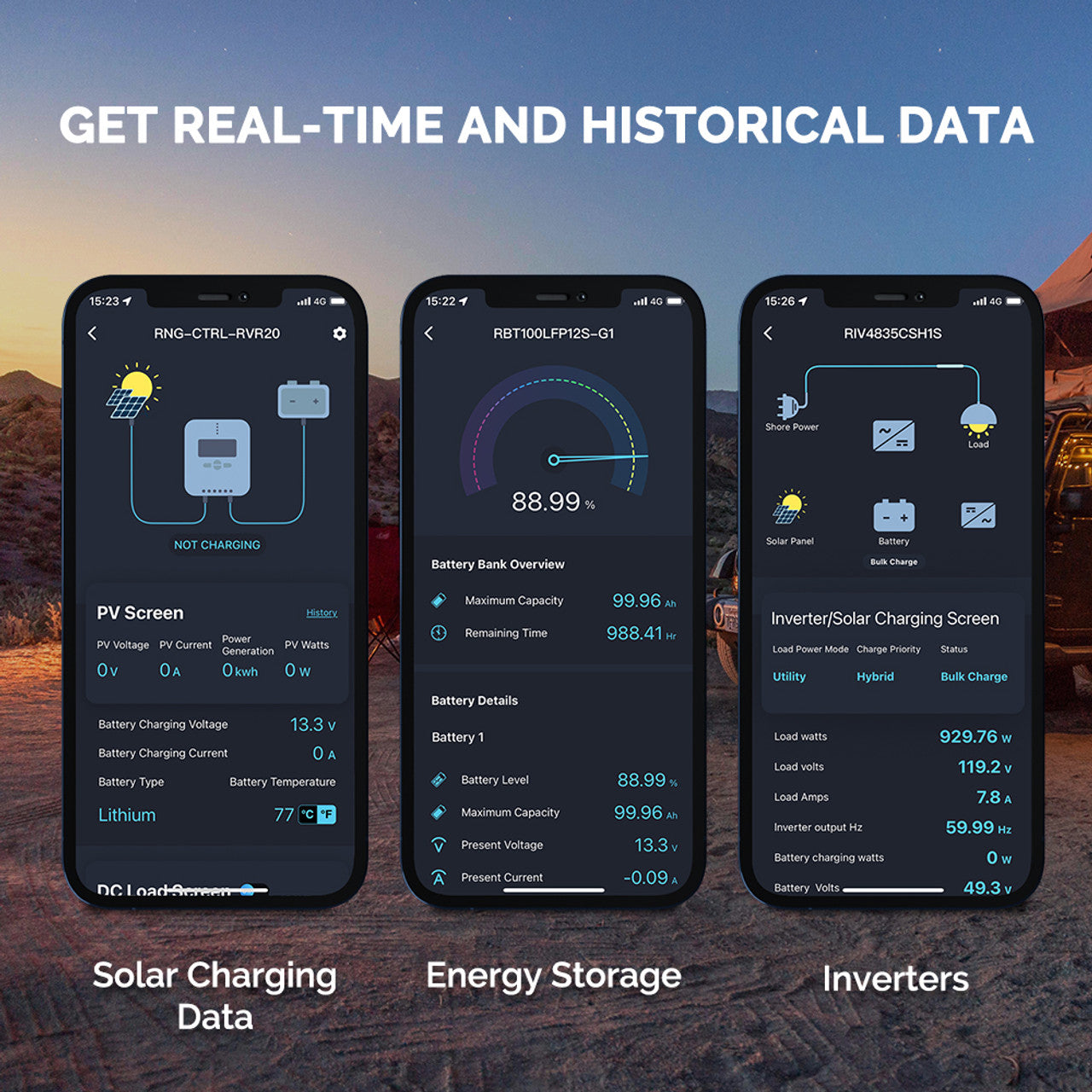

- Real-Time Insights: Connect to the component's communication port, and get instant real-time and past data through the BT2 Bluetooth Module and Renogy DC Home App, thanks to Bluetooth 4.2 and BLE technology.
- User-Friendly: Solar-powered with an 82 ft signal range. The Renogy DC Home App on your smartphone lets you easily monitor, control, and diagnose all your Renogy products.
Specifications:
Communication Protocol: RS485
Compatible Inverter: R-INVT-PGH1-20111S RIV4835CSH1S
Port Type: RJ45
Compatible Smart Lithium Batteries: RBT100LFP12S RBT100LFP12SH RBT50LFP48S BT100LFP12-BT RBT200LFP12-BT
Input Voltage: 5V or 12V
Compatible Battery Charger: RBC30D1S RBC50D1S
Protection Grade: IP54

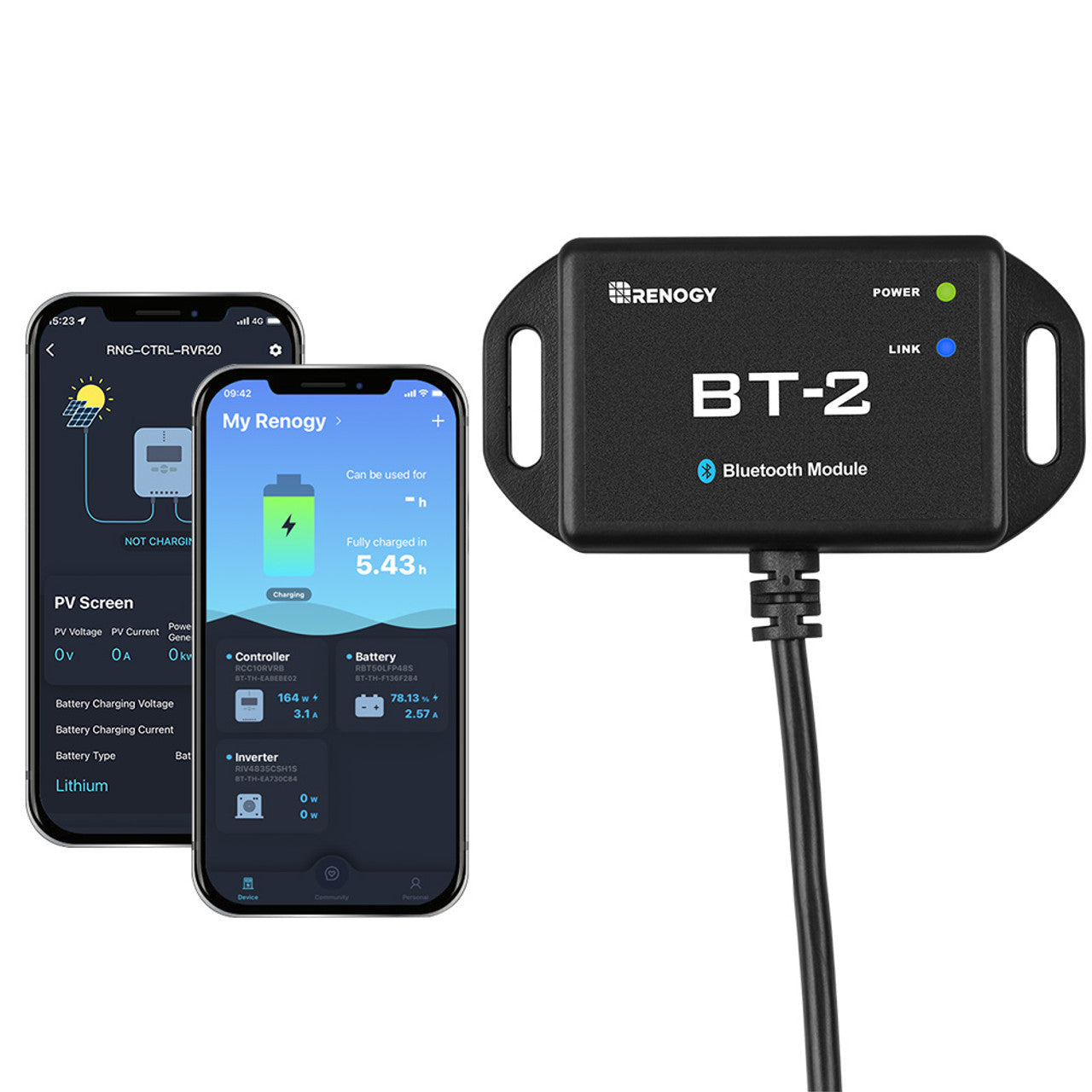

Compatible App: Renogy DC Home App available in both the App Store and Google Play
Standby Power Consumption: 0.04W
Operating Power Consumption: 0.05W
Communication Range: ≤82ft (25m)
Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 16.4 ft

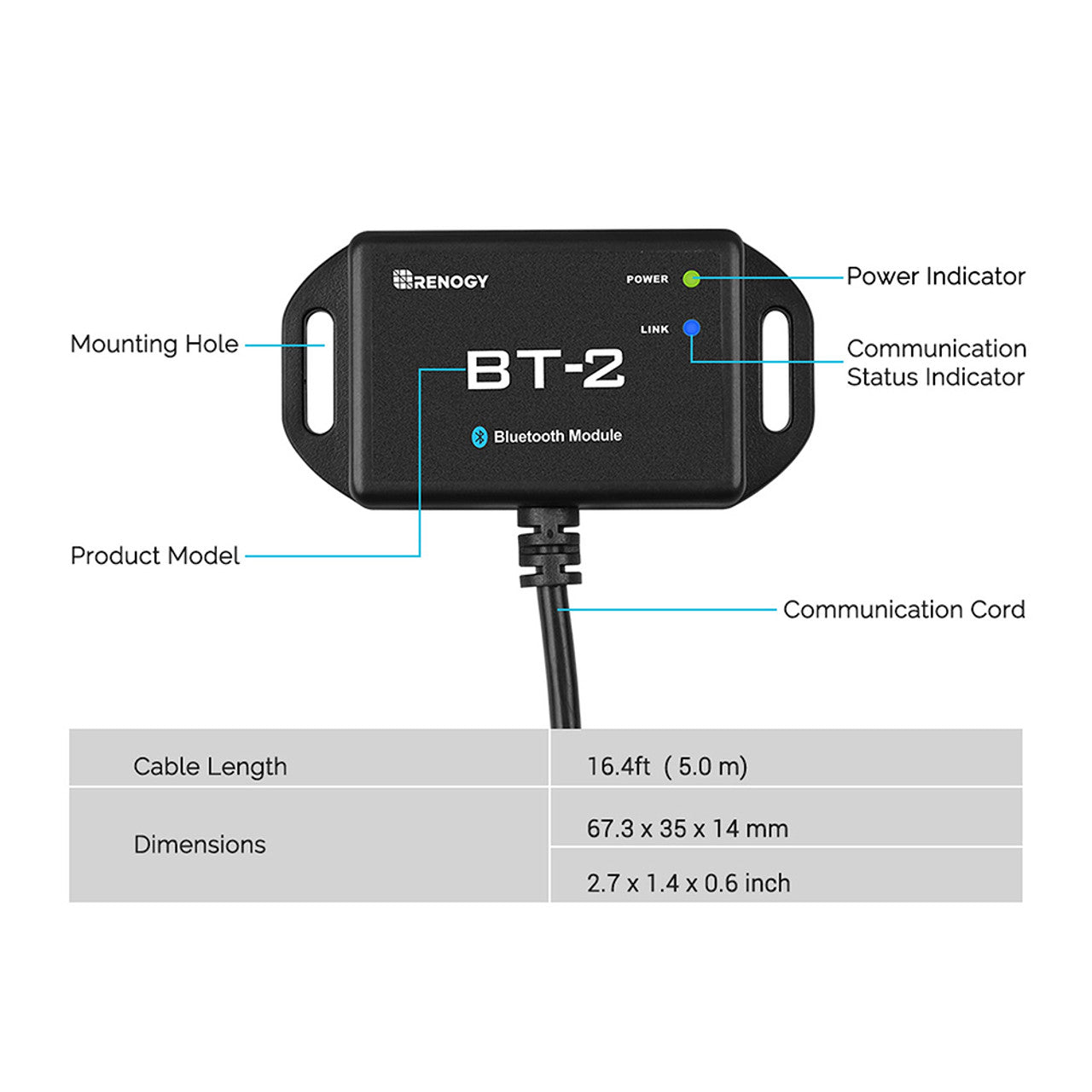

Dimensions: 2.65 X 1.38 X 0.55 in
Weight: 4.58oz
Operation Temperature: -4°F to 185°F (-20°C~85°C)
Warranty: 1 Year
What's in the Box:
1 x RCM-BT2 - Renogy BT-2 Bluetooth Module
1 x User Manual

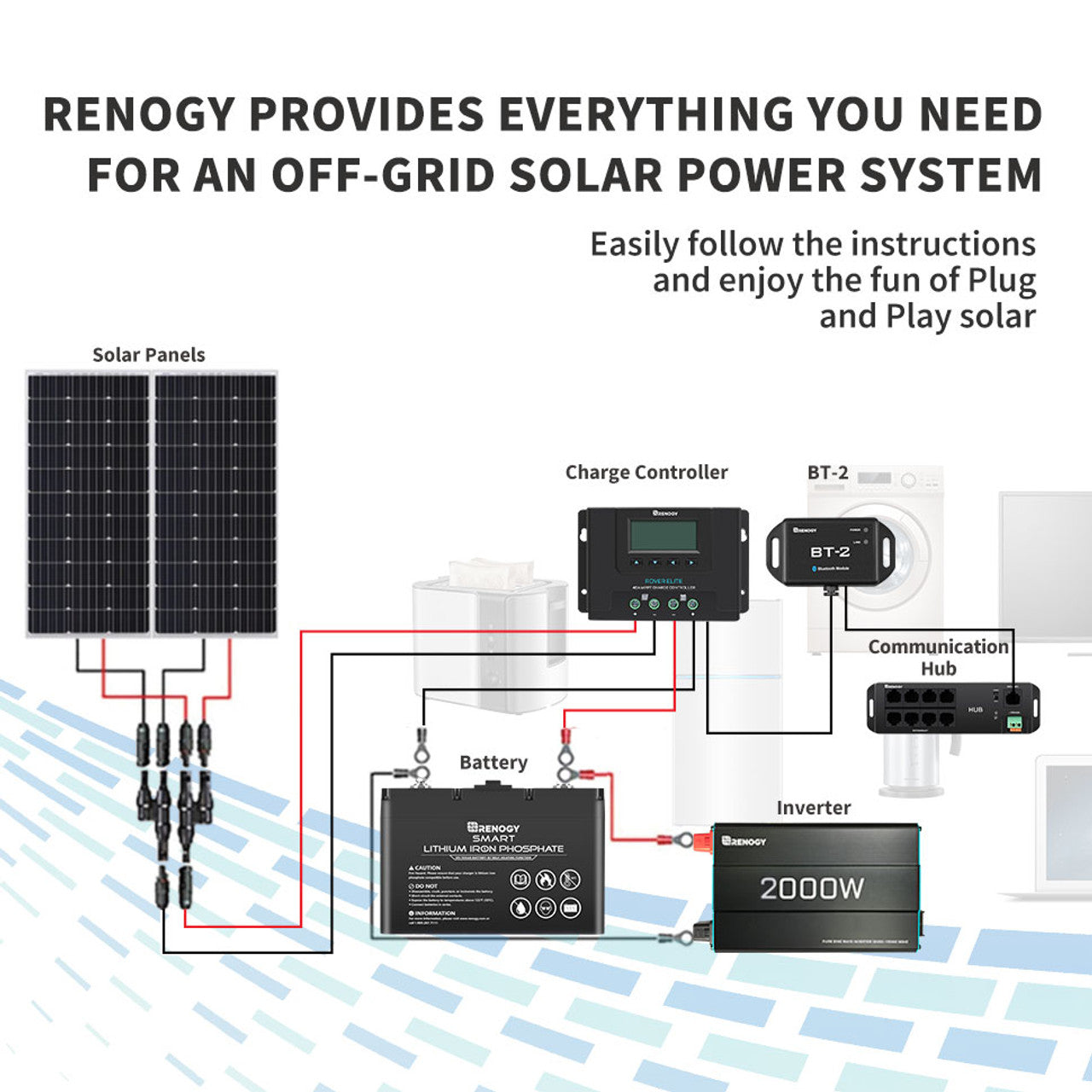

The Renogy RCM-BT2 Bluetooth Module is perfect for anyone looking to upgrade their green energy system. Use it to connect and manage devices like solar charge controllers, smart lithium batteries, and more. With a communication range of up to 82 ft, it's easy to stay in control. The module has a compact size of 2.65 X 1.38 X 0.55 in and weighs 4.58oz. It operates in temperatures from -4°F to 185°F (-20°C~85°C). Compatible with the Renogy DC Home App, available on the App Store and Google Play, it allows for easy monitoring, control, and diagnosis of your energy setup.
