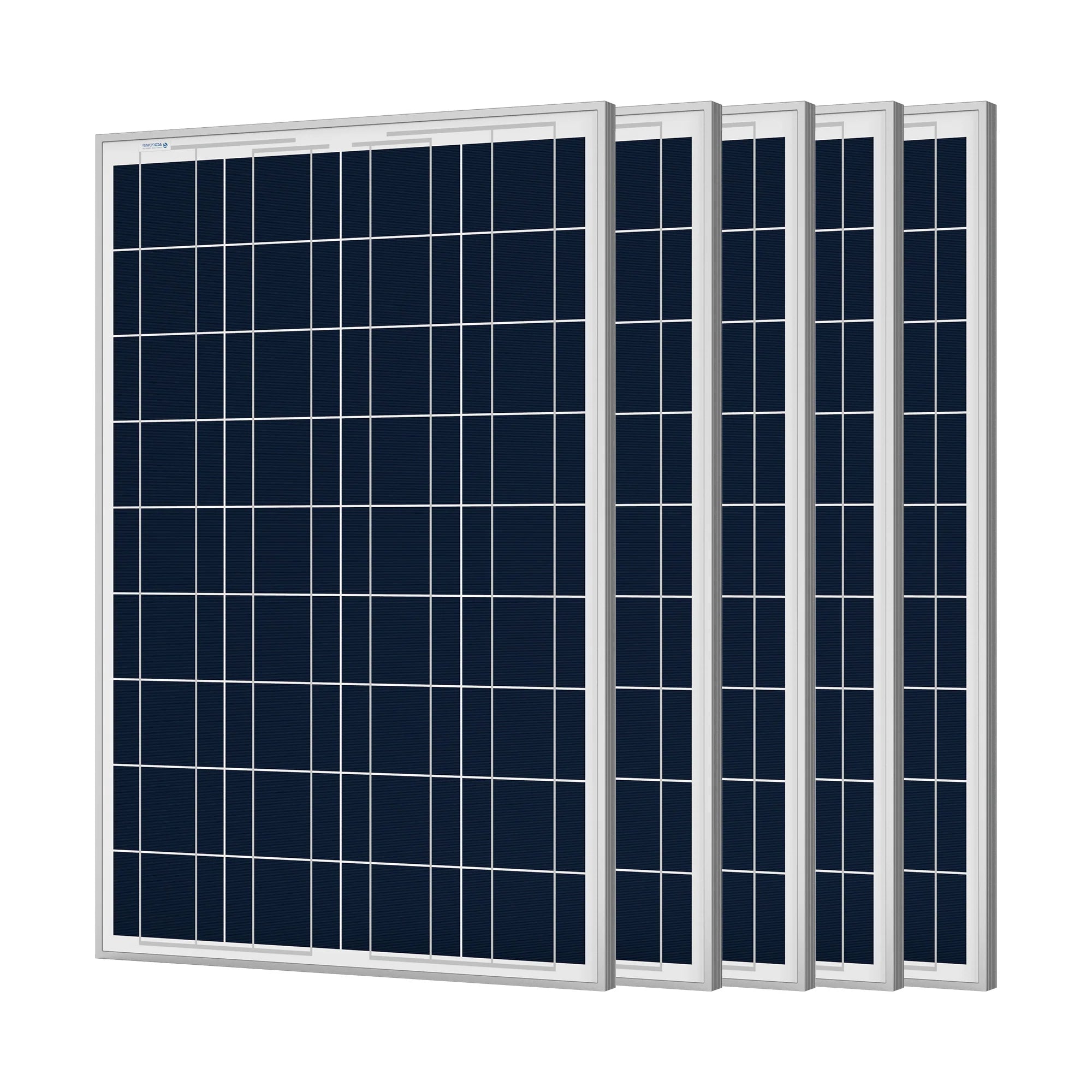

ACOPower 500W Polycrystalline Solar Panel Pack (5 x 100W)
Revolutionize your energy setup with the ACOPower 500W Polycrystalline Solar Panel Pack. This pack is a game-changer for anyone seeking a sustainable and independent power source, whether you're at home or on the go in your RV.
• High-Efficiency Charging: Each 100W panel delivers top-notch performance, ensuring rapid and reliable charging of your 12-volt batteries.
• Durable Design: Built to last, with a rugged construction featuring tempered glass, anti-reflective coating, EVA film, TPT backsheet, and anodized aluminum frame. It can withstand heavy snow loads and strong winds.
• Easy Installation: Pre-drilled holes and included cables make setup a breeze. The IP65-rated junction box adds an extra layer of protection.
Harness the sun's power efficiently and say goodbye to energy worries. Ideal for a wide range of applications, this solar panel pack is your ticket to a greener, more cost-effective lifestyle.
Features:
- High module conversion efficiency for 100% efficient solar charging.
- Pre-Drilled holes for easy installation. Comes with a 3.2ft 16 AWG cable with male and female quick connectors.
- A must-have for off-grid solar setups - compatible with 12V/24V/36V/48V systems in caravans, RVs, cars, boats, and more. Optimum operating current (Imp) of 5.72A
- Lightweight anodized aluminum frame, 3.2mm thick anti-reflection coated glass, and a waterproof IP-65 rated junction box for long-lasting performance.
- Withstands high winds (2400pa) and snow loads (5400pa)
Specifications:
- Maximum Power at STC (Pmax): 100W each, total 500W for the pack
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40oC to 85oC
- Dimension: 40.1x26.4x1.4 in per panel, total pack dimensions will vary based on configuration
- Weight: 9.5kg / 20.6 lbs per panel, total weight for the pack will depend on quantity
What's in the Box:
- 5 x 100W Solar Panel
- 16 AWG cable with male/female quick connectors
- 1 x User Manual
Built-In Components
- ACOPower 100 Watt Polycrystalline Solar Panel
- IP65 Rated waterproof junction box
- Output Cables: 16 AWG (3.2ft long)
The ACOPower 500W Polycrystalline Solar Panel Pack is perfect for those looking to embrace sustainable energy. Whether you're at home, on an RV adventure, or even powering a boat or car, this pack has you covered. Each panel measures 40.1x26.4x1.4 inches and weighs 9.5kg (20.6 lbs). With a total power output of 500W (5 x 100W panels), it's designed to charge 12-volt batteries efficiently. Installation is a snap with pre-drilled holes and included cables. The panels are built tough with a tempered glass surface, anti-reflective coating, and a rugged aluminum frame to withstand various weather conditions.
