Versatile and Reliable
• Perfect for RVs, cabins, homes, and boats. Keep your appliances running even off the grid! • High-capacity 2560Wh-3840Wh 2x100Ah lithium batteries for long-lasting power. • 30A MPPT charge controller with 98% peak conversion efficiency.
Easy Installation

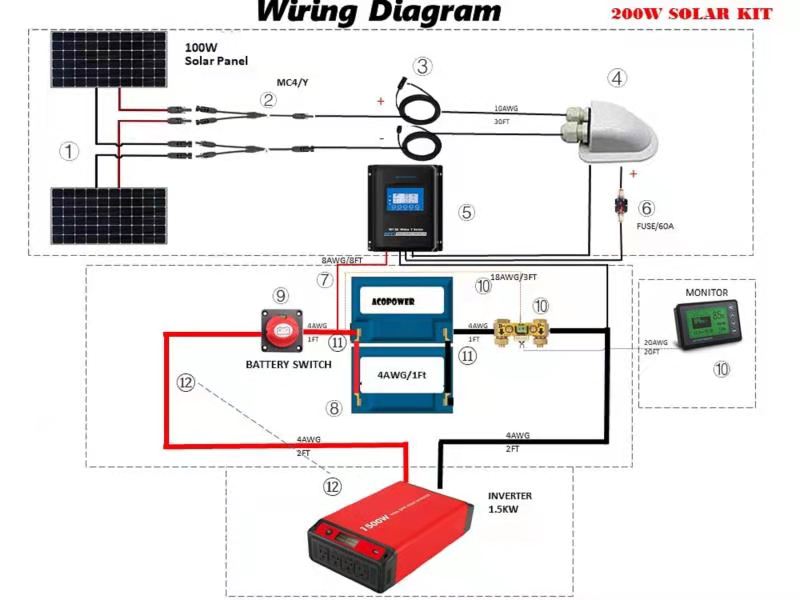

• All-inclusive kit with everything you need to DIY your solar charge system. • Comes with 2pcs 100 Watt Polycrystalline Solar Panels, 2pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller, a 60A fuse, a battery switch, a battery monitor, and all necessary cables and solar mounting Z brackets.
Powerful Performance
• 1500-watt Pure Sine Wave Inverter delivers 120VAC power for household appliances. • Solar charging provides 960Wh-3840Wh or 80Ah-320Ah of charge per day, depending on sunlight. • Lithium batteries offer higher charging/discharging efficiency and over 3000 deep cycles.
Specifications:

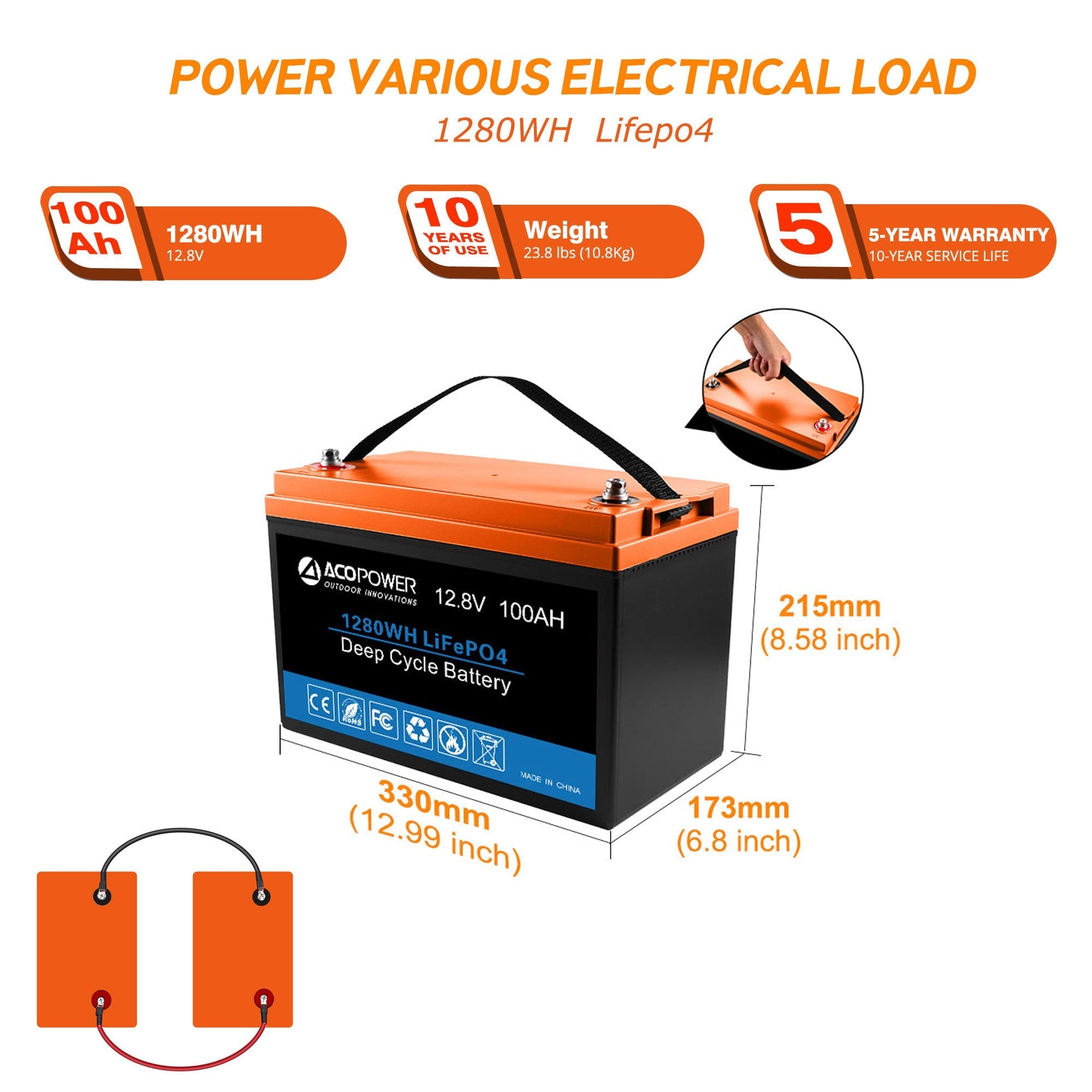

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

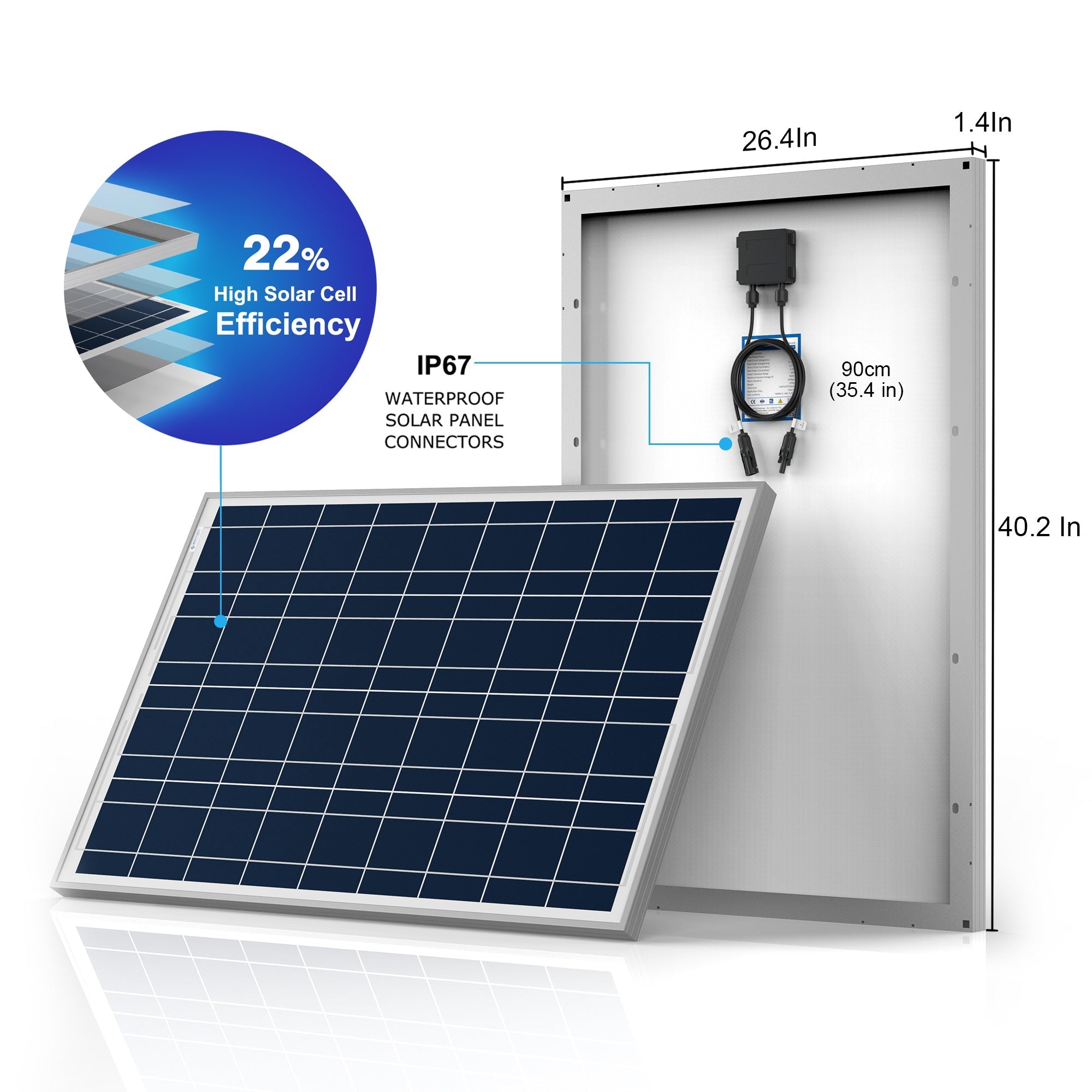

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A
1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

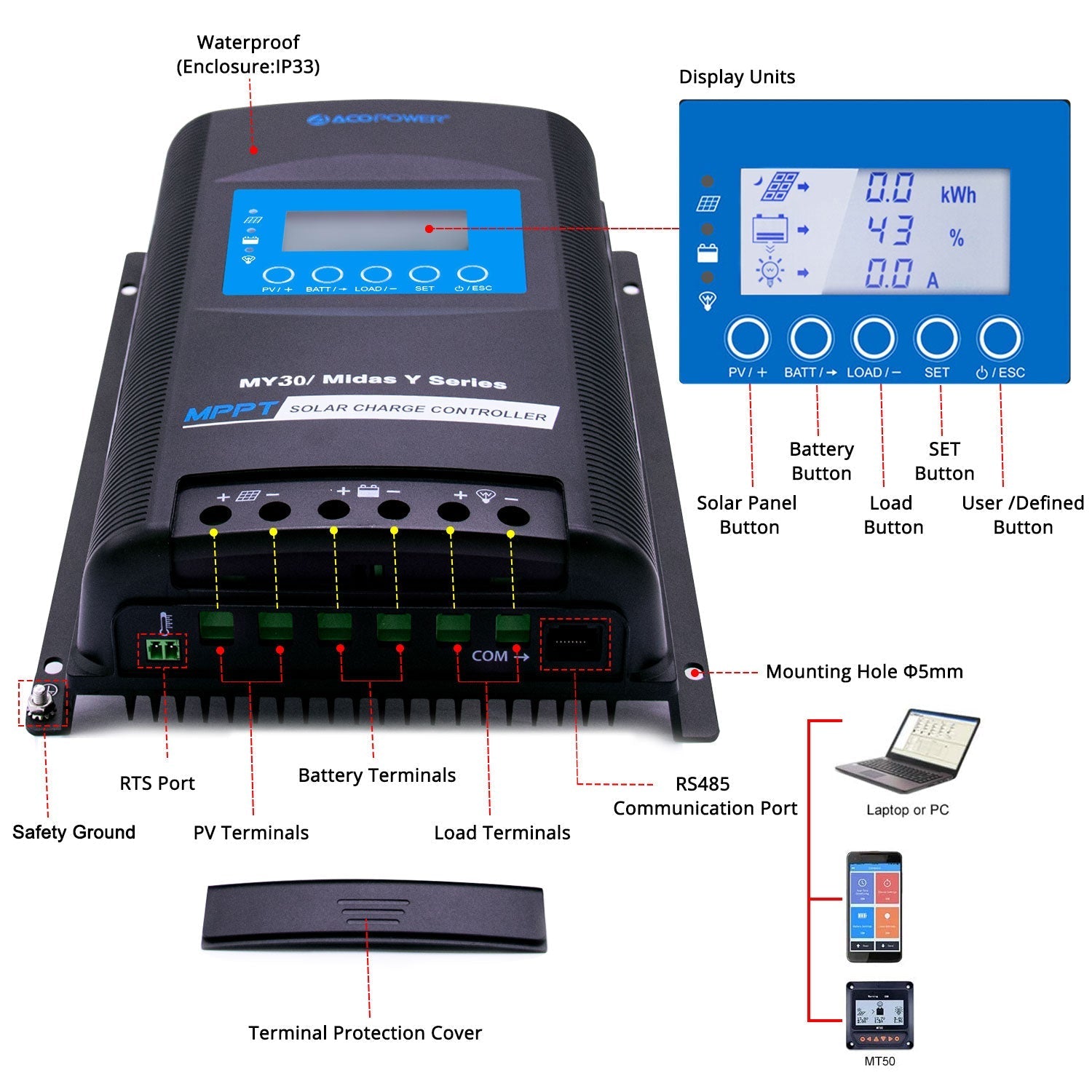

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
What's in the Box:
2 x Battery
2 x 100W Solar Panel
1 x 1.5K Inverter
1 x 30A Controller
1 x Monitor
1 x Switch
1 x 60A Fuse
2 x sets z Brackets
2 x Pairs Battery Cable
This Acopower 100W Polycrystalline 200Ah Li-Ion Solar Kit is perfect for RVs, cabins, homes, and boats. It comes with everything you need to set up an off-grid solar power system. The kit includes 2 100W polycrystalline solar panels, 2 100Ah LiFePO4 deep cycle lithium batteries, a 1500W DC to AC power inverter, a 60A MPPT solar charge controller, a 60A fuse, a battery switch, a battery monitor, and all necessary cables and solar mounting Z brackets. The lithium batteries offer higher charging/discharging efficiency and can endure over 3000 deep cycles. The 30A MPPT charge controller has a peak conversion efficiency of 98%. The 1500-watt pure sine wave inverter delivers 120VAC power for household appliances. The 12V 100Ah LiFePO4 deep cycle lithium battery has a rated voltage of 12.8V, a charge voltage of 14.2 - 14.6V, a battery capacity of 1280WH, a depth of discharge of 100%, a standard charge current of 20A, a max continuous charge current of 50A, a max continuous discharge current of 100A, dimensions of 12.99 x 6.81 (W) x 8.58 (H) inch, and an approximate weight of 23.8lb. The 100W poly solar panel has a peak power of 100W, a peak circuit voltage of 22V, a max power voltage of 17.48V, a short circuit current of 6.21A, a max power current of 5.72A, a weight of 17.6lb, dimensions of 40.2*26.4*1.4 Inch, and an application class of Class A. The 1500W pure sine wave inverter has a continuous output of 1500W, a surge power of 3000W, a pure sine wave form, and protections against under voltage, overvoltage, overload, and output short circuit. It weighs 7.79lb and has dimensions of 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch. The MPPT solar charge controller 30A has a rated charge current of 30A, a battery voltage range of 8V~32V, a max PV open circuit voltage of 100VDC, a max PV input power of 12V/390W,24V/780W, and is compatible with various deep cycle battery options.
