Renogy 100W 12V Premium Solar Kit - Your Off-Grid Energy Solution
Meet all your off-grid energy needs with the Renogy 100 Watt 12 Volt Solar Premium Kit. Whether you're on an RV adventure, sailing on a boat, or enjoying a peaceful cabin getaway, this kit offers a hassle-free and efficient way to harness the sun's power.
Key Features:
- • High-Efficiency Solar Panel: Equipped with a 100W monocrystalline panel, it ensures maximum power generation, even in low light. With 18.4% module efficiency, rely on consistent energy for various off-grid applications.

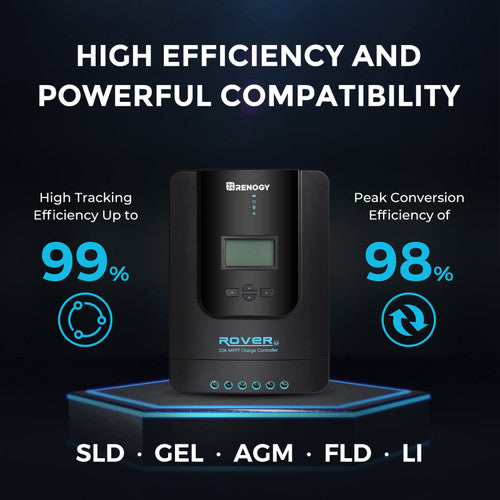

- • Advanced Rover 20A MPPT Charge Controller: Maximizes system efficiency by tracking the solar panel's maximum power point. Allows up to 99% power transfer efficiency to your battery, significantly improving charging performance.

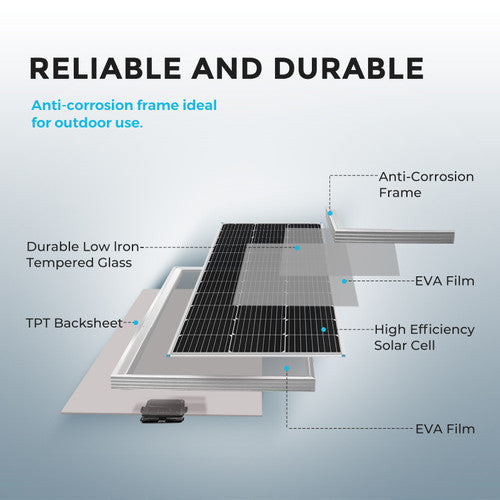

- • Durable and Weatherproof Design: The solar panel has an IP65 rating, built to withstand harsh outdoor conditions. Ideal for outdoor adventures, offering long-lasting durability.
Specifications:

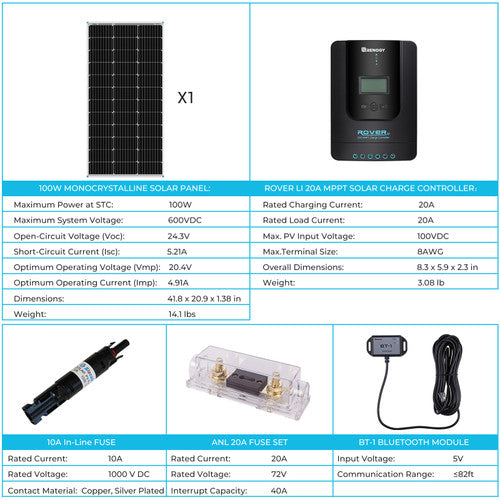

- Maximum Power: 100W
- Maximum System Voltage: 600V DC (UL)
- Open-Circuit Voltage (Voc): 24.3V
- Optimum Operating Voltage (Vmp): 20.4V
- Short-Circuit Current (Isc): 5.21A
- Optimum Operating Current (Imp): 4.91A
- Dimensions: 41.8x20.9x1.4in/1062 x 530 x 35 mm
- Weight: 14.1lbs/6.4kg
- Nominal System Voltage: 12V/24V Auto Recognition
- Rated Charging Current: 20A
- Rated Load Current: 20A
- Max. PV Input Power: 260W/12V, 520W/24V
- Max. Battery Voltage: 32V

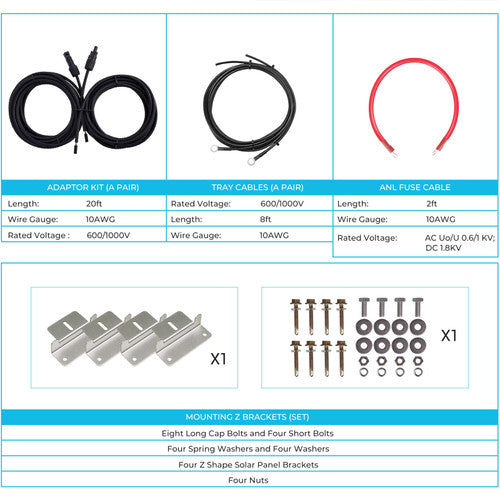

- Length: 20ft
- Wire Gauge: 10AWG
- Rating Voltage: 600/1000V
- Temperature: -40¡ãF to +185¡ãF
- Length: 8ft
- Wire Gauge: 10AWG
- Rating Voltage: 600/1000V
- Temperature: -40¡ãF to +185¡ãF
- Length: 2ft
- Wire Gauge: 10AWG
- Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
- Temperature: -40¡ãF to +194¡ãF
- Input Voltage: 5V
- Communication Range: ¡Ü82ft
- Compatible With: All Renogy Controllers with RJ12 port
- Operating Temperature: -20¡æ~85¡æ£¨-4¡ãF to 185¡ãF£©
- Rated Current: 10A
- Rated Voltage: 1000 V DC
- Contact Material: Copper, Silver Plated
- Replaceable Fuse: Cylindrical PV Fuse (10x38mm)
- Current Rating: 20A
- Voltage Rating: 72V
- Interrupt Capacity: 40A
- Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
- Four Z Shape Solar Panel Brackets: Four Nuts
- Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
- Accessories: 1-year material and workmanship warranty

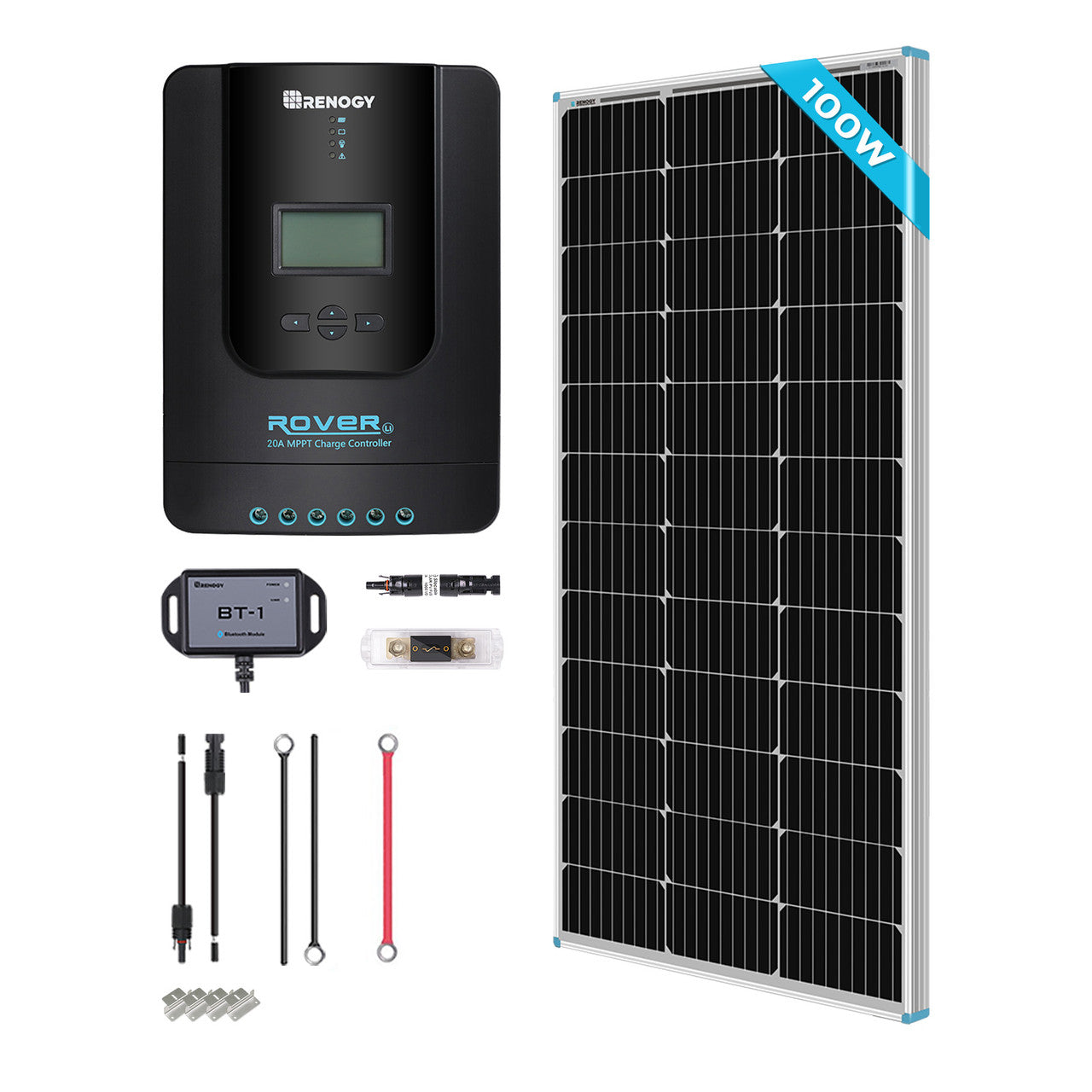

What's in the Box:
1 x 100W Mono Solar Panel
1 x Rover 20A MPPT Charge Controller
1 x 20ft 10AWG AK
1 x 2ft 10AWG Fuse Cable
1 x 8ft 10AWG Tray Cable
1 x AK/ Fuse Cable/ Tray Cable
1 x Mounting Z Brackets (Set)
1 x Mounting Z Brackets (Set)

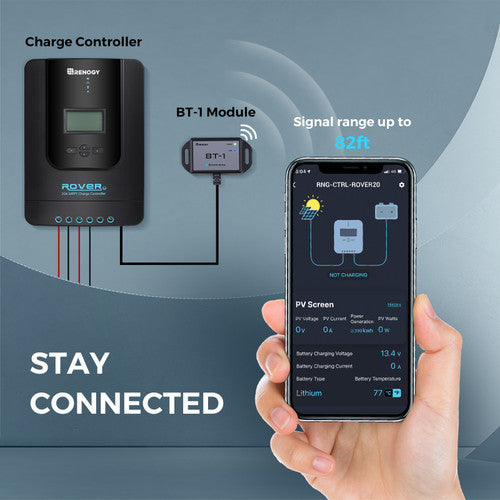

1 x BT-1 Bluetooth Module
1 x 10A In-line Fuse and 20A ANL Fuse
1 x 10A In-line Fuse and 20A ANL Fuse
The Renogy 100 Watt 12 Volt Solar Premium Kit is perfect for those who love outdoor adventures like RVing, boating, or living in a small cabin. It offers an easy way to get power from the sun. The 100W monocrystalline solar panel has dimensions of 41.8x20.9x1.4in/1062 x 530 x 35 mm and weighs 14.1lbs/6.4kg. It ensures maximum power generation even in low light, with 18.4% module efficiency. The kit also includes an Advanced Rover 20A MPPT Charge Controller, mounting Z brackets, and all necessary cables for a quick and seamless setup. You can expand the system later by adding more solar panels. Panels come with a 25-year power output warranty, while accessories have a 1-year material and workmanship warranty.
