Powerful and Versatile
• Ideal for RVs, cabins, homes, and boats. Use it as a backup or in remote locations!
• The 1500-watt Pure Sine Wave Inverter provides plenty of AC power (120VAV) to run household appliances.
• The battery bank ensures enough energy for moderate use.
High-Efficiency Charging
• The 40A MPPT Charge controller has a peak conversion efficiency of 98% and a high tracking efficiency of 99%.
• With a 4-stage battery charging process, it charges the battery quickly, efficiently, and safely.
• Depending on sunlight, solar charging between 500W can yield about 960Wh - 3840Wh (Watt-hour) or 80Ah - 320Ah (Ampere-Hour) of charge per day.
Long-Lasting Li-Battery Packs
• Equipped with 2560Wh - 3840Wh of 2pcs 100Ah lithium batteries, these packs have great charging/discharging efficiency and can endure over 3000 deep cycles, better than lead-acid batteries.
• The built-in BMS (battery management system) and the 30A - 60A MPPT solar charge controller offer double protection to prevent damage to the lithium battery.
Easy Installation
This all-inclusive kit has everything you need to DIY your solar charge system. It includes 5pcs 100 Watt Polycrystalline Solar Panels, 2pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

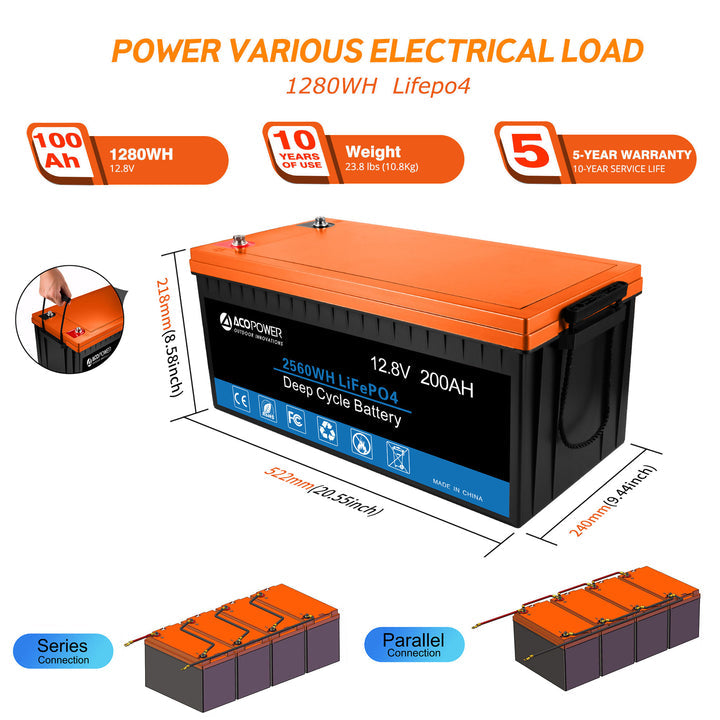

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

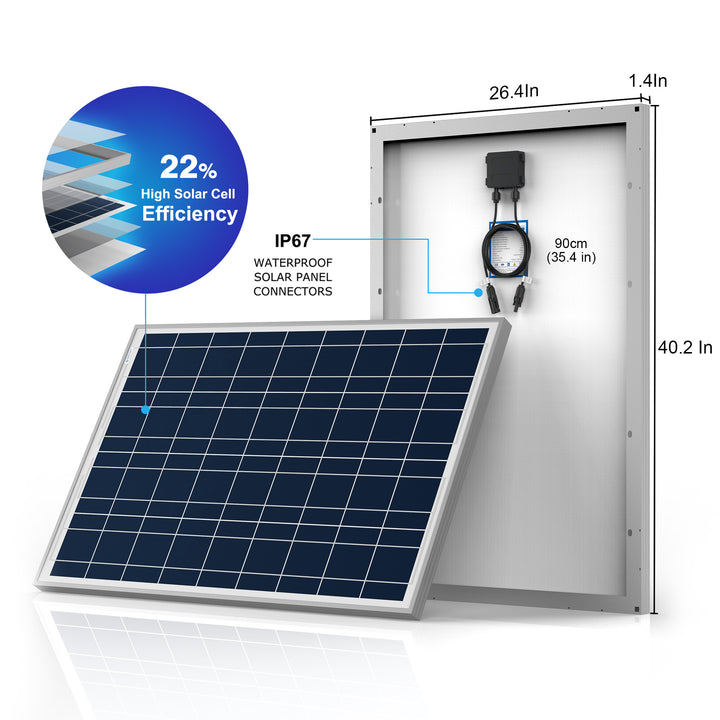

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

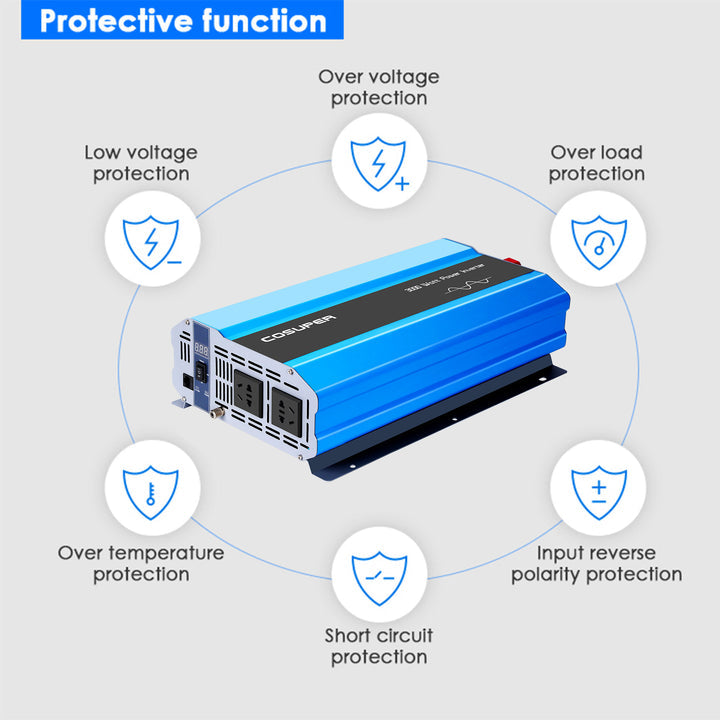

3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

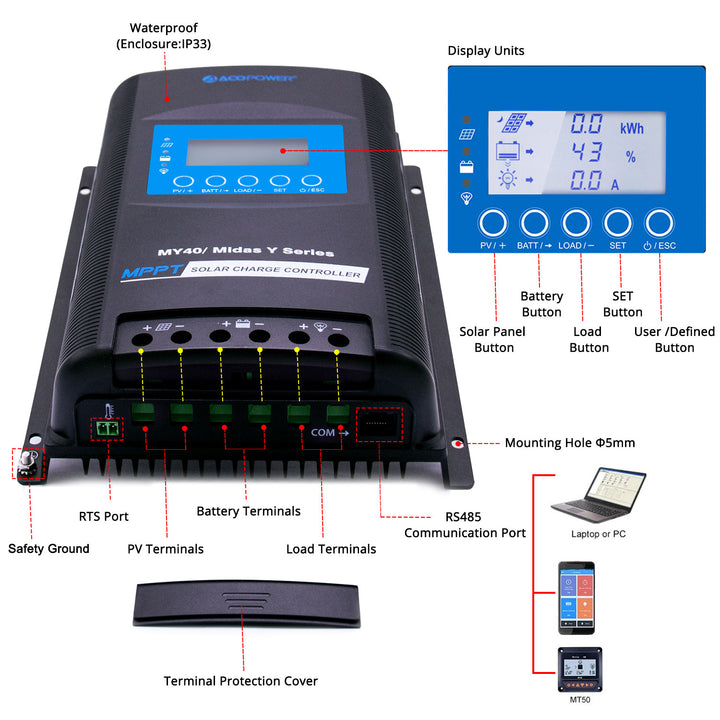

MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

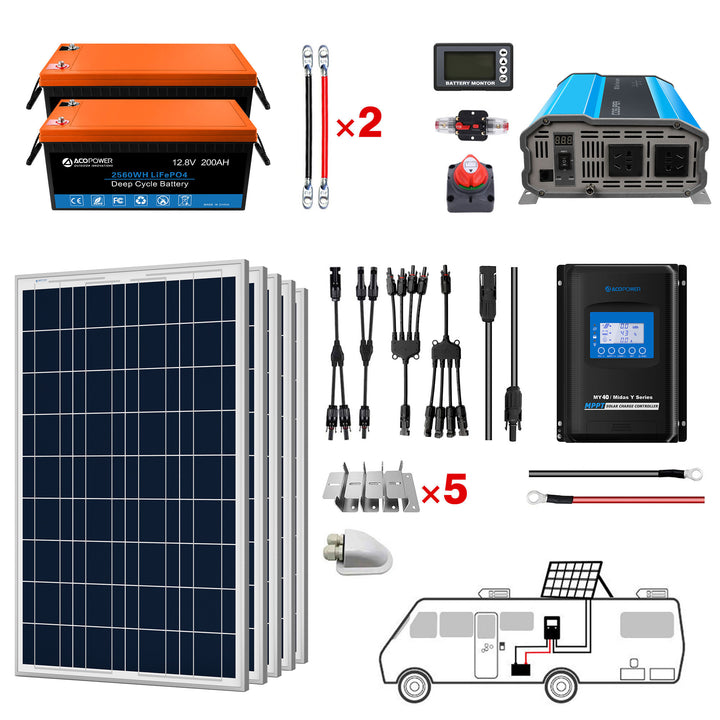

What's in the Box:
2 x Battery
5 x 100W Solar Panel
1 x 3K Inverter
1 x 50A Controller
1 x Monitor
1 x Switch
1 x 60A Fuse
8 x sets z Brackets
3 x Pairs Battery Cable
This 500W Solar RV Kit is perfect for those looking to go off-grid. It's great for RVs, cabins, homes, and boats, whether you need a backup power source or are in a remote location. The kit comes with everything you need for easy installation. The 1500-watt Pure Sine Wave Inverter provides enough AC power to run household appliances. The battery bank offers sufficient energy for moderate use. The 40A MPPT Charge controller ensures efficient battery charging. The high-capacity Li-Battery Packs have excellent charging/discharging efficiency and long life.
Technical Specifications:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery: Rated voltage 12.8V, Charge voltage 14.2 - 14.6V, Battery Capacity 1280WH, Depth of Discharge 100%, Standard charge current 20A, Max continuous charge current 50A, Max continuous discharge current 100A, dimension 12.99 x 6.81 (W) x 8.58 (H) inch, Approx. Weight 23.8lb
12V 200Ah LiFePO4 Deep Cycle Lithium Battery: Rated voltage 12.8V, Charge voltage 14.2 - 14.6V, Battery Capacity 2560WH, Depth of Discharge 100%, Standard charge current 50A, Max continuous charge current 100A, Max continuous discharge current 200A, dimension 20.55 x 9.44 (W) x 8.58 (H) inch, Approx. Weight 48.94lb
100W Poly Solar Panel: Nominal for 12V battery charger, Peak Power 100W, Peak Circuit Voltage 22V, Max Power Voltage 17.48V, Short Circuit Current 6.21A, Max Power Current 5.72A, Weight 17.6lb, Dimension 40.2*26.4*1.4 Inch, Application Class Class A
3000W Pure Sine Wave Inverter: Continuous output 3000W, Surge Power 6000W, Wave Form Pure Sine Wave, Protection Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection, Weight 12.1lb, Dimension 18.23(D) x 9.53(W) x 4.65(H) inch
MPPT Solar Charge Controller 40A: Rated charge current 40A, Battery voltage range 8V~32V, Max.PV open circuit voltage 100VDC, Max.PV input power 12V/520W,24V/1040W, Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
