ACOPower 100W Mono RV Solar Kit - 300W 30A All Black
Discover the ultimate freedom on the road with the ACOPower RV Solar Kit! Designed to meet all your off-grid power needs, this kit is perfect for RVs, trailers, boats, sheds, and cabins. Enjoy greater travel independence and save on power costs with this small off-grid power system.
Create unforgettable memories on your RV adventures without the hassle of traditional gas-powered generators or power hookups. The ACOPower 300Watt 30A Mono Solar RV Kit silently recharges your batteries, allowing you to embrace the tranquility of the great outdoors. Run limited low-watt electrical equipment even without a power hookup.
- • Effortlessly connect three 100-Watt monocrystalline solar panels in parallel or series using branch connectors - no extra connectors needed.
- • The MPPT Solar Charge Controller offers user-adjustable settings and an LCD screen that shows voltage, solar panel status, battery charge, and DC load. Compatible with various battery types.
- • Tailored for multiple applications like RVs, cabins, homes, and boats. Wire the two solar panels in parallel for 12V charging or in series for 24V charging.
- • Common positive grounding design (contact us for common negative grounding). 25-year panel power output warranty and 1-year warranty on other components.
Features:
- Easy Installation
- High Efficiency
- Sturdy Build
- MPPT Technology
- Safe Operation
- Reliable Performance
- Environmentally Friendly
Specifications:

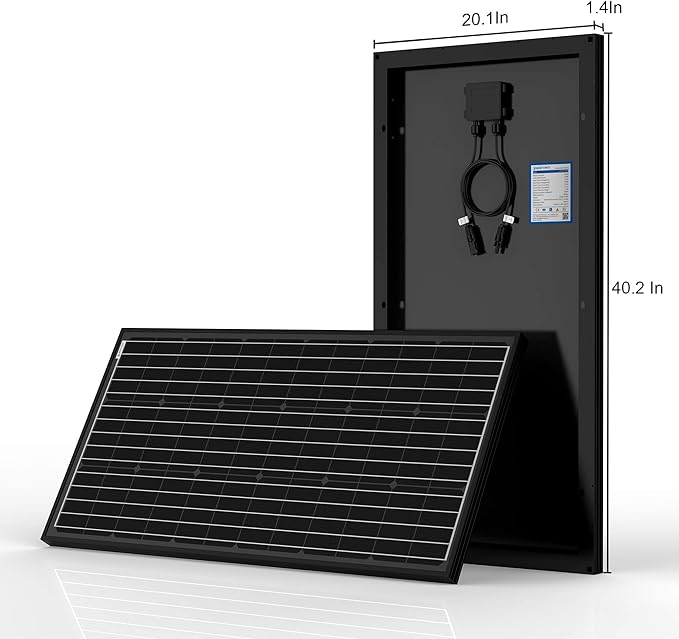

Acopwoer 100 Watts All Black Mono Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.14A
- Maximum Operating Current (Imp): 5.71A
- Operating Temperature: -40oC to 85oC
- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Weight: 5.8 kg / 12.78 lbs

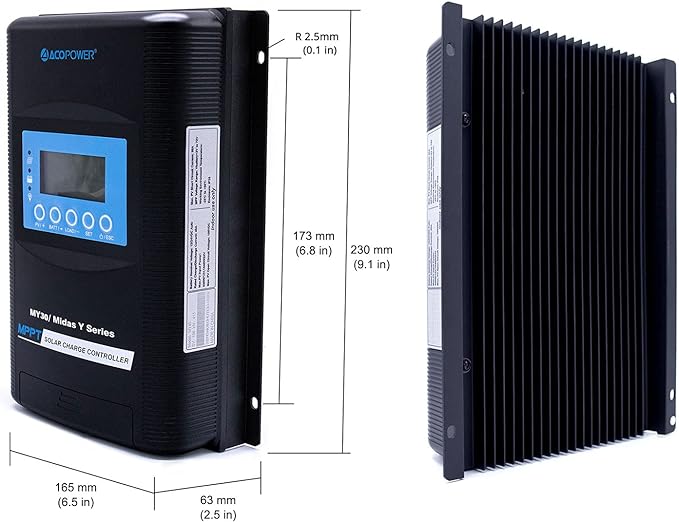

Acopower 30 A MPPT Solar Charge Controller
- Nominal system voltage: 12/24VDC Auto
- Rated charge current: 30A
- Battery input voltage range: 8V - 2V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W, 24V/780W
- MPP voltage range: V(BAT+2V) - 2V
- Working environment temperature: -25°C to +50°C
- Storage temperature range: -35°C to +80°C
- Grounding: Common negative
- Communication: RS485
- Power Terminals: 6AWG(16mm2)
- Enclosure: IP30
- Dimensions: 228x164x55mm
- Weight: 1.2kg

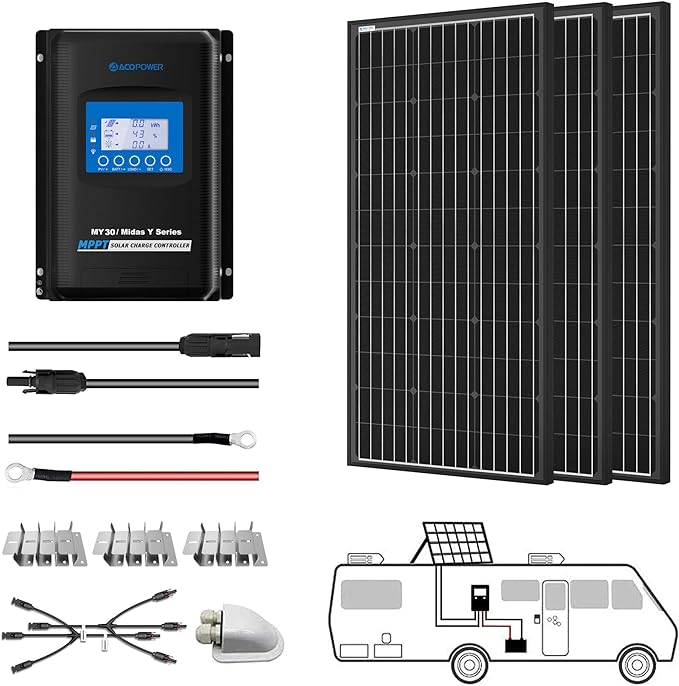

What's in the Box:
- 3 x Mono Solar Panel
- 1 x 30A MPPT Charge Controller
- 3 x Sets Mounting Z Bracket
- 1 x 30ft 12AWG PV Cable
- 1 x 8FT 8AWG Tray Cable
- 1 x Cable Entry Housing

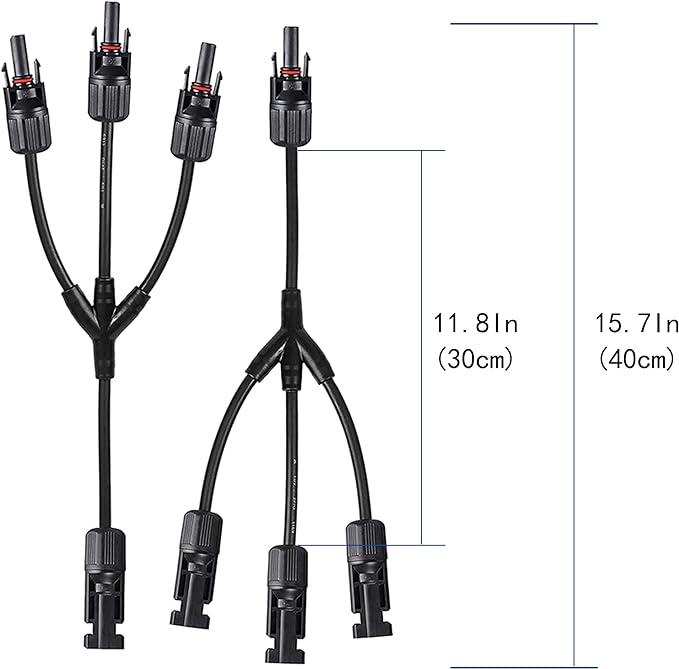

- 1 x Pair 1Y3 Branch Connector
This ACOPower RV Solar Kit is a great solution for those who love to travel in their RVs, trailers, boats, or stay in cabins and sheds. It's perfect for anyone seeking off-grid power. The solar panels are 1130x510x35mm (44.5x20.1x1.4 in) in dimension and weigh 5.8 kg (12.78 lbs) each. The charge controller is 228x164x55mm in size and weighs 1.2kg. It comes with everything you need to set up a solar power system, allowing you to enjoy a silent and independent power source during your adventures.
