Unleash Your Power Independence!
Embrace the freedom of off-grid living with our Lithium Battery Mono Solar Power Complete System. It's a game-changer for RVs, cabins, homes, boats, and remote locations. Here's why:
- High-Efficiency MPPT Controller: With a peak conversion efficiency of 98% and a high tracking efficiency of 99%, it ensures rapid, efficient, and safe battery charging. Solar charging between 200W - 800W yields approximately 960 - 3840 Watt Hours (Wh) or 80 - 320 Amp Hours (AH) per day (depending on sunlight availability).
- High Capacity Li-Battery Packs: With a massive 3840Wh capacity from 3pcs 100Ah lithium batteries, these outperform traditional lead-acid batteries. They offer higher charging/discharging efficiency and endure over 3000 deep cycles. The built-in BMS (battery management system) and 30A - 60A MPPT solar charge controller provide double protection.

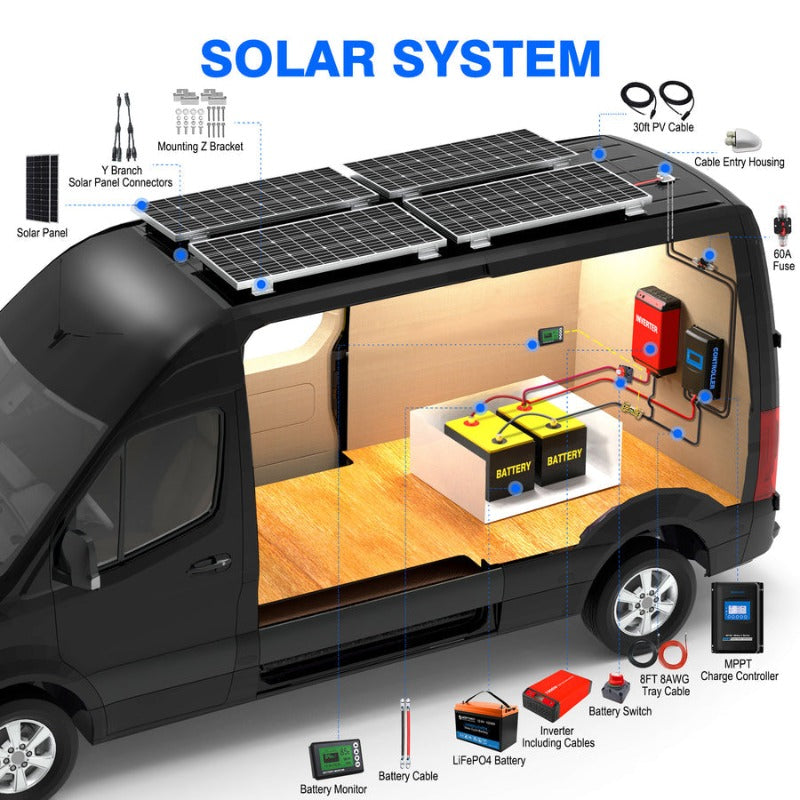

- Installation Made Easy: This kit is a one-stop solution for your solar charging system. It includes all the necessary tools for a DIY setup, so you can start harnessing the power of the sun with confidence and convenience.
Our system features a robust 1500 Watt Pure Sine Wave Inverter, perfect for powering household appliances. Ideal for those seeking energy autonomy, turn every location into your power oasis.
Key Features:
• Tailored for off-grid 12-volt systems
• High-capacity battery packs for long-lasting power
• Easy installation with all-inclusive kit
Specifications:

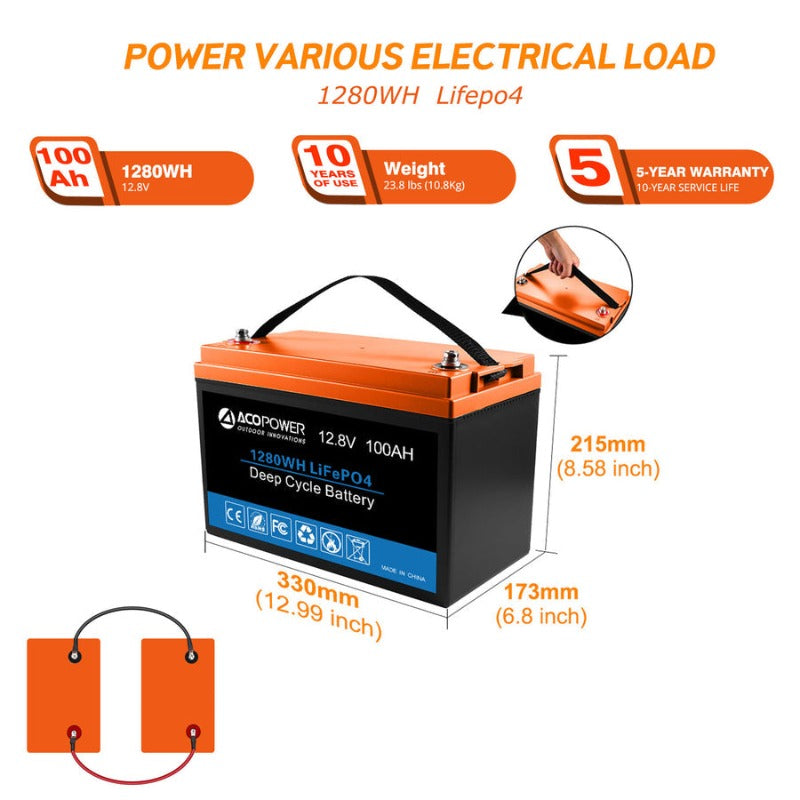

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb
12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

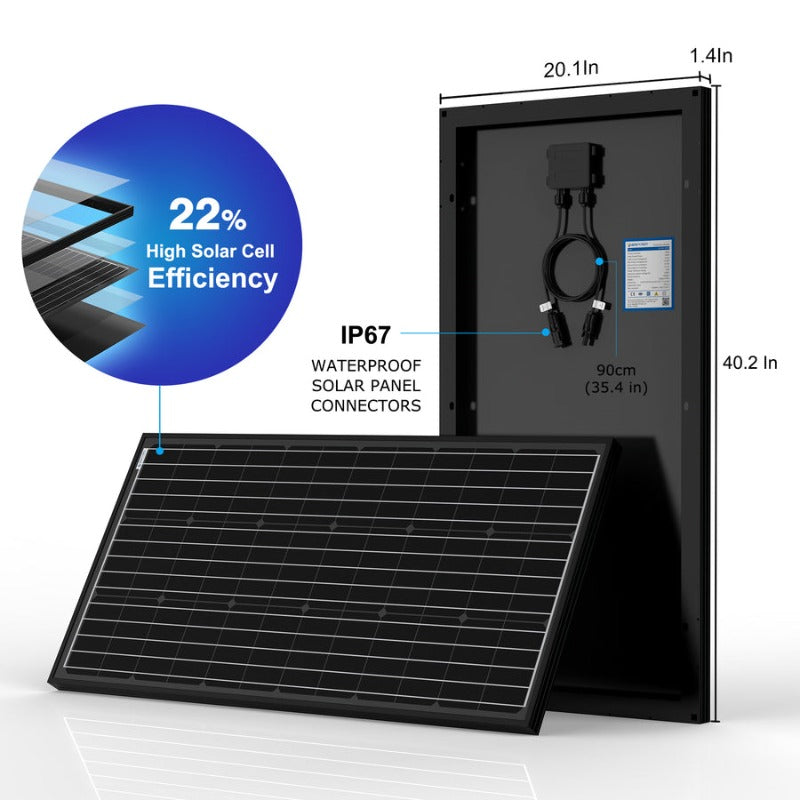

100W Mono Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22.5V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A

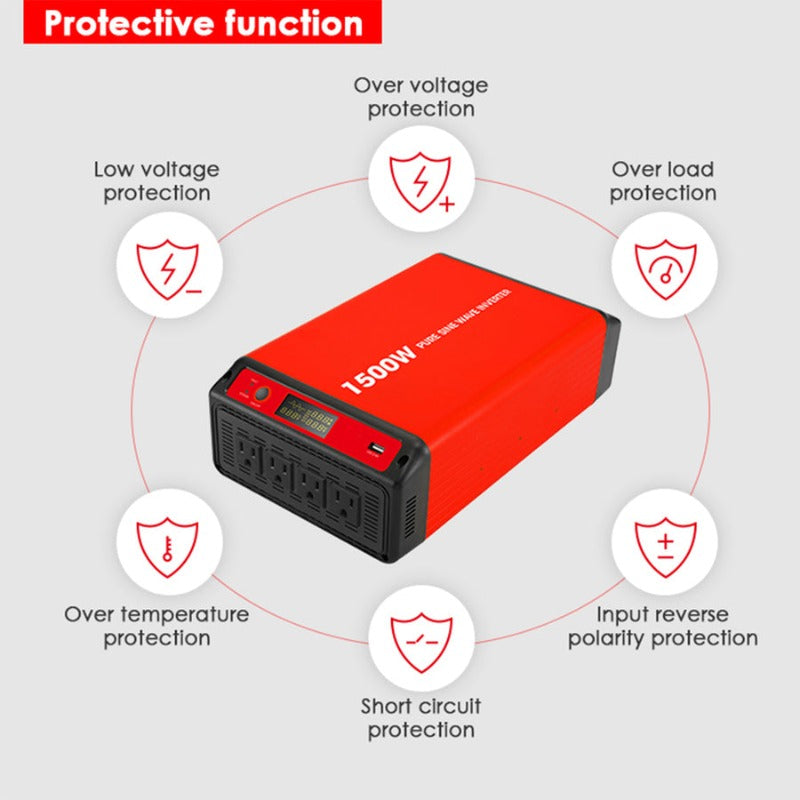

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch
MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 50A
- Rated charge current: 50A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
- Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
What's in the Box:
2 x Battery
5 x Solar Panel
1 x Inverter
1 x Charge Controller
1 x Monitor
1 x Switch
1 x Fuse
5 x Sets Z Brackets
2 x Pairs Battery Cable
This Acopower Lithium Battery Mono Solar Power Complete System is perfect for those who want to enjoy off-grid living. Ideal for RVs, cabins, homes, boats, and remote locations. It comes with a 1500 Watt Pure Sine Wave Inverter, high-capacity Li-Battery Packs, and an MPPT Solar Charge Controller. The 12V 100Ah LiFePO4 Deep Cycle Lithium Battery has a rated voltage of 12.8V, weighs about 23.8lb, and measures 12.99 x 6.81 (W) x 8.58 (H) inch. The 12V 200Ah LiFePO4 Deep Cycle Lithium Battery has a rated voltage of 12.8V, weighs about 48.94lb, and measures 20.55 x 9.44 (W) x 8.58 (H) inch. The 100W Mono Solar Panel weighs 12.8lb and measures 40.2*20.1*1.4 Inch.
