Power Your Life Anywhere

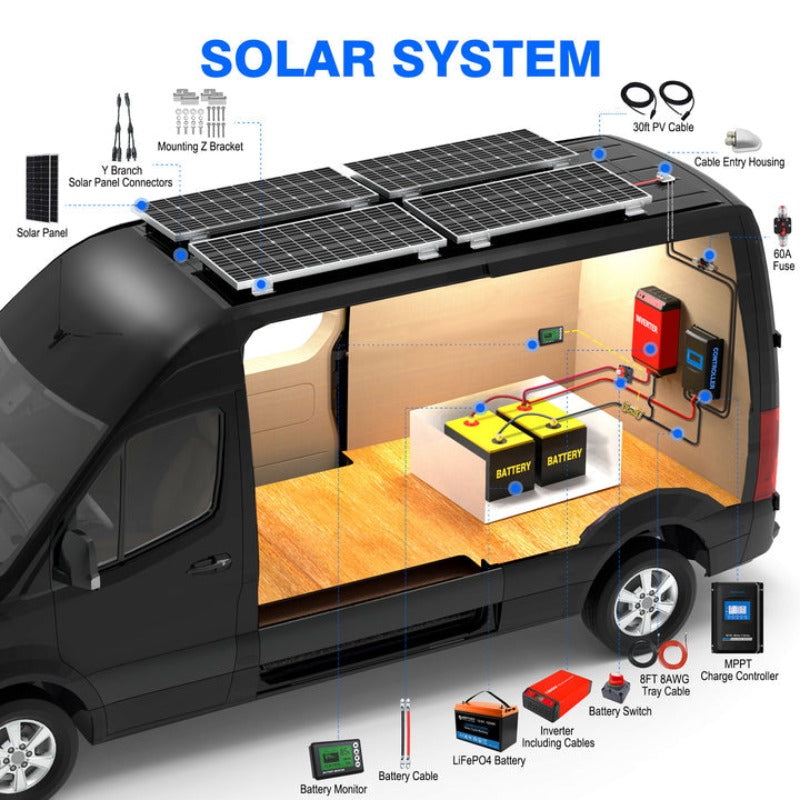

This amazing 800W Solar RV Kit is perfect for creating an off-grid 12-volt Lithium battery 12V Solar Panel system. Whether you're on an RV adventure, in a cabin, at home, or on a boat, or need backup power in remote areas, this kit has got you covered. • High-Efficiency Charging: With a 60A MPPT Charge controller that has a peak conversion efficiency of 98% and a high Tracking efficiency of 99%, plus a 4-stage battery charging process, it ensures fast, efficient, and safe battery charging. Depending on sunlight, solar charging between 800W can yield about 960Wh - 3840Wh (Watt-hour) or 80Ah - 320Ah (Ampere-Hour) of charge per day. • Long-Lasting Lithium Batteries: Equipped with 3pcs 100Ah lithium batteries with 2560Wh - 3840Wh capacity, they offer great charging/discharging efficiency and can endure over 3000 deep cycles, far better than lead-acid batteries. The built-in BMS and 30A - 60A MPPT solar charge controller provide double protection. • Complete Installation Kit: Everything you need for a DIY solar charge system is included. It has 8pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Technical Specifications

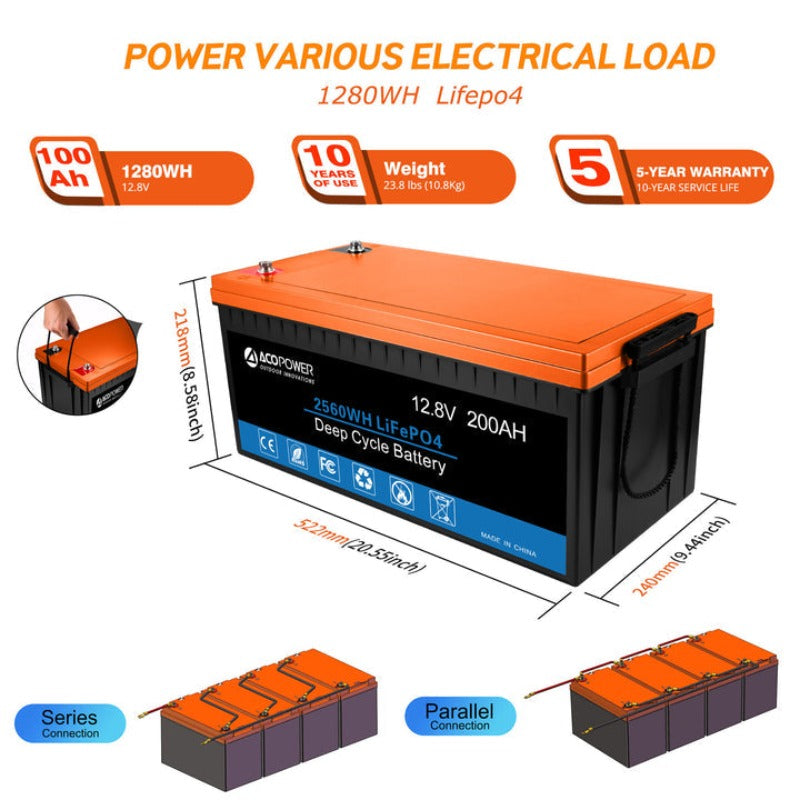

- 12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

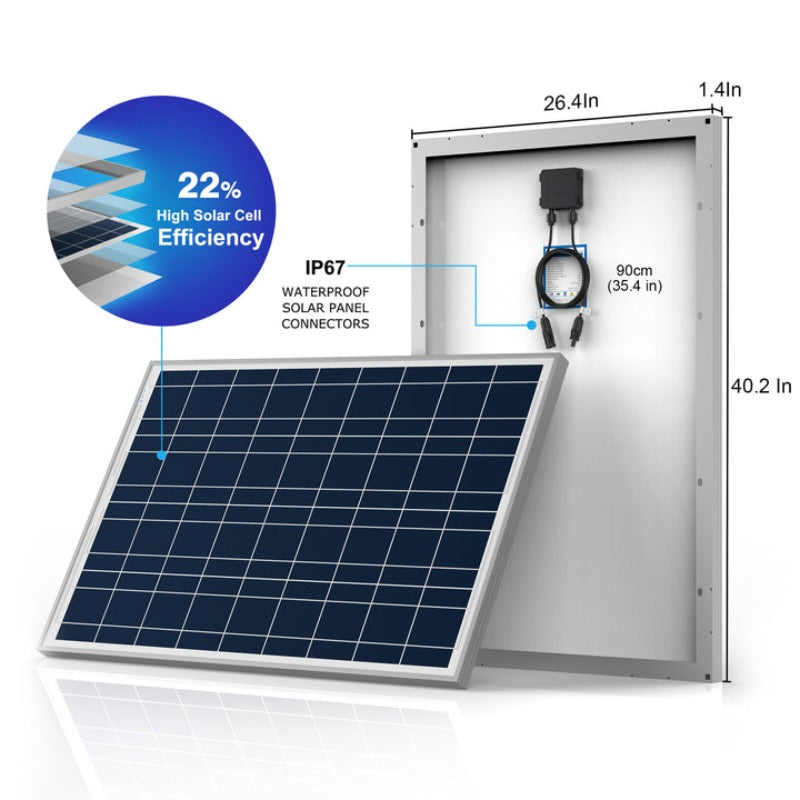

- 100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

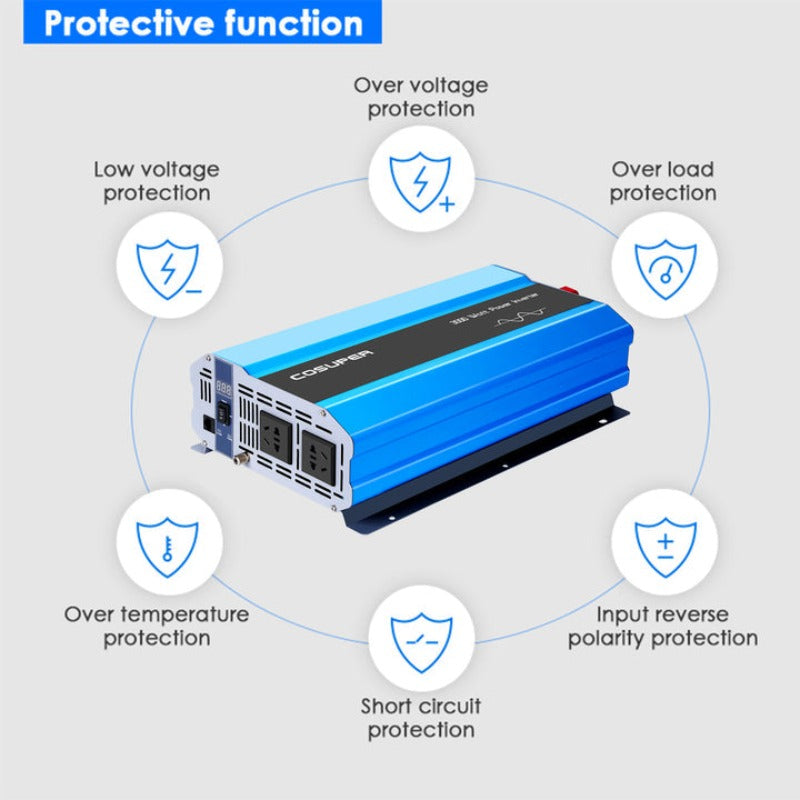

- 1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

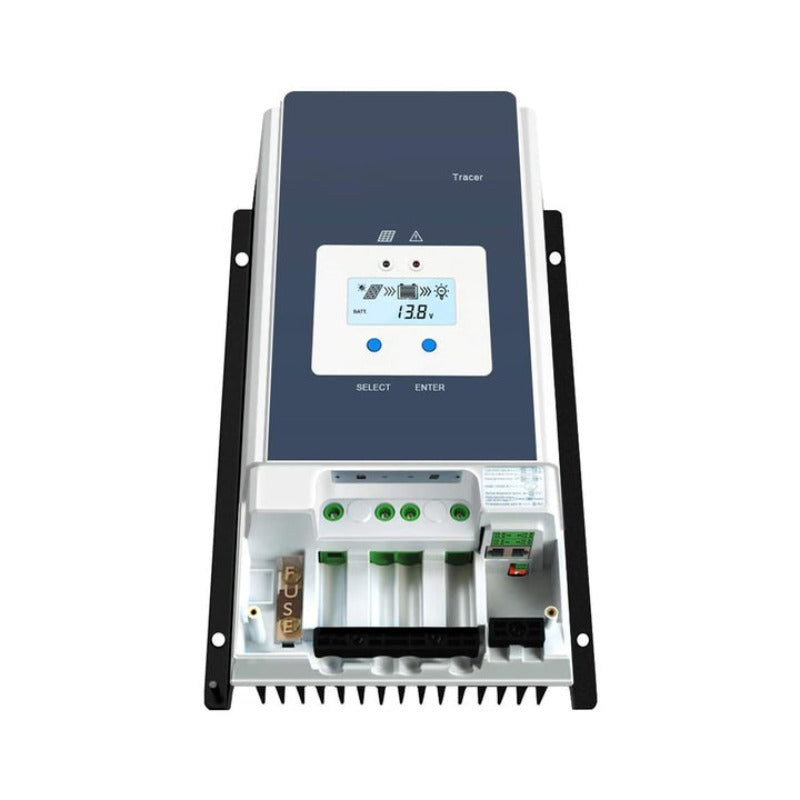

- MPPT Solar Charge Controller 60A
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
- Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

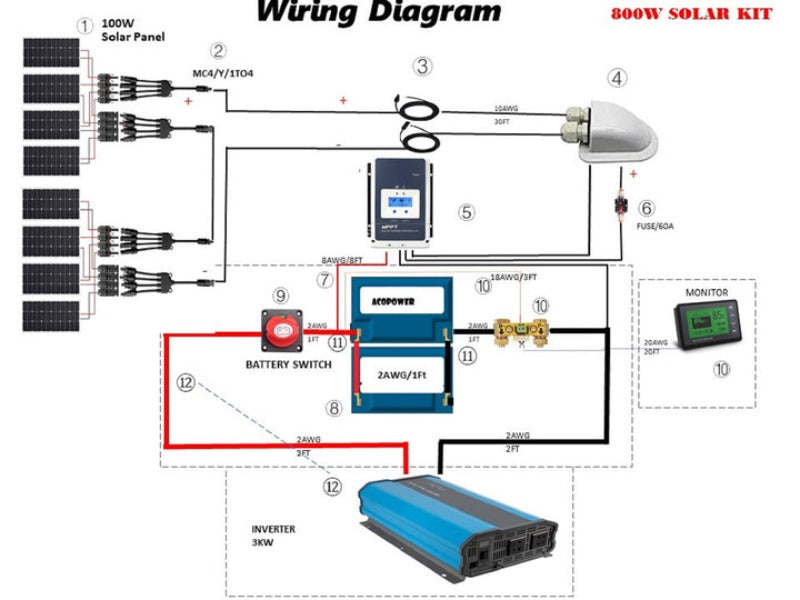

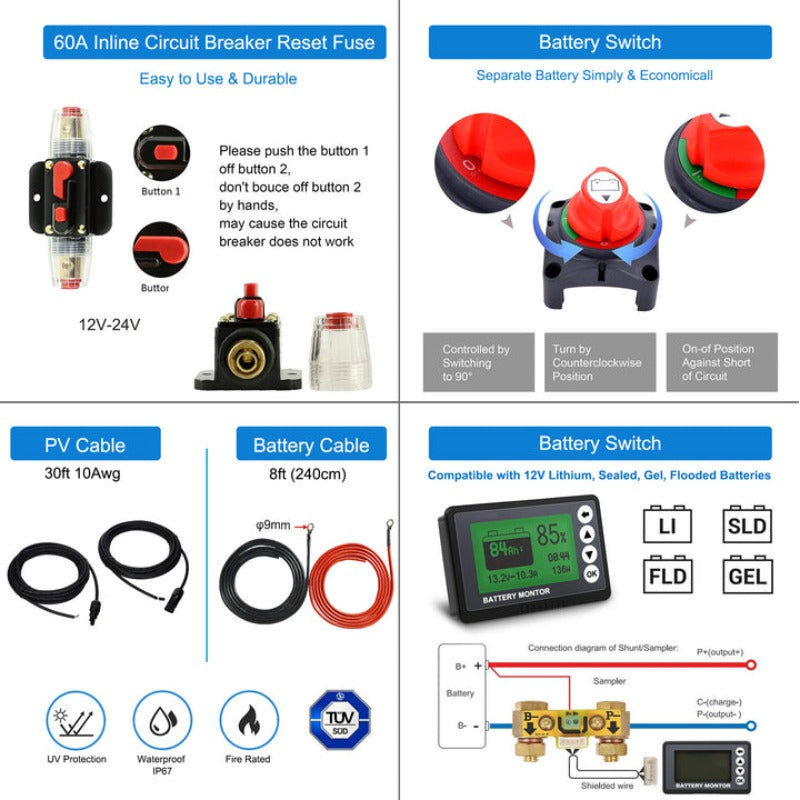

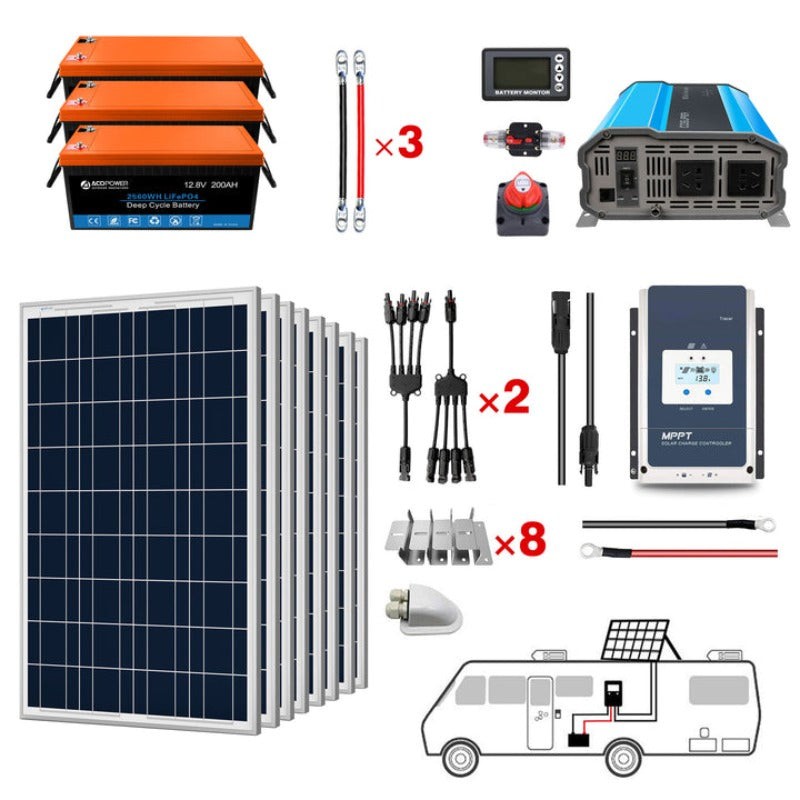

This 800W solar RV kit is great for RVs, cabins, homes, boats, or as backup power in remote areas. It includes 8 100W polycrystalline solar panels, 3 100Ah LiFePO4 deep cycle lithium batteries, a 1500W DC to AC power inverter, a 60A MPPT solar charge controller, a 60A fuse, a battery switch, a battery monitor, and all necessary cables and mounting brackets. The lithium batteries have a capacity of 2560Wh - 3840Wh and can endure over 3000 deep cycles. The 100W solar panels are 40.2*26.4*1.4 inches and weigh 17.6lb each. The 1500W inverter is 12.94+1.34 (D) x 7.52(W) x 3.86(H) inches and weighs 7.79lb. The 12V 200Ah LiFePO4 deep cycle lithium battery is 20.55 x 9.44 (W) x 8.58 (H) inches and weighs 48.94lb.
