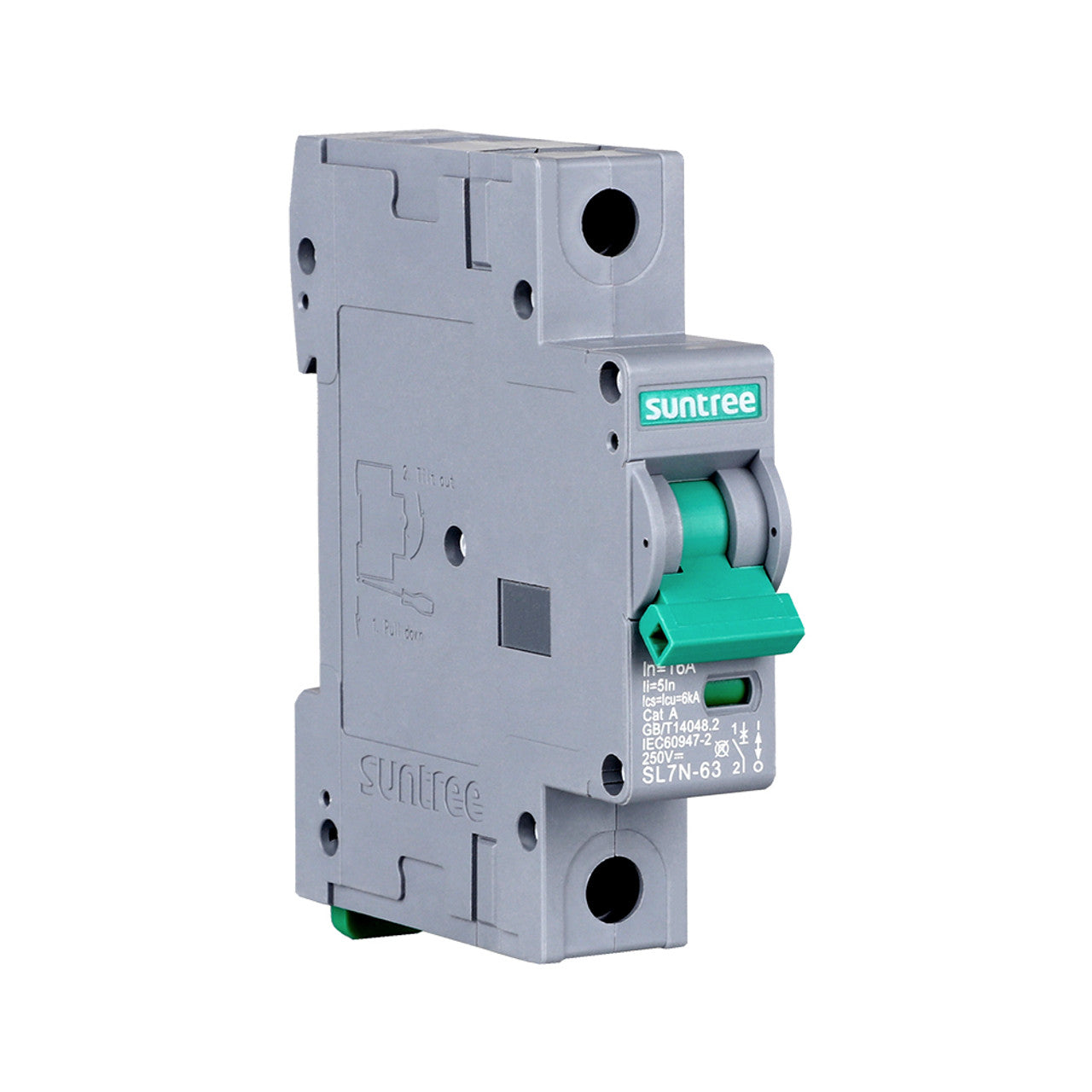

Renogy Suntree Compact 10A 1P Circuit Breaker for Solar Power
Protect your solar power system with the Renogy Suntree 10A 1P Miniature Circuit Breaker! This compact breaker safeguards against overloads and short circuits, fitting seamlessly into your power distribution setup. With a 10A rating, it handles various electrical loads, ideal for any solar power application.
Certified safe with CE, RoHS, CB, and TUV, and a 1.5-year material and workmanship warranty, it's a smart investment for protecting your battery from high current or damage.
Don't risk power surges - choose the Renogy Suntree 10A 1P Miniature Circuit Breaker for worry-free performance!
Highlights
• Double security for peace of mind
• Easy installation for hassle-free setup
• Durable construction for long-lasting use
SPECIFICATIONS:
Rated Insulation Voltage: 1250V
Operating Temperature Range: -30°C~70°C
Storage Temperature Range: -40°C~85°C
Rated Operating Voltage: 250V
Rated Frame Current: 63A
Protection Rating: IP20
Rated Current: 10A
Operating Relative Humidity: ≤95%
Number of Poles: 1
Rated Non-Tripping Current: 10.5A/16.8A/33.6A/52.5A/66.15A (≥1h)
Rated Tripping Current: 13A/20.8A/41.6A/65A/81.9A (<1h)
Rated Instantaneous Tripping Current: 60A/96A/192A/300A/378A (<0.1s)
Operating Short-Circuit Breaking Capacity: 6KA
Ultimate Short-Circuit Breaking Capacity: 6KA
Rated Impulse Withstand Voltage: 6KV

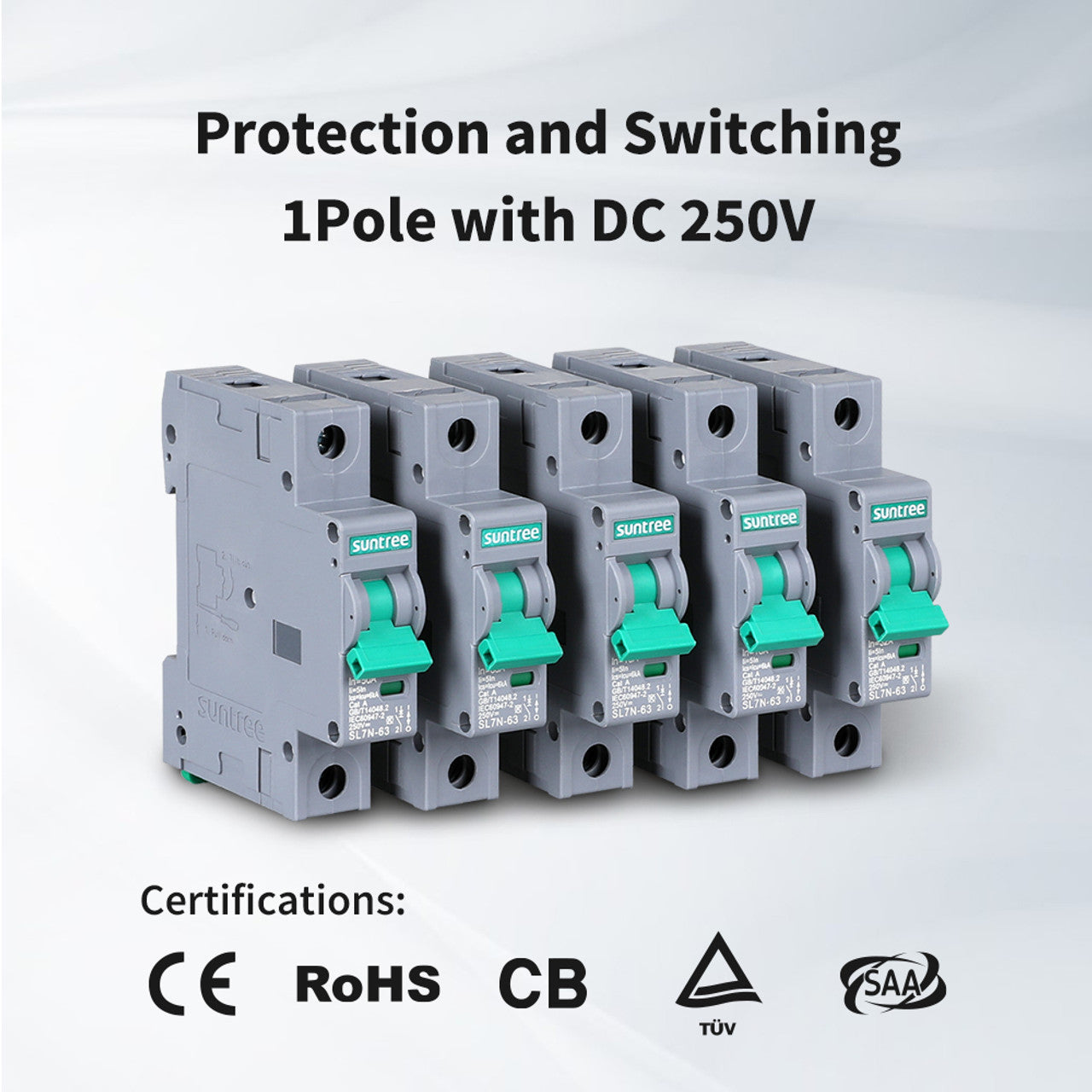

Certifications: CE, RoHS, CB, TUV, SAA

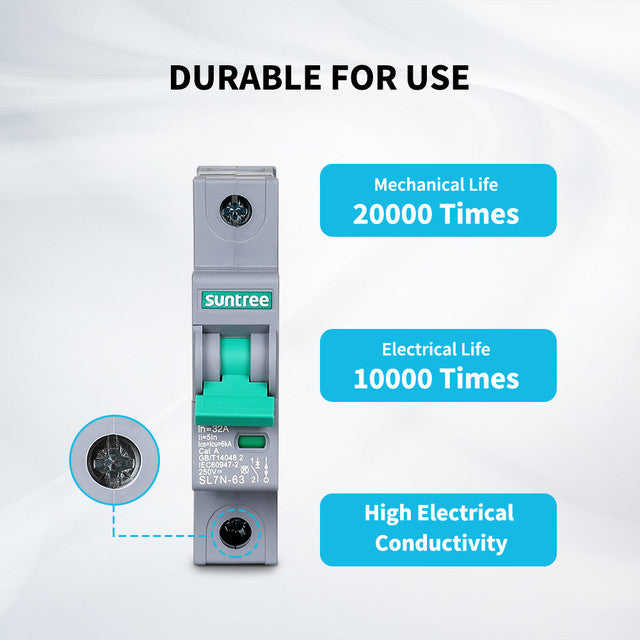

Mechanical Life: 20000 Times
Electrical Life: 1000 Times (<125VDC)
Trip Mechanism: Thermal-Magnetic
Damp Heat Resistance: Type 2

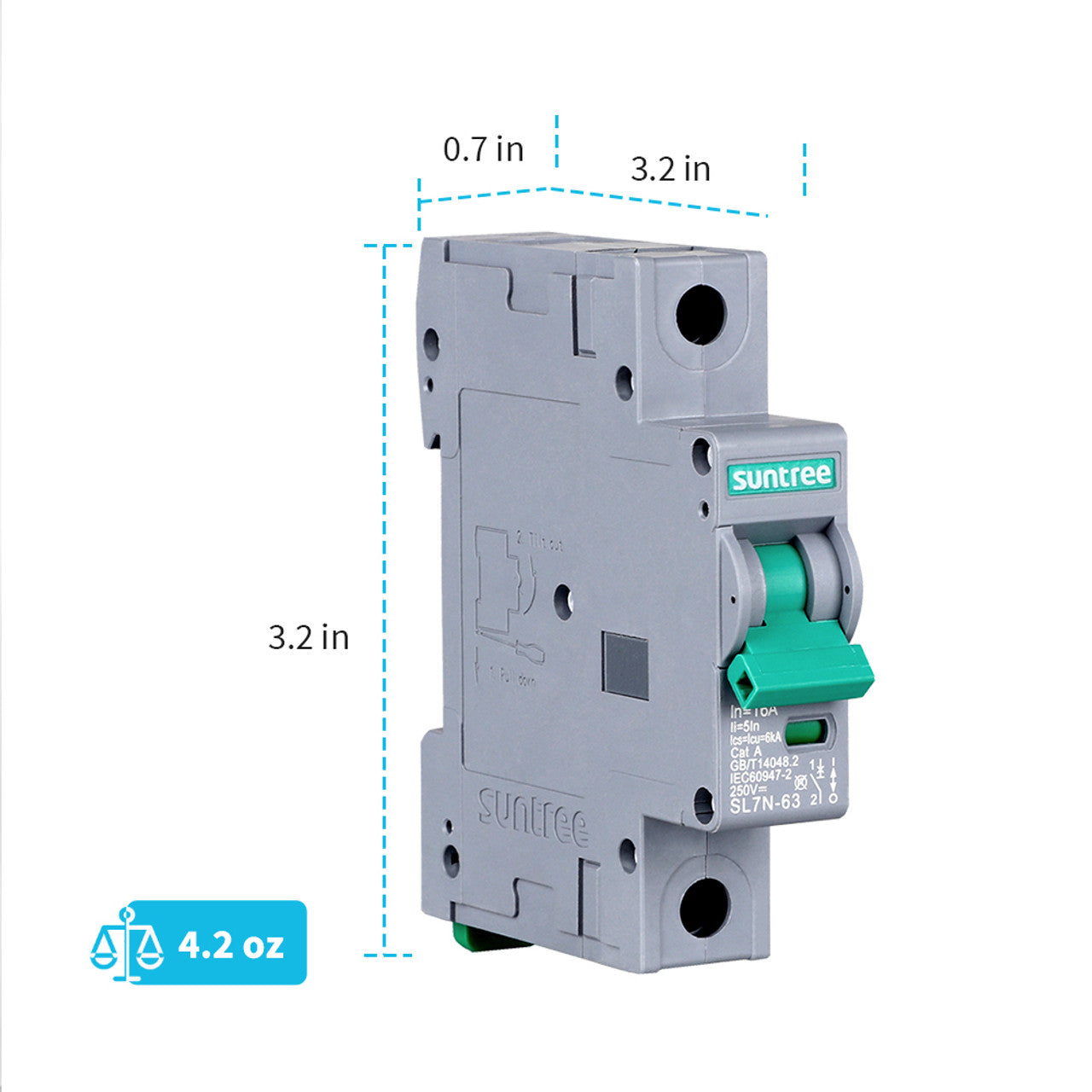

Dimensions: 82 x 76 x 18 mm (3.2 x 3.0 x 0.7 in)
Weight: 120 g (4.2 oz)

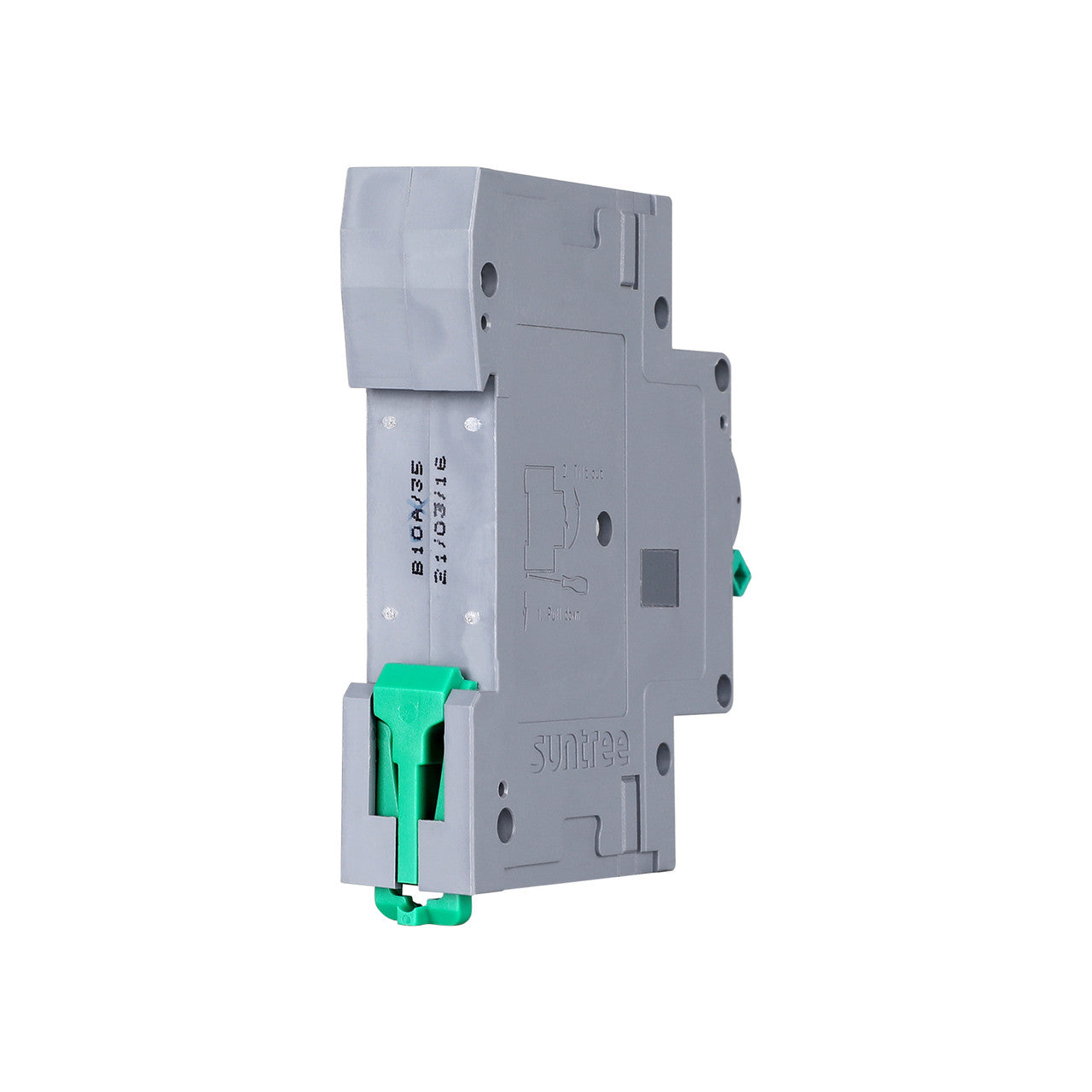

Installation Method: DIN Rail
Recommended Terminal Torque: 2 N·m~2.3 N·m (17.7 inch·lbs~20.4 inch·lbs)
Conductor Size: 14 AWG~4 AWG
Material and Workmanship Warranty: 1.5 Year
WHAT'S IN THE BOX:
1 x Renogy 10A DC Miniature Circuit Breaker
The Renogy Suntree 10A 1P Miniature Circuit Breaker is a must-have for anyone with a solar power system. It's designed to protect your system from overloads and short circuits. This breaker is compact and fits easily into your power distribution setup. With a 10A rating, it can handle a variety of electrical loads. It comes with multiple certifications like CE, RoHS, CB, and TUV, and a 1.5-year material and workmanship warranty. The breaker has a double security feature, is easy to install, and is durable. It has a rated insulation voltage of 1250V, an operating temperature range of -30°C to 70°C, and a storage temperature range of -40°C to 85°C. It has a rated current of 10A, a protection rating of IP20, and dimensions of 82 x 76 x 18 mm (3.2 x 3.0 x 0.7 in) and weighs 120 g (4.2 oz). It's installed using a DIN Rail.
