Renogy Rover Li 60 Amp MPPT Solar Charge Controller - Power Up Your Solar Setup
Upgrade your solar power system with the Renogy Rover Li 60 Amp MPPT Solar Charge Controller! This second-generation controller is loaded with advanced features and cutting-edge tech to optimize charging for your lithium batteries.

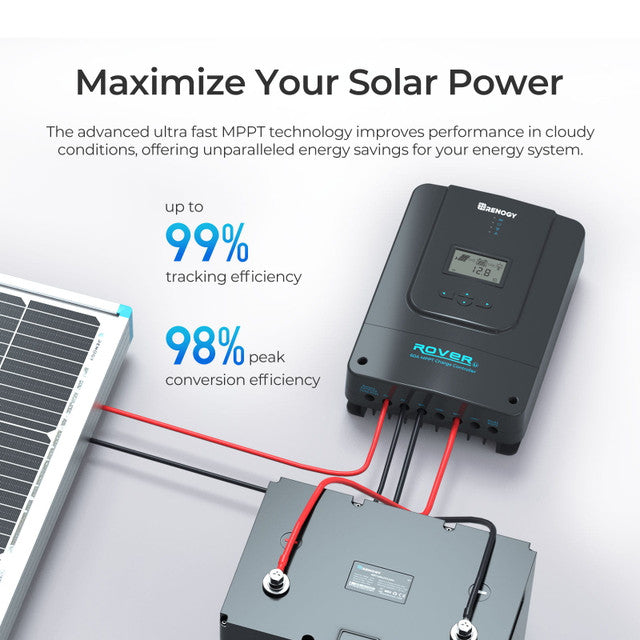

• High Efficiency: With 98% conversion efficiency and 99% tracking efficiency, it ensures maximum power from panels to batteries. The wide voltage input range (12V/24V/36V/48V) makes it versatile.

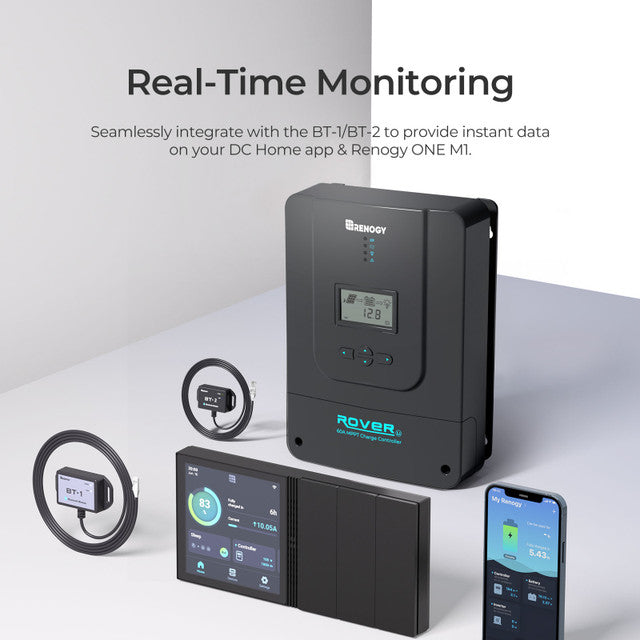

• Smart Monitoring: The built-in LCD screen shows real-time system data, so you can easily track your energy production. It's like having your own solar energy dashboard.
• Reliable Protection: Equipped with multiple protections like overcharging, reverse polarity, and overloading. The insulated design and external temperature sensor keep your system safe all year round.
Take control of your energy generation with this powerful solar charge controller. It's perfect for anyone looking to enhance their renewable energy setup.
Highlights:
Robust charging
Efficient MPPT technology
LiFePO4 Battery compatibility
Custom charging parameters
Real-time monitoring
98% Conversion efficiency; 99% tracking efficiency
Certified protections
Made of robust die-cast aluminum

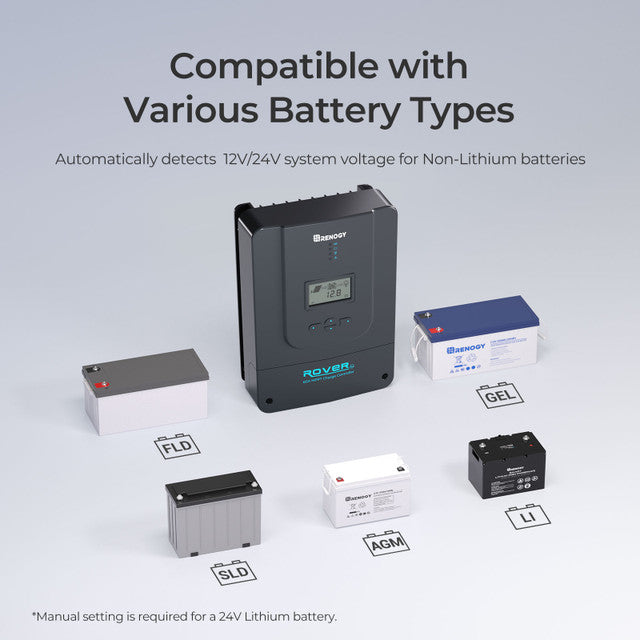

Automatically detects 12V/24V system (non-lithium batteries)
60A MPPT Charger
Simple and intuitive programming
Powerful heat dissipation
SPECIFICATIONS:
Nominal System Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current: 60A
Rated Load Current: 20A
Max. PV Input Voltage: 140VDC
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Self-Consumption: 0.7W-1.2W
Operating Temperature: -31 ¡ãF to 113 ¡ãF (-35 ¡ãC to 45 ¡ãC )
Temperature Compensation: -3mV/¡ãC/2V (default)
Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight: 7.9lbs
Enclosure: IP32
Terminals: 25mm2 4AWG
Certification: CE / ROHS

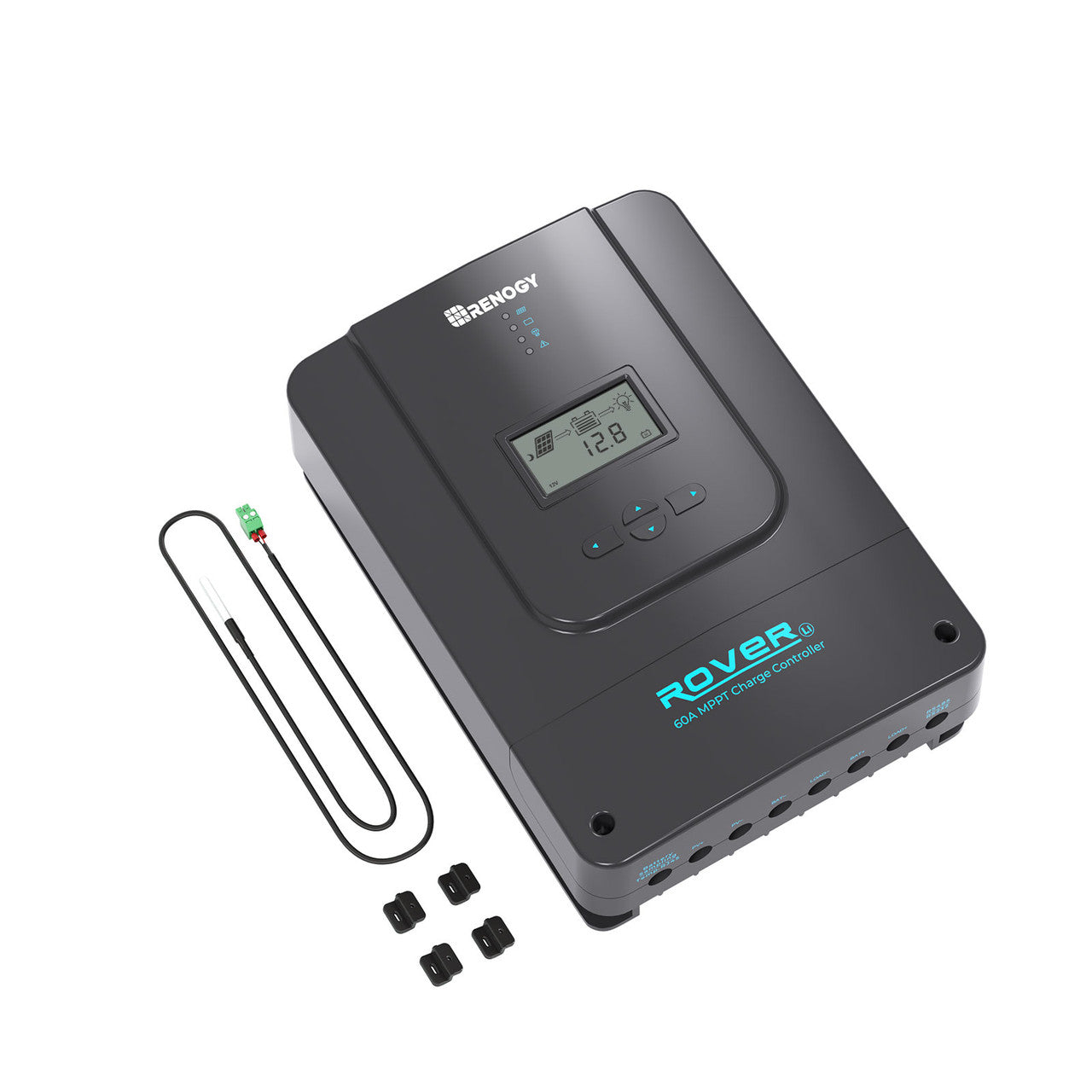

WHAT'S IN THE BOX:
1 x Renogy Rover 60A MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x User Manual
The Renogy Rover Li 60 Amp MPPT Solar Charge Controller is designed for homeowners and DIY enthusiasts who want to harness solar power. It can be used in various solar power setups at homes, cabins, or small off-grid locations. With a size of 285 x 205 x 102mm (11.22 x 8.07 x 4.00in) and a weight of 7.9lbs, it's easy to install. The nominal system voltage is 12V/24V/36V/48V (auto recognition for non-lithium batteries), rated charge current is 60A, and it offers multiple great features for efficient solar power management.
