Acopower 110W Flexible 200Ah/1.5kW (2x100Ah) Li-Ion Solar Power Kit
The Acopower 110W flex is a revolutionary solar panel system that offers efficient and reliable power generation. With its advanced technology and flexible design, it's perfect for a variety of applications.
- High Performance: Delivers 110 watts of power output, ensuring optimal performance even in challenging weather conditions.
- Flexible Installation: Can be easily installed on various surfaces, including curved or uneven ones, thanks to its lightweight and durable design.
- Reliable Power Storage: The integrated 200Ah Li-Ion battery provides extended use and reliable power storage, making it ideal for off-grid applications.
This solar panel system is a game-changer for anyone seeking a robust and reliable power solution. Whether you're on the go or need a stable power supply at home, the Acopower 110W flex has got you covered.
SPECIFICATIONS:
- 12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity: 1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- Dimension (inch): 12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

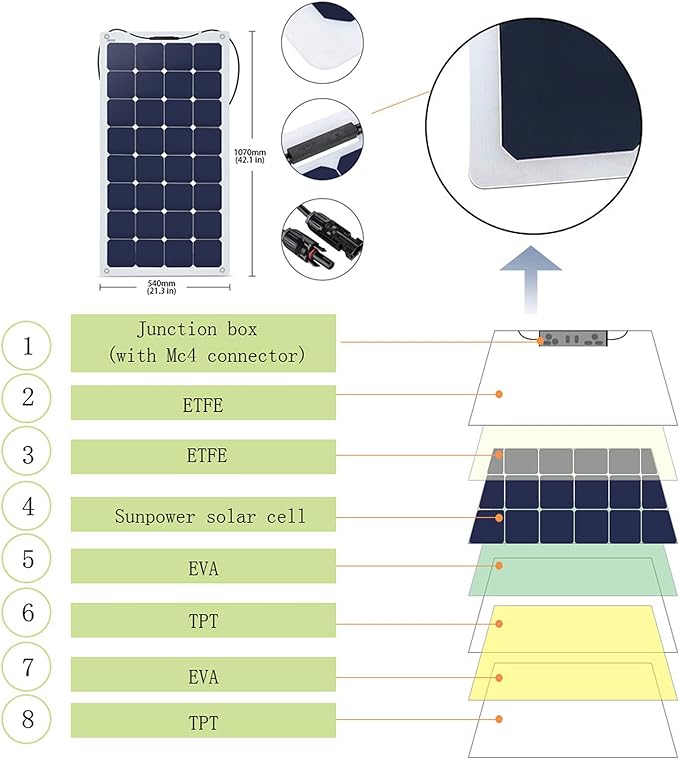

- 110W Semi-Flexible Solar Panel
- Peak Power (Pmax): 110W
- Peak Circuit Voltage (Voc): 20.8V
- Max Power Voltage (Vmp): 17.6V
- Short Circuit Current (ISC): 6.87A
- Max Power Current (Imp): 6.25A
- Weight: 4.85 lb
- Dimension: 44.68*21.26*0.12 Inch

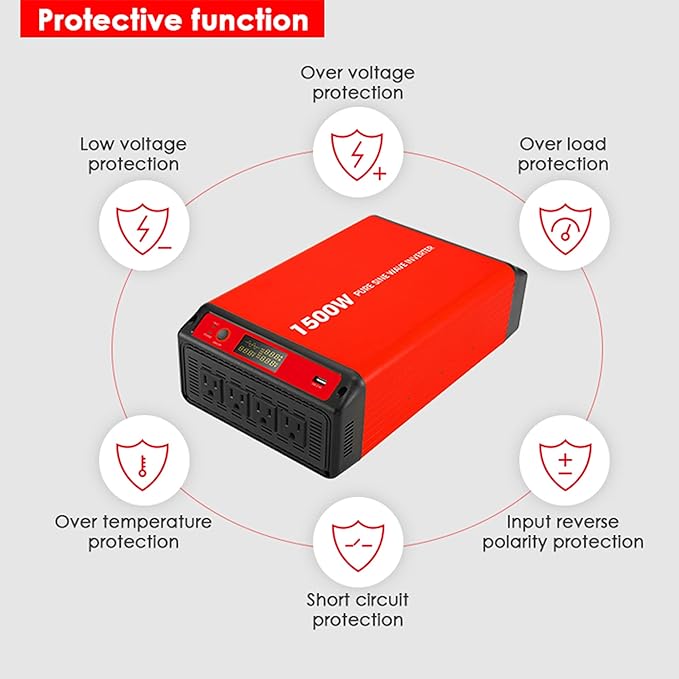

- 1500W Pure Sine Wave Inverter
- Continuous output: 1500W
- Surge Power: 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension (inch): 12.94 + 1.34 (D) x 7.52 (W) x 3.86 (H) inch

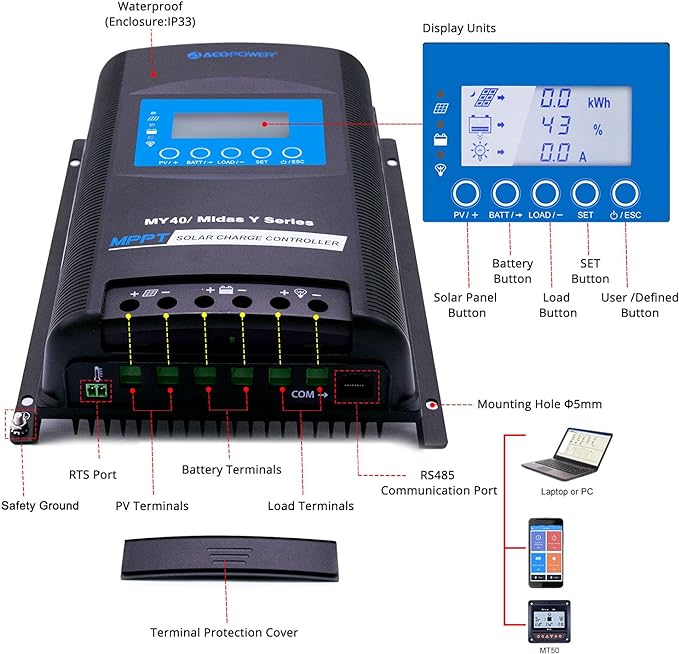

- MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W, 24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. LiFePO4 Multiple Load Control Method.

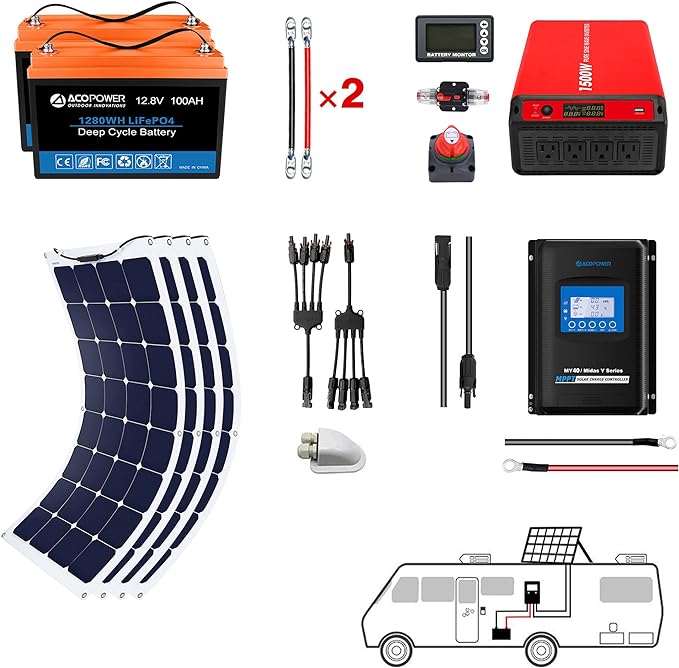

WHAT'S IN THE BOX:
- 2 x 100Ah LiFePO4 Battery
- 4 x 110W Solar Panel
- 1 x 1500W Inverter
- 1 x 40A MPPT Charge Controller

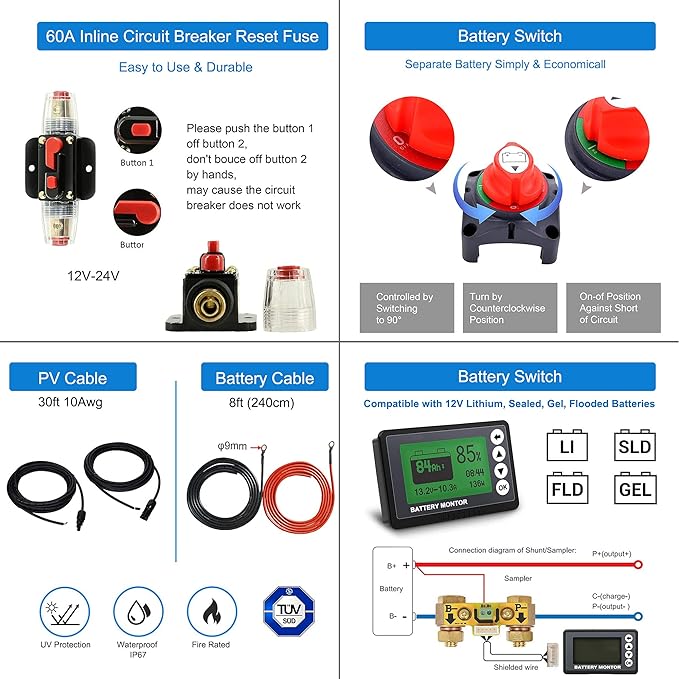

- 1 x Battery Monitor
- 1 x Battery Switch
- 1 x 60A Fuse
- 1 Pair x 30ft 10AWG PV Cable
- 2 Pair x 1Ft 4AWG Battery Cable
- 1 Pair x 8FT 8AWG Tray Cable
- 1PC x Cable Entry Housing
- 1 Pair x Y Branch Solar Panel Connectors
The Acopower 110W Flexible 200Ah/1.5kW (2x100Ah) Li-Ion Solar Power Kit is perfect for those who need reliable power on the go or at home. Whether you're an RV owner, camper, or just looking for a backup power solution, this kit has you covered. With its flexible design, it can be easily installed on various surfaces, including curved or uneven ones. The lightweight and durable construction make it ideal for traveling or outdoor activities. The kit includes a 110W semi-flexible solar panel, two 100Ah LiFePO4 deep cycle lithium batteries, a 1500W pure sine wave inverter, and a 40A MPPT solar charge controller. The solar panel has a peak power of 110W and can provide about 2112Wh (Watt-hour) or 176Ah (Ampere-Hour) of charge per day (depending on sunlight availability). The batteries have a capacity of 1280WH each and a depth of discharge of 100%. The inverter has a continuous output of 1500W and a surge power of 3000W. The charge controller has a rated charge current of 40A and is compatible with various deep cycle battery options. The kit also includes a battery monitor, battery switch, 60A fuse, PV cables, battery cables, tray cable, cable entry housing, and Y branch solar panel connectors. The dimensions of the battery are 12.99 x 6.81 (W) x 8.58 (H) inch and it weighs approximately 23.8lb. The solar panel is 44.68*21.26*0.12 Inch and weighs 4.85 lb. The inverter is 12.94 + 1.34 (D) x 7.52 (W) x 3.86 (H) inch and weighs 7.79lb.
