Acopower 100W Portable Solar Power System
The Acopower 100W Portable Solar Power System is a game-changer for your outdoor adventures and emergency power needs. It's designed to be your reliable companion, providing clean and renewable energy wherever you are.
• Unmatched Efficiency: Harness the power of the sun with its 100W monocrystalline solar panel, converting sunlight into usable energy effortlessly.
• Long-Lasting Power: The mono400Ah/3kW lithium battery ensures you have plenty of power stored for all your devices, whether it's charging your phone, laptop, or running small appliances.
• Ultra-Portable Design: The folding solar panel is incredibly compact and lightweight, making it easy to carry and set up anywhere. It's perfect for camping, hiking, or road trips.
Say goodbye to noisy generators and embrace the future of portable power with the Acopower 100W Portable Solar Power System. Experience the convenience and freedom of clean energy today!

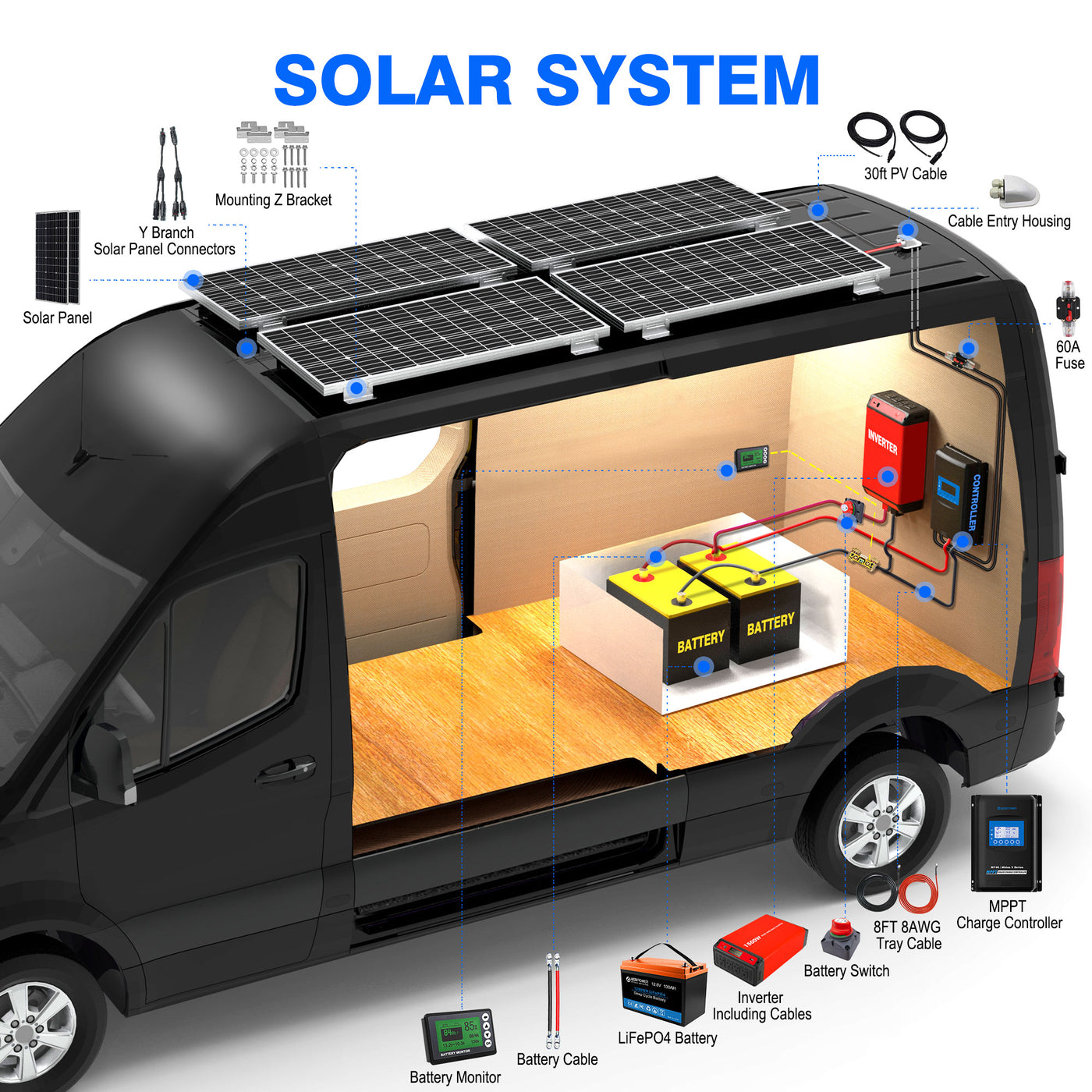

- RV-Ready solar power
- Two 200Ah lithium batteries
- Eight 100W Monocrystalline solar panels
- 60A MPPT Solar charge controller
- 3000W Power inverter

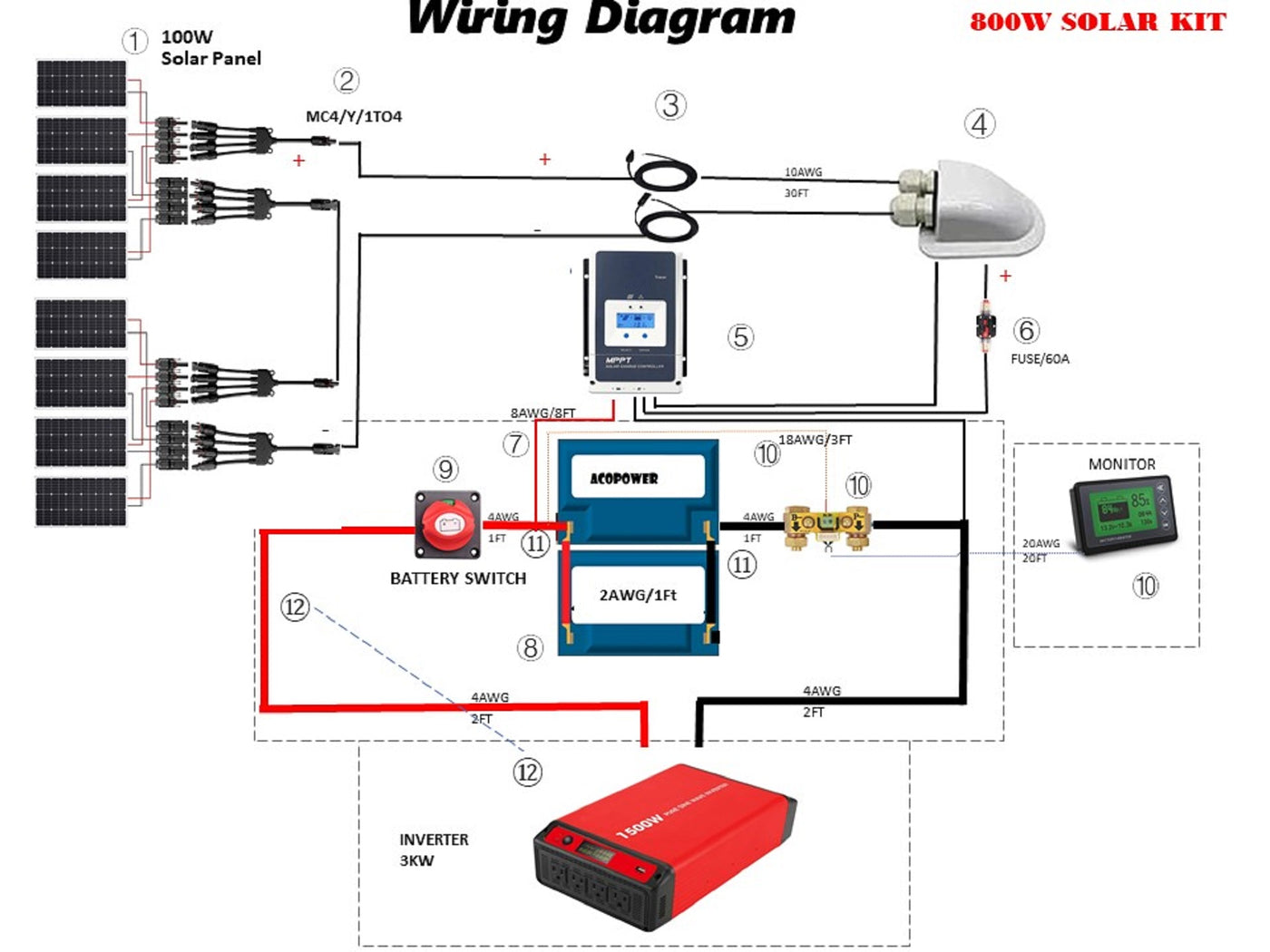

- All cables necessary for DIY system
- Mounting equipment
- Limited 5-Year Manufacturer Warranty
- Limited 25-Year Manufacturer Warranty (on 85% Output)
SPECIFICATIONS:

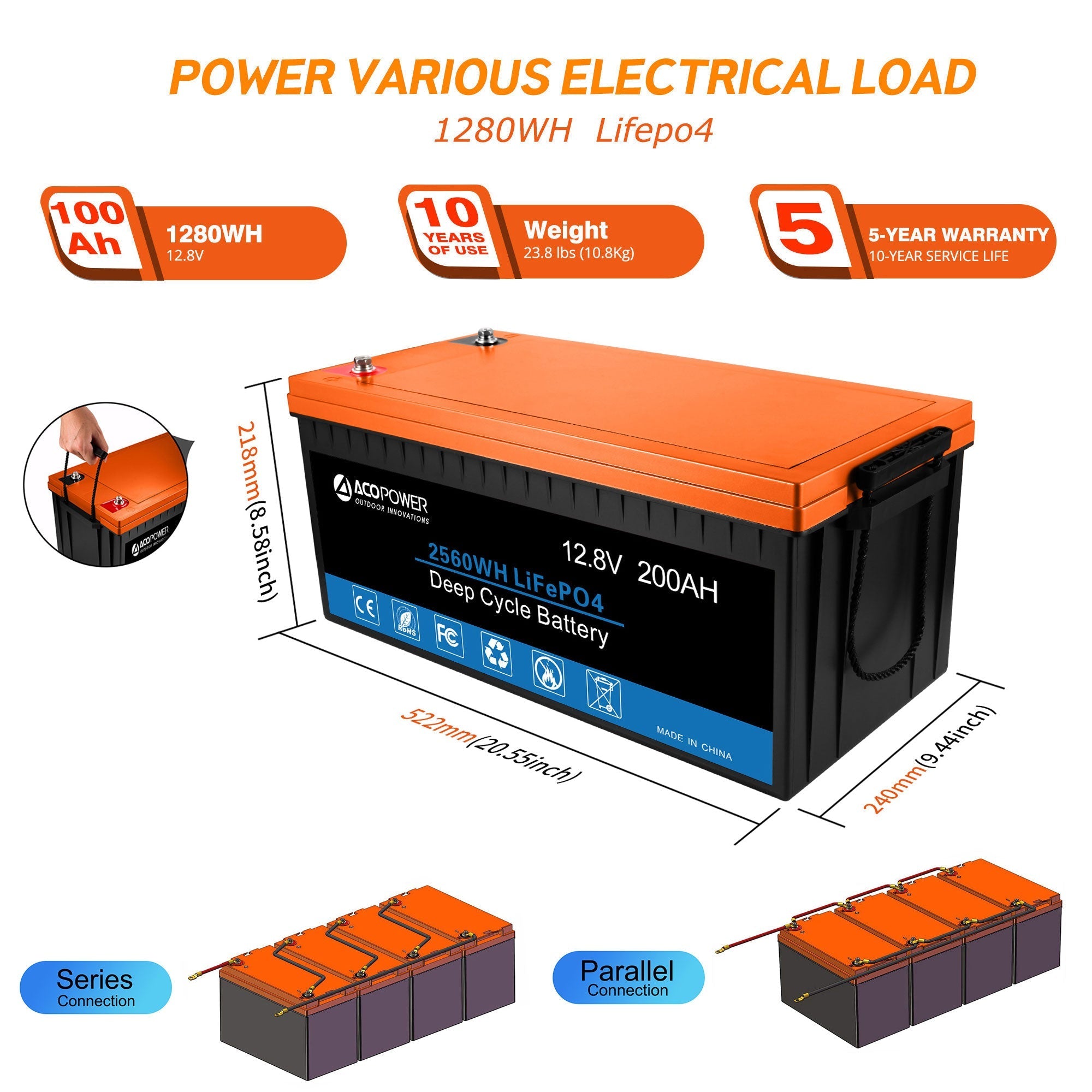

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated Voltage 12.8V
Charge Voltage: 14.2 - 14.6V
Battery Capacity:2560WH
Depth of Discharge (DoD): 100%
Standard Charge Current: 50A
Max Continuous Charge Current: 100A
Max Continuous Discharge Current: 200A
Dimension (inch):20.55 x 9.44 (W) x 8.58 (H) inch
Approx. Weight: 48.94lb
100W Mono Solar Panel
Peak Power (Pmax): 100W
Peak Circuit Voltage (Voc): 22.5V
Max Power Voltage (Vmp): 17.48V
Short Circuit Current (ISC): 6.14A
Max Power Current (Imp): 5.71A
Weight: 12.8 lb
Dimension: 40.2 x 20.1 x 1.4 Inch
3000W Pure Sine Wave Inverter
Continuous Output: 3000W
Surge Power: 6000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
Weight: 12.1lb
Dimension (inch): 18.23(D) x 9.53(W) x 4.65(H) inch

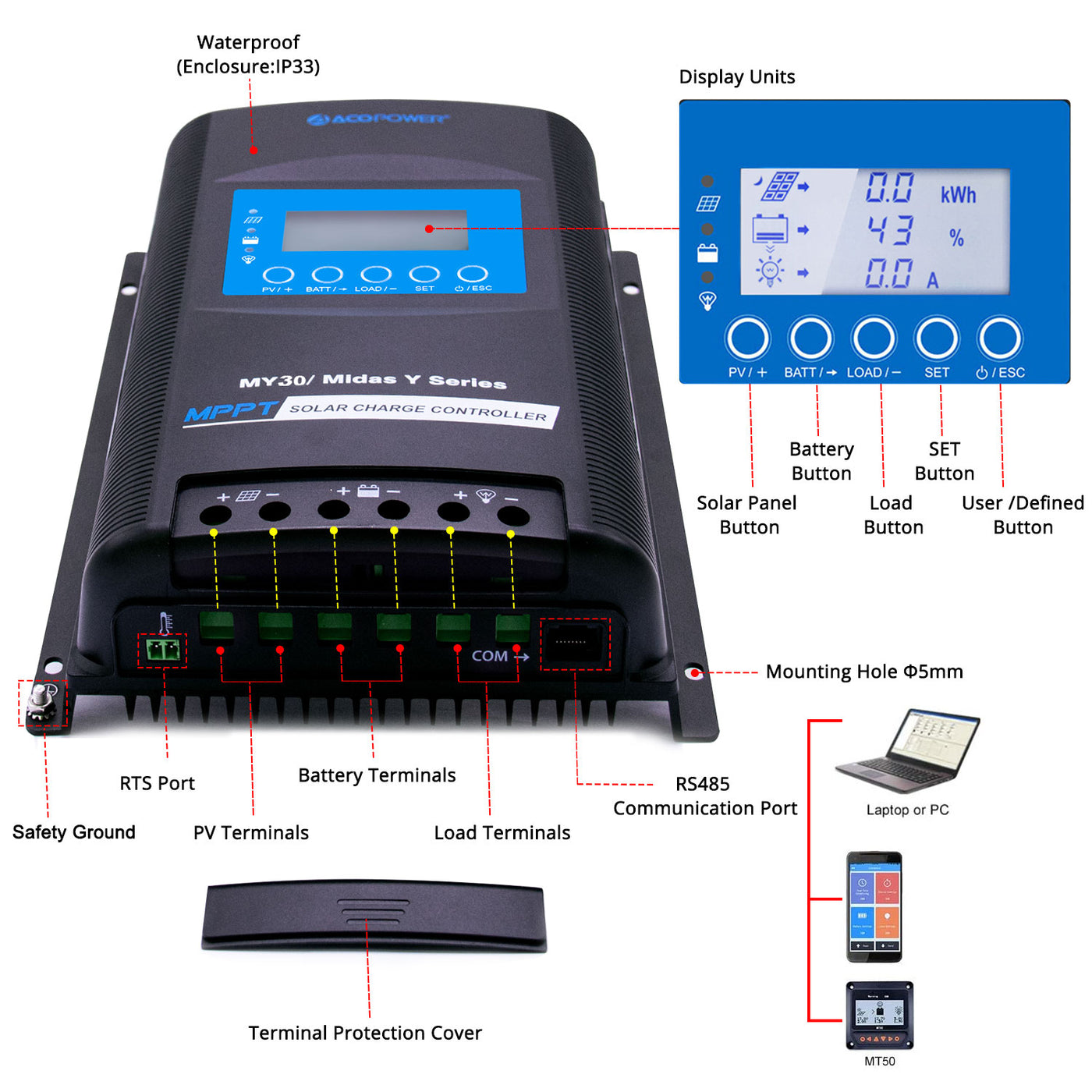

MPPT Solar Charge Controller 60A
Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W, 24V/1500W, 36V/2250W, 48V/3000W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. Lead acid batteries and lithium batteries.
WHAT'S IN THE BOX:
8 x Acopower 100-Watt Monocrystalline Solar Panel, 12V
1 x 60A MPPT Solar Charge Controller
2 x 200Ah LiFePO4 Deep Cycle Lithium Battery
1 x 3000W Power Inverter

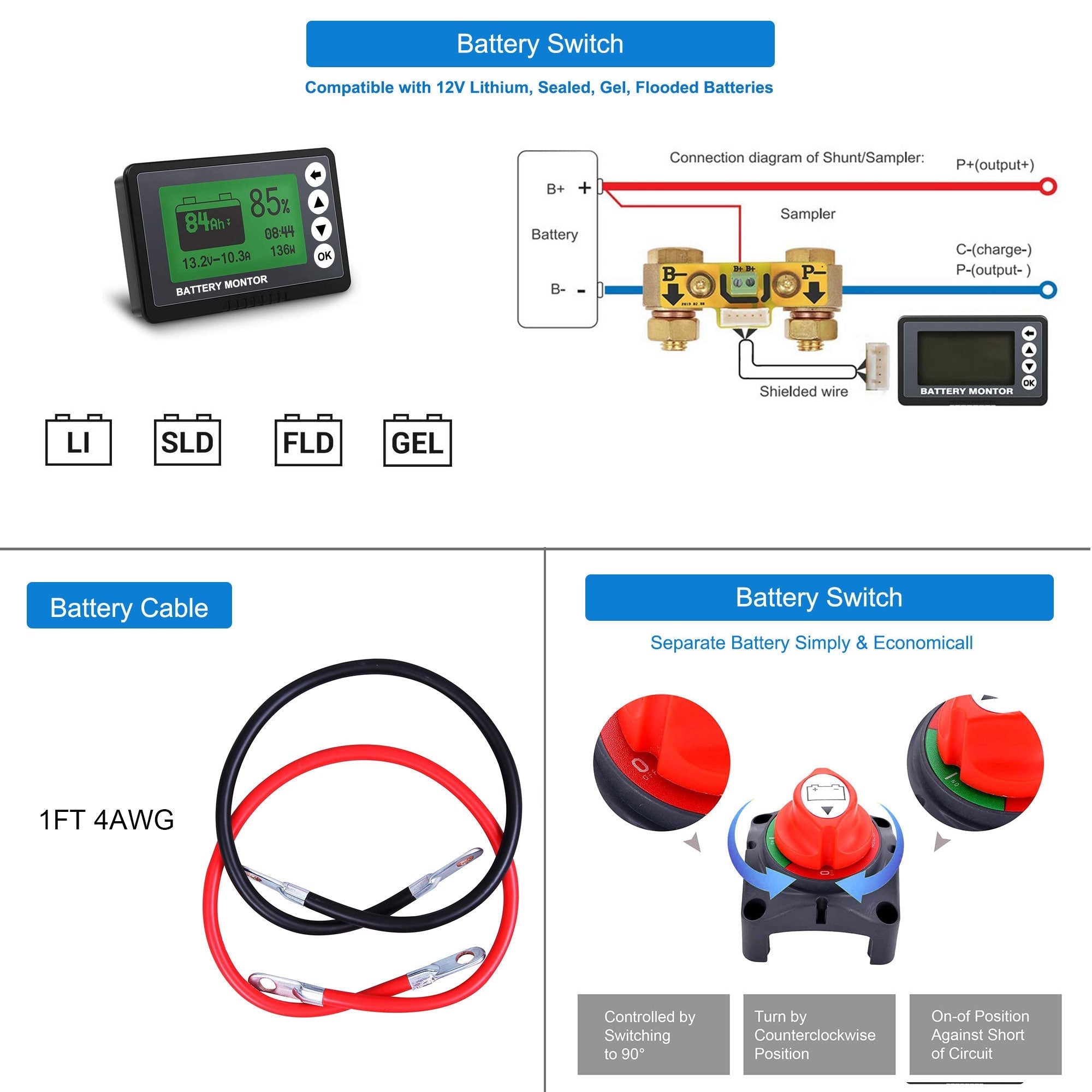

1 x Battery Monitor
1 x Battery Switch
1 x 10 AWG PV Cable (30')
3 x 4 AWG Battery Cable (1')
8 Sets x Z Bracket
2 Pairs x Battery Cable
All necessary cables
The Acopower 100W Portable Solar Power System is perfect for outdoor enthusiasts and those in need of emergency power backup. Whether you're camping, hiking, or on a road trip, this system provides clean and renewable energy. The folding solar panel is compact and lightweight, making it easy to carry and set up. The 100W monocrystalline solar panel harnesses the sun's power, while the mono400Ah/3kW lithium battery stores energy. The 3000W power inverter converts the stored energy into usable power. The system includes two 200Ah lithium batteries, eight 100W monocrystalline solar panels, a 60A MPPT solar charge controller, a 3000W power inverter, and all necessary cables. The 12V 200Ah LiFePO4 deep cycle lithium battery has a rated voltage of 12.8V, a charge voltage of 14.2 - 14.6V, a battery capacity of 2560WH, and a depth of discharge of 100%. It weighs approximately 48.94lb and has dimensions of 20.55 x 9.44 (W) x 8.58 (H) inches. The 100W mono solar panel has a peak power of 100W, a peak circuit voltage of 22.5V, a max power voltage of 17.48V, a short circuit current of 6.14A, a max power current of 5.71A, weighs 12.8 lb, and has dimensions of 40.2 x 20.1 x 1.4 inches. The 3000W pure sine wave inverter has a continuous output of 3000W, a surge power of 6000W, a pure sine wave form, and various protections. It weighs 12.1lb and has dimensions of 18.23(D) x 9.53(W) x 4.65(H) inches. The 60A MPPT solar charge controller has a rated charge current of 60A, a battery voltage range of 8V~68V, a max PV open circuit voltage of 150V, and a max PV input power depending on the voltage. It's compatible with various deep cycle battery options.
