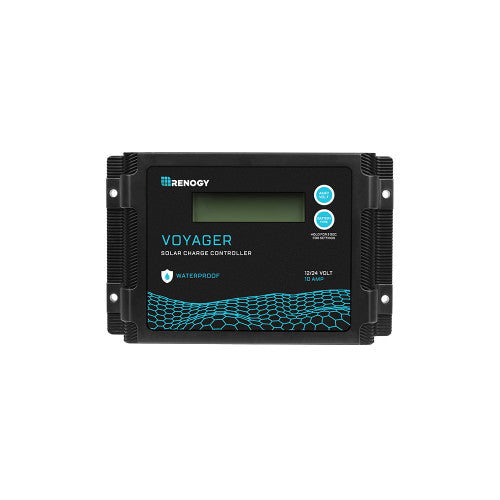

Renogy Voyager 10A PWM Waterproof Solar Charge Controller - Your Solar Energy Companion
Keep a close eye on your solar energy system's health with the Renogy Voyager 10A PWM Waterproof solar charge controller. It's a must-have for anyone relying on solar power! This controller is loaded with advanced PWM technology for 12V and 24V off-grid setups. It's compatible with 4 battery types, including Lithium. Get real-time info on your solar panels, battery, and control protections right on the back-lit LCD display. Make smart decisions for your solar energy system!
Highlights:
- • Auto-recognizes 12V/24V batteries (non-lithium)
- • Smart 4-stage PWM charging: Bulk, Absorption, Float, Equalization
- • Compatible with Sealed/AGM, Gel, Flooded, and Lithium batteries

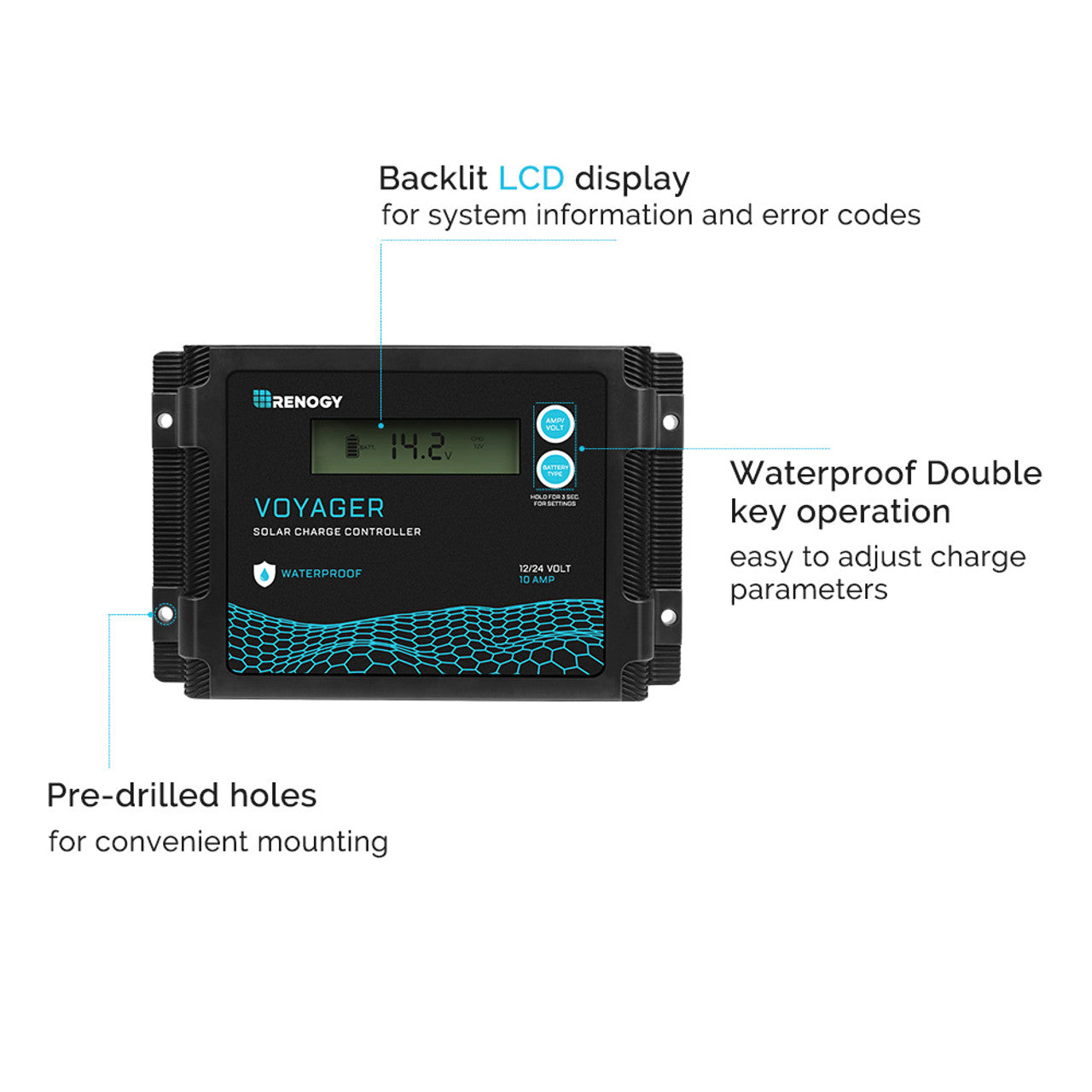

- • Bright backlit LCD shows system updates, including error codes

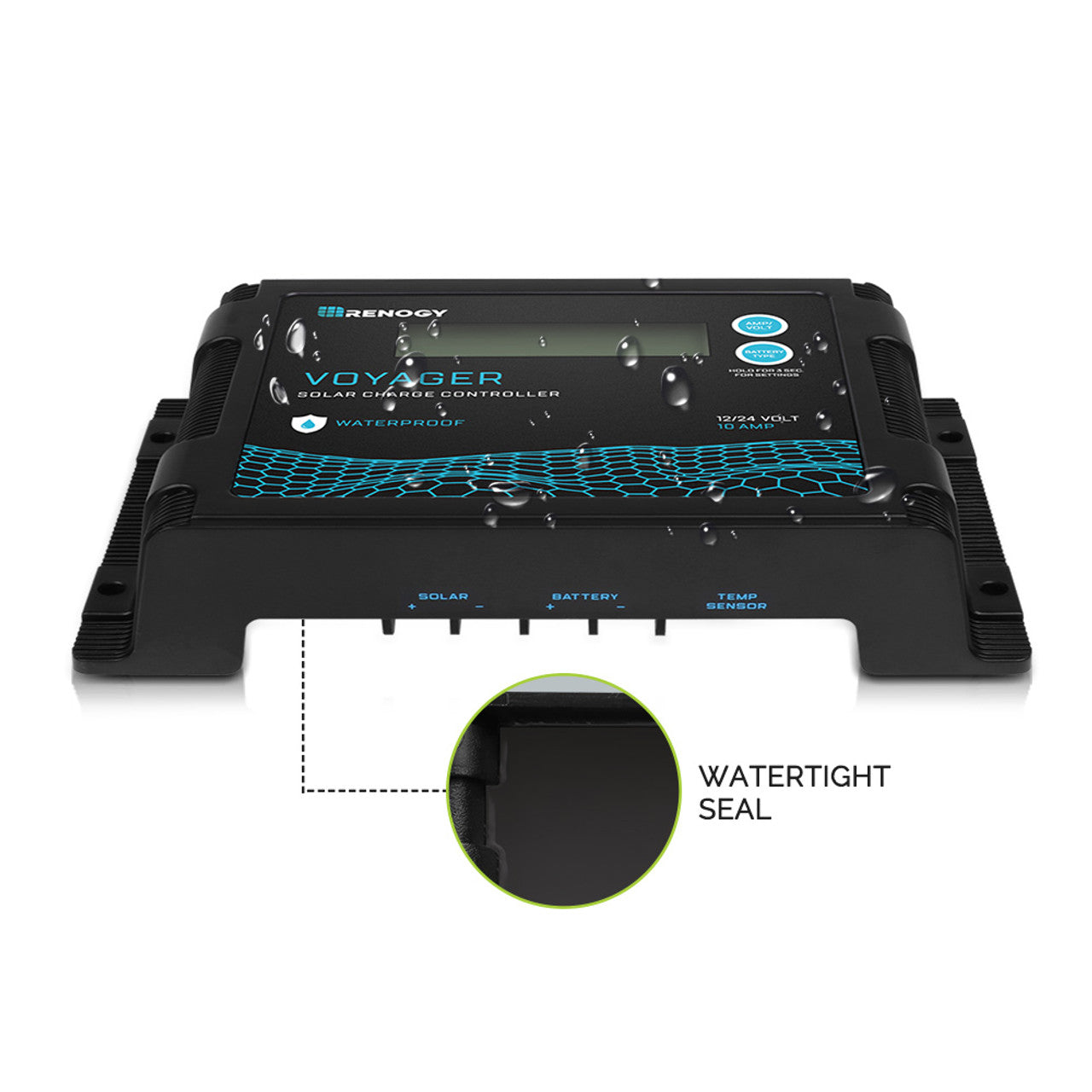

- • Waterproof design for worry-free use
- • Multiple protections for battery, controller, and solar panels, like reverse polarity
Specifications:
Nominal Voltage: 12V/24V
Rated Charge Current: 10A
LCD SCREEN: Yes
Max. PV Input Voltage: 55 VDC
Max. PV Power: 130W (12V) / 260W (24V)
Self-consumption: 0.22W (12V) / 0.72W (24V)
Temperature Compensation: -3mV/°C/2V, excludes LI
Operating Temperature: -31°F to 113°F
Storage Temperature: -31°F to 167°F
Enclosure: IP67

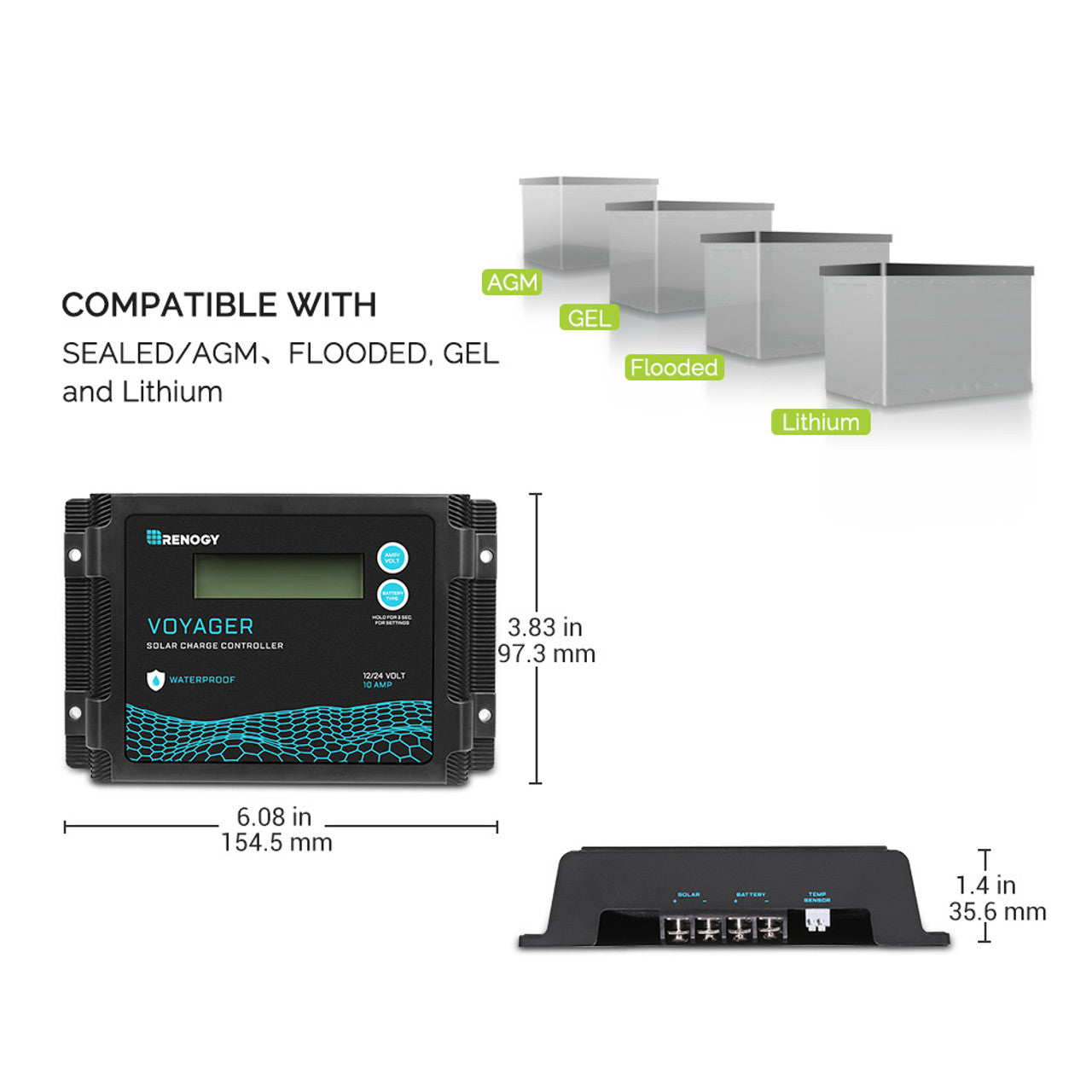

Dimensions: 6.08 x 3.83 x 1.40 inches
Terminals: 20-6 AWG, 2 pin connectors
Weight: 0.55 lbs
Grounding: Common Positive
Accessories: 2-year material warranty
Charge Controllers: Voyager
What's in the Box:
1 x New Edition Voyager 10A PWM Waterproof Solar Charge Controller
1 x User Manual
The Renogy Voyager 10A PWM Waterproof Solar Charge Controller is perfect for those using solar power in off-grid setups. Whether you're a DIY enthusiast or a professional, this controller helps you manage your solar energy system easily. With a compact size of 6.08 x 3.83 x 1.40 inches and weighing only 0.55 lbs, it's easy to install. It's compatible with 12V and 24V systems and works with multiple battery types. Keep track of your solar panels, battery, and get real-time info on system protections right on the back-lit LCD display.
