Specifications:
Acopower 100 Watts Poly Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40oC to 85oC

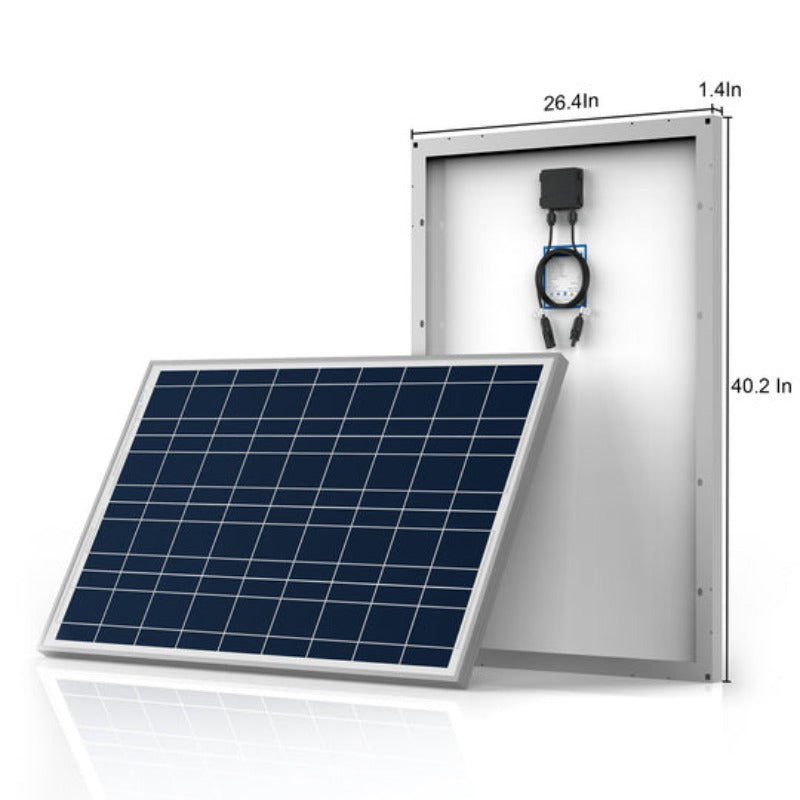

- Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
- Weight: 9.5kg / 20.6 lbs
Acopower 30 A MPPT Solar Charge Controller
- Nominal system voltage: 12/24V
- DC Auto Rated charge current: 30A
- Battery input voltage range: 8V - 2V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W, 24V/780W
- MPP voltage range: V(BAT+2V) - 2V
- Working environment temperature: -25°C to +50°C
- Storage temperature range: -35°C to +80°C
- Grounding: Common negative
- Communication: RS485
- Power Terminals: 6AWG(16mm2)
- Enclosure: IP30

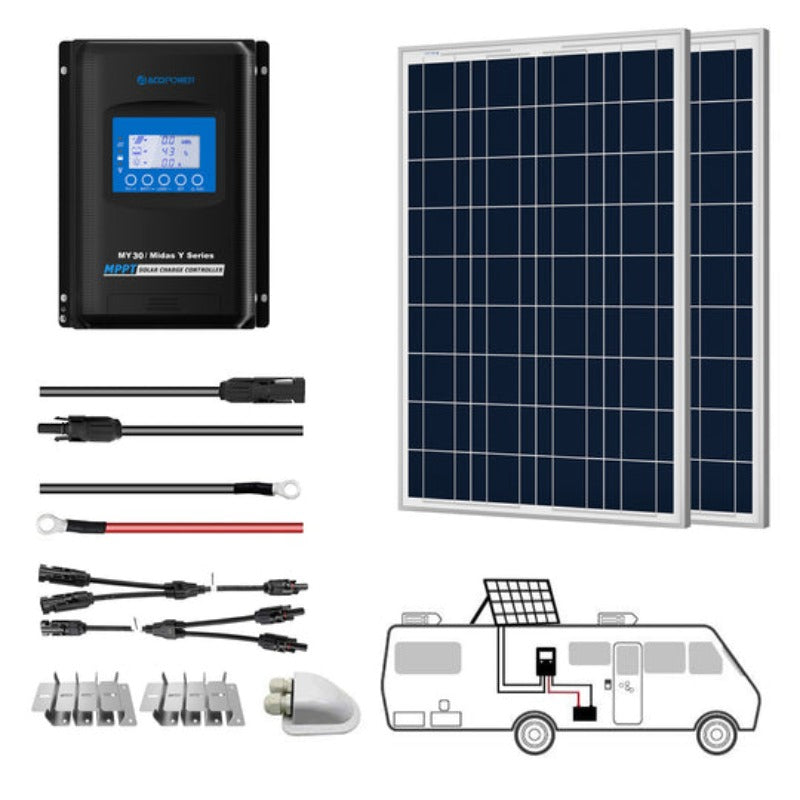

What's in the Box:
- 2 x 100W Polycrystalline Solar Panel
- 1 x 30A MPPT Charge Controller

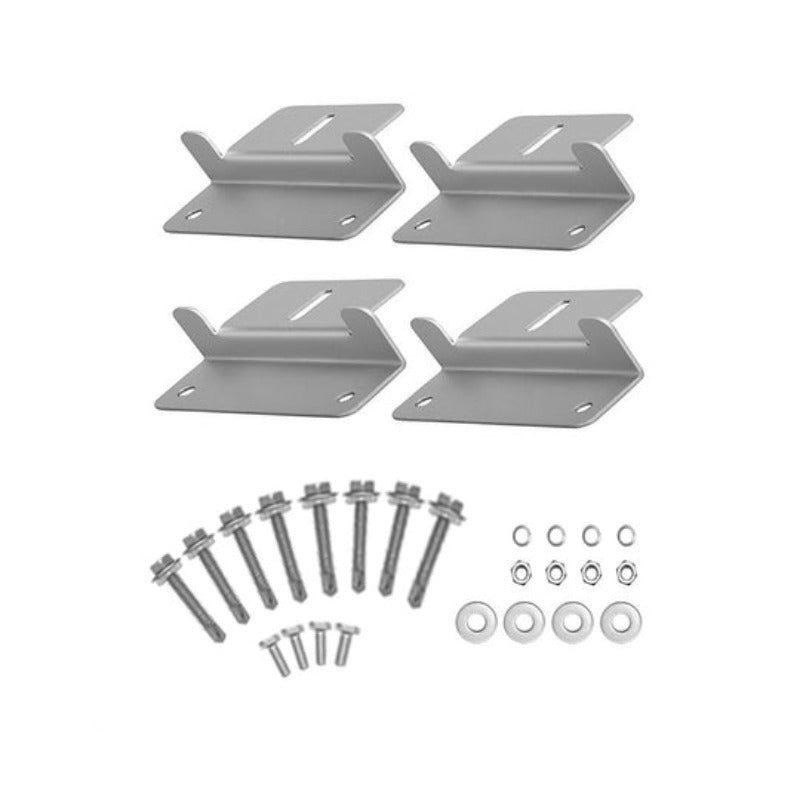

- 1 x Sets Mounting Z Bracket

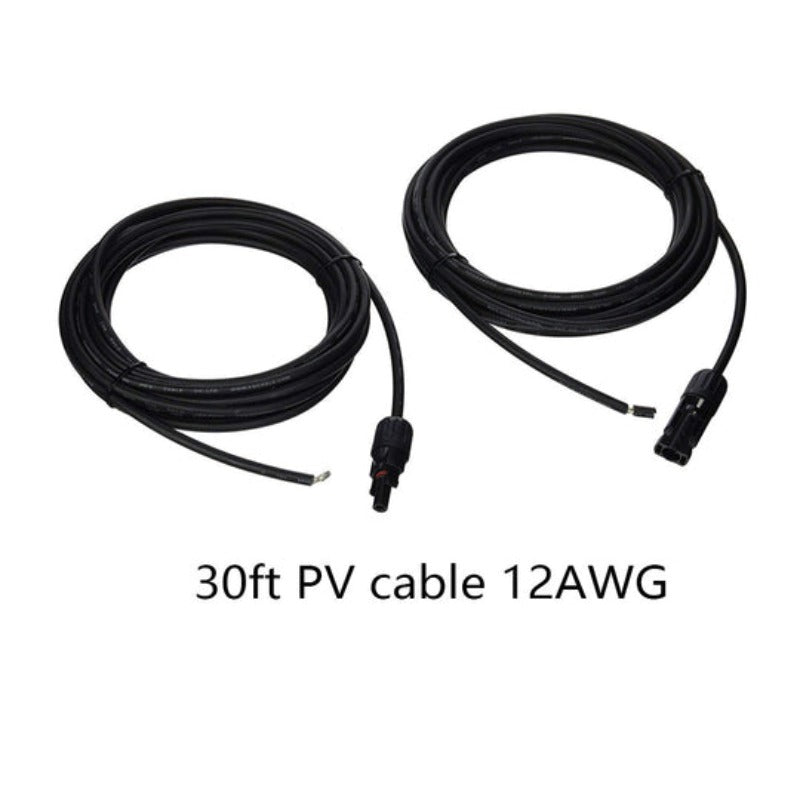

- 1 x 30ft 12AWG PV Cable

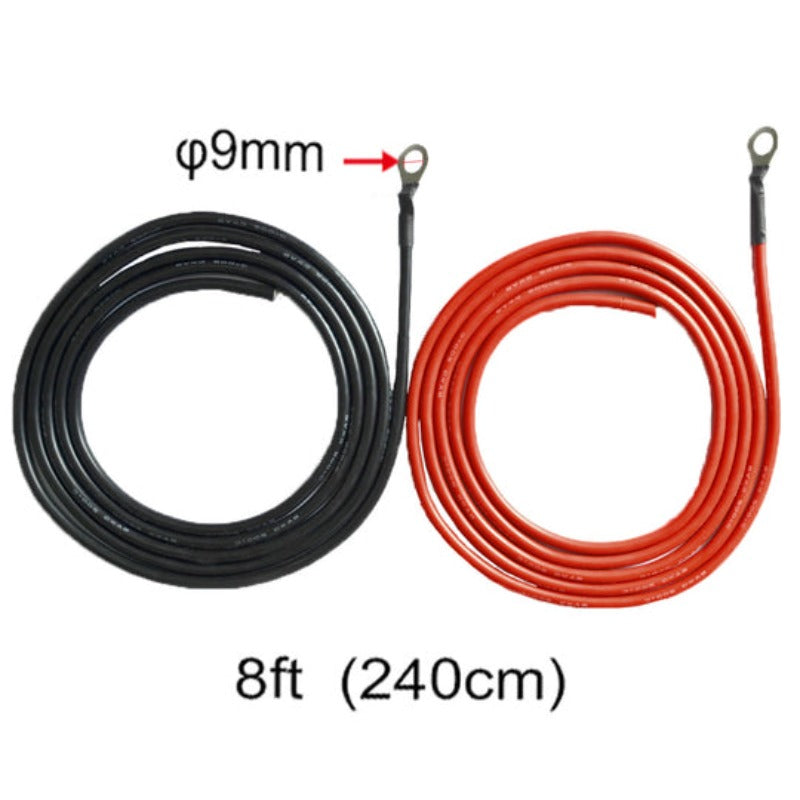

- 1 x 8FT 8AWG Tray Cable

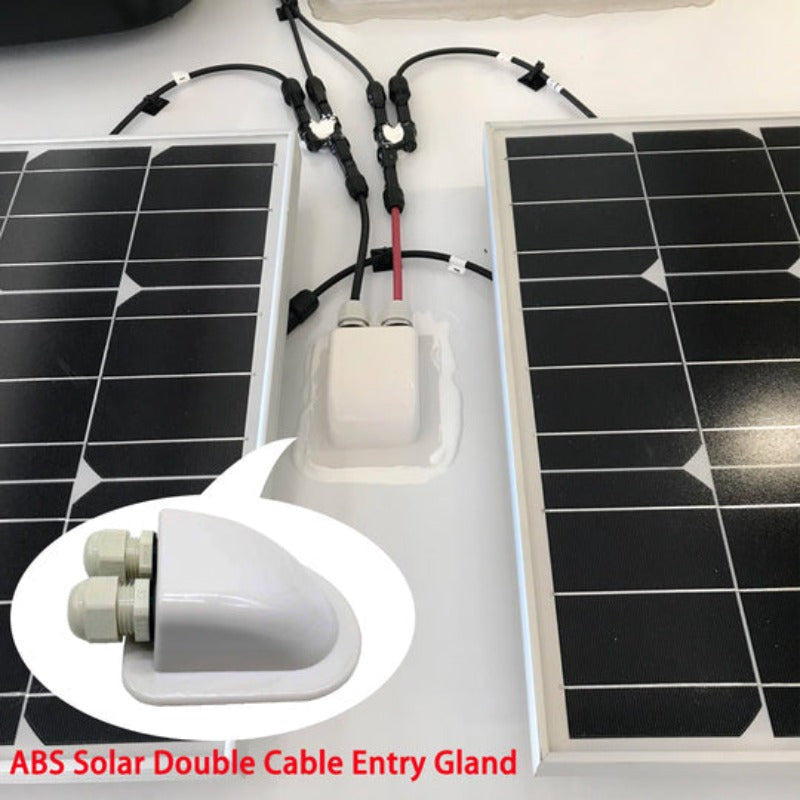

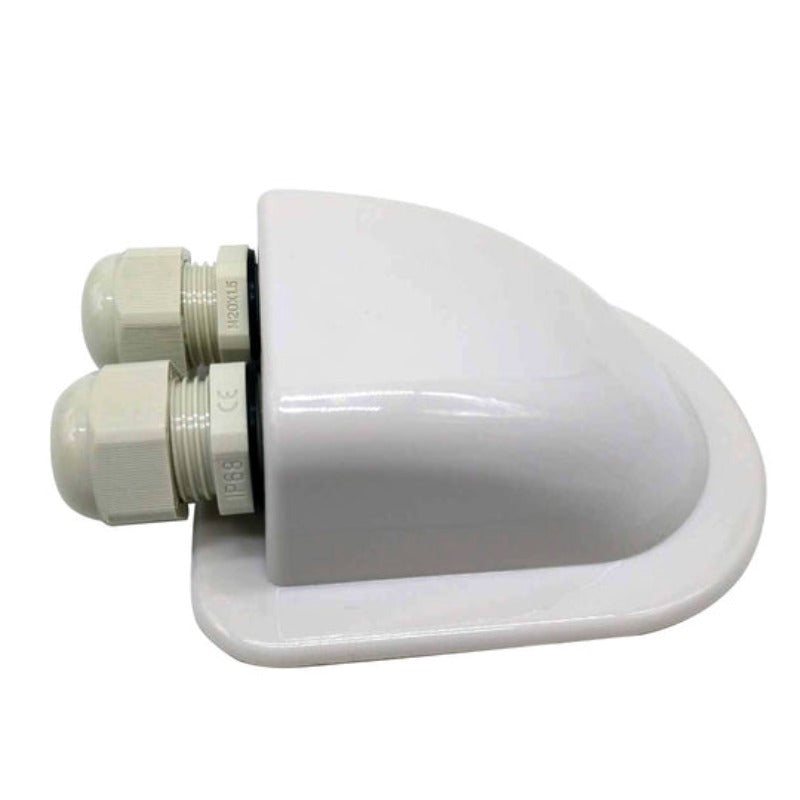

- 1 x Cable Entry Housing
- 1 x Pair PV T/Y Connectors
This ACOPower solar kit is perfect for adventurers who want a reliable power source on the go. Whether you're traveling in an RV, boat, or camper, this kit has you covered. The 200W kit includes two 100W polycrystalline solar panels, a 30A MPPT charge controller, and all the necessary wiring and mounting accessories. The solar panels are designed to be durable and easy to install on structures or vehicles, with a tempered glass front, EVA film layers, a TPT backsheet, and an anodized aluminum frame that can withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The charge controller is compatible with 12, 24, 36, or 48V batteries and has a tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. The kit also comes with a 3.2-foot, 16 AWG cable with male and female quick connectors for easy setup. The dimensions of the 100W solar panel are 1020x670x35mm / 40.2x26.4x1.4 in, and it weighs 9.5kg / 20.6 lbs. The charge controller has a nominal system voltage of 12/24V, a DC auto-rated charge current of 30A, and a working environment temperature range of -25°C to +50°C.
