Power Your Life Off-Grid with Ease!
Our Lithium Battery Mono Solar Power Complete System is a game-changer for those seeking sustainable energy solutions. Here's why:
- All-in-One Kit: Comes with a 1500W Pure Sine Wave Inverter, advanced MPPT Controller, and high-capacity Li-Battery Packs. Everything you need for off-grid solar power in one convenient package.

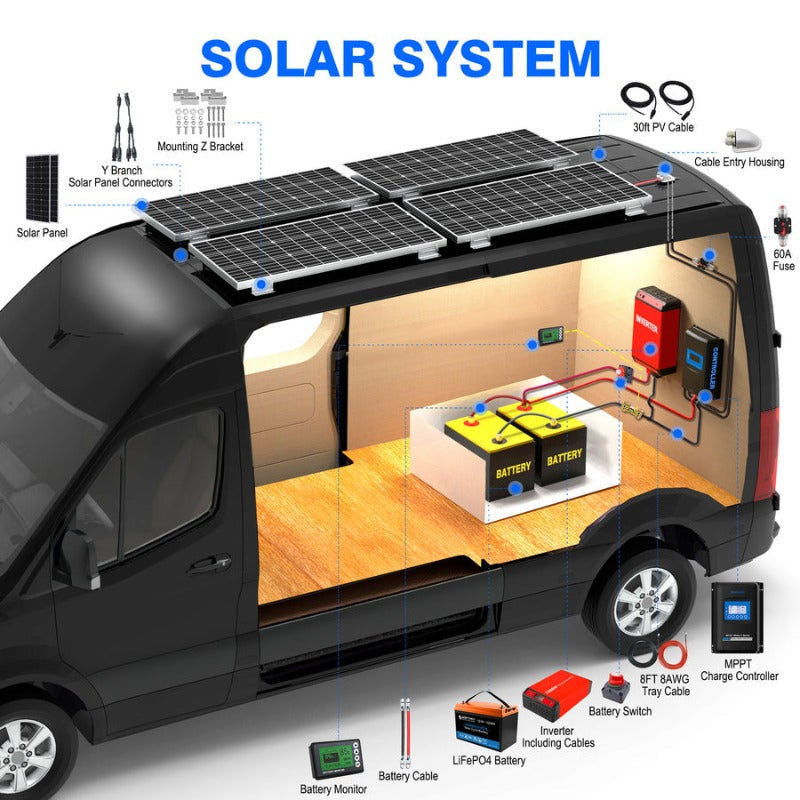

- Wide Application: Ideal for RVs, cabins, homes, boats, and as a reliable backup for remote areas. Whether you're on the road or in a secluded spot, stay powered up.
- High Efficiency: The MPPT Controller has a peak conversion efficiency of 98% and a tracking efficiency of 99%. The 4-stage battery charging process ensures fast, efficient, and secure charging.
Plus, with easy installation and all the necessary tools included, you can start your sustainable energy journey right away. Say goodbye to power outages and hello to clean, renewable energy!
Technical Specifications

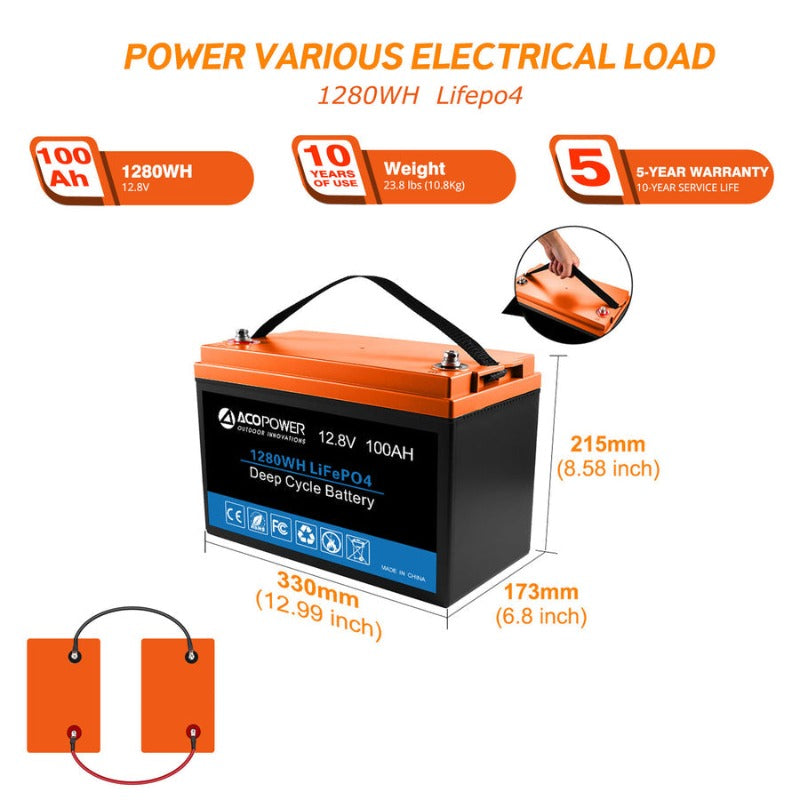

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb
12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

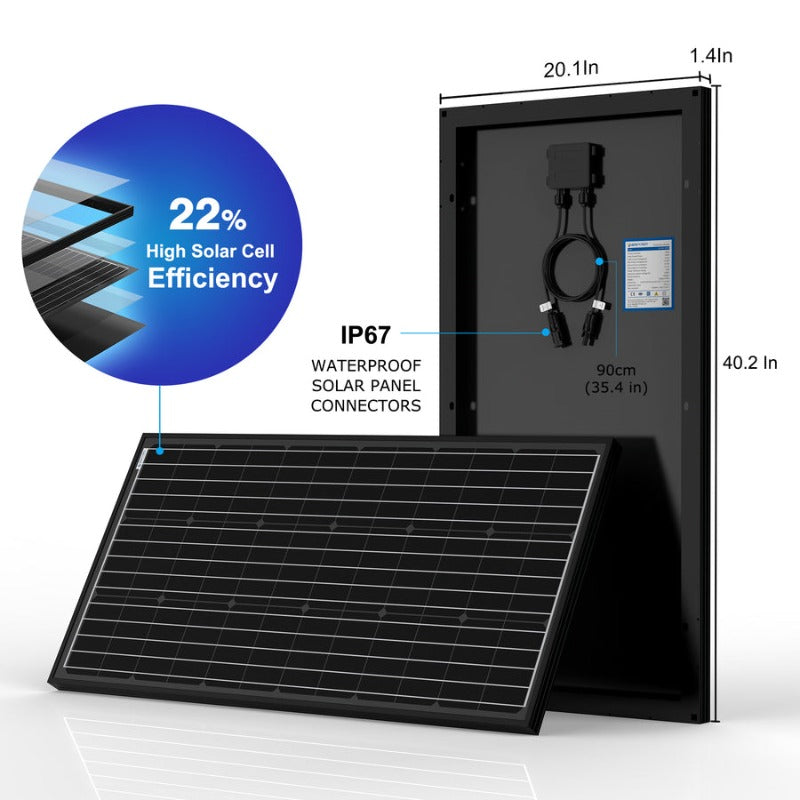

100W Mono Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22.5V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A

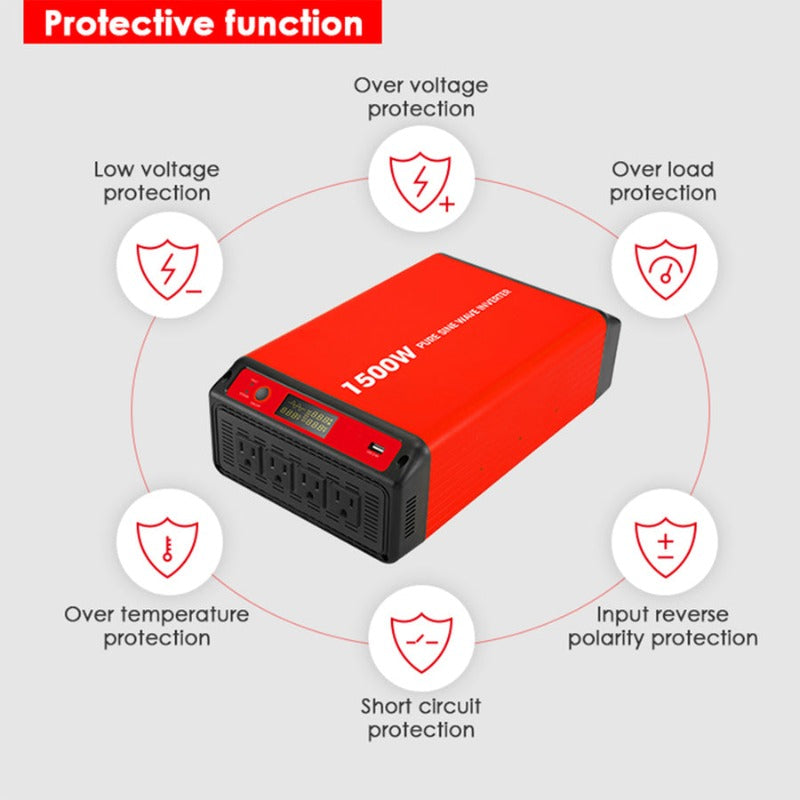

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

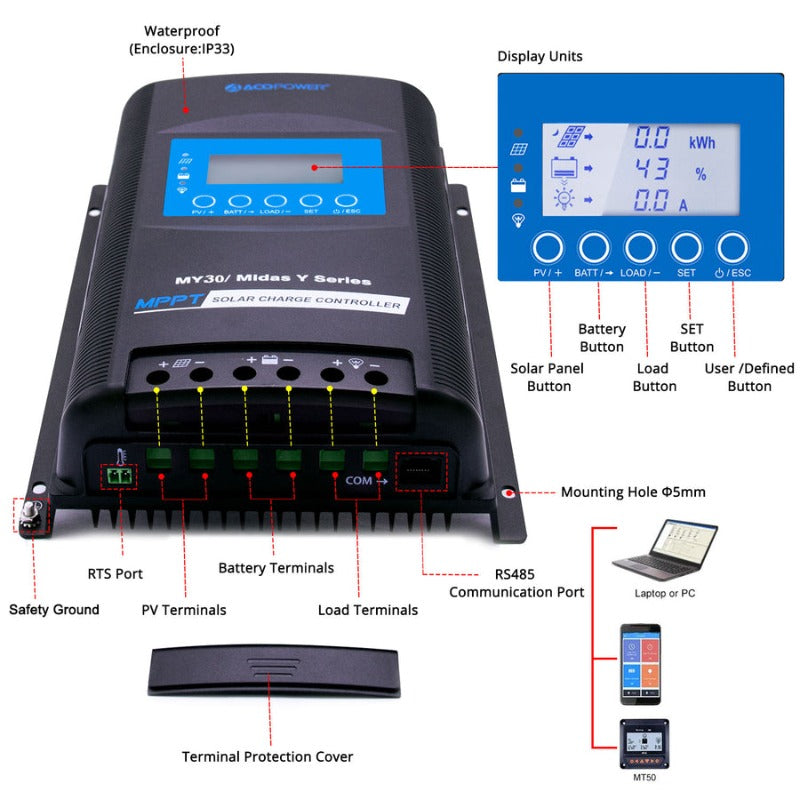

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 50A
- Rated charge current: 50A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
- Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W

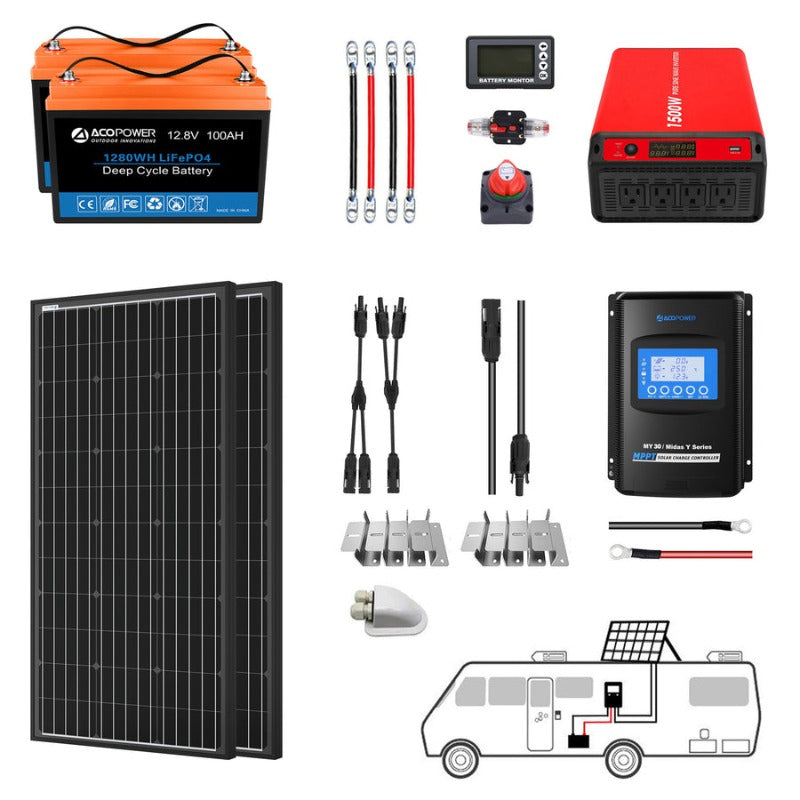

What's in the Box:
2 x Battery 100h
2 x Solar Panel 100W
1 x Inverter 1.5kw
1 x Charge Controller 30A
1 x Monitor
1 x Switch
1 x Fuse 60A
3 x Sets Z Brackets
2 x Battery Cable
This Acopower 1500W Lithium Battery Mono Solar Power Complete System is perfect for those looking to go off-grid. It's great for RVs, cabins, homes, and boats. The system comes with a 1500W Pure Sine Wave Inverter, an advanced MPPT Controller, and high-capacity Li-Battery Packs. The 12V 100Ah LiFePO4 Deep Cycle Lithium Battery weighs 23.8lb and has dimensions of 12.99 x 6.81 (W) x 8.58 (H) inch. The 12V 200Ah LiFePO4 Deep Cycle Lithium Battery weighs 48.94lb and has dimensions of 20.55 x 9.44 (W) x 8.58 (H) inch. The 100W Mono Solar Panel weighs 12.8lb and has dimensions of 40.2*20.1*1.4 Inch.
