Acopower 200W Solar Kit for Outdoor Adventures
Light up your outdoor adventures with the Acopower 200W Solar Kit! Whether you're camping under the stars, exploring the backcountry, or living off the grid, this kit is your ultimate power solution.
• Harnesses solar energy for clean, sustainable power
• Features a 30A MPPT charge controller for maximum efficiency
• Easy to set up and use, with a plug-and-play design
With multiple built-in protection features and compatibility with a wide range of batteries, this kit is as safe as it is reliable. Invest in the Acopower 200W Solar Kit today and never be left in the dark again!
- High efficiency solar panel
- 30A MPPT charge controller
- Multiple built-in protection features
- Compatible with lead acid, AGM, gel, and lithium batteries
- Easy to set up and use
SPECIFICATIONS:
Acopower 100 Watts Poly Solar Panel
Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.21A
Maximum Operating Current (Imp): 5.72A
Operating Temperature: -40oC to 85oC
Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
Weight: 9.5kg / 20.6 lbs

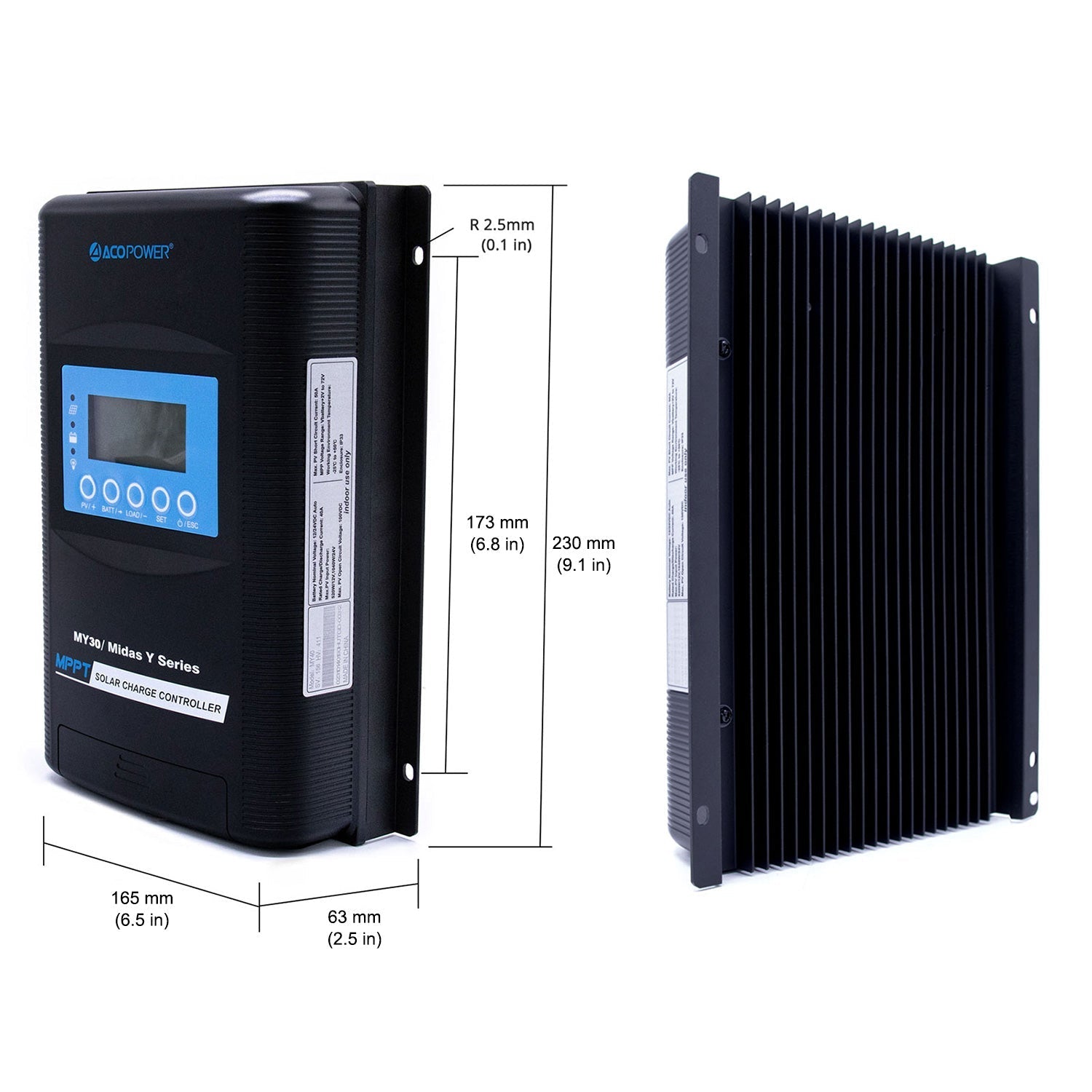

Acopower 30A MPPT Solar Charge Controller
Nominal System Voltage: 12/24V
DC Auto Rated Charge Current: 30A
Battery Input Voltage Range: 8V - 2V
Max.PV Open Circuit Voltage: 100VDC
Max.PV Input Power: 12V/390W, 24V/780W
MPP Voltage Range: V(BAT+2V) - 2V
Working Environment Temperature: -25°C to +50°C
Storage Temperature Range: -35°C to +80°C
Grounding: Common Negative
Communication: RS485
Power Terminals: 6AWG (16mm2)
Enclosure: IP30

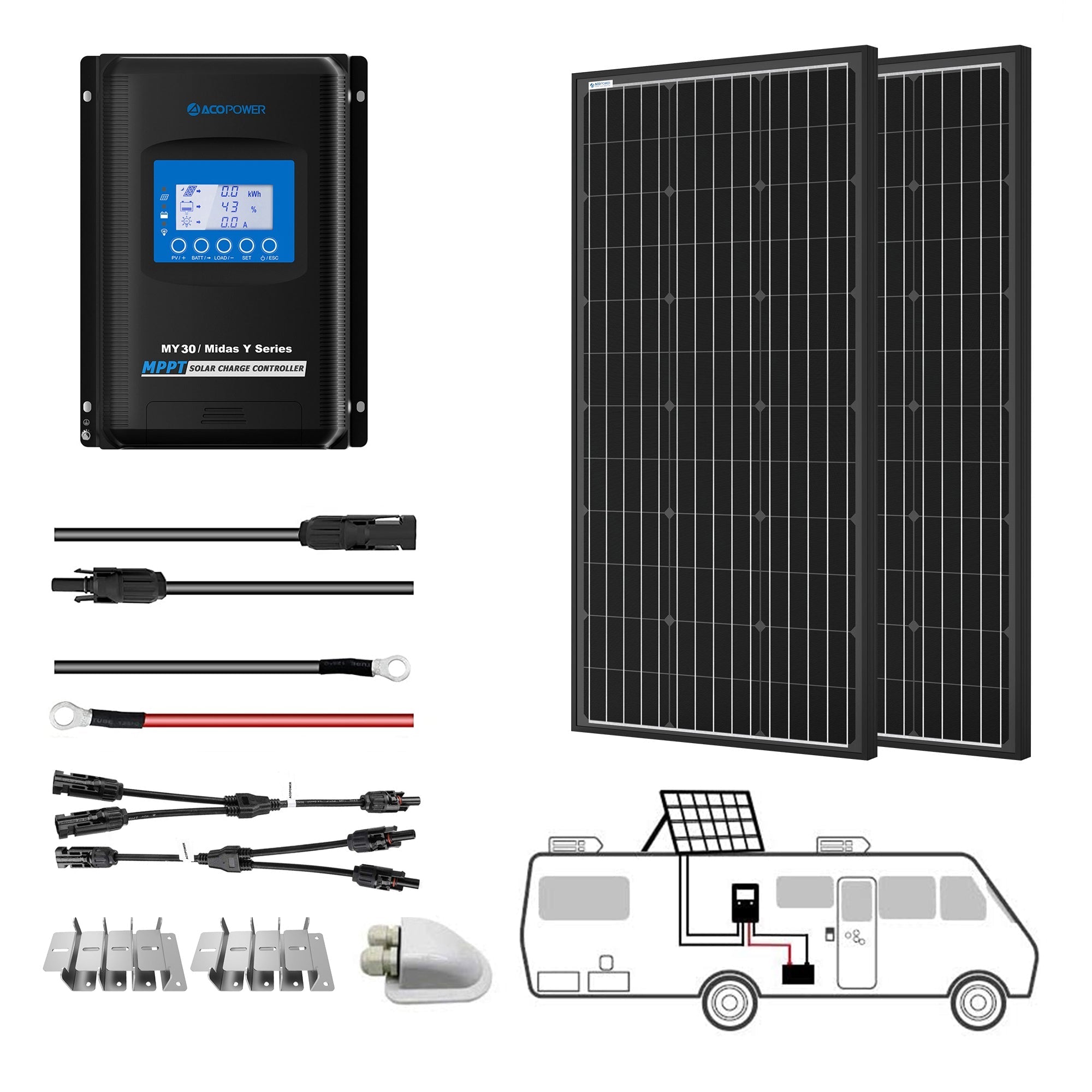

WHAT'S IN THE BOX:
2 x 100W Solar Panel
1 x 30A PWM Charge Controller
1 x 30ft 12AWG PV Cable
1 x 8FT 8AWG Tray Cable

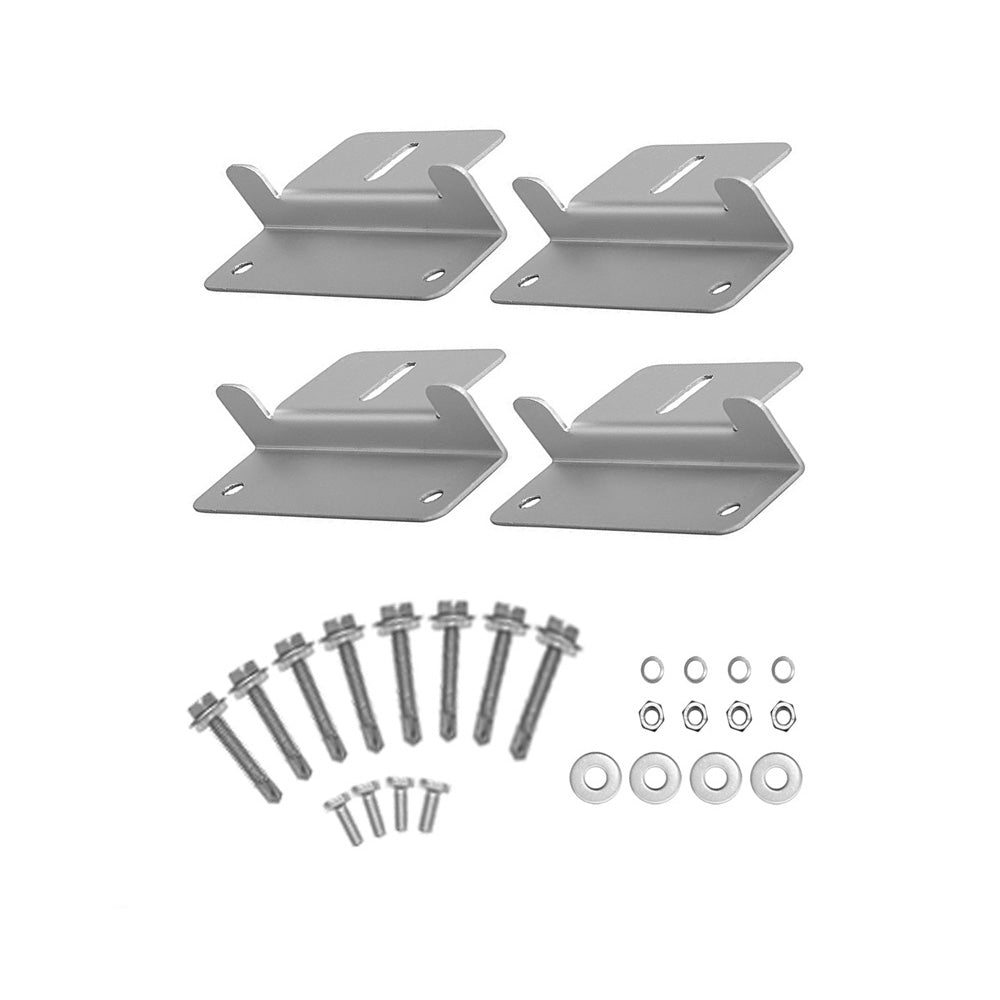

2 Sets x Mounting Z Brackets
1 x Cable Entry Housing

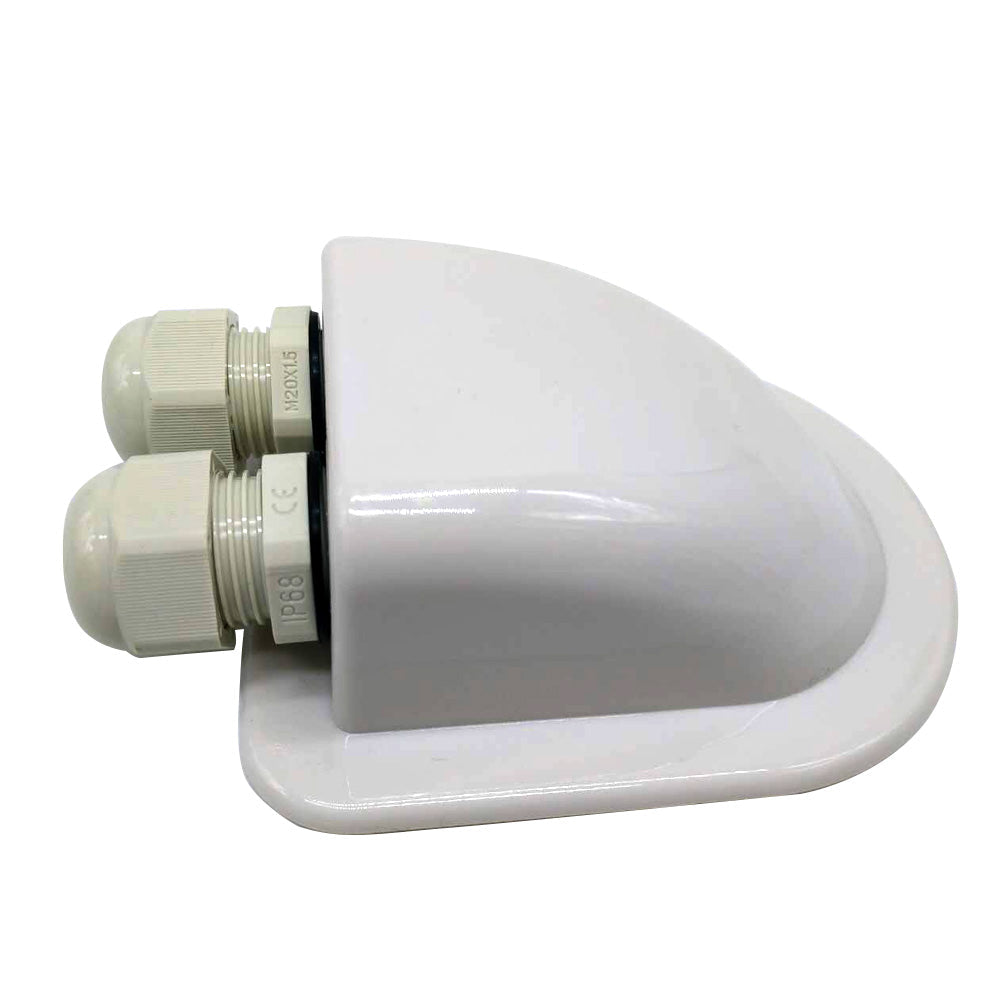

1 x Acopower Waterproof Cable Entry Gland Box

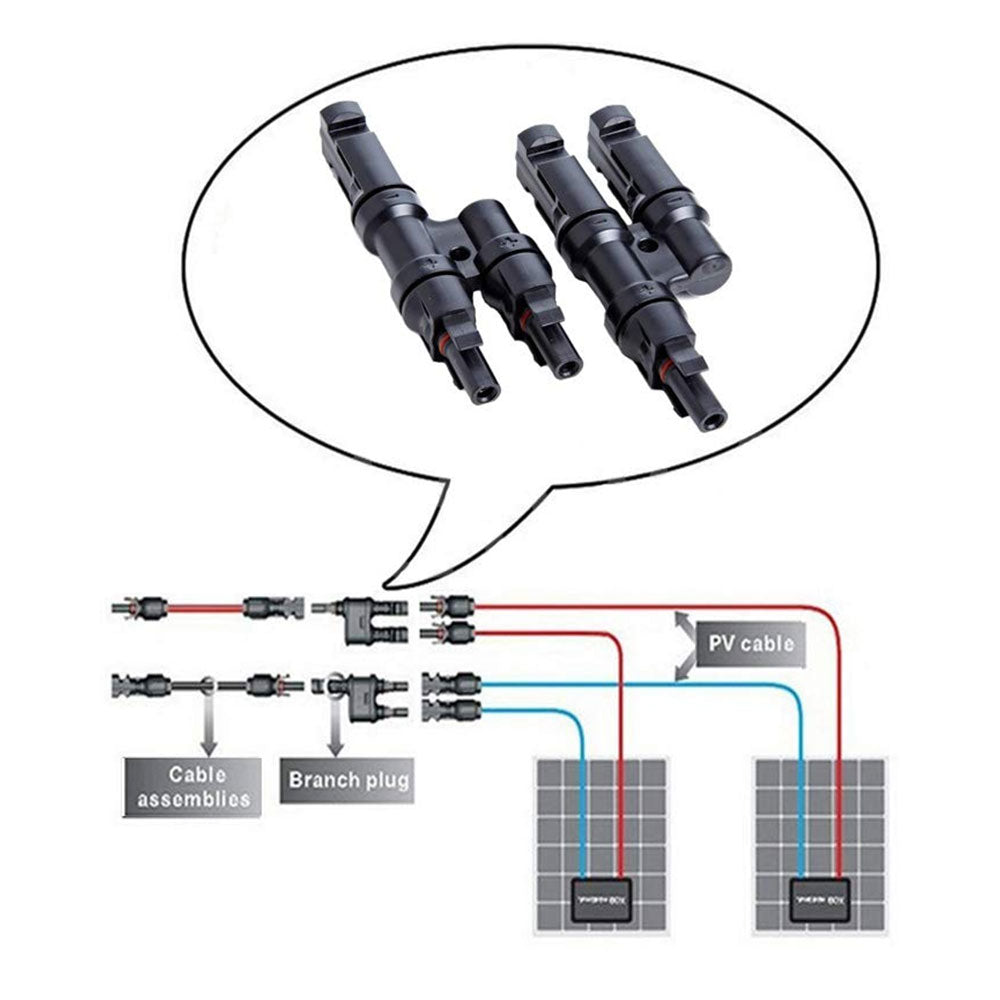

1 Pair x Y4 Branch Solar Panel Connectors
The Acopower 200W Solar Kit is perfect for outdoor enthusiasts who love camping, hiking, or exploring remote areas. It's designed to provide clean, sustainable power wherever you go. The kit includes a 200-watt solar panel and a 30A MPPT charge controller. The solar panel measures 1020x670x35mm (40.2x26.4x1.4 in) and weighs 9.5kg (20.6 lbs). It can operate in temperatures ranging from -40oC to 85oC. The charge controller has a nominal system voltage of 12/24V, a DC auto-rated charge current of 30A, and can handle battery input voltage ranges from 8V to 2V. It has a working environment temperature of -25°C to +50°C and a storage temperature range of -35°C to +80°C.
