Overview
Summary

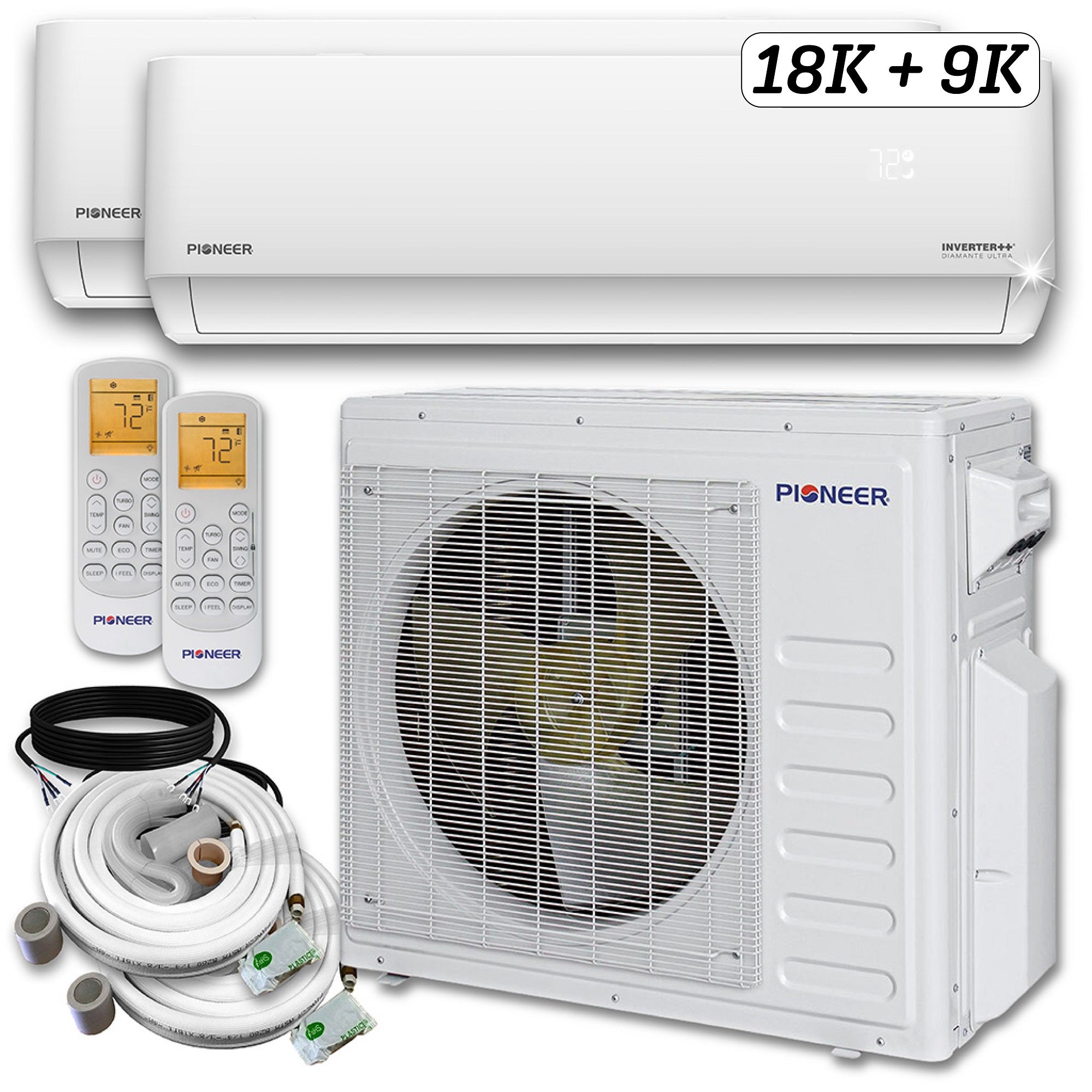

The Pioneer brand multi split heat pump system is a complete set that's perfect for both pros and homeowners. It comes with everything you need, including one multi zone outdoor unit, multiple wall mount indoor units, piping and accessory kits, and remote controllers. Choose from 4 versions for 2, 3, or 4 zones.
- • Ultra-efficient and reliable for year-round comfort
- • Wi-Fi enabled for easy control from your phone
- • Energy-Star certified for savings and eco-friendliness
- • (x2) inside unit cooling capacity: 18,000 BTU/H + 9,000 BTU/H nominal capacity, condensing system 24,000 BTU/H (Range: 7,200 minimum - 26,400 maximum) with 22 SEER/12.5 EER efficiency
- • Heating capacity: 26,000 BTU/H nominal (range 7,800 minimum - 28,600 maximum) with 10 HSPF/3.5 COP efficiency
- • Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)

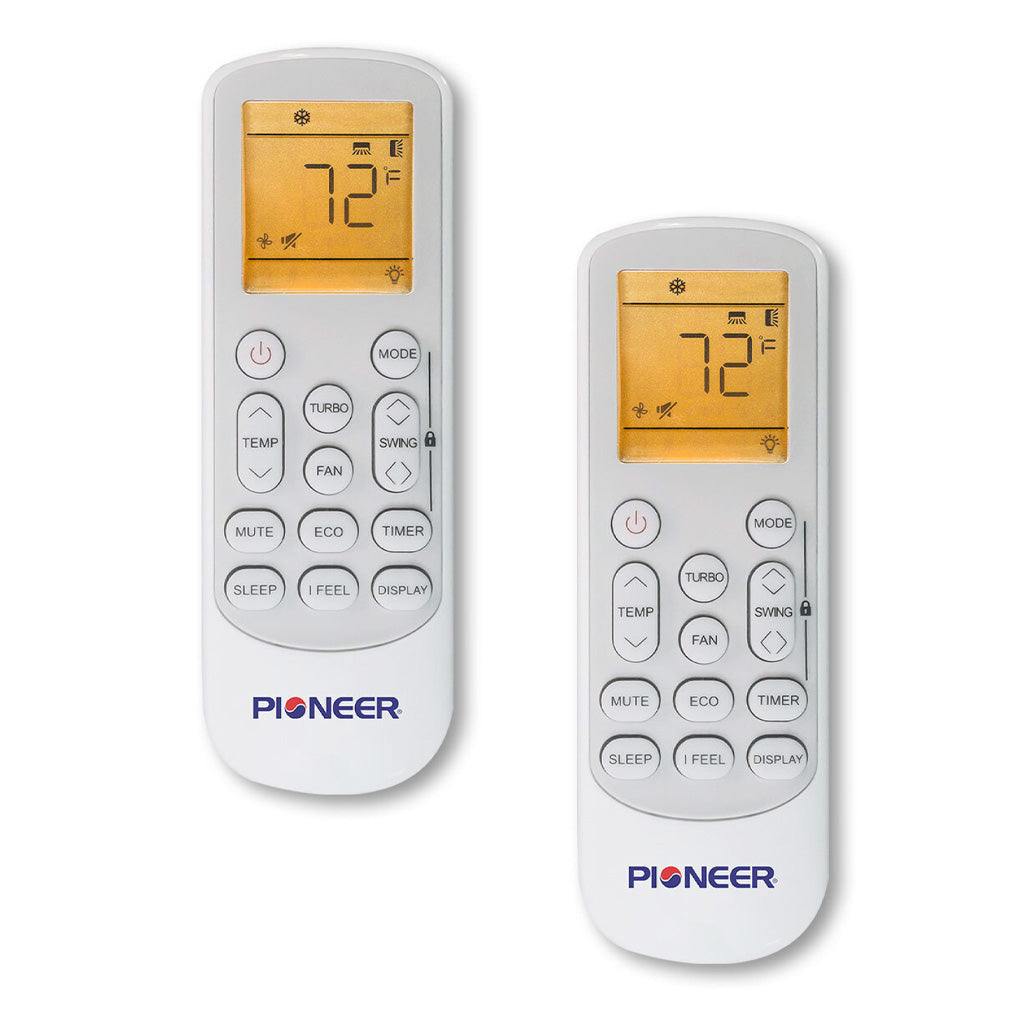

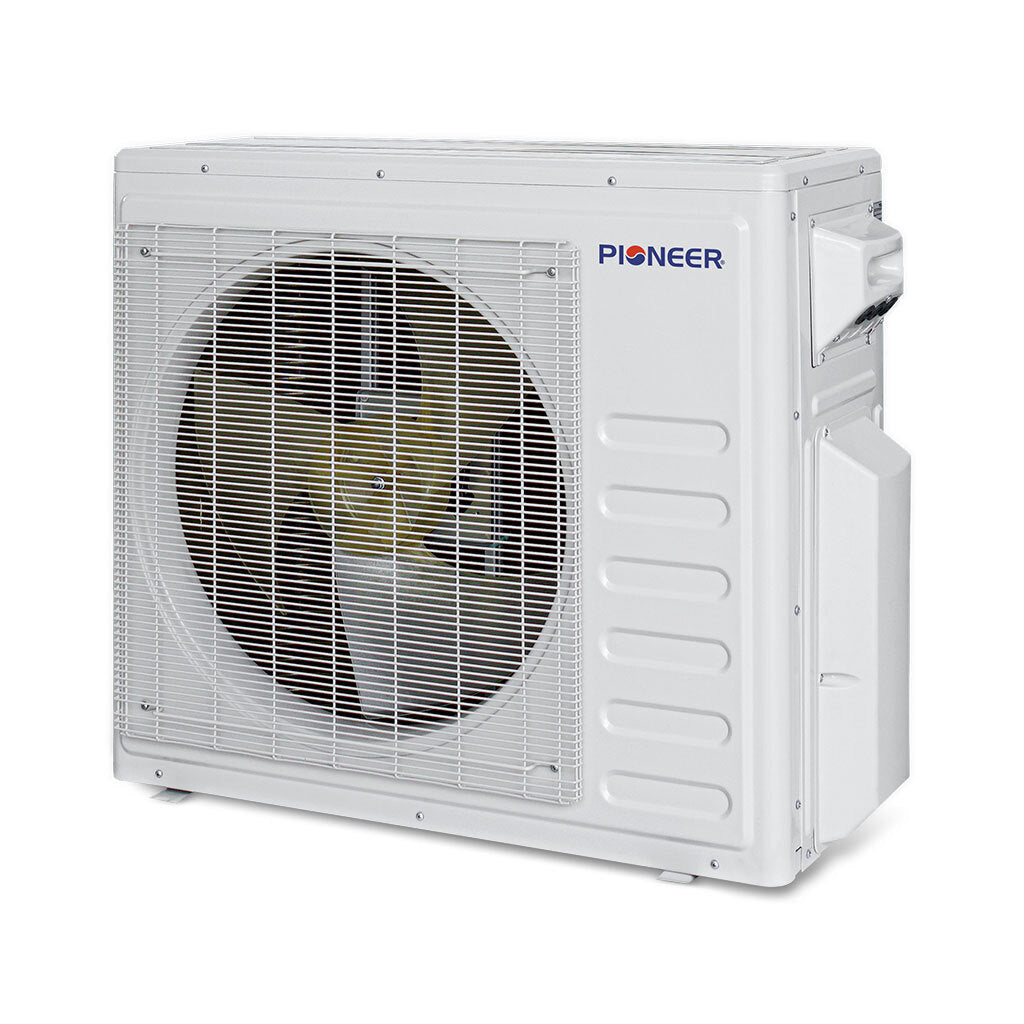

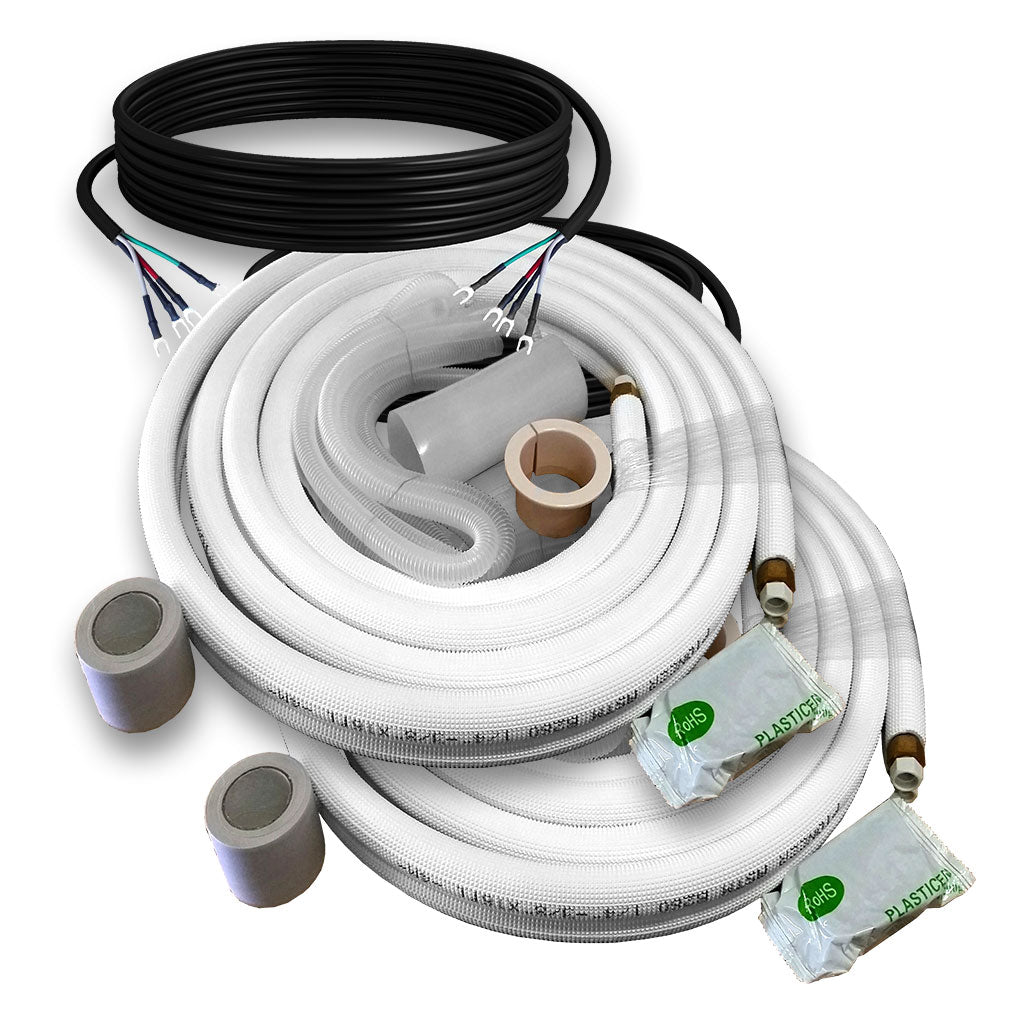

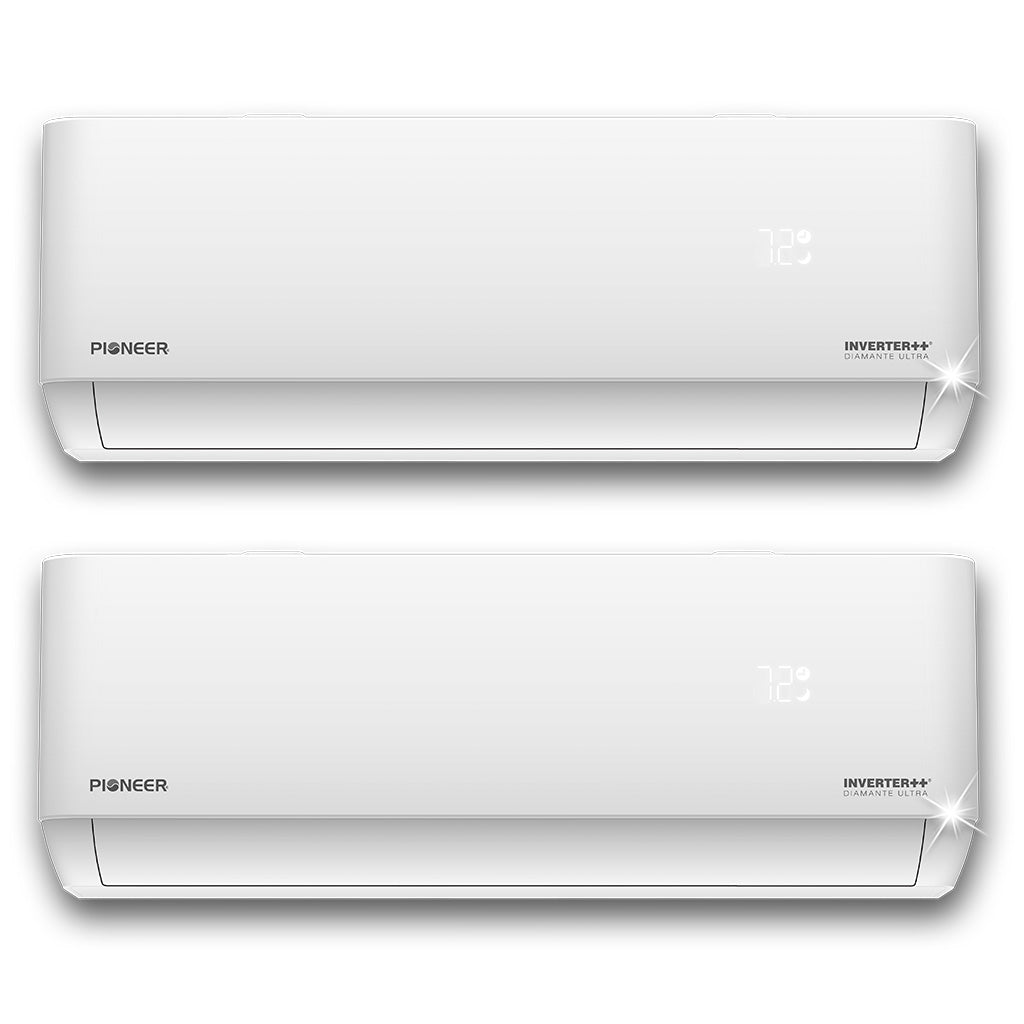

- • Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- • Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- • Low ambient system can heat with high capacity at -4°F ambient outdoor temperatures
- • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- • Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
Outdoor Unit Manuals
- Technical Brochure
- Submittal Sheet
- Installation Manual (Multi-Split Addendum)
- Service Manual
- AHRI Certificate
- Energy Guide
This air conditioner heat pump is perfect for homeowners and professionals looking to cool and heat multiple zones. With a 27000 BTU capacity and 2.25-ton size, it's suitable for medium-sized spaces. It operates on 230 volts and features Wi-Fi connectivity for easy control. The system includes an outdoor unit, multiple indoor units, piping, accessories, and a remote controller. It's Energy-Star certified for efficiency and comes with excellent support.
