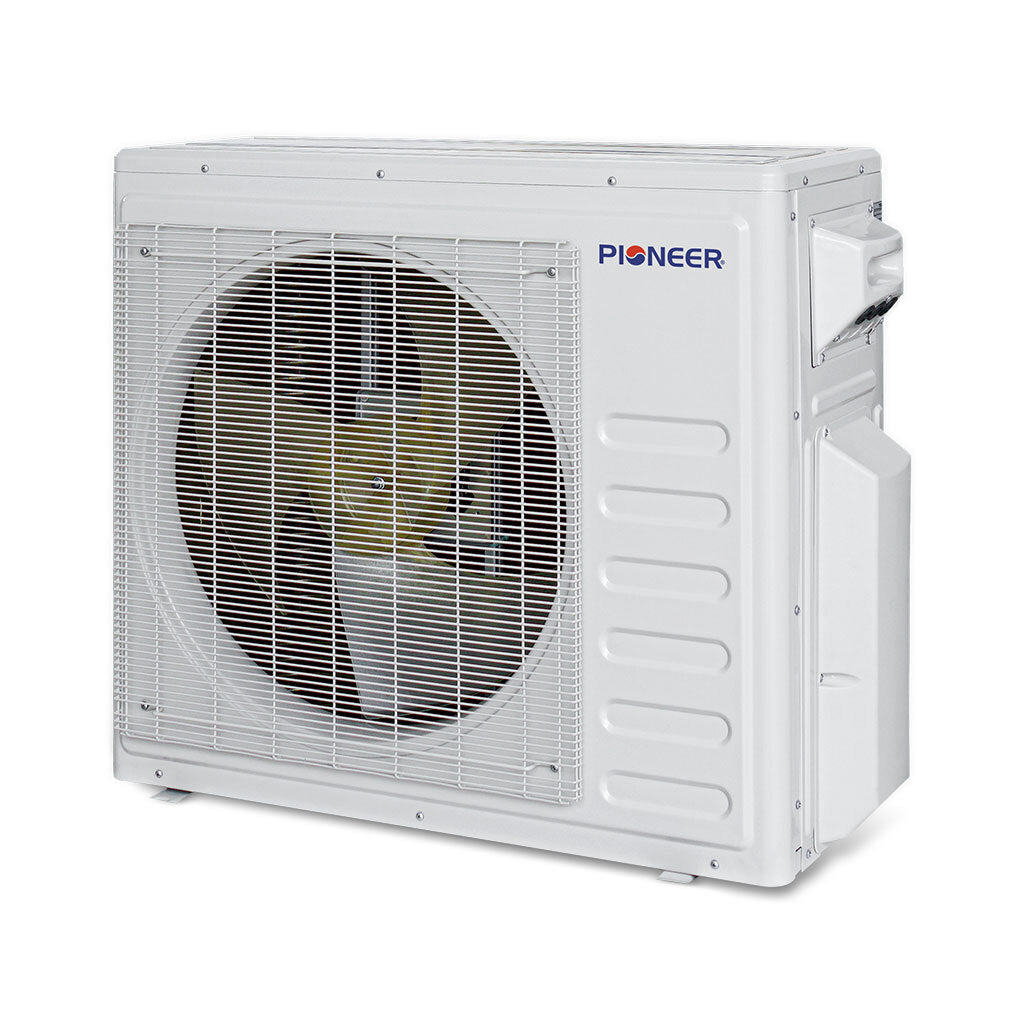

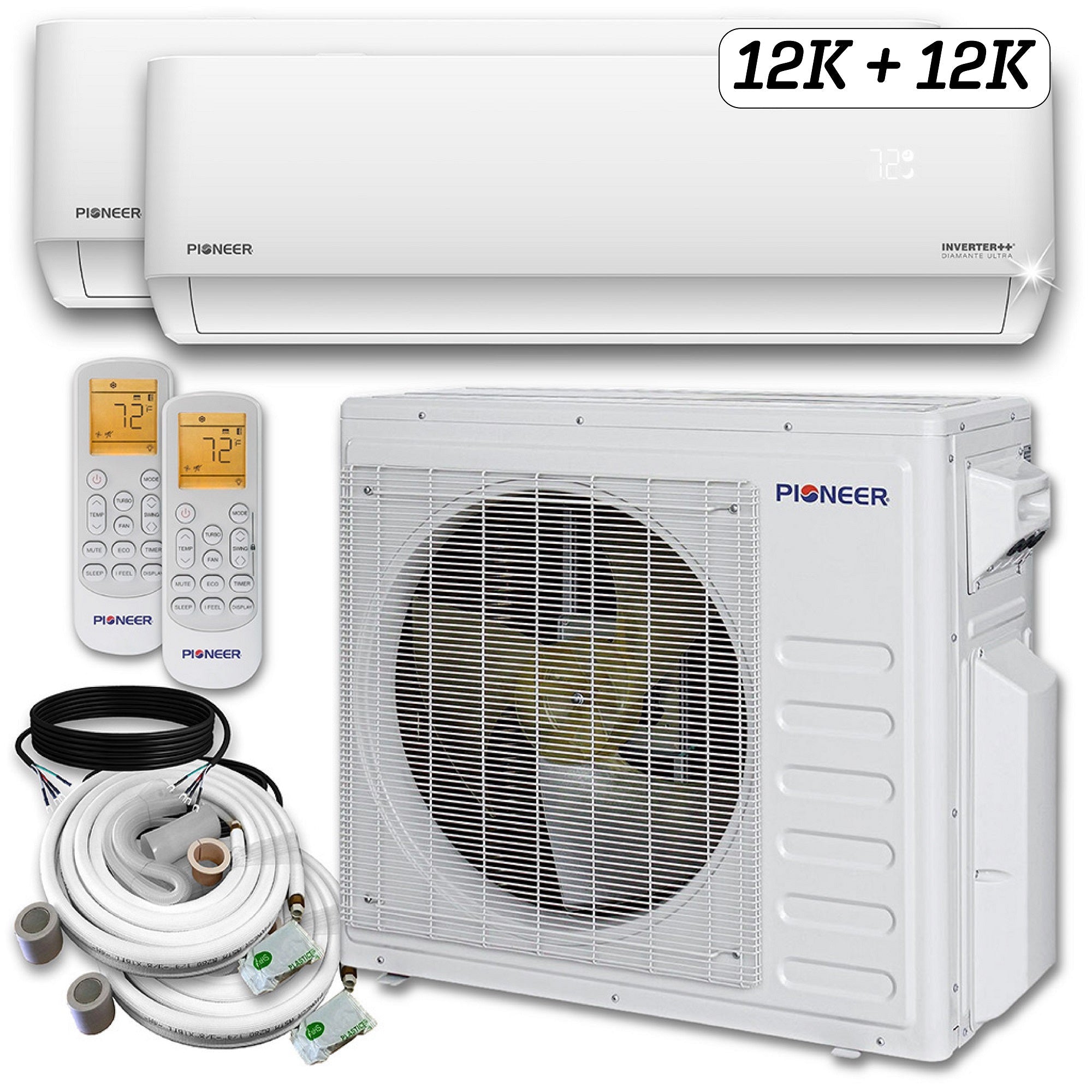

Pioneer's multi split heat pump system is a complete set. It includes one multi zone outdoor unit, multiple wall mount indoor units, piping, accessory kits, and remote controllers. Available in 4 versions for 2, 3, and 4 zones.
- Ultra-efficient, inverter-driven dual-zone heat pump system

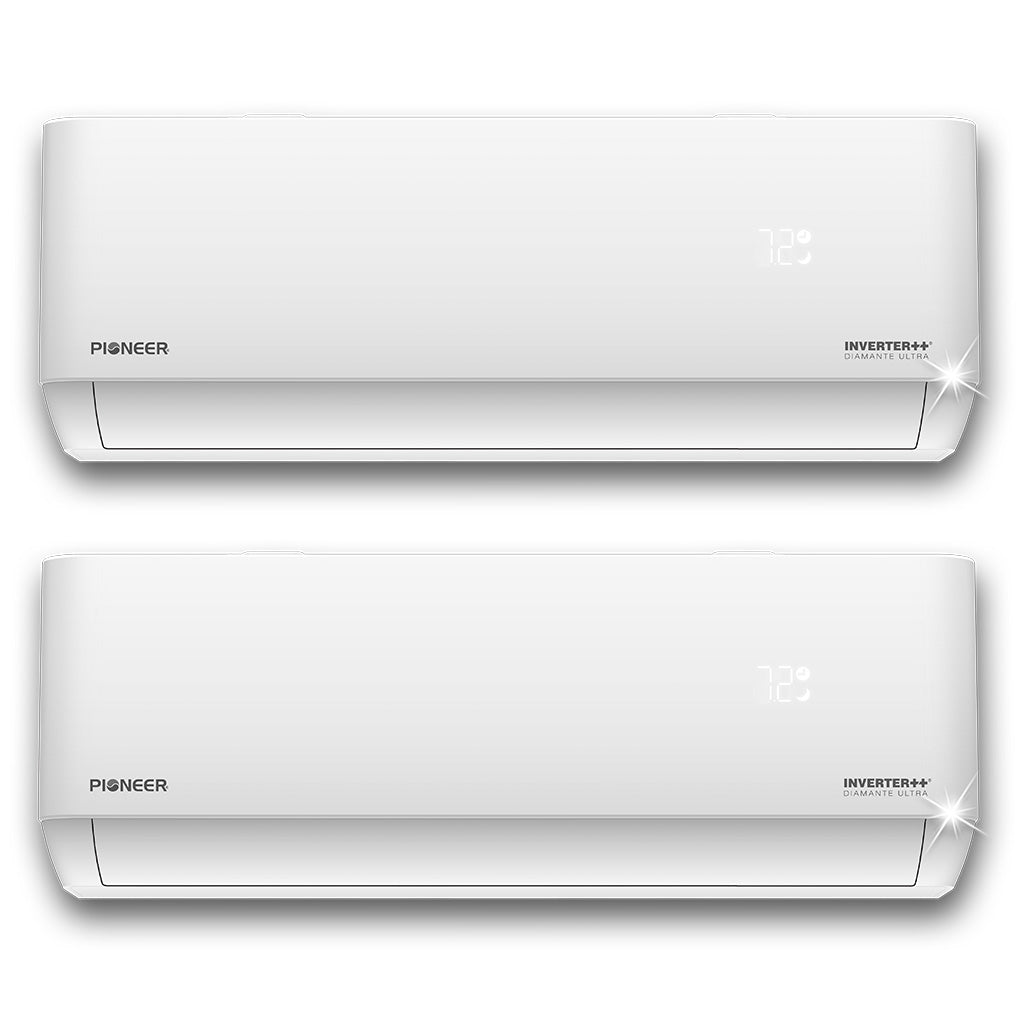

- (x2) 12,000 BTU/H indoor units, 24,000 BTU/H condensing system (7,200 minimum - 26,400 maximum), 22 SEER/12.5 EER
- 26,000 BTU/H heating capacity (7,800 minimum - 28,600 maximum), 10 HSPF/3.5 COP
- 208 - 230-Volt, 60 hertz, 1 phase
- Energy-Star Certified and Wi-Fi Enabled

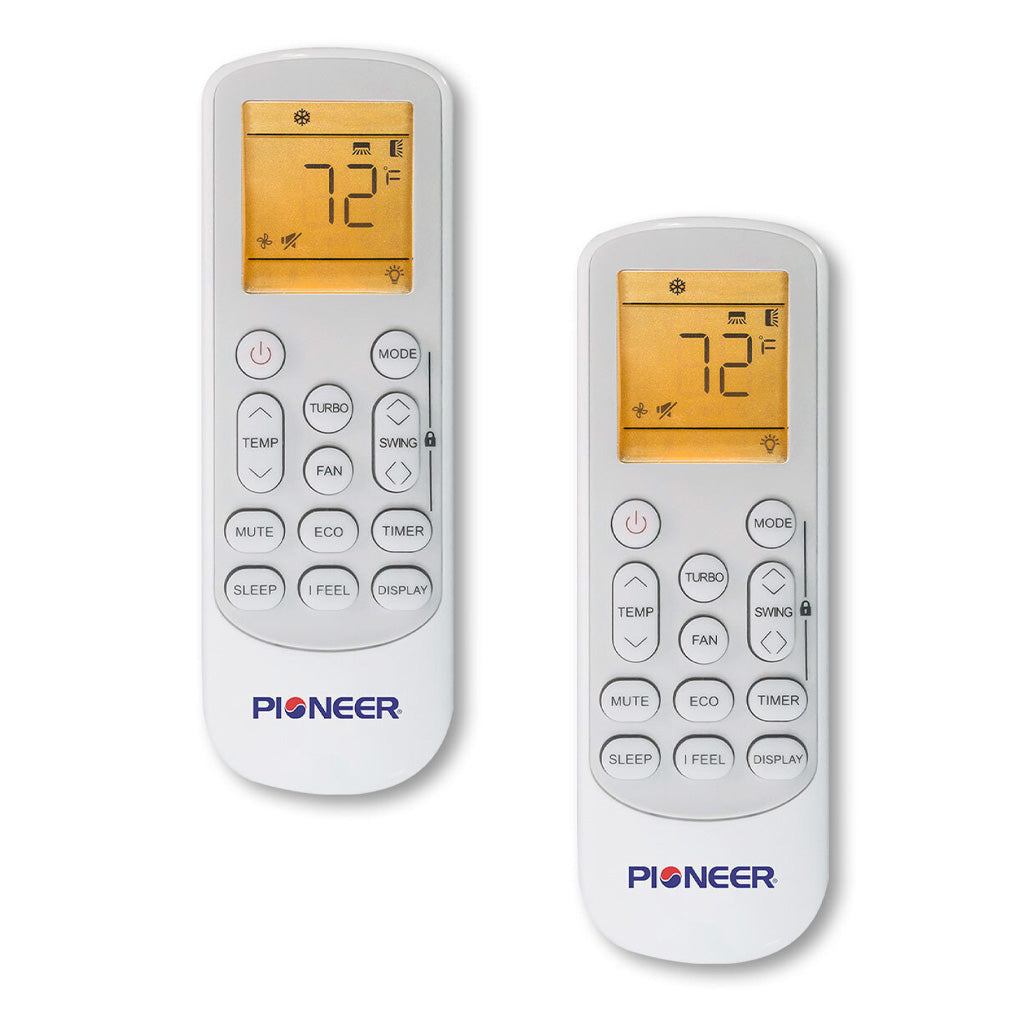

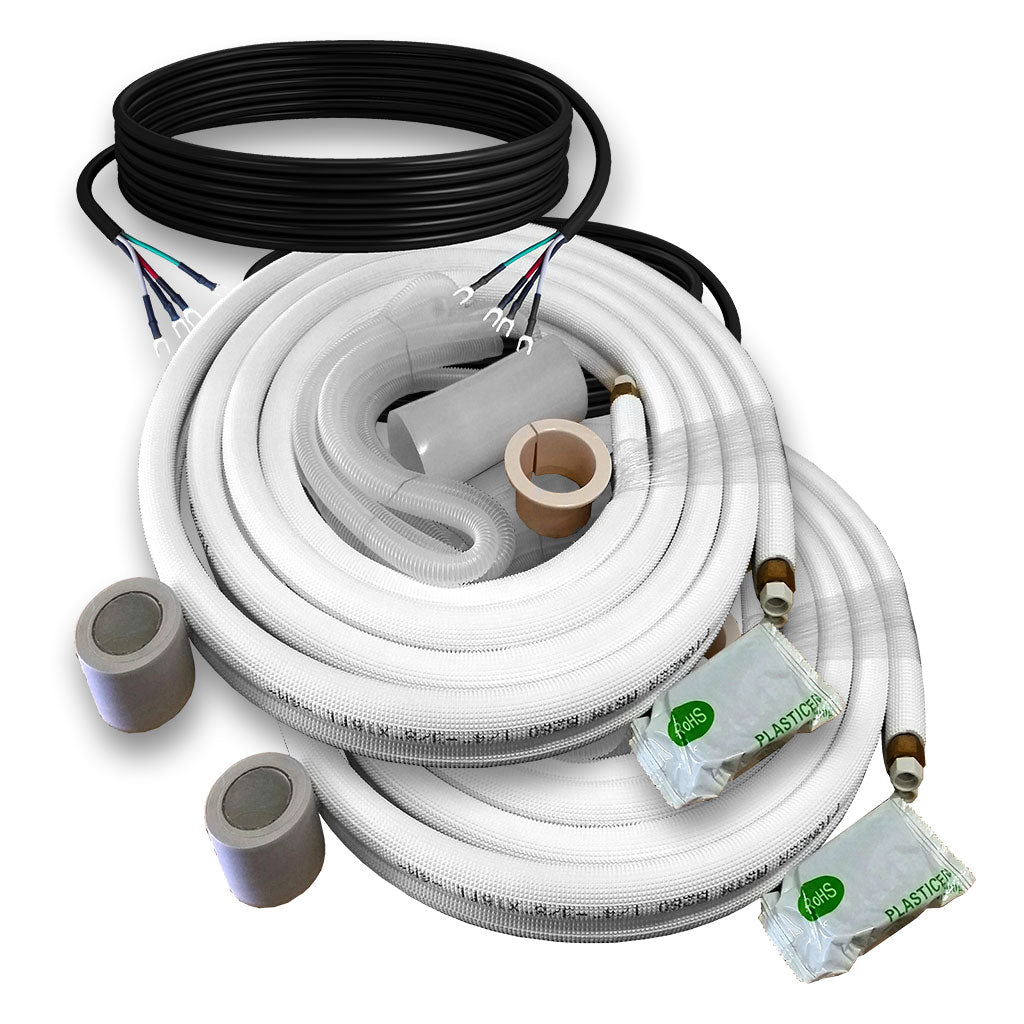

- Complete set with indoor, outdoor sections, wireless remote, line set, and accessories
- Exceptional support hotline for all issues
- Low ambient system for high-capacity heating at -4°F
- Top choice for pros and homeowners, high consumer satisfaction
- ETL, AHRI, DOE certified for safety, performance, and efficiency
- Built with advanced technologies for high performance and low power
Outdoor Unit Manuals
- Technical Brochure
- Submittal Sheet
- Installation Manual (Multi-Split Addendum)
- Service Manual
- AHRI Certificate
- Energy Guide
This Pioneer multi split heat pump system is perfect for both professionals and homeowners. Ideal for cooling and heating multiple zones in your home. Each indoor unit has a 12,000 BTU/H capacity, and the condensing system is 24,000 BTU/H. It offers high energy efficiency with 22 SEER and 12.5 EER. The heating capacity is 26,000 BTU/H. Runs on 208 - 230-Volt, 60 hertz, 1 phase. Energy-Star Certified and Wi-Fi Enabled. Comes with everything you need for installation.
